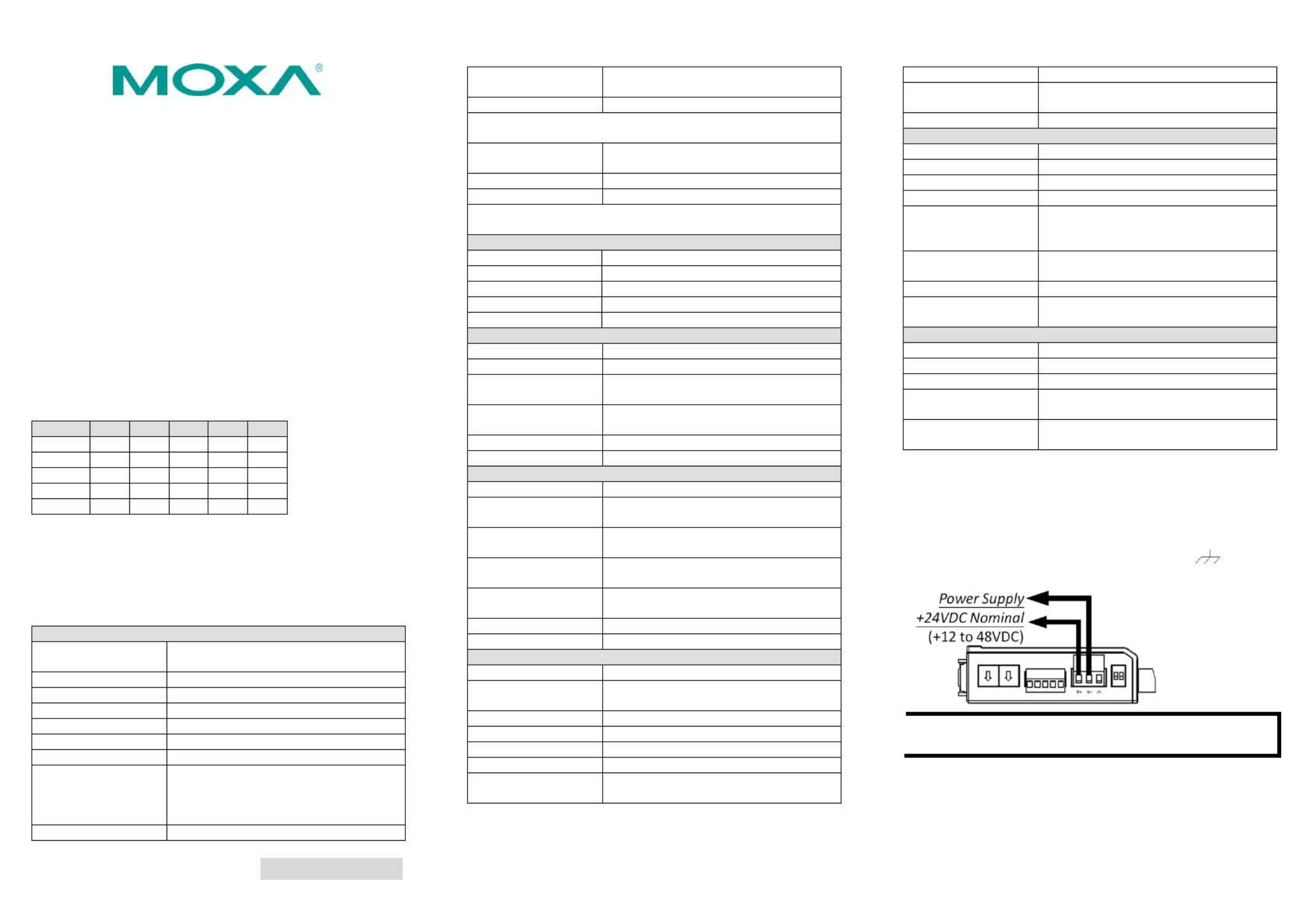

Side 1/6

–1 – – 2 – – 3 –

P/N: 1802012002011

ioLogik R1200 Series

Quick Installation Guide

Second Edition, April 5 201

Overview

The ioLogik R1200 comes with 2 RS-485 serial ports, which can be

used in one of two ways:

1. For backup or asset monitoring, or

2. As an RS-485 repeater.

The ioLogik R1200 has the industry’s first all- -one design and in

provides Automatic Field Configuration via USB. No technical

background is needed, and maintenance is easy since users can

upload a device’s configuration settings and firmware via USB,

without needing to take a PC to the field site.

Model Selection:

ioLogik

DIO

Relay

R1210

–

R1212

–

R1214

–

R1240

–

R1241

–

Package Checklist

• 1 ioLogik R1200 series remote I/O product

• Documentation and software CD

• Quick installation guide (printed)

Specifications

System

Serial IO

2 x -485-2W: Data+, Data-, GND RS

(5-contact terminal block)

Protection

8 KV ESD, 1 KV surge, 3 KV EFT

Protocols

Modbus/RTU

Power Input

24 VDC nominal, 12 to 48 VDC

Wiring

I/O cable max. 14 AWG

Dimensions

27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Weight

under 200 g

Operating Temperature

Standard Models: -10 to 75°C (14 to

167°F)

Wide Temperature Models: -40 to 85°C

(-40 to 185°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m

Note: Please contact Moxa if you require products guaranteed to

function properly at higher altitudes.

Standards and

Certifications

UL 508, CE, FCC Class A

Warranty Period

5 years (excluding ioLogik R1214*)

Details

See www.moxa.com/warranty

*Because of the limited lifetime of power relay, products that use

this component are covered by a 2-year warranty.

Communication Parameters (Initial mode)

Parity

None, Even, Odd (default = None)

Data Bits

Stop Bits

1 2 (default = 1),

Flow Control

None, XON/XOFF (default = None)

Baudrate

1200 to 921.6 kbps (default = 9600)

Digital Input

Sensor Type

NPN, PNP, and Dry contact

I/O Mode

DI or Event Counter

Dry Contact

• On: short to GND

• Off: open

Wet Contact

(DI to COM)

• On: 10 to 30 VDC

• Off: 0 to 3 VDC

Isolation

3K VDC or 2K Vrms

Counter/Frequency

2.5 kHz, power off storage

Digital Output

I/O Mode

DO or Pulse Output

Pulse Wave

Width/Frequency

0.1 ms / 5 kHz

Over-voltage

Protection

45 VDC

Over-current Protection

2.6 A (4 channels @650 mA)

Over-temperature

Shutdown

175°C (typical), 150°C (min.)

Current Rating

200 mA per channel

Isolation

3K VDC or 2K Vrms

Relay Output

Type

Form A (N.O.) relay outputs, 5A

Contact Rating

5 A @ 30 VDC, 5 A @ 250 VAC, 5 A @ 110

VAC

Inductance Load

2 A

Resistance Load

5 A

Breakdown Voltage

500 VAC

Relay On/Off Time

1500 ms (Max.)

Initial Insulation

Resistance

1G min. @ 500 VDC

Expected Life

100,000 times (Typical)

Initial Contact

Resistance

30 milli-ohms (Max.)

Pulse Output

0.3 Hz at rated load

Analog Input

Type

Differential input

Resolution

16 bits

I/O Mode

Voltage / Current

Input Range

0 to 10 VDC, 4 to 20 mA

Accuracy

± 0.1% FSR @ 25°C

± 0.3% FSR @ -10 and 60°C

± 0.5% FSR @ -40 and 75°C

Sampling Rate (all

channels)

12 samples/sec

Input Impedance

10M ohms (minimum)

Built-in Resistor for

Current Input

120 ohms

Analog Output

Resolution

12 bits

Output Range

0 to 10 VDC, 4 to 20 mA

Voltage Output

10 mA (Max.)

Accuracy

± 0.1% FSR @ 25°C

± 0.3% FSR @ -40 and 75°C

Load Resistor

• Internal power: 400 ohms

• External 24V power: 1000 ohms

Installation

Power and Networking

Connect the +12 to +48 VDC power line to the ioLogik R1200’s

terminal block terminal; connect the ground from the power V+

supply to the V- terminal. Connect the ground pin ( ) if earth

ground is available.

NOTE

For safety reasons, the wires attached to the power should

be at least 2 mm (12 gauge) in diameter.

–4 – – 5 – – 6 –

www.moxa.com/support

The Americas:

- -528-6777 (toll-free: 1-888- - +1 714 669 2872)

Europe:

+49- -3 70 03 99-0 89

Asia-Pacific:

+886-2-8919- 1230

China:

+86- -5258-9955 (toll-free: 800- -5036) 21 820

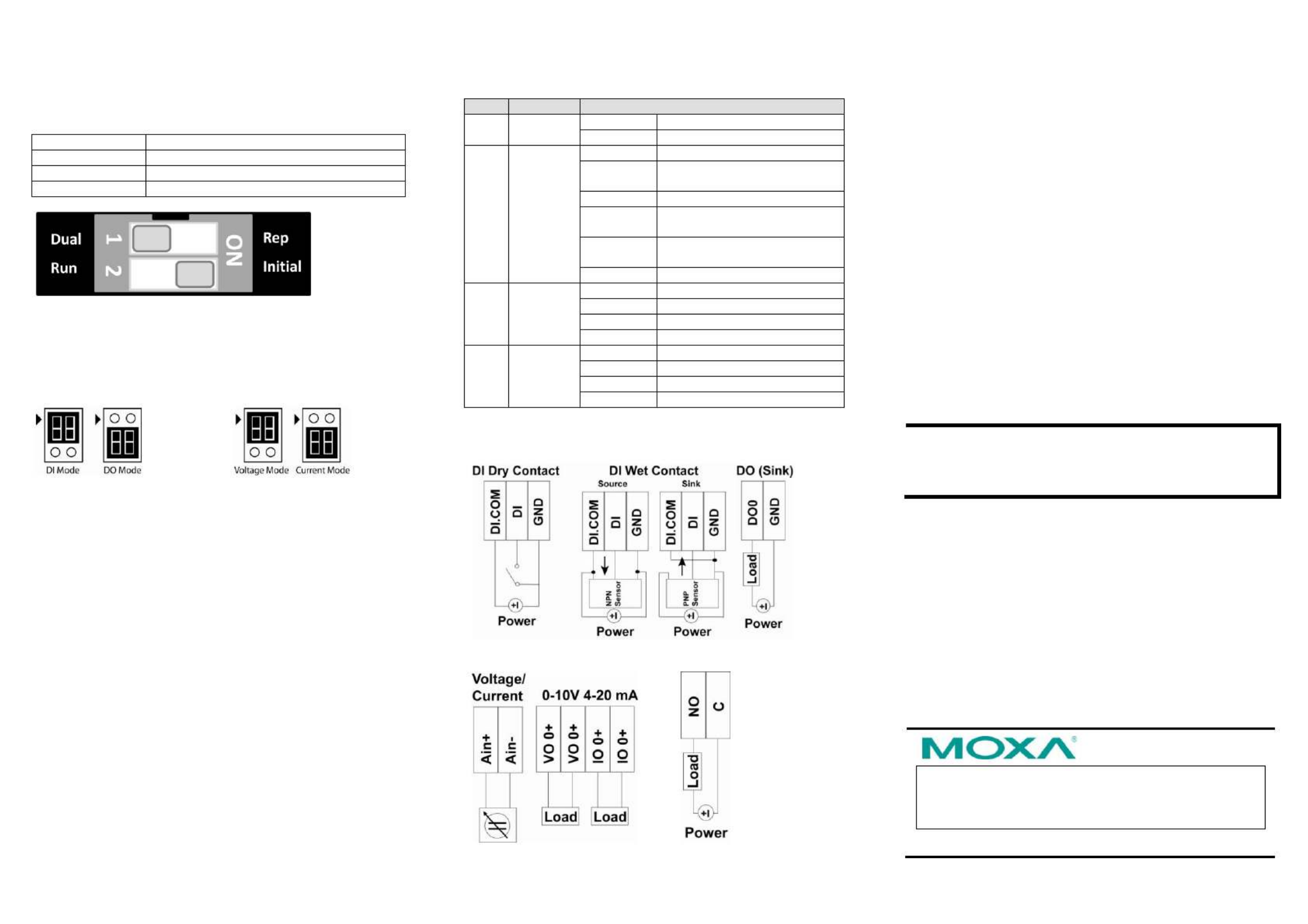

Switch Settings

The R1200 series provides Dual/Rep and Run/Initial switch

setting to set up the communication mode. s

Duel (Default)

Dual RS-485 mode

Rep

Repeater mode

Run

User define communication parameters

Initial (Default)

Initial RS-485 communication parameters

Jumper Settings

The models with DIO or AI channels require configuring the

jumpers inside the enclosure. Remove the screw located on the

back panel and open the cover to configure the jumpers.

DIO mode configuration is

shown to the right (default: DO

Mode).

Analog mode configuration is

shown to the right (default:

Voltage Mode).

Mounting

The ioLogik R1200 is designed with a vertical form factor, and can

be used with both DIN-Rail and wall mounting applications. When

mounting on a rail, release the bottom mounting kit, install the

ioLogik on the rail, and then restore the bottom mounting kit to fix

the ioLogik to the rail. When using wall mounting, release both the

upper and bottom DIN-Rail kits.

LED Indicators

Type

LED Color

LED Action

PWR

Green

On:

Power On

Off:

Power Off

RDY

Green/

Red

Green:

System Ready

Green

Blinking:

Located

Red:

System Boot-up Error

Red

Blinking:

Firmware upgrade / USB upgrade

Green/Red

Blinking:

Safe Mode

Off:

System NOT Ready

Green/

Amber

Green:

Amber:

Blinking:

Data Transmitting

Off:

Disconnected

Green/

Amber

Green:

Amber:

Blinking:

Data Transmitting

Off:

Disconnected

I/O Wiring

Digital Input/Output (Sink Type)

Analog Input

Relay Output (Form A)

System Configuration

ioSearch Utility

ioSearch is a search utility that helps users locate an ioLogik R1200

on the local network. The utility can be found in the Document and

Software CD Software ioSearch; the latest version can be  

downloaded from Moxa website. ’s

Load Factory Default Settings

There are three ways to restore the ioLogik R1200 to the factory

default settings.

1. Hold the RESET button for 5 seconds.

2. Right click the specified ioLogik in the ioSearch utility and

select Reset to Default “ .”

3. Select Load Factory Default from the web console. “ ”

Modbus Address Table

Please refer to the user s manual for details of the ioLogik’ ’s

Modbus address.

NOTE

A “load” in a circuit schematic is a component or portion of

the circuit that consumes electric power. For the diagrams

shown in this document, “load” refers to the devices or

systems connected to the remote I/O unit.
