Hardware Package (

included

Mounting Screw (B) Wire Connector (C) Bolt Nut (D)

Mounting Plate Unit (A) Rubber Pad (E)

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0764

Page 1 / 2

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

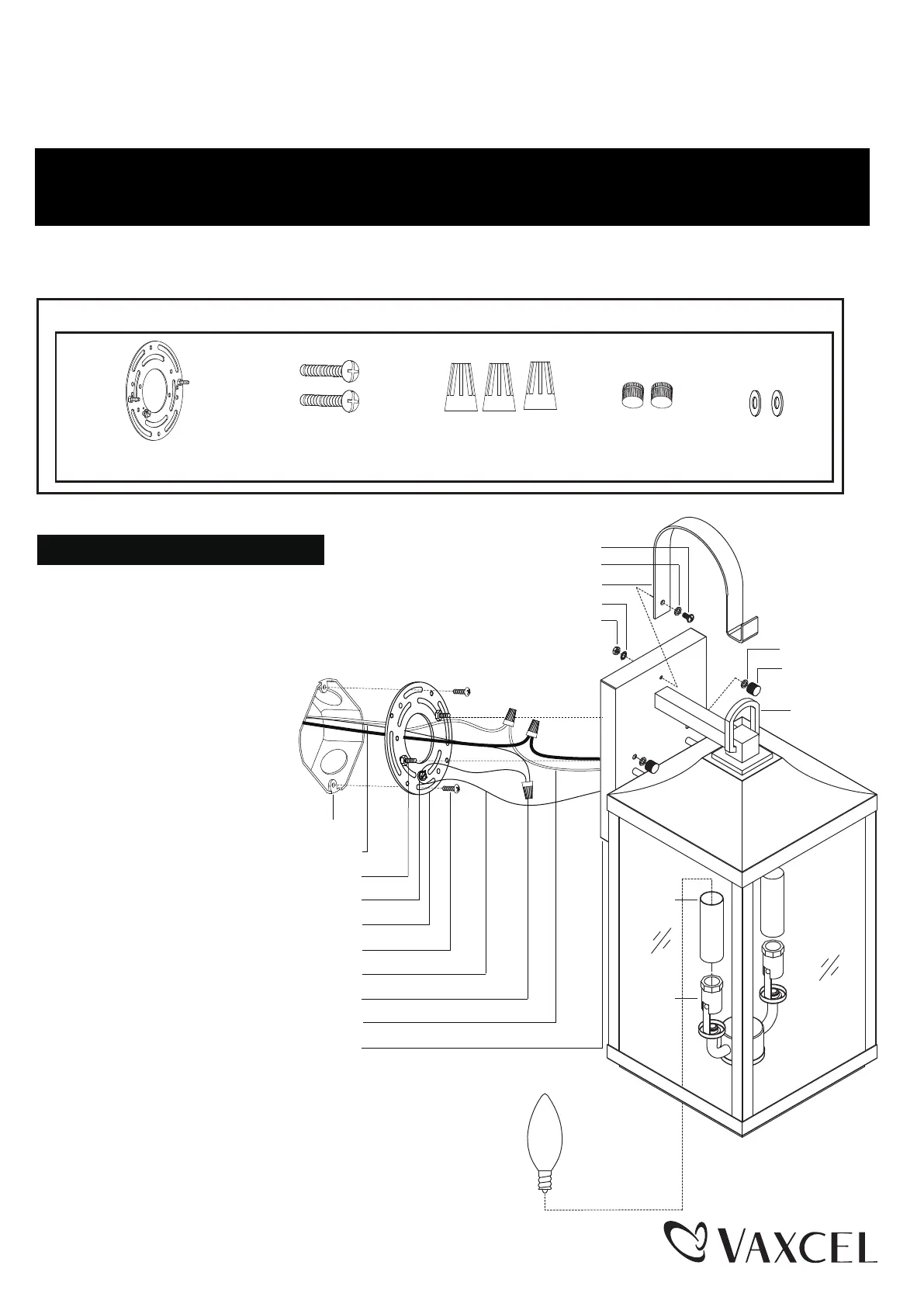

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Mounting Plate Unit (A)

Fixture Wire

Backplate

Fixture Ground Wire

Fixture Mounting Screw

Lock Nut

Washer

Rubber Pad-a

Set Screw

Arm

Loop

Rubber Pad (E)

Bolt Nut (D)

Max. 60W Type B Bulb

(not included)

Candle

Tube

Socket

Turn off the power at fuse or circuit box

Installation Steps

1. Unscrew the two bolt nuts (D), remove

the two rubber pads (E) and mounting

plate unit (A) from the backplate.

2. Attach mounting plate unit (A)

the outlet box by using two

mounting screws (B). Adjust the

length of the preinstalled fixture

mounting screws if necessary.

Note: Make sure that the

fixture mounting screws

are lined up horizontally

to make the fixture level.

3. Hook the curved end of

the arm to the loop, and

attach the other end of

the arm to the backplate

and secure it by using

the rubber pad-a and

the set screw, washer

the lock nut.

4. Pull out the source wires

from the outlet box. Make

wire connections using

wire connectors (C) as follows:

• Connect the hot wire (black insulation) from the fixture

the black wire from the power source.

• Connect the neutral wire (white insulation) the fixture

to the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting

plate unit (A) with the green ground screw, then depending

on local code, connect it to the house wire with the

connector (C).

Carefully put all of the wires back into the outlet box.

240710
