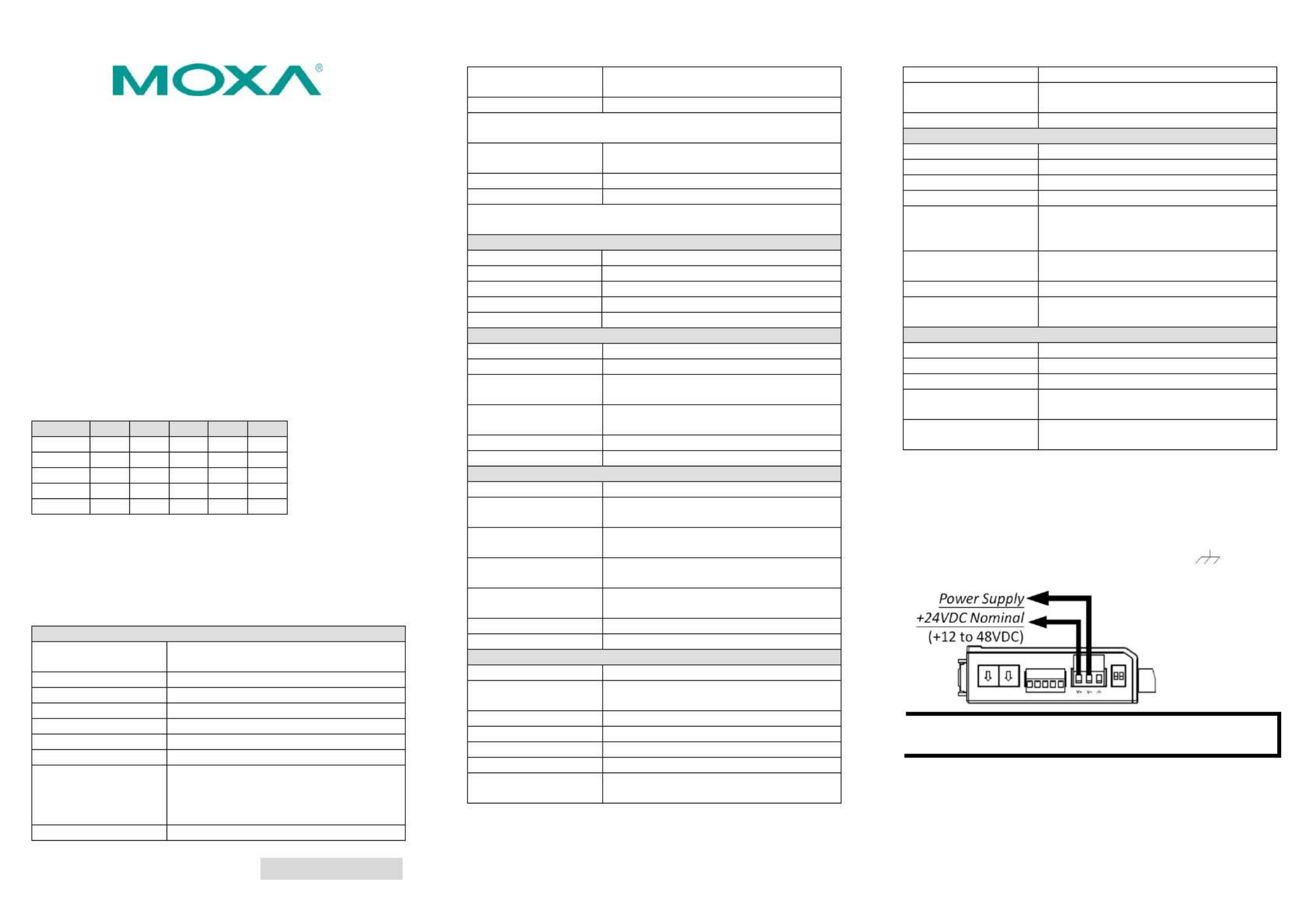

Side 1/8

–1 – – 2 – – 3 –

P/N: 1802012002011

ioLogik R1200 Series

Quick Installation Guide

Second Edition, April 5 201

Overview

The ioLogik R1200 comes with 2 RS-485 serial ports, which can be

used in one of two ways:

1. For backup or asset monitoring, or

2. As an RS-485 repeater.

The ioLogik R1200 has the industry’s first all- -one design and in

provides Automatic Field Configuration via USB. No technical

background is needed, and maintenance is easy since users can

upload a device’s configuration settings and firmware via USB,

without needing to take a PC to the field site.

Model Selection:

ioLogik

DIO

Relay

R1210

–

R1212

–

R1214

–

R1240

–

R1241

–

Package Checklist

• 1 ioLogik R1200 series remote I/O product

• Documentation and software CD

• Quick installation guide (printed)

Specifications

System

Serial IO

2 x -485-2W: Data+, Data-, GND RS

(5-contact terminal block)

Protection

8 KV ESD, 1 KV surge, 3 KV EFT

Protocols

Modbus/RTU

Power Input

24 VDC nominal, 12 to 48 VDC

Wiring

I/O cable max. 14 AWG

Dimensions

27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

Weight

under 200 g

Operating Temperature

Standard Models: -10 to 75°C (14 to

167°F)

Wide Temperature Models: -40 to 85°C

(-40 to 185°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m

Note: Please contact Moxa if you require products guaranteed to

function properly at higher altitudes.

Standards and

Certifications

UL 508, CE, FCC Class A

Warranty Period

5 years (excluding ioLogik R1214*)

Details

See www.moxa.com/warranty

*Because of the limited lifetime of power relay, products that use

this component are covered by a 2-year warranty.

Communication Parameters (Initial mode)

Parity

None, Even, Odd (default = None)

Data Bits

Stop Bits

1 2 (default = 1),

Flow Control

None, XON/XOFF (default = None)

Baudrate

1200 to 921.6 kbps (default = 9600)

Digital Input

Sensor Type

NPN, PNP, and Dry contact

I/O Mode

DI or Event Counter

Dry Contact

• On: short to GND

• Off: open

Wet Contact

(DI to COM)

• On: 10 to 30 VDC

• Off: 0 to 3 VDC

Isolation

3K VDC or 2K Vrms

Counter/Frequency

2.5 kHz, power off storage

Digital Output

I/O Mode

DO or Pulse Output

Pulse Wave

Width/Frequency

0.1 ms / 5 kHz

Over-voltage

Protection

45 VDC

Over-current Protection

2.6 A (4 channels @650 mA)

Over-temperature

Shutdown

175°C (typical), 150°C (min.)

Current Rating

200 mA per channel

Isolation

3K VDC or 2K Vrms

Relay Output

Type

Form A (N.O.) relay outputs, 5A

Contact Rating

5 A @ 30 VDC, 5 A @ 250 VAC, 5 A @ 110

VAC

Inductance Load

2 A

Resistance Load

5 A

Breakdown Voltage

500 VAC

Relay On/Off Time

1500 ms (Max.)

Initial Insulation

Resistance

1G min. @ 500 VDC

Expected Life

100,000 times (Typical)

Initial Contact

Resistance

30 milli-ohms (Max.)

Pulse Output

0.3 Hz at rated load

Analog Input

Type

Differential input

Resolution

16 bits

I/O Mode

Voltage / Current

Input Range

0 to 10 VDC, 4 to 20 mA

Accuracy

± 0.1% FSR @ 25°C

± 0.3% FSR @ -10 and 60°C

± 0.5% FSR @ -40 and 75°C

Sampling Rate (all

channels)

12 samples/sec

Input Impedance

10M ohms (minimum)

Built-in Resistor for

Current Input

120 ohms

Analog Output

Resolution

12 bits

Output Range

0 to 10 VDC, 4 to 20 mA

Voltage Output

10 mA (Max.)

Accuracy

± 0.1% FSR @ 25°C

± 0.3% FSR @ -40 and 75°C

Load Resistor

• Internal power: 400 ohms

• External 24V power: 1000 ohms

Installation

Power and Networking

Connect the +12 to +48 VDC power line to the ioLogik R1200’s

terminal block terminal; connect the ground from the power V+

supply to the V- terminal. Connect the ground pin ( ) if earth

ground is available.

NOTE

For safety reasons, the wires attached to the power should

be at least 2 mm (12 gauge) in diameter.
