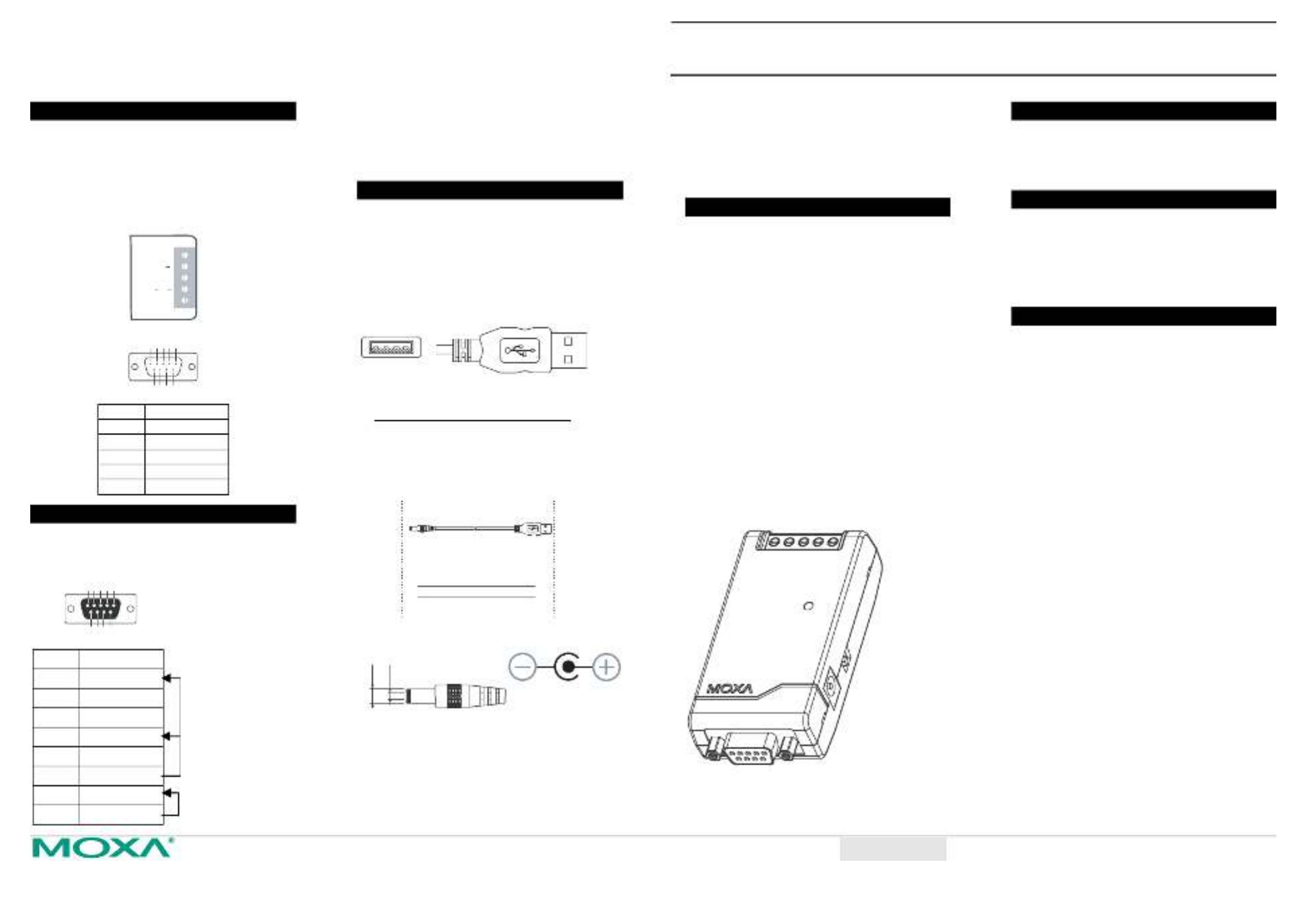

Side 1/6

Isolated High-Speed Serial Port Powered

Serial Media Conversion Solution

TCC-80I/80I-DB9 User’s Manual P/N: 1802000801012 Third Edition.

RS-422/485 Pinouts

The RS-422/RS-485 port with Terminal Block

Connector is shown below. Note that some for some

RS-422/485 devices, “B” is used in place of “+”

and “A” is used in place of “-“. That is, Data(B)

Data(A) are equivalent to Data (+) and Data(-),

respectively.

+D/+R

R D/

DNG

54321

9876

PIN RS-422/485

1 T+

2 T-

3 R+/D+

4 R-/D-

5 GND

RS-232 Pinouts

The female DB9 port for the RS-232 signal is

shown in the following figure.

5 4 3 12

9 68 7

PIN RS-232

1 DCD

2 TxD

3 RxD

4 DSR

5 GND

6 DTR

7 CTS

8 RTS

Note: The RTS and CTS pins are shorted, and the

DTR, DSR, and DCD pins are shorted, so

that users do not need to worry about the

hardware flow control cable wiring

problem.

USB Power Cord

If additional external power is required, the

TCC-80I can be connected to a standard 5 to 12

VDC power supply, or the USB power cord

(CBL-USBAP-50) can be used.

USB “A” Male Connector

:tnorF

1 2 3 4

:poT

TCC-80I

USB Connector

Connector Pinouts Signals

1 +5 VDC

2 --

3 --

4 GND

08-CCT

renni

retuo

gulP rewoP CD

05-PABSU-LBC

BSU tsoH BSU

elameF epyT A

CDV 5+

DNG

gniriW elbaC

CDV 21-5

).xam( Am 02

฀2.1–0.1

฀5.1–0.1

TCC-80I / TCC-80I-DB9

First high-speed, isolated, self-powered RS-232 to

RS-422, 2-wire/4-wire RS-485 bi-directional

converter with 2.5 KV isolation and 15 KV ESD

protection.

Overview

The TCC-80I is the world’s first high-speed,

isolated, self-powered converter. It is powered

through the host’s RS-232 port and provides

complete signal conversion between RS-232 and

RS-422/485 devices. The TCC-80I coverts back and

forth between RS-232’s TxD and RxD lines to

either half duplex 2-wire RS-485 or the balanced

signal of full duplex 4-wire RS-422/485. In addition,

the TCC-80I provides comprehensive 15 KV ESD

protection for all serial lines. Perhaps the most

important feature is the 2.5 KV isolation designed

to prevent ground loop currents, reduce damage

caused by data loss, and prevent damage to the

communication interfaces. The TCC-80I is also

designed to provide RS-485 auto data direction

control, in which the RS-485 driver is enabled

automatically when the circuitry senses the TxD

output from the RS-232 signal. Programming effort

is not required to control the transmission direction

of the half duplex RS-485 signal.

Package Checklist

• TCC-80I or TCC-80I-DB9

• USB Power Cord

• User’s Manual

Applications

• Multipoint data acquisition

• Factory automation

• Remote serial device control

• Building security automation

• Critical industrial control

Features and Specifications

• Signals:

RS-232: TxD, RxD and GND

RS-422: TxD+(B) / -(A),

RxD+(B) / -(A), GND

RS-485: Data+(B) / -(A), GND

• Port types:

RS-232: Female DB9

RS-422/485: Terminal Block or Male DB9

• Auto-senses baudrates from 50bps to 921.6Kbps

• RS-232 loopback:

RTS to CTS; DTR to DSR and DCD

• Supports automatic RS-485 data direction control

with no baudrate switch settings

• 15 KV ESD for all serial RS-232/422/485 signals

• 2.5 KV isolation

• Built-in 120 ohm termination resistors for

RS-422/RS-485 (DIP switch selectable)

• Supports up to 32 units connected in an RS-485

multi-drop network

• Serial Power Source: TxD, RTS, or DTR

(RTS/DTR ON is recommended)

• LED Port Power Indicator (switch settings)

• External Power (jack): DC +5V to +12V adaptors

or USB Power cord (DC +5V)

• Operating temperature: 0 to 60°C

(32 to 140°F)

• × × Dimensions: 42 80 22 mm

• Case: ABS + PC

shorted • Weight: 50 ± 5 g

• CE, FCC Class B approval

• Power Consumption: 20 mA at +5 VDC

(termination disabled)

• Warranty: 5 years

shorted

Produkt Specifikationer

Mærke:	Moxa
Kategori:	Ikke kategoriseret
Model:	TCC-80I-DB9
Vægt:	50 g
Opbevaringstemperatur (T-T):	-20 - 75 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Driftstemperatur (T-T):	0 - 60 °C
Dimensioner (BxDxH):	42 x 80 x 22 mm
Certificering:	CE, FCC
LED-indikatorer:	Ja
Indgangsspænding:	5 - 12 V
Værtsgrænseflade:	RS-232
Strømforbrug:	20 mA
Isolering:	2.5 kV
Baud hastighed:	0.05 Kbit/s
RS-232 signaler:	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
RS-422 signaler:	RxD+, RxD-, SGND, TxD+, TxD-
RS-485 signaler:	Data+, Data-, RxD+, RxD-, SGND, TxD+, TxD-
Output-grænseflade:	RS-422/485
Beskyttelse, højspænding:	Ja
Elektrostatisk afladning association (ESD):	15 kV
