Owner’s Manual - MTX RTT12P

Thank You !

Thank you for purchasing an MTX Audio High-End ampliﬁer. Proper installation matched with MTX speakers and subwoofers provide

superior sound and performance for endless hours of waking the neighbors, slammin’ your friends or ﬂat out stomping wanna-be

players. Congrats and enjoy the ultimate audio experience with MTX !

Speciﬁcations :

• Powered vented tube enclosure

• Mono block class-D ampliﬁer

• Subwoofer : 30cm (12”)

• Ampliﬁer Max Power : 660W

• Ampliﬁer RMS Power : 220W

• High and low level inputs

• EBC (External Bass Control) remote included

• Dimensions : 34,5x35x54,5cm

Power Terminal (+12V) : This is the main power input for the ampliﬁer and must be connected directly to the positive terminal of the

vehicles battery for proper operation. Use caution when installing (+12V) power cable in the vehicle. Avoid running this cable parallel

with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is

also very important to have a tight, secure connection for maximum performance. MTX recommends using a minimum of 6mm2 full

copper power wire with the MTX RTT12P.

Remote Terminal (REM) : The ampliﬁer can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire

from the source unit marked “remote” or “power antenna”.

Ground Terminal (GND) : A proper ground is required for your ampliﬁer to operate at peak performance. A short ground cable the same

diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint,

dirt or debris to expose bare metal where the ground will be attached.

Protection LED (Prot.) : When the amp is in thermal protection, the LED turns to red.

PowerOn LED (PWR.) : The LED illuminates red when the amp is switched on.

RCA Inputs (Input) : These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum

level of 100mV output for proper operation of the ampliﬁer). MTX recommends only high quality RCA cables to decrease the possibility

of radiated noise entering the system.

Gain Control (Gain) : The gain control matches the input sensitivity of the ampliﬁer to the source unit being used.

The operating range varies from 100mv to 4V. Adjusting the gain:

1. Turn the gain control on the ampliﬁer all the way down (counter clockwise).

2. Turn up the volume control on the source unit to approximately 3⁄4 of maximum.

3. Adjust the gain control on the ampliﬁer until audible distortion occurs.

4. Adjust the gain control down until audible distortion disappears.

5. The ampliﬁer is now calibrated to the output of the source unit.

Speaker level inputs (High Level Input) : This input will allow the ampliﬁer to operate from source units with speaker-level outputs.

Output speaker leads from the source unit should be tied directly to the wire harness provided with the ampliﬁer.

Note : When speaker level inputs are used, a remote turn on wire must used to switch the ampliﬁer on and oﬀ.

Remote bass control port (EBC) : use this port to connect the optional MTX EBC. It alows you to control the output level siting at the

front of the car.

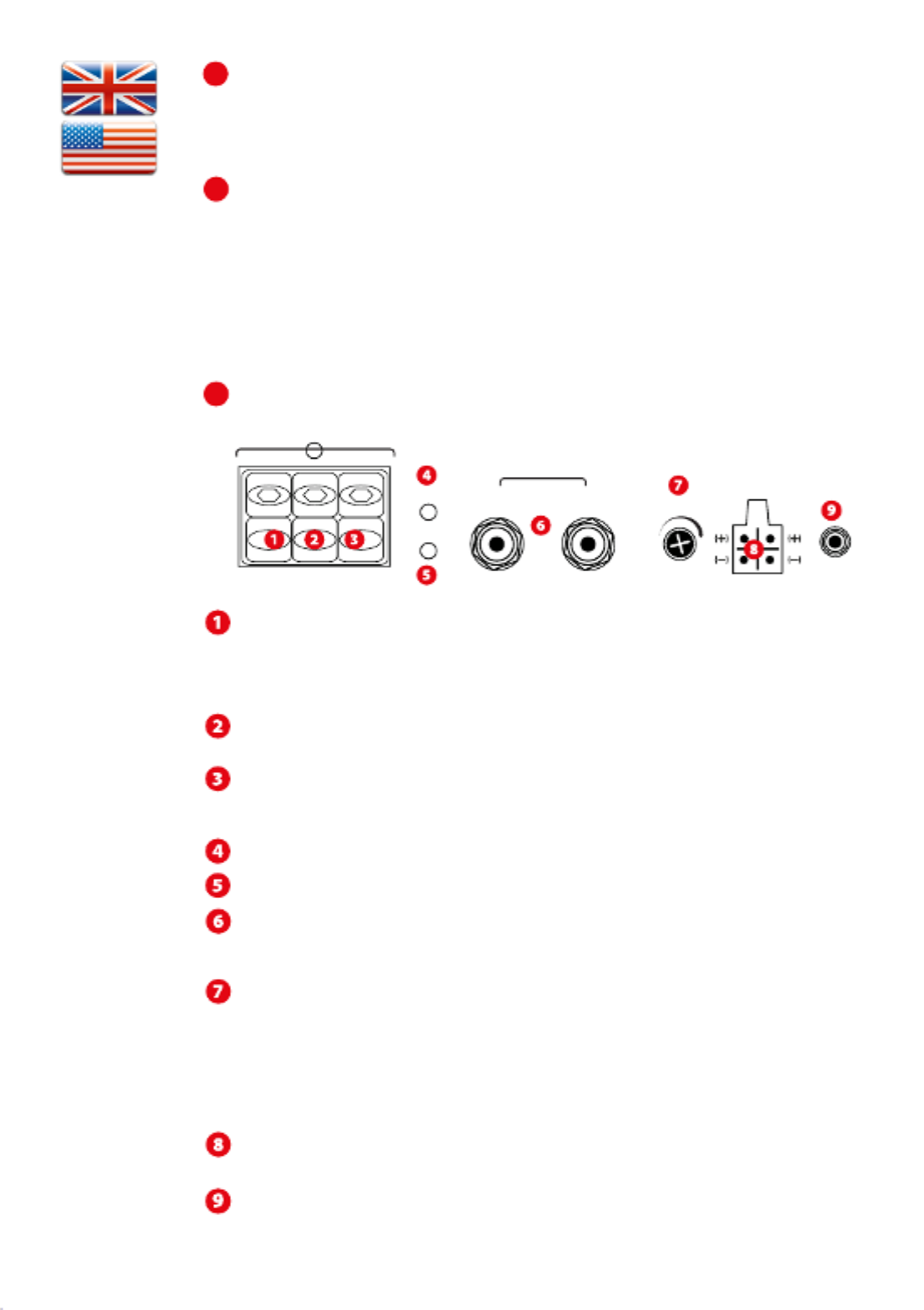

Control Panel on the Ampliﬁer :
