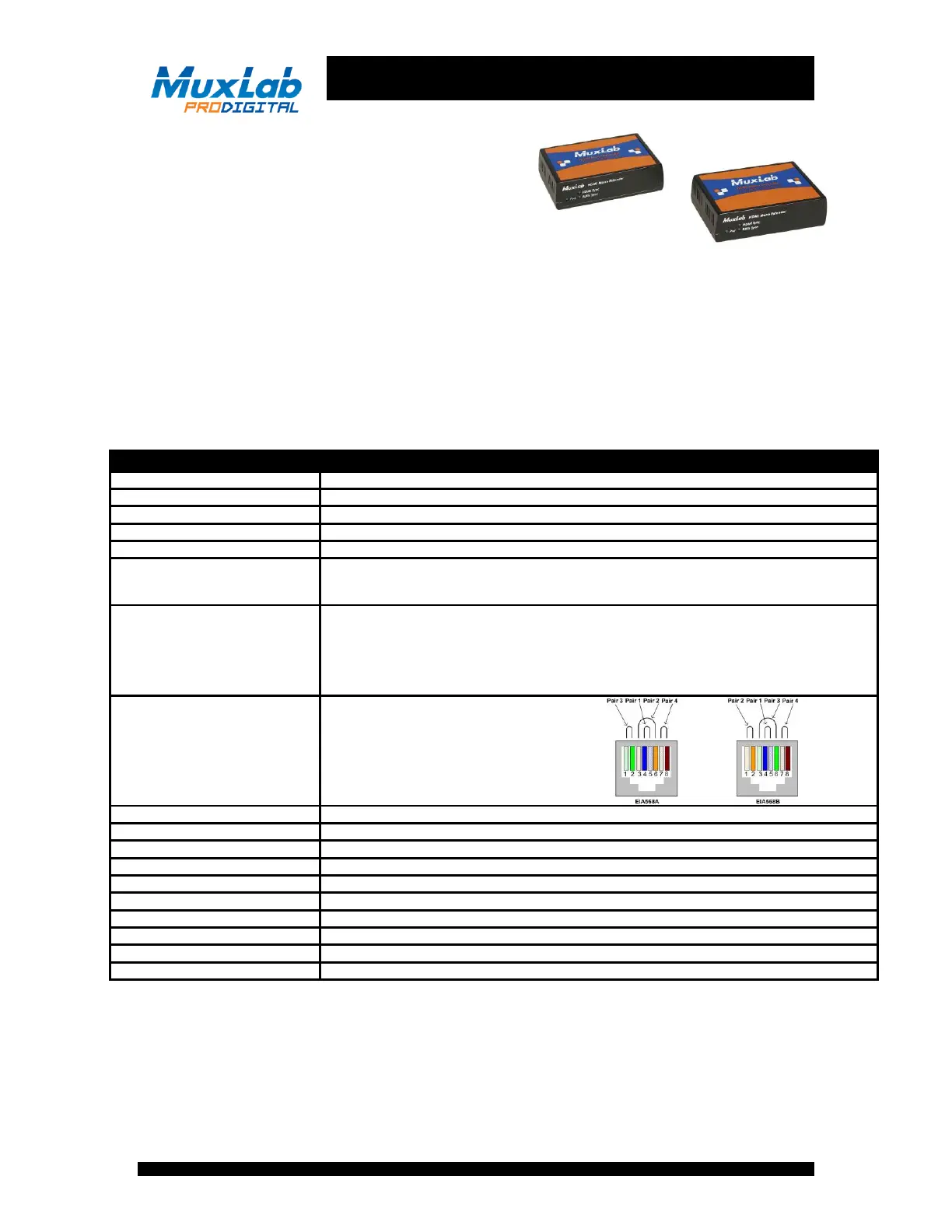

HDMI Extender Kit Long Reach, HDBT, UHD-4K

500450-LR

Overview

The HDMI Extender Kit Long-Reach (500450-LR) allows

HDMI equipment to be connected up to 500ft (150m) @

1080p 8-Bit via one (1) Cat 5e/6 unshielded twisted pair

cables in a point-to-point configuration. The kit comes

with one (1) Transmitter and one (1) Receiver as well as

an IR Emitter (500998) and IR Sensor (500999) for

remote control applications.

Applications

Applications include commercial and residential AV

systems, classroom projector systems, digital signage,

boardroom systems, collaborative PC systems, and

medical information systems.

Key Features

 Supports HDMI 1.3a 1080p 8-bit

 Supports Long Reach extended distances up to 500ft

(150m) over Cat5e/6 UTP or STP cable

 Supports IR remote control of end-devices

 Includes IR Emitter (500998) and IR Sensor (500999)

Specification Chart

Environment

HDMI 1.3a

Devices

DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.

Transmission

Transparent to the user.

Bandwidth

148.5MHz

Signals

HDMI 1.3a protocol.

Connectors

Cables not included.

One (1) HDMI receptacle.

One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair.

One (1) 3.5mm jack for IR Sensor & Emitter (carrier-wave).

Max. Distance*

*Based on a maximum length of 6.6

ft (2m) of HDMI cable per end.

480i/p: Cat 5e/6: 500 ft (150 m)

720p, 1080i: Cat 5e/6: 500 ft (150 m)

1080p 8-Bit: Cat 5e/6: 500 ft (150 m)

Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-

connection reduces the effective distance depending on the grade of twisted cable used.

RJ45 Pin Configuration

Reverse Polarity Sensitive

Use EIA/TIA 568 A or B, straight-

through wiring.

RJ45

Pin 1 (R) Pin 2 (T)

Pin 3 (R) Pin 6 (T)

Pin 4 (R) Pin 5 (T)

Pin 7 (R) Pin 8 (T)

Cable

One (1) Category 5e or better twisted pair cables required.

Power Supply

Two (2) 110-240V/5VDC power supplies with interchangeable blades.

Power Consumption

Transmitter: 4 Watt Receiver: 6 Watt

Temperature

Operating: 0º to 40º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.

Enclosure

Aluminum

Dimensions

4.50” x 3.00” x 1.25” (11.4 x 7.6 x 3.2 cm)

Weight

2.6 lb (1.2 kg)

Compliance

Regulatory: FCC, CE, RoHS Flammability: 94V0

Warranty

2 years

Order Information

500450-LR HDMI Extender Kit Long-Reach, HDBT, UHD-4K (UPC: 627699014509)
