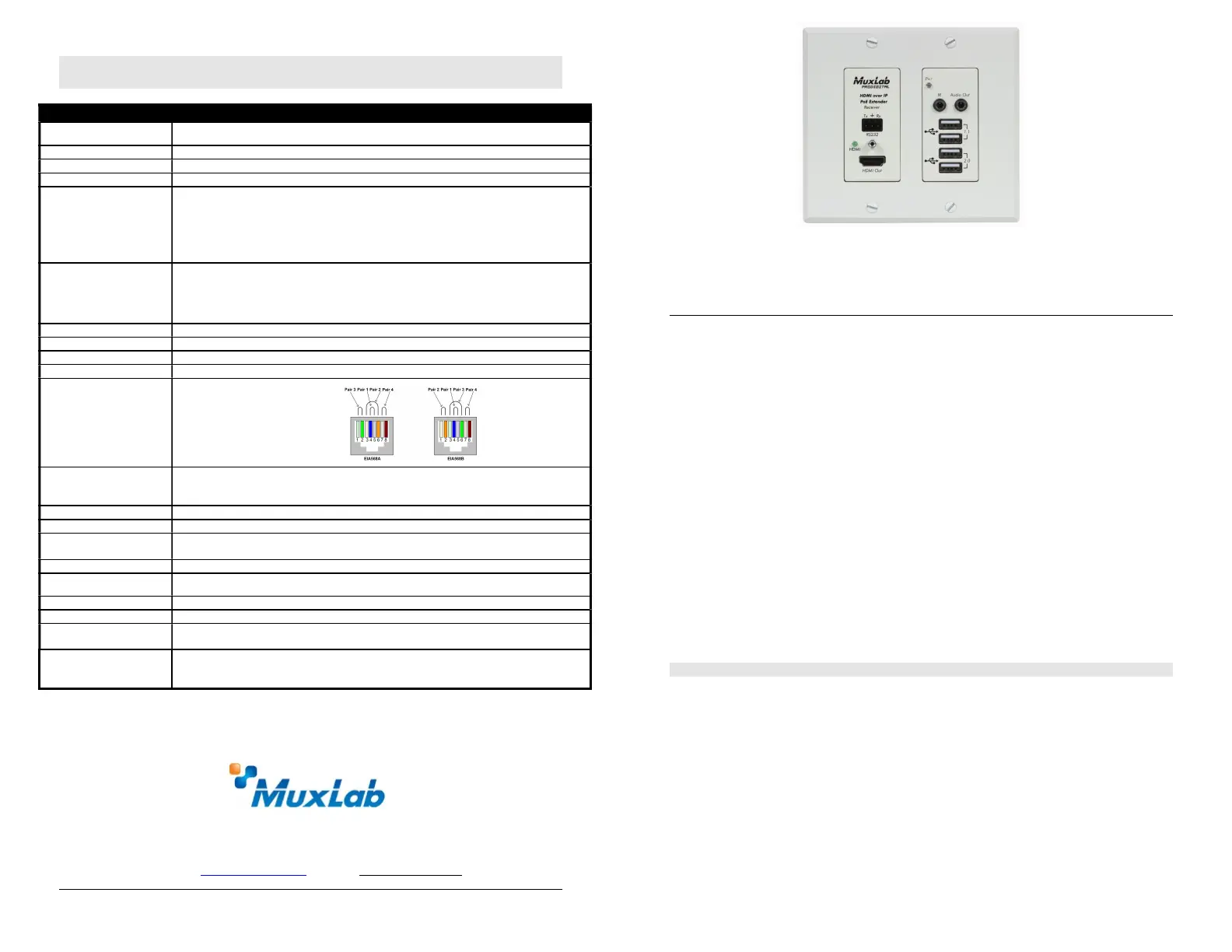

Specifications
Specifications
Environment HDMI and USB connectivity.
Devices
Blu
-
Ray, projectors, monitors, TV, PC, laptops, servers, and Smart White Boards.
Bandwidth
300MHz
Signals
HDMI 2.0b (4K/30 4:4:4 & 4K/60 4:2:0),
USB
1.1
&
2.0
and HDCP 2.2
Connectors
Note: Cables not included.
One (1) HDMI receptacle
Four (1) USB type A connectors
One (1) RJ45 for Ethernet connectivity
One (1) 3.5mm jack for Audio-Out
One (1) 3.5mm jack for Directional IR
One (1) 2.1mm jack for power
Maximum Distance
Based on a maximum
length of 6.6ft (2m) of
HDMI cable per end.
Cat5e/6: 330ft (100m)
Note: When installed in an electrically noisy environment, an STP cable must be used. Also,
cross-connection reduces the effective distance depending on the grade of twisted cable used.
Latency
Typical one (1) frame (16ms)
Compression JPG2000
Bandwidth
Up to 500Mbps
Network Requirement
1 Gig Ethernet with IGMP, Jumbo Frames and PoE
RJ45 Pin Configuration
Reverse Polarity Sensitive.
Use EIA/TIA 568A or 586B
straight-through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Power Source This device supports PoE (PD), an external power supply is not included. It is intended to be
powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may
be purchased separately.
PoE
IEEE 802.3af
Power Consumption
3W
Temperature Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Dimensions
5.03” x 4.53” x 1.
66 (128mm x 115mm x 4
2mm)
Weight 1.35 lb (0.61 kg)
Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
Order Information 500777-RX HDMI/USB over IP PoE Wall Plate Receiver, UHD-4K
500777
-
R
X
-
WH
HDMI/
USB ove
r IP PoE Wall Plate
Receiv
er, U
HD
-
4K
(White)
Accessories
(This item is sold
separately)
500993 Universal Locking Power Supply 5VDC/2.6A US/UK/EU Blade
HDMI over IP PoE Wall Plate Receiver
500777-RX
Quick Installation Guide
Overview
The HDMI over IP PoE Wall Plate Receiver allows HDMI and USB equipment to be connected up
to 330ft (100m), with video supported at up to 4K (3840x2160) resolution @ 30Hz via one (1)
Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. The USB port may be used
for extending various USB devices including Smart Boards. Point-to-multipoint and multipoint-to-
multipoint configurations are also possible by connecting several Transmitters and Receivers to the
same local Ethernet IP network via an Ethernet Switch. The HDMI/USB over IP PoE Wall Plate
Receiver also supports PoE (PD) if used with a PoE (PSE) Ethernet Switch.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must
have Gigabit ports, Jumbo Frame capability, DHCP Server capability, PoE, and additionally
support the IGMP communication protocol for the multipoint-to-multipoint case. MuxLab
recommends using the Cisco SG300 or SG500 Series Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500777-RX and other MuxLab IP based products via an Ethernet web interface.
The MuxLab Control Android and iOS Application may also be used for connectivity management,
in combination with the 500811 Network Controller.
Applications
Applications include commercial and residential AV systems, classroom systems, digital signage,
boardroom systems, conference rooms, and collaborative PC systems.
Installation
1. Identify the connectors on the Transmitter as indicated on the product labels, see the above product
view for further details. Note that the Ethernet network connector is on the rear.
2. Verify that the distance between the HDMI/USB over IP PoE Wall Plate Transmitter and
other MuxLab Receivers is within the specifications (see Specifications table for more
details).
3. Connect the Receiver to the HDMI display equipment with an HDMI compliant cable.
3a. If the application is point-to-point, then connect one (1) Cat 5e/6 cable (or higher)
coming from the Transmitter, to the RJ45 LINK connector on the Receiver. If
transmitting over the network, use an Ethernet Switch between Transmitter and
Receiver.
© MuxLab Inc. 2019
4. Connect the USB port of the Host device to the Transmitter, the USB port of the end device to
the Receiver.
4a. Connect the two Receiver USB 1.1 ports to a USB keyboard and mouse.
4c. Connect the two Receiver USB 2.0 ports to other USB devices, such as a printer,
drawing pad, storage device, camera, etc.
5. If the configuration is a point-to-multipoint or multipoint-to-multipoint:
5a. You will need to use an Ethernet Switch with Gigabit ports and DHCP Server support.
In addition Jumbo Frame support is required and IGMP Protocol support is required for
the multipoint-to-multipoint case. Verify that the Ethernet Switch is configured
correctly and that the DHCP Server, the IGMP Protocol and the Jumbo Frame are
enabled.
6. Powering the Transmitter or Receiver via an external power supply is only necessary where
PoE (PSE) is unavailable. If PoE is unavailable, connect a 5 VDC power supply (500993 -
sold separately) to each Receiver and to an AC power outlet. Next connect each Transmitter
in the same manner. If power is present, the green power LED on each Transmitter and
Receiver will illuminate.
Note: Power ‘ON’ the HDMI/USB over IP PoE Wall Plate Transmitter and any other
Transmitters and Receivers only after all connections have been made.
7. Power ‘ON’ the HDMI and USB equipment and verify the image quality and data transfer.

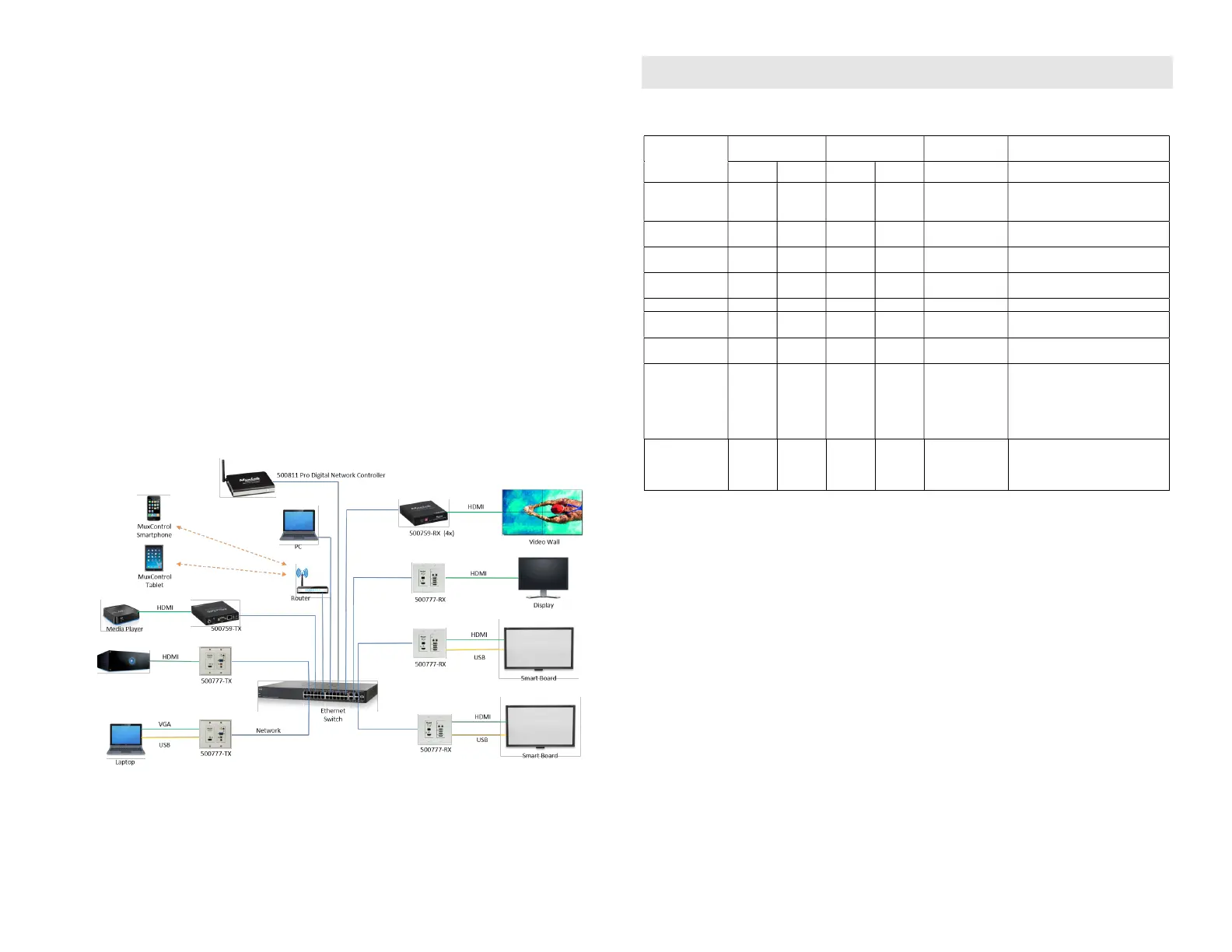

8. The following diagram illustrates a typical LAN configuration with other compatible MuxLab
AV over IP devices. The 500777-RX is compatible with the MuxLab
500759/770/771/773/778 Transmitters.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions in regard to
the installation of the HDMI/USB over IP PoE Wall Plate Transmitter:
Symptom
Transmitter LEDs Receiver LEDs
Probable
Cause
Possible
Solutions
Power Link Power Link
No Image or
USB signal
OFF OFF OFF OFF No power • Check power connections
• Check PoE Ethernet Switch
Setup
No Image or
USB signal
BLINK OFF BLINK ON Booting • Wait until booting process is
finish
ed
No Image or
USB signal
ON OFF ON OFF No Ethernet Link
• Check Ethernet Switch Status
•
Check UTP Cables
Info Screen ON OFF ON BLINK UTP Cable • Check the Transmitter UTP
cable
Info Screen
ON
ON
ON
OFF
UTP Cable
•
Check the
Receiver
UTP cable.
Info Screen ON BLINK ON BLINK No Data
Connection
• Check network settings
Info Screen ON ON ON BLINK Wrong setting on
Receiver
• Check network settings
Choppy Video ON ON ON ON Configuration • Check cable length
• Check the HDMI or VGA Cable
Quality
• Check if Jumbo Frame and
IGMP are enabled on the
Ethernet Switch
Image flickers
when powering
up nearby
equipment
ON ON ON ON Interference • Use STP cables
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-
5228 (toll-free in North America) or (+1) 514-905-0588 (International).
