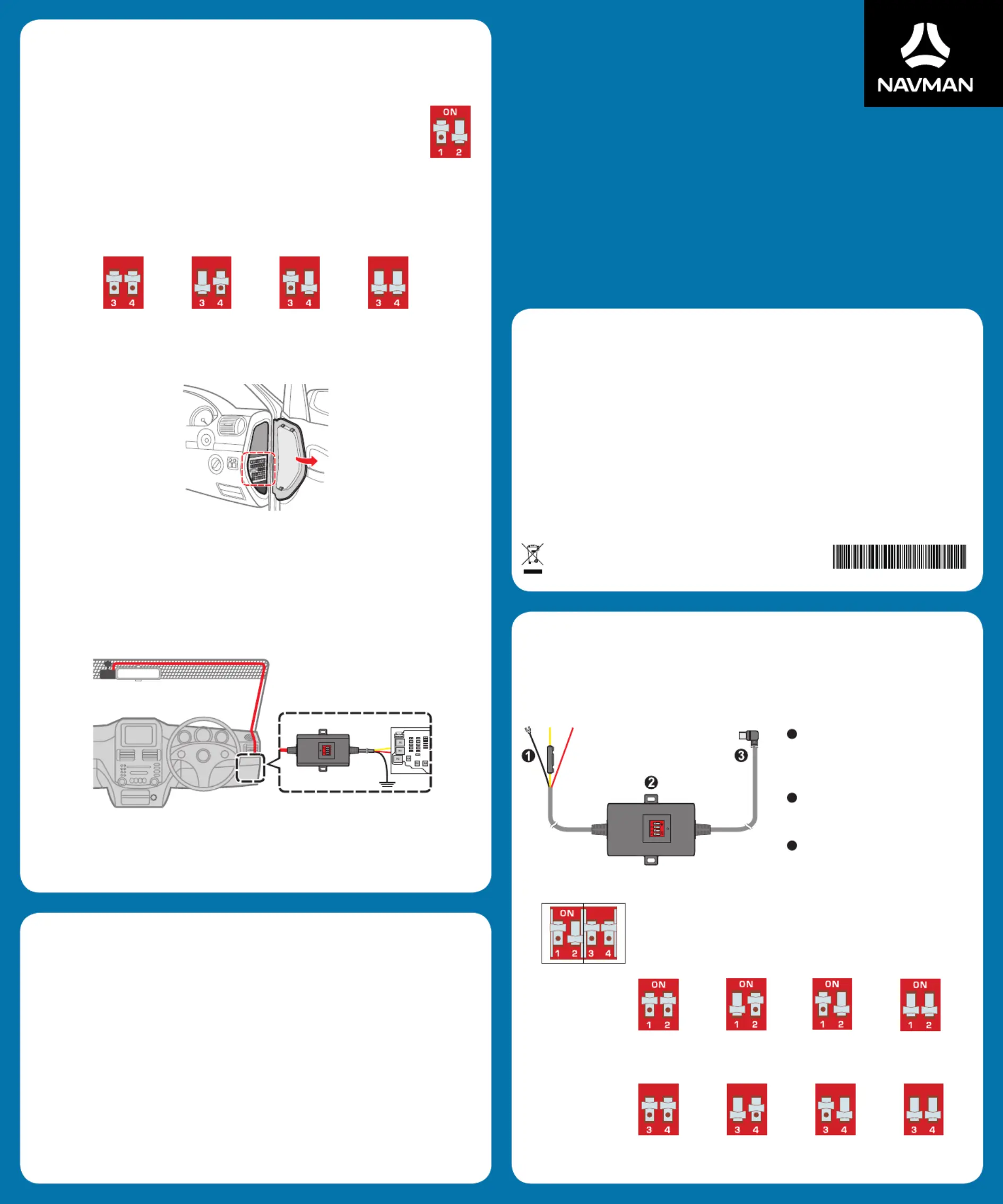

User Manual
Smart Box II
Revision: R00
(1/2019)
Trademarks
All brand and product names are trademarks or registered trademarks of their respective companies.
Disclaimer
Specifications and documents are subject to change without notice. Navman does not warrant this document
discrepancies between the device and the documents.
Notes
Not all models are available in all regions.
Depending upon the specific model purchased, the colour and look of your device and accessories may not exactly
match the graphics shown in this document.
Regulatory information
For regulatory identification purposes, this product is assigned a model number of N467. Marking labels located on
the exterior of your device indicate the regulations that your model complies with. Please check the marking labels
on your device and refer to the corresponding statements in this section. Some notices apply to specific models
only. The user needs to switch off the device when exposed to areas with potentially explosive atmospheres such
as petrol stations, chemical storage depots and blasting operations.
WEEE
This product must not be disposed of as normal household waste,
in accordance with the EU directive for waste electrical and
electronic equipment (WEEE – 2012/19/EU). Instead, it should
be disposed of by returning it to the point of sale, or to a municipal
recycling collection point.
5 6 1 5 N 5 8 3 0 0 0 9 R 0 0
Introduction
Navman Smart Box II provides power to your Navman dash cam by connecting with the constant power of the fuse
terminal of your vehicle. It is very useful when you want to record video footage whilst parking. The Smart Box II
can prevent the discharge of the vehicle battery by blocking the electric power automatically as it checks the preset
time and voltage.
Parts and functions
1
Fuse cable
- ACC (red wire)
- B+ (yellow wire)
- GND (black wire)
2
Main unit of Smart Box II
- Time and voltage setting switches
- LED indicator
3
Mini-USB connector
Connects to the recorder.
Time and voltage setting switches
Switch 1 and 2: Voltage setting switches
Switch 3 and 4: Time setting switches
1 ON / 2 ON
11.8V
23.6V
Passenger car/RV:
Truck/bus:
1 OFF / 2 ON
12.0V
24.0V
1 ON / 2 OFF
12.2V
24.4V
1 OFF / 2 OFF
11.6V
23.2V
3 ON / 4 ON
12 hours
3 OFF / 4 ON
24 hours
3 ON / 4 OFF
36 hours
3 OFF / 4 OFF
Power off
Precautions and notices
Rated input voltage: DC 12 - 24V, output current: 2A maximum
WARNING! Do not use other than rated output voltage status. This product can only be used with the vehicles that
have DC 12 - 24V voltage. (Passenger car and RV: 12V; truck and bus: 24V)
l
Follow the installation instructions or ask a specialist technician for assistance.
l
There may be deviations in vehicle power voltages about vehicle battery status and usage environments. Make
sure to turn off to the dash cam if the vehicle will not be used for 2 days or more.
l
Never attempt to disassemble, repair or make any modifications to the product. Disassembling, modifying or
any attempt to repair could cause damage to your device, may inflict bodily harm or damage to property and will
void any warranty.
l
You must use the product as intended. Misuses, neglect, accident or abuse will not cover the warranty,
replacement or refund.
l
Do not drop the product or subject it to severe shock.
l
When installing, mounting and storing, please do so in a dry place.
l
Please check the installation and operation of the product regularly.
l
The manufacturer is not responsible for any damages caused by not observing the above warnings and
precautions.
Installation and setup
1. Set up the voltage and time by adjusting the switches.
l
Setting up the voltage: The Smart Box II is designed to power the dash cam by drawing power from the car's
battery until it reaches a specific voltage limit. Once the car's battery falls lower than this level, the Smart Box
II will automatically stop drawing power from the car's battery.
It is recommended to set the Smart Box II to 12.2V (for passenger car and RV) / 24.4V (for
truck and bus), and only change it to the other setting options after checking with your car's
manufacturer and/or car’s battery manufacturer. Please contact your car's manufacturer and/
or car’s battery manufacturer for more information relating to the minimum battery voltage
required for your vehicle.
l
Setting up the time: If the time passes the preset time (by checking the time after vehicle ignition is turned
off), the power to the dash cam will be disconnected automatically.
l
Select either 12 / 24 / 36 hours to enable the uninterrupted power function of the Smart Box II and the
dash cam will be powered even when the vehicle engine stops.
l
If Power off is selected, the uninterrupted power function of the Smart Box II will be disabled and the dash
cam will be powered only when the vehicle engine is started.
12 hours 24 hours 36 hours Power off
2. Locate and open the fuse box inside of the vehicle.
Please note that the installation illustrations are for your reference only. The placement of the fuse box may
vary depending on the vehicle model. If you encounter any problems during installation, it is recommended
that you contact a skilled installer (e.g. the service personnel of the vehicle) for assistance.
3. Check and confirm the vehicle's voltage by using the electricity tester as battery voltages varies by vehicle.
You must confirm your vehicle's voltage.
Use the electricity tester to locate the fuse from which the power is supplied even when the vehicle is turned
off, such as the emergency flashing hazard lights, interior and door lights etc. Connect the yellow wire (B+) to
the fuse.
Use the electricity tester to locate the fuse from which the power is not supplied when the vehicle is turned off,
such as the indicator lights. Connect the red wire (ACC) to the fuse.
The black wire (GND) must be connected to the metal part of the vehicle for grounding. If not grounded, this
product may not work properly. You can use a screw to attach the black wire to the vehicle (try to find a screw
hole on any metal part).
Connect the Smart Box II to the dash cam and confirm it is working properly by the LED indicator that glows in
red. Then you can arrange the cable and complete the installation.
The length of the provided cable is about 4.5 metres. You can route the cable through the top ceiling and the
A-pillar so that it does not interfere with driving. Make sure that the cable installation does not interfere with
the vehicle airbags or other safety features.
