Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: 509.525.7660 Fax: 509.525.7907

E-mail: info@nelsonirrigation.com Web site: www.nelsonirrigation.com

1/2 PVC-5, PVC STAKE ASSEMBLY FOR 5 MM TUBING ASSEMBLY OPTIONS (Includes PVC Stake)

11284-21530 PVC-5, PVC Stake Assy, 30” (76 cm), 5mm Tube, 15” (38 cm) Stake, Tube exit hole* 4.5” (11 cm) from top (assembled)

11284-22130 PV-C5, PVC Stake Assy, 30” (76 cm), 5mm Tube, 21” (53 cm) Stake, Tube exit hole* 9.5” (24 cm) from top (assembled)

11284-22142 PV-C5, PVC Stake Assy, 42” (107 cm), 5mm Tube, 21” (53 cm) Stake, Tube exit hole* 9.5” (24 cm) from top (assembled)

1/2 PVC-4, PVC STAKE ASSEMBLY FOR 4 MM TUBING ASSEMBLY OPTIONS (Includes PVC Stake)

11260-20924 PVC-4, PVC Stake Assy., 24” (61 cm) 4MM Tube, 9” (23 cm) Stake, Tube exit hole* 2.5” (6 cm) from top (assembled)

11260-21224 PVC-4, PVC Stake Assy., 24” (61 cm) 4MM Tube, 12” (30 cm) Stake, Tube exit hole* 4” (10 cm) from top (assembled)

11260-21230 PVC-4, PVC Stake Assy., 30” (76 cm) 4MM Tube, 12” (30 cm) Stake, Tube exit hole* 4” (10 cm) from top (assembled)

11260-21524 PVC-4, PVC Stake Assy., 24” (61 cm) 4MM Tube, 15” (38 cm) Stake, Tube exit hole* 4.5” (11 cm) from top (assembled)

11260-21530 PVC-4, PVC Stake Assy., 30” (76 cm) 4MM Tube, 15” (38 cm) Stake, Tube exit hole* 4.5” (11 cm) from top (assembled)

11260-21824 PVC-4, PVC Stake Assy., 24” (61 cm) 4MM Tube, 18” (46 cm) Stake, Tube exit hole* 8” (20 cm) from top (assembled)

11260-21830 PVC-4, PVC Stake Assy., 30” (76 cm) 4MM Tube, 18” (46 cm) Stake, Tube exit hole* 8” (20 cm) from top (assembled)

For custom tubing or PV

C Stake lengths order un-assembled fittings and coils of tubing.

5mm Feedtube, 00’( m) coil #928410 305

4mm Feedtube 1000’ (305 m) coil #10081-002

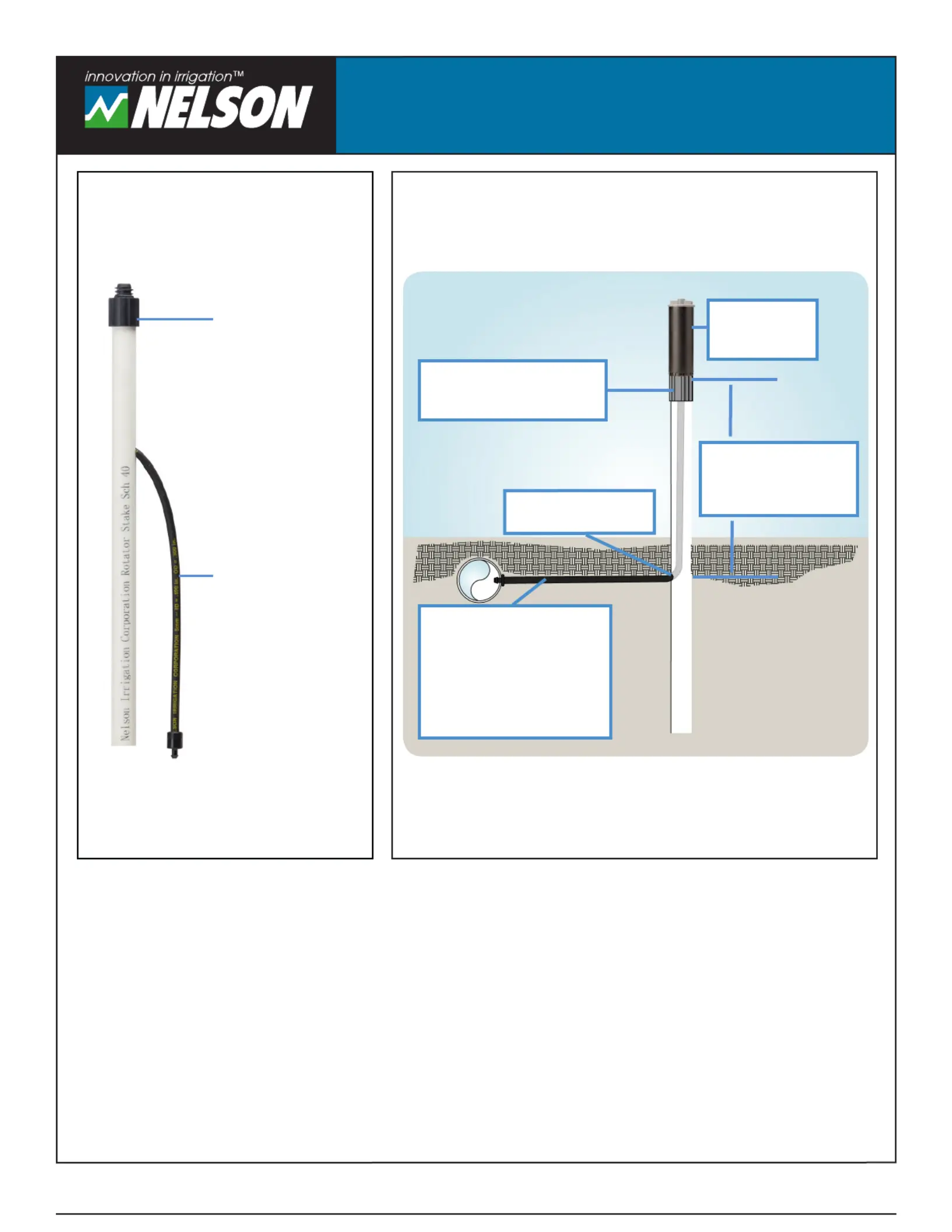

1/2 PVC-4

PVC Stake Assembly for 4 mm Tubing

FOR THE R5 ROTATOR & R5 POP-UP

(R5 Nozzle Sizes #40-#50, or 8.5-18 GPH)

4 mm Feetube

with LTO Barb x Barb #9960-

924 = 24” (61 cm)

#9960-930 = 30” (76 cm)

#9960-936 = 36” (91 cm)

#9960-948 = 48” (122 cm)

Tube Exit Hole

1/2” PVC Stake Adapter

(Gray) — 4 mm, #11258

R5 ROTATOR®

Pop-UP

*Distance from top

to exit hole

See below

1/2 PVC-5

PVC Stake Assembly

for 5 mm Tubing

1/2” PVC Stake

Adapter

(Black) #11271

5mm Feedtube 30”

(76cm) with 9305

LTO Assembled

#11283-030

FOR THE R5 ROTATOR & R5 POP-UP

& THE R10 ROTATOR

(R10 Nozzle Sizes #40-#60,

.35, or .5 10 FC)

PVC STAKE ASSEMBLY

OPTIONS

PVC STAKE ASSEMBLY

OPTIONS

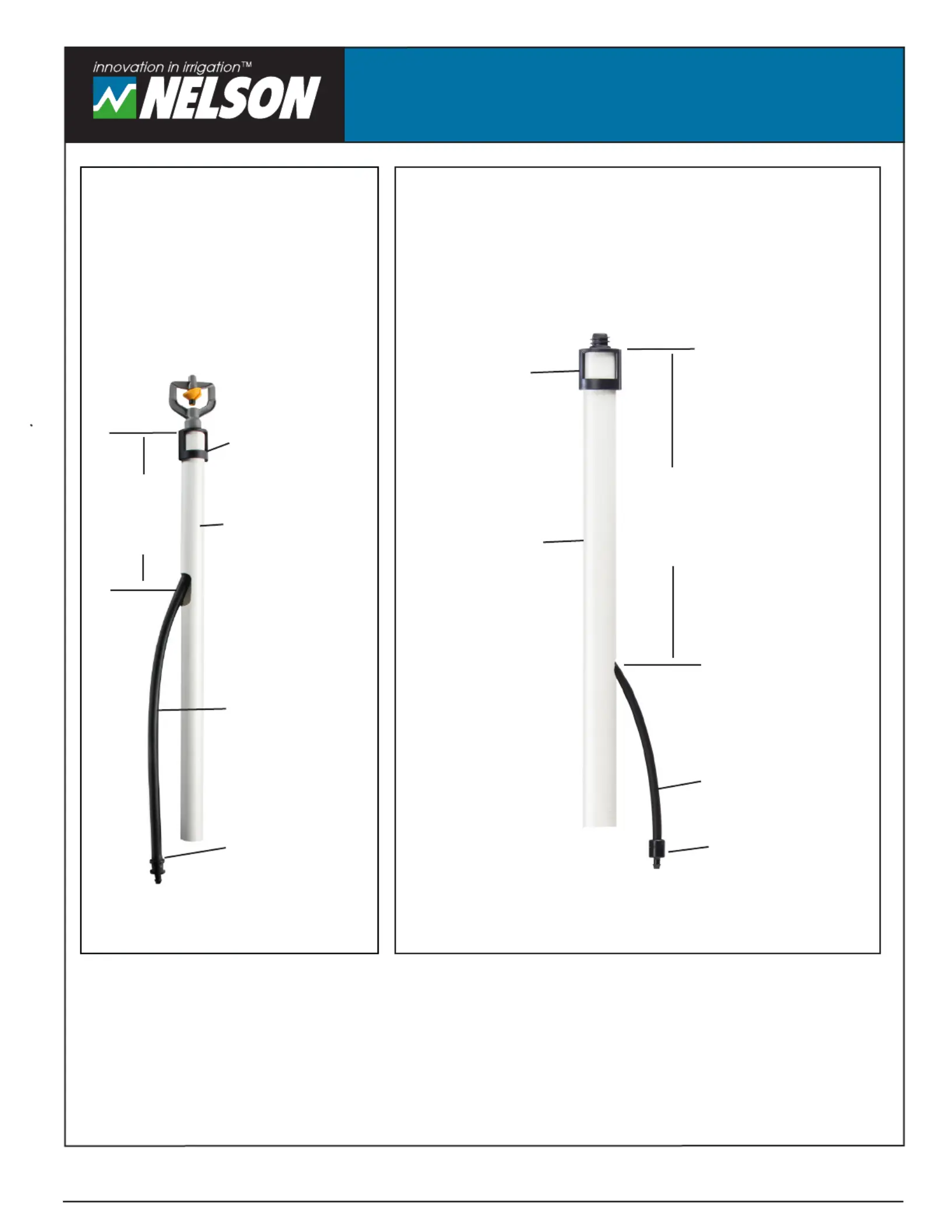

3/4 PVC-5

PVC Stake Assembly

for 5 mm Tubing

Full assembly #11455-12130

includes 3/4” PVC stake

3/4” PVC Stake

Adapter #11429

3/4” Schedule 40

PVC pipe Stake 21”

(53 cm)

10 MM Flexible

PVC Feedtube 36”

(91cm), #9099-036

LTO, 10mm Compres-

sion x 7mm Barb,

#9774

3/4 PVC-10

PVC Stake Assembly

for 10 mm Tubing

Full assembly #11452-12136

includes 3/4” PVC stake

3/4” PVC Stake

Adapter #11429

3/4” Schedule 40

PVC pipe Stake 21”

(53 cm)

5 MM Flexible PVC

Feedtube 30” (76cm)

#9284-030

#9305 LTO

For custom tubing or PVC Stake lengths order un-assembled fittings and coils of tubing.

10mm Feedtube, 500’ (152.4 m) coil #9099 5mm Feedtube, 00’ ( m) coil #928410 305

WARRANTY AND DISCLAIMER

Nelson Feedtube Assemblies are warranted for one year from the date of original sale to be free of defective material and workmanship when used

within the working tions for which the products were designed and under normal use and service he manufacturer assumes no responsibility specica . T

for nstallation, i removal r nauthorized epair f efective arts nd he anufacturer ill ot e iable o u r o d p a t m w n b l for ny rop r ther onsequential amages a c o o c d
