Fix the bolts using the NM-ICS1 clip-on spacers.
Required mounting parts:
If you would like to use the cooler on an assembled
system and your case does not have a cut-out at
the rear side of the motherboard tray, you must first
remove the motherboard from the case in order to be able
to install the supplied backplate.
Removing the motherboard1
Setting up the backplate2
First, identify the side of the backplate that should face the
motherboard (marked with caution signs). Then choose the
bolts into the backplate from the opposite side (marked
with model name, SecuFirm2™ branding and numbers for
hole spacing) at the appropriate position.
4x NM-IPS1
black plastic spacers for
LGA1200/115x
4x NM-IPS3
blue plastic spacers for
LGA1851/1700
Attaching the backplate3
Caution: The supplied backplate will install over the
motherboard’s stock backplate, so the motherboard’s stock
backplate must not be taken off.
Place the backplate on the rear side of the motherboard so
that the bolts protrude through the mounting holes.
Please first choose the correct set of plastic spacers and
the correct set of holes on the mounting bars according
to whether you are using an LGA1200/LGA115x (LGA1150,
LGA1151, LGA1155, LGA1156) or an LGA1851/LGA1700
socket motherboard.
Installing the mounting bars4
NM-IPS3 (blue)
LGA1851/1700
NM-IPS1 (black)
LGA1200/115x
Put the plastic spacers onto the bolts of the backplate, then
add the mounting bars.
Caution: Make sure that the curved sides of the mounting
bars are pointing outwards.
Fix the mounting bars using the four NM-STS1-TX thumb
screws.
Caution: Gently tighten the screws until they stop, but do
not use excessive force (max. torque 0.6 Nm).
If there are residual traces of thermal paste or thermal pads
on your CPU, please clean them off first. Then apply the
supplied NT-H2 thermal paste onto the CPU as shown in
the following images.
For LGA1851/LGA1700, apply 5 small dots; 4 dots with
~2mm diameter near the corners plus 1 dot with 3-4mm
diameter in the centre:
Use hole position 1 for LGA1200/LGA115x (LGA1150,
LGA1151, LGA1155, LGA1156) and hole position 2 for
LGA1851/LGA1700:
4x NM-IBT5
bolts
4x NM-ICS1
clip-on spacers
2x NM-IMB3
mounting bars
Position 1:
LGA1200/115x
Position 2:
LGA1851/1700
Position 1:
LGA1200/115x
Position 2:
LGA1851/1700

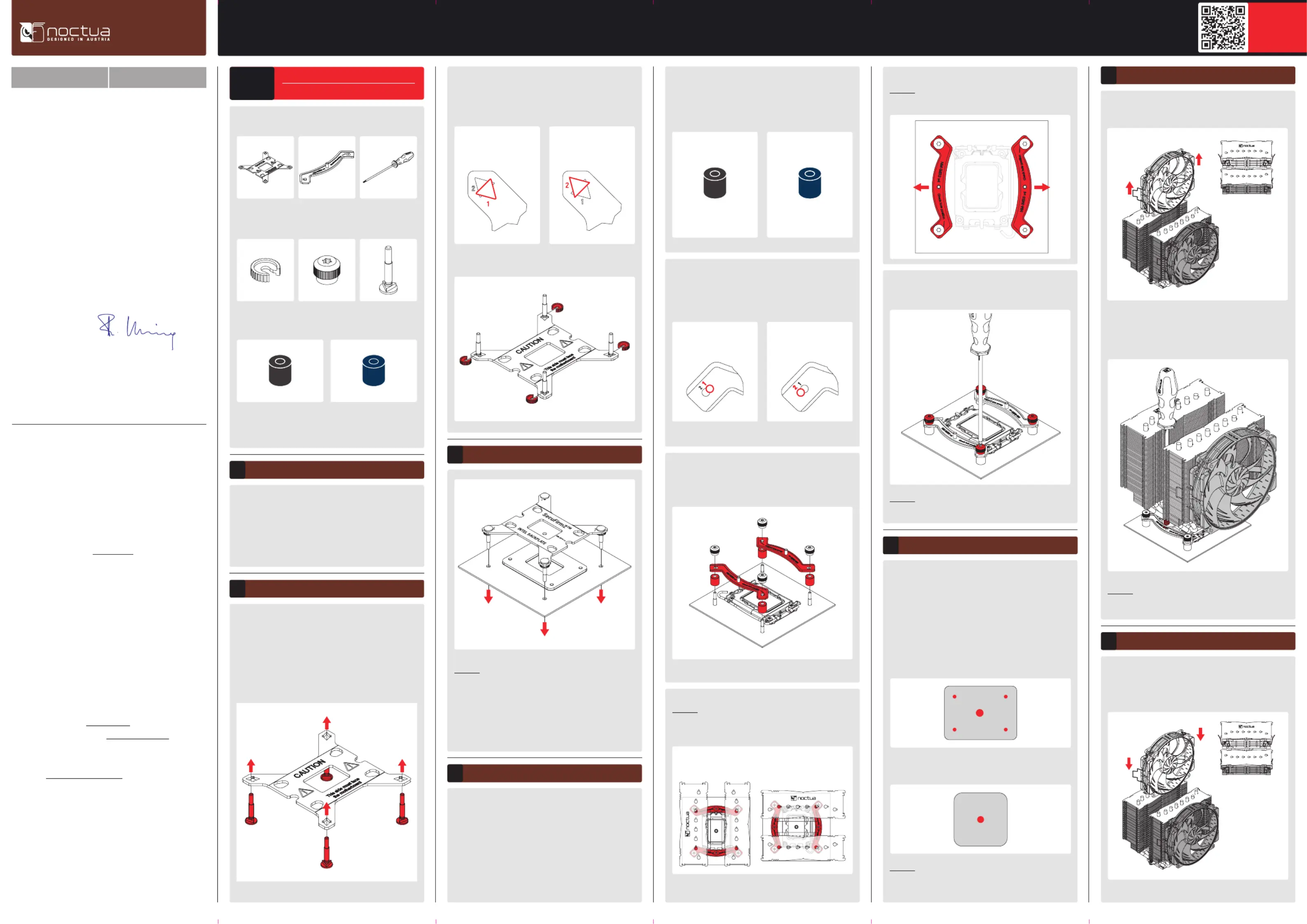

This manual will guide you through the installation process
of the SecuFirm2
+
™ mounting system step by step.
Prior to installing the cooler, please consult the compatibility
centre on our website ( ) and verify that the ncc.noctua.at
cooler is fully compatible with your motherboard, CPU,
RAM and case. Please also make sure that there are
no compatibility issues with any other components.
Double check that the heatsink and fan clips do not make
contact with the VGA card, other PCIe cards, motherboard
heatsinks or any other components.
Noctua cannot be held responsible for any damage or
losses caused by compatibility issues.
Should you encounter any difficulties, please check the
contact our support team at support@noctua.at.
Multilingual versions of this manual are available on our
website: www.noctua.at/manuals
Dear customer,
For an entire decade, the original NH-D15 was widely
regarded as the best air cooler on the market. The G2 version
continues this legacy by further improving on the renowned
quiet cooling performance of its iconic predecessor.
Enjoy your Noctua NH-D15 G2!
Yours sincerely,
Roland Mossig, Noctua CEO
Scan this code to
display multilingual
manuals on your
phone.
NOCTUA NH-D15 G2
INSTALLATION MANUAL
4x NM-STS1-TX
thumb screws
Then put the heatsink onto the CPU and screw it to the
each screw, then repeat until both are fully tightened.
Caution: Gently tighten the screws until they stop, but do
not use excessive force (max. torque 0.6 Nm).
NM-SD1 Torx
®
T20
screwdriver
1x NM-IBP4
backplate
Please first take off the centre fan. It is not necessary to
remove the front fan for installation.
INTEL AMD
LGA1851, LGA1700,
LGA1200 & LGA115x
INTEL
Use hole position 1 for LGA1200/LGA115x (LGA1150,
LGA1151, LGA1155, LGA1156) and hole position 2 for
LGA1851/LGA1700:
Use the black NM-IPS1 plastic spacers for LGA1200/
LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and
the blue NM-IPS3 plastic spacers for LGA1851/LGA1700.
Caution: Choose the alignment of the mounting bars
according to the desired final orientation of the cooler.
Orientation 1
(default orientation)
Orientation 2
For LGA1200/LGA115x (LGA1150, LGA1151, LGA1155,
LGA1156) apply a single 4-5mm dot in the centre:
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
Fan setup7
First, carefully remove the protective paper from the inside
of the fan frames. Then, reattach the centre fan.
Applying the thermal paste5
Fastening the heatsink to the CPU
6
1.
Scan this code to
display multilingual
manuals on your
phone.
NOCTUA NH-D15 G2
INSTALLATION MANUAL
Connect the fan(s) to the motherboard’s CPU fan header(s).
If necessary, use the supplied NA-YC1 splitter cable to
connect both fans to one fan header. Depending on
your CPU and the temperature inside the case, you may
interconnect the supplied NA-RC14 Low-Noise Adaptors
(L.N.A.) in order to further reduce the fans operating noise.
Caution: Never use one adaptor for both fans by putting it
before the splitter cable.
Transporting your system!
As it is not possible to reliably calculate or control the
forces that act upon a system during transport (e.g. in
shipping), we generally recommend, for safety reasons,
any damage that may arise due to excessive stress during
transport if you keep the heatsink installed.
Warranty, support and FAQs
!
Even with high-grade products and strict quality control, the
possibility of defects cannot be eliminated entirely.
Therefore, we aim at providing the highest possible level of
6 years and direct, fast and straightforward RMA service.
Should you encounter any problems with your NH-D15 G2,
please don’t hesitate to contact our support team
(support@noctua.at).
Please also consult the FAQ section on our website:
faqs.noctua.at
For increased RAM clearance, the front fan can also be
moved upwards. Please note, however, that this will
increase the total cooler height beyond 168mm:
Additionally, the cooler may also be used with the centre
fan only in order to guarantee best compatibility with tall
RAM modules.
Motherboard Fans
Low-Noise Adaptor splitter cable
splitter cable Low-Noise Adaptors
Caution: When using the L.N.A.s, check the temperature of
your CPU using appropriate software (e.g. the respective
applications of your motherboard manufacturer), in order to
evade automatic throttling of the CPU due to the increased
temperature.
If the cooling performance is insufficient, please increase
case ventilation or remove the L.N.A.s.

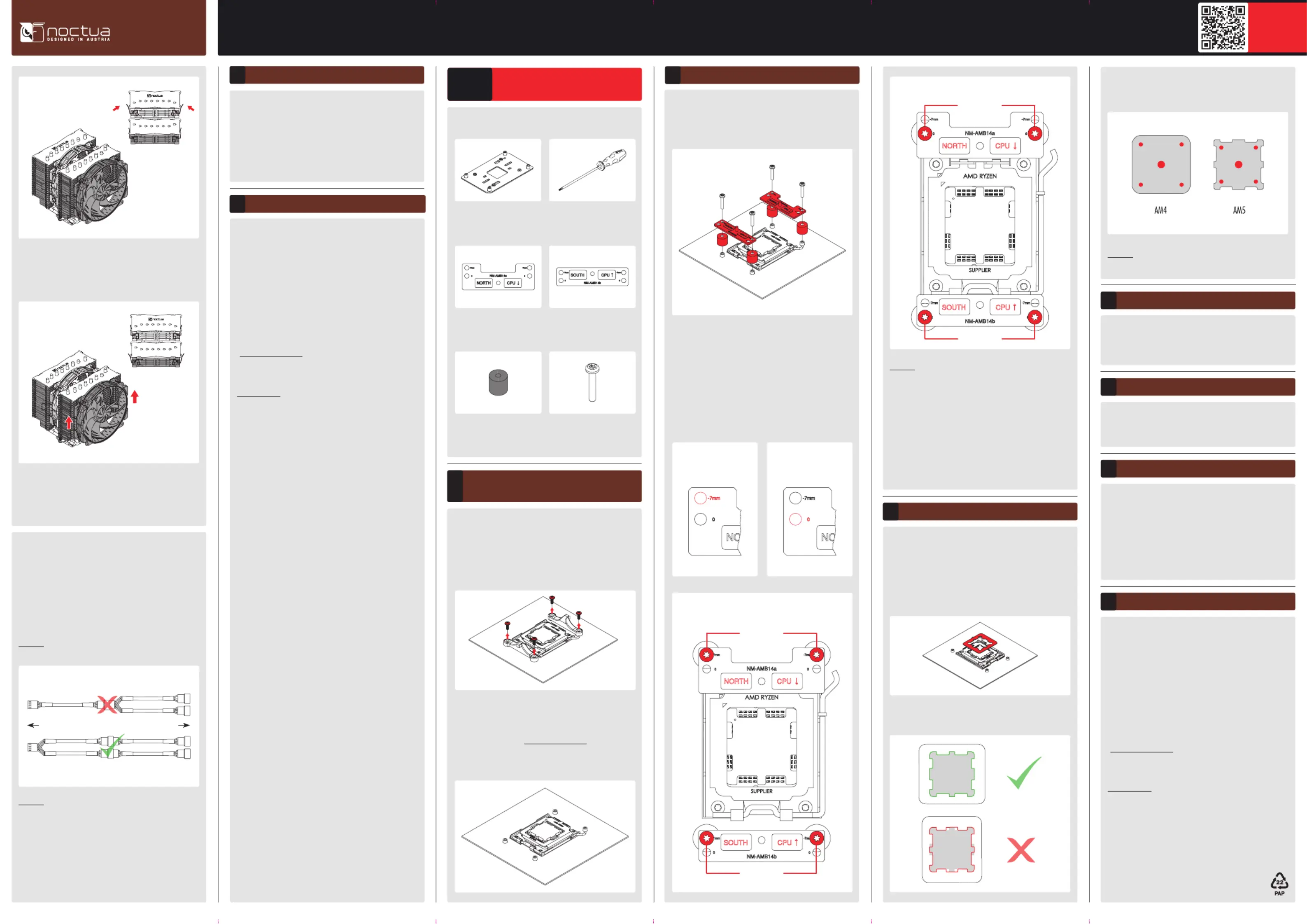

AM5 & AM4
AMD
The SecuFirm2+™ mounting system will install
directly to the stock backplate, so please first remove
the motherboard’s stock CPU cooler retention module by
removed for previous installations).
Removing the stock retention module −
putting the backplate in place
1
On AM4, the stock backplate will become loose when
unscrewing the retention module, so hold it in place for
the next step. If you have lost your stock AM4 backplate,
please contact us at . On AM5, the support@noctua.at
stock backplate is screw-fixed to the socket, so should
simply remain in place.
Required mounting parts:
4x NM-APS4
grey plastic spacers
NM-AMB14a
mounting bar
4x NM-ALS1-TX
long screws
NM-AMB14b
mounting bar
Applying the thermal paste
3
If there are residual traces of thermal paste or thermal pads
on your CPU, please clean them off first.
On AM5, put the NA-TPG1 thermal paste guard onto the
CPU to prevent the build-up of excess thermal paste in the
cut-outs of the heat-spreader.
Make sure that the inner opening of the guard is correctly
aligned with the outer edges of the heat-spreader:
Fastening the heatsink to the CPU
4
Caution: Applying too much thermal paste will lower heat
conductivity and cooling performance!
Apply 5 dots; 4 small dots with ~2mm diameter near the
corners plus 1 dot with 3-4mm diameter in the centre:
Please refer to step 6 of the Intel installation manual.
Please refer to step 7 of the Intel installation manual.
As it is not possible to reliably calculate or control the
forces that act upon a system during transport (e.g. in
shipping), we generally recommend, for safety reasons,
any damage that may arise due to excessive stress during
transport if you keep the heatsink installed.
Even with high-grade products and strict quality control, the
possibility of defects cannot be eliminated entirely.
Therefore, we aim at providing the highest possible level of
reliability and convenience by offering a warranty period of
6 years and direct, fast and straightforward RMA service.
Should you encounter any problems with your NH-D15 G2,
please don’t hesitate to contact our support team
(support@noctua.at).
Please also consult the FAQ section on our website:
faqs.noctua.at
On AM5 and Ryzen 5000/3000 series AM4 CPUs, choose
the -7mm offset hole position to ensure optimal contact
quality and performance.
On APUs as well as other AM4 CPUs, or if there are any
compatibility issues in the offset position (e.g. clearance
with motherboard heatsinks), please choose the standard
position (0).
First put the plastic spacers onto the screw threads of the
backplate. Then fix the NM-AMB14 mounting bars using
the four NM-ALS1-TX long screws.
AMD stock backplate
(pre-installed on the motherboard)
NM-SD1 Torx
®
T20
screwdriver
Offset position
Caution: Make sure that the “CPU
→
” markings point
towards the CPU and that the NM-AMB14a bar with the
“NORTH” marking is installed on the north (top) side of
the socket and the NM-AMB14b bar with the “SOUTH”
marking is installed on the south (bottom) side of the
socket, as shown above.
Gently tighten the screws until they stop, but do not use
excessive force (max. torque 0.6 Nm).
-7mm
-7mm
0
0
Offset position
Standard position
(no offset)
Standard position (no offset)
Warranty, support and FAQs!
Fan setup5
Transporting your system!
Installing the mounting bars
2
2.
3.

Produkt Specifikationer

Mærke: Noctua
Kategori: Ikke kategoriseret
Model: NF-A14x25r G2 PWM

Har du brug for hjælp?

Hvis du har brug for hjælp til Noctua NF-A14x25r G2 PWM stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Noctua Manualer

Noctua

Noctua NV-FH2 Manual

6 Juli 2025
Noctua

Noctua NV-SPH1 Manual

4 Juli 2025
Noctua

Noctua NT-H2 Manual

18 November 2024
Noctua

Noctua NA-SCW1 Manual

23 September 2024
Noctua

Noctua NF-A14x25r G2 PWM Manual

6 September 2024
Noctua

Noctua NA-FH1 Manual

3 September 2024
Noctua

Noctua NT-H1 Manual

30 August 2024
Noctua

Noctua NA-FC1 Manual

6 Juni 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Vestil

Vestil E-MT-6 Manual

17 September 2025
Canarm

Canarm CBFI300 Manual

17 September 2025
Vestil

Vestil LAD-MM-8 Manual

17 September 2025
Vestil

Vestil FLOW-4-3 Manual

17 September 2025
Vestil

Vestil LAD-MM-4-G Manual

17 September 2025
Lakeside

Lakeside 6205 Manual

17 September 2025
Vestil

Vestil AS-383-4PK Manual

17 September 2025
Turbo Air

Turbo Air TBC-80SB-N Manual

17 September 2025
Vestil

Vestil PNU-3060 Manual

17 September 2025
Blodgett

Blodgett Invoq 61BG Manual

17 September 2025
