SEAMASTER

DIVER 300 M CO-AXIAL 41 MM

Steel on steel

Caliber

2500 212.30.41.20.01.002

VCo-Axial escapement

lAutomatic

UChronometer

oSapphire crystal

rAnti-reﬂective treatment

dScrew-in crown

qHelium escape valve

G3-year International Warranty

sWater-Resistant to a relative pressure of 30 bar

(300 metres/1000 feet)

WATCH FUNCTIONS

The crown has 3 positions:

1. Normal position (wearing position): when the crown is positioned against the

case, the crown ensures that the watch is water-resistant.

Occasional winding: if the watch has not been worn for 48 hours or more, wind it

up with the crown in position 1.

2. Correcting the date: pull the crown out to position 2, turn the crown

backwards, then push the crown back to position 1.

NB: date-setting is not recommended between 8 pm and 2 am.

3. Time setting: hours – minutes – seconds. Pull the crown out to position 3. The

seconds hand will stop. Turn the crown forwards or backwards. Synchronise the

seconds by pushing the crown back to position 1 to coincide with a given time

signal.

2 / 2

HELIUM ESCAPE VALVE

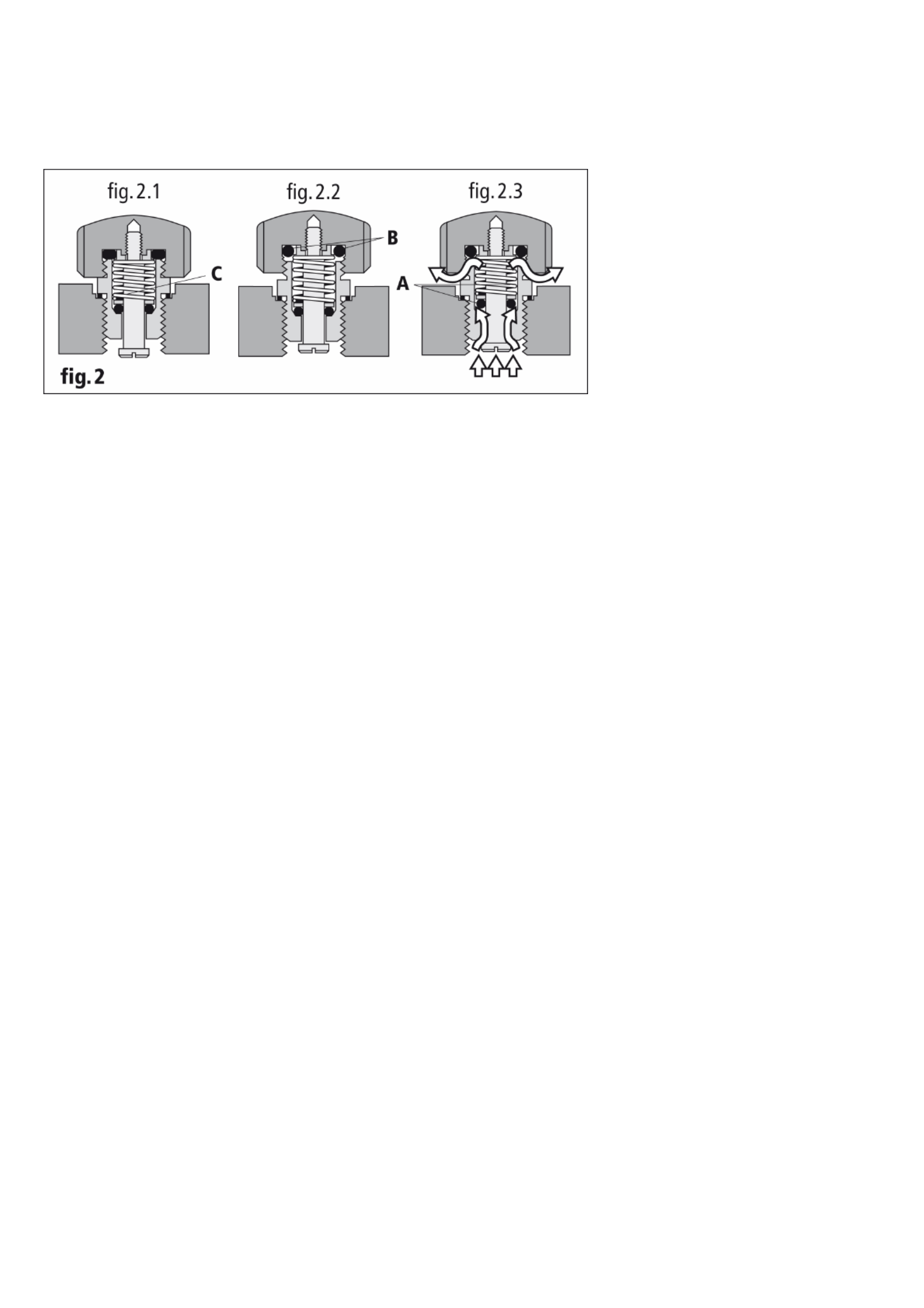

How to use the helium escape valve? (ﬁg. 2)

In its normal position (ﬁg. 2.1), the OMEGA helium escape valve is perfectly

watertight thanks to the gaskets (B), but it is not functional, since it is screwed

down.

During the decompression phase, unscrew the crown of the valve in order to

release the mechanism (ﬁg. 2.2). The valve is now watertight from the outside.

As the interior pressure becomes greater than the exterior pressure, it pushes the

gasket (A) out of its seating, thus releasing the gas (ﬁg. 2.3). Once the pressure is

equalised, gasket (A) returns to its original position, pushed by the spring (C) (ﬁg.

2.2).

This operation is automatically repeated several times during the decompression

phase. Once atmospheric pressure is reached, screw down the crown of the valve

(ﬁg. 2.1).

Note: Even if the valve is unscrewed, and we strongly recommend that the valve

remains screwed down whenever the watch is immersed in water, the watch is still

water-resistant to a relative pressure of 5 Bar (50 metres). However, complete

water-resistance to the dial depth can only be achieved with gasket (B) and the

valve in the screwed down position.

Produkt Specifikationer

Mærke:	Omega
Kategori:	Ur
Model:	Diver 300M CO-AXIAL
Armbånd, materiale:	Stål
Vandfast:	Ja
Urkassens materiale:	Sølv
Kalender:	Ja
Ur-indstilling:	12t
Urtype:	Armbåndsur
Slagfast:	Ja
Urets glastype:	Krystal
Mekanismetype:	Mechanical (auto winding),Mechanical (hand winding)
Kronometer:	Ja
Se opkaldstype:	Analogopkald
Vandbestandigt tryk:	30 ATM
Vandbestandig dybde:	300 m
Bevægelses producent:	Omega
Co-aksial escapement:	Ja
Effektreserve:	48 t
Husets farve:	Sølv
Båndets hovedfarve:	Sølv
Etui form:	Rund
Ridsefast glas:	Ja
Hovedfarve på urskive:	Sort
Se markørfarve:	Hvid
Køn:	Hanstik
Størrelse på urkasse:	41 mm
Kalendertype:	Dato
Skruebar krone:	Ja
Antirefleksbehandlet:	Ja
Bevægelses model:	2500
Helium udluftningsventil:	Ja
