Side 1/2

Ceiling

Wall

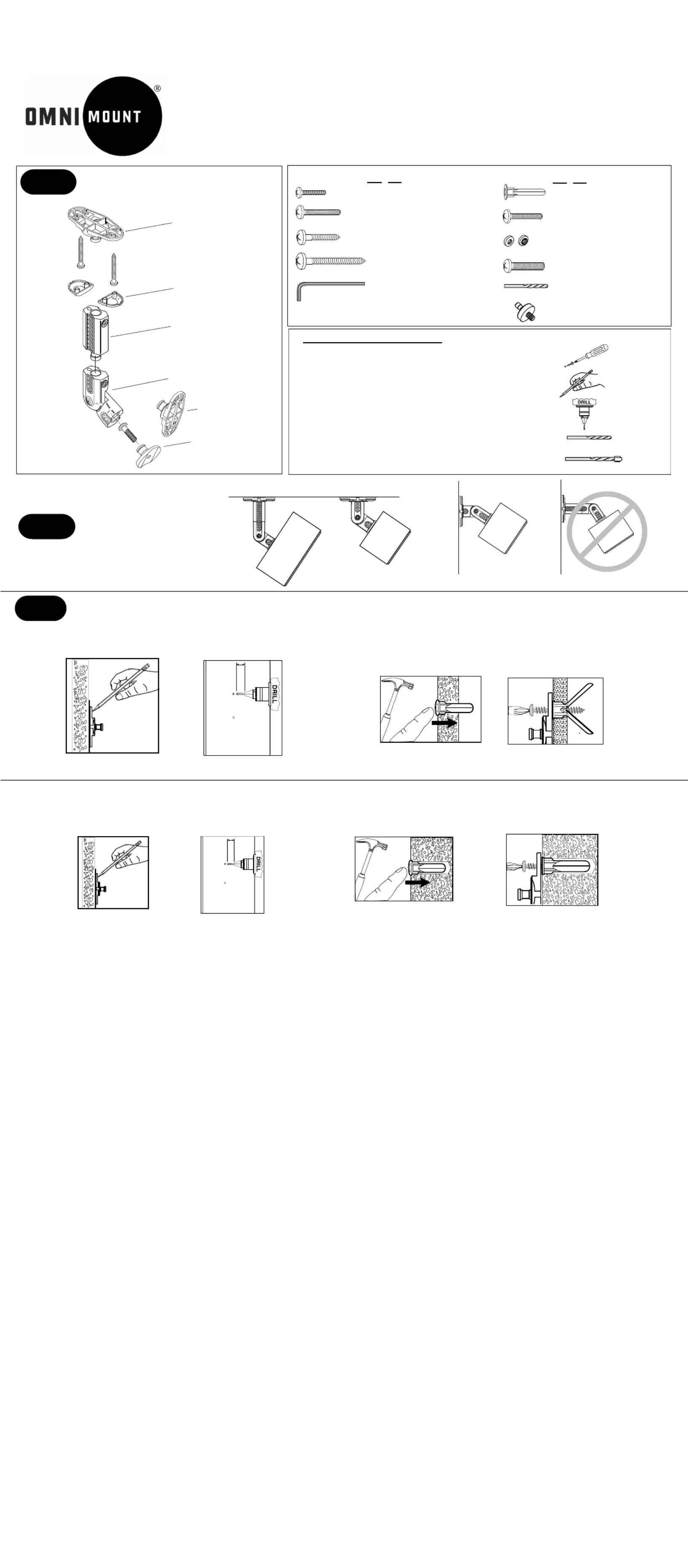

Step 1 I Identify parts

Phillips Head Screw Driver

Pencil

Electric Drill

Drill Bits: 1/8'' drill bit for drywall

3/16'' masonry bit for cement wall applications

Step 3 Installation of wall plate

Mounting to drywall.

1. Use wall plate as a template and mark screw hole locations.

2. Drill into drywall with 1/4'' drill bit. Insert the anchors into hole, see fig. 3.

3. Secure with #8 x 1-3/4'' screws, see fig. 4.

Mounting to solid concrete or cinder block.

1. Drill into surface with 3/16'' masonry drill bit to 1-3/4" deep. Insert anchors into the holes, see fig. 3.

2. Secure wall plate with #8 x 1-3/4" screws, see fig. 4.

1/8''

3/16'' mason bit

Knurled side

Provided fasteners and tools

3/32''

Step 2

D Decide on location

Extension

Adjusting knuckle

Speaker plate

Mounting plate (1)

Screw covers

Mounting plate (2)

fig. 3

fig. 4

(1) (5) M4 X 10mm Phillips

pan head machine screw

(1) (5) M5 X 12mm Phillips pan

head machine screw

(2) (10) #8 X 3/4" Phillips pan

head self-tapping screw

(2) (10) #8 X 1-3/4'' Phillips pan

head self-tapping screw

(1) (5) 5/64'' Hex key

(2) (10) plastic anchor

(1) (5) 8-32 X 1/2'' Phillips pan

head machine screw

(1) (5) Circular nut (PEM)

8-32 thread

(1) (5) 1/4-20 X 1" Phillips pan

head machine screw

(1) (2) 3/32'' Drill bit

(1) (5) 1/4-20 Threaded

Keyhole adapter plug

fig. 4

AB1/AB1 HTS INSTALLATION INSTRUCTIONS

1 3/4"

AB1 HTS

Additional installation tools

Step 3 In Installation of wall plate (continued)

Mounting to solid wood or wood studs.

Drill a pilot hole into center of each location using 3/32" drill bit (provided).

Drill 1-1/4'' into the stud.

Attach wall plate with two #8 x 1-3/4" wood screws.

fig. 4

wall

fig. 5

wall

fig. 6

fig. 14

fig. 15

Set screw location

extension

Set screw locations

Screw covers

Step 5 I Installation of adjusting knuckle and

extension.

OmniMount Systems, Inc.

The Pointe at South Mountain

8201 South 48th Street

Phoenix, Arizona 85044-5355

Toll free 1-800-MOUNT-IT

(480) 829-8000

Fax: (480)756-9000

email: info@omnimount.com

rights reserved. OmniMount products are

covered by patents issued and/or pending.

“OmniMount” is a registered trademark of

OmniMount Systems, Inc. "Audio Basics" is a

trademark of OmniMount Systems, Inc.

AB-2 revision 2, 1/04 Part #1000254. Printed

in the U.S.A.

100% Replacement Warranty

Audio Basics products are engineered and manufactured to the highest standards. In the event that there are defects in materials,

workmanship, or missing parts, OmniMount Systems will, at its discretion, repair or replace your Audio Basics product. Claims that are

submitted include either the sales slip or proof of purchase.must

If OmniMount products are used for purposes other than their original intent, OmniMount Systems, its distributors and retailers shall not be

held responsible or liable for injuries or property damage, direct, indirect or consequential, which may arise from the inability to use this

product safely, properly, and in the manner for which it has been designed and manufactured.

This warranty does not apply to products which have been lost, damaged by misuse, abuse or accident, altered or repaired in any way other

than specified by OmniMount Systems, Inc.

This warranty is non-transferable.

For installation assistance please call our toll free help line at 1-800-MOUNT-IT

fig. 13

#8 x 1-3/4"

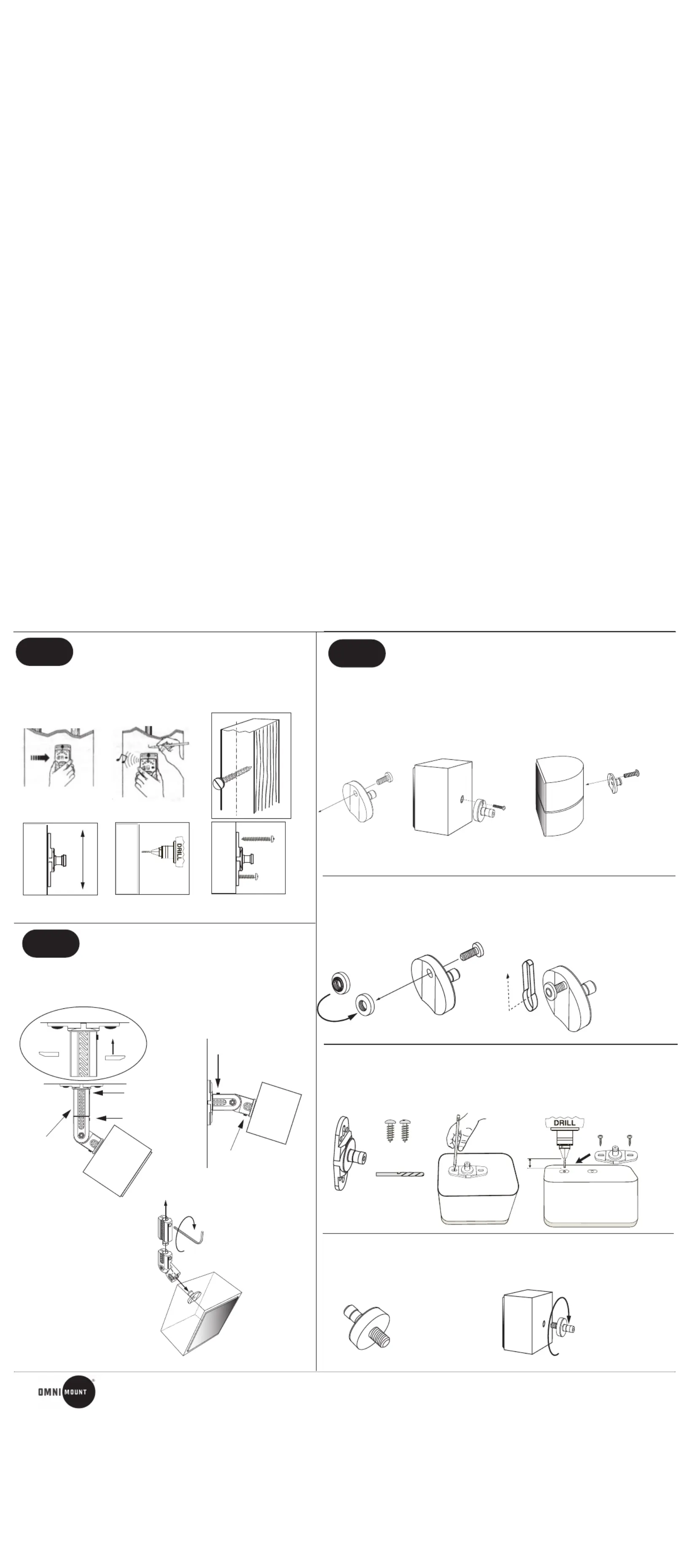

Step 4

Installation of radius plate, button stud plate or

mounting plate onto speaker.

3. Speakers without mounting holes - wood cabinet only.

fig. 1 fig. 2

fig. 3

fig. 4

#8 x 3/4''

3/32'' drill bit

1. Speakers with one threaded insert (fig. 1) or Bose

series (fig. 2).

2. Speakers with single keyhole in back. Insert assembly (fig. 3) into

keyhole and slide upward -then tighten (fig. 4).

4. Speakers with 1/4"-20 insert on back.

1/2"

fig. 1

fig. 2

fig. 3
