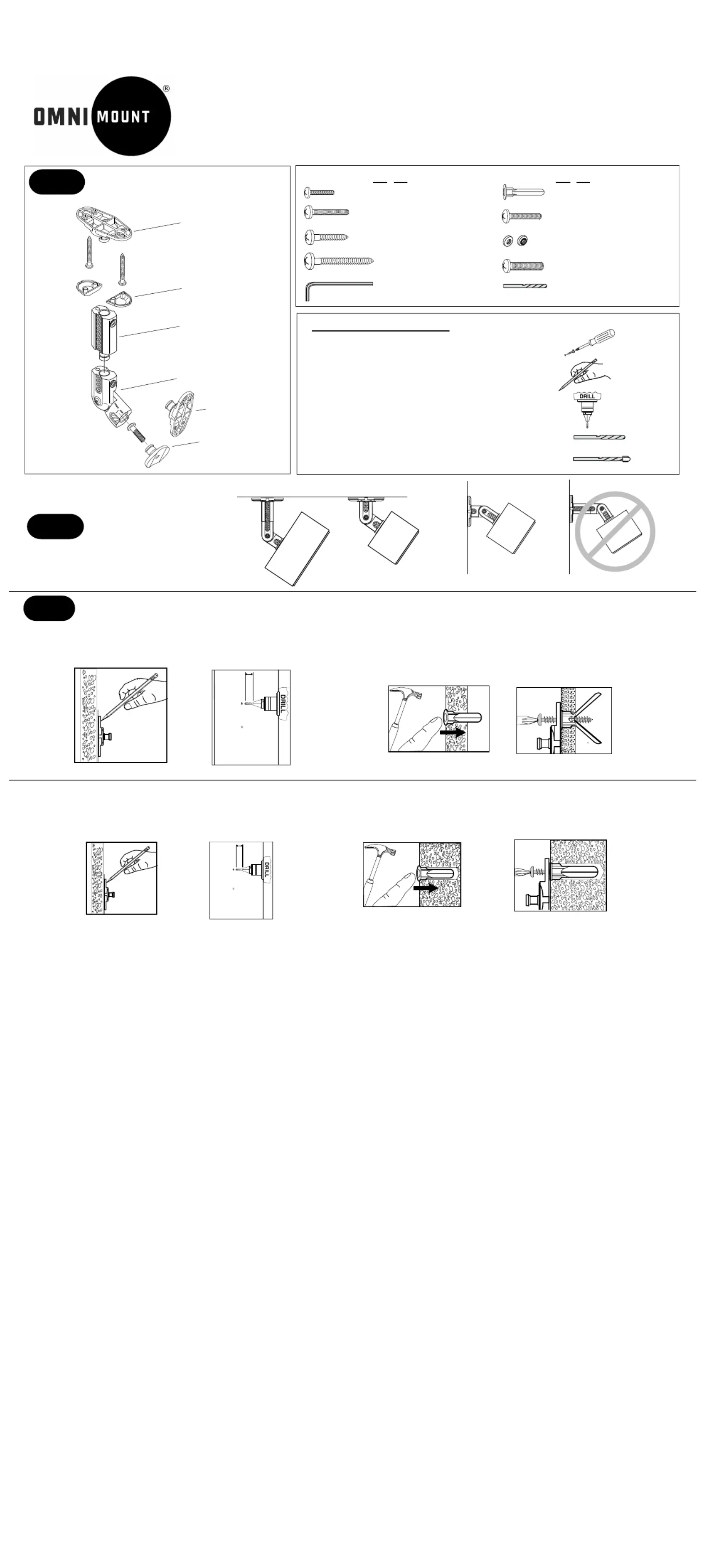

Step 1 Identify parts

Additional installation tools

Phillips Head Screw Driver

Pencil

Electric Drill

Drill Bits: 1/8'' drill bit for drywall

5/16'' masonry bit for cement wall applications

Step 3 Installation of the wall plate

Mounting to drywall.

1. Use the wall plate as a template and mark the screw hole locations onto the surface using a pencil.

2. Drill into the drywall with a 1/4'' drill bit. Insert the anchors into the hole as shown in fig. 3.

3. Secure with the #12 x 1-3/4'' screws, see fig. 4.

Mounting to solid concrete or cinder block.

1. Drill into the surface with a 3/16'' masonry drill bit 1-3/4" deep and insert the anchors into the holes as shown in Fig. 3

2. Secure wall plate with the #12 x 1-3/4" , see fig. 4.

1/8”

5/16'' mason bit

�

These fasteners and tools are provided

3 /3 2 ''

�

Step 2

Decide on location

�

Extension

Adjusting knuckle

Speaker plate

Mounting plate (1)

Screw covers

Mounting plate (2)

g . 3

(1) (5) M4 X 12mm Phillips

pan head machine screw

(1) (5) M5 X 12mm Phillips pan

head machine screw

(2) (10) #12 X 3/4" Phillips pan

head self-tapping screw

(2) (10) #12 X 1-3/4'' Phillips pan

head self-tapping screw

(1) (5) 5/32'' Hex key

(2) (10) Plastic anchor

(1) (5) 8-32 X 5/8'' Phillips pan

head machine screw

(1) (5) Circular nut (PEM)

8-32 thread

(1) (5) 1/4-20 X 1" Phillips pan

head machine screw

(1) (2) 3/32'' Drill bit

g . 4

�

AB2/AB2 HTS INSTALLATION INSTRUCTIONS

�

1 3 /4 "

�

1 3 /4 "

�

AB2 HTS AB2 HTS

K n u rle d s id e

Step 3 Installation of wall plate (continued)

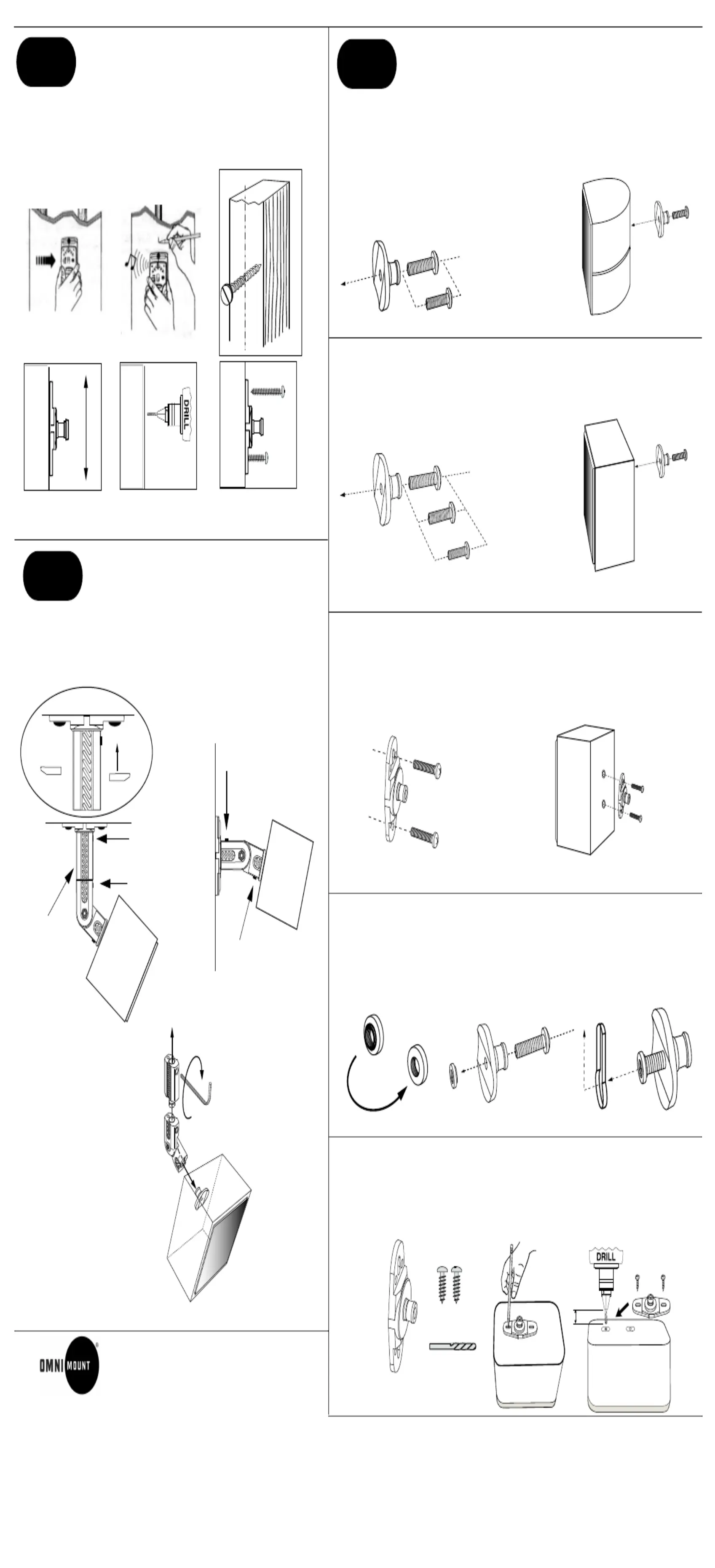

Step 4 Installation of speaker plate onto speaker

Mounting to solid wood or wood studs.

Drill a pilot hole into center of each location using 3/32" drill bit (provided),

Drill 1-1/4'' into stud. Attach the plate with two #12 x 1-3/4" wood screws.

2. Speakers with single factory installed threaded insert.

3. Speakers with 2 installed 1/4''-20 or 6 x 15 threaded inserts. MM MM

5. Speakers without mounting holes - wood cabinet only.

g. 4

wall

w a ll

g . 5

wall

g. 6

�

O R

#12 x 3/4''

3/32'' drill bit

1. Bose

speakers with 4 or 5 inserts. MM MM

�

Set screw location

Extension

Set screw locations

Screw covers

�

Step 5 Installation of adjusting knuckle

and extension.

OmniMount Systems, Inc.

The Pointe at South Mountain

8201 South 48th Street

Phoenix, Arizona 85044-5355

Toll free 1-800-MOUNT-IT

(480) 829-8000

Fax: (480)756-9000

email: info@omnimount.com

are covered by patents issued and/or

pending. “OmniMount” is a registered

trademark of OmniMount Systems, Inc.

"Audio Basics" is a trademark of

OmniMount Systems, Inc.

AB-2 revision 2, 1/04 Part #1000254.

100% Replacement Warranty

Audio Basics products are engineered and manufactured to the highest standards. In the event that there are defects in materials,

workmanship, or missing parts, OmniMount Systems will, at its discretion, repair or replace your Audio Basics product. Claims that

are submitted must include either the sales slip or proof of purchase.

If OmniMount products are used for purposes other than their original intent, OmniMount Systems, its distributors and retailers shall

not be held responsible or liable for injuries or property damage, direct, indirect or consequential, which may arise from the inability

to use this product safely, properly, and in the manner for which it has been designed and manufactured.

This warranty does not apply to products which have been lost, damaged by misuse, abuse or accident, altered or repaired in any

way other than specified by OmniMount Systems, Inc.

This warranty is non-transferable.

For installation assistance please call our toll free help line at 1-800-MOUNT-IT

4. Speakers with a single keyhole in back.

Insert into keyhole and slide upward then tighten.

�

1 / 2 "

1/4''-20 x 5/8'' or

6 x 15MM MM

(not supplied)

�

# 1 2 x 1 - 3 / 4 "

g . 1

fig. 2

fig. 3
