Side 1/6

WINDOWS MOBILE

IDEAL TOOL FOR:

Logistics & Courier Services

Postal

Field Service & Field Sales

Facility & Security

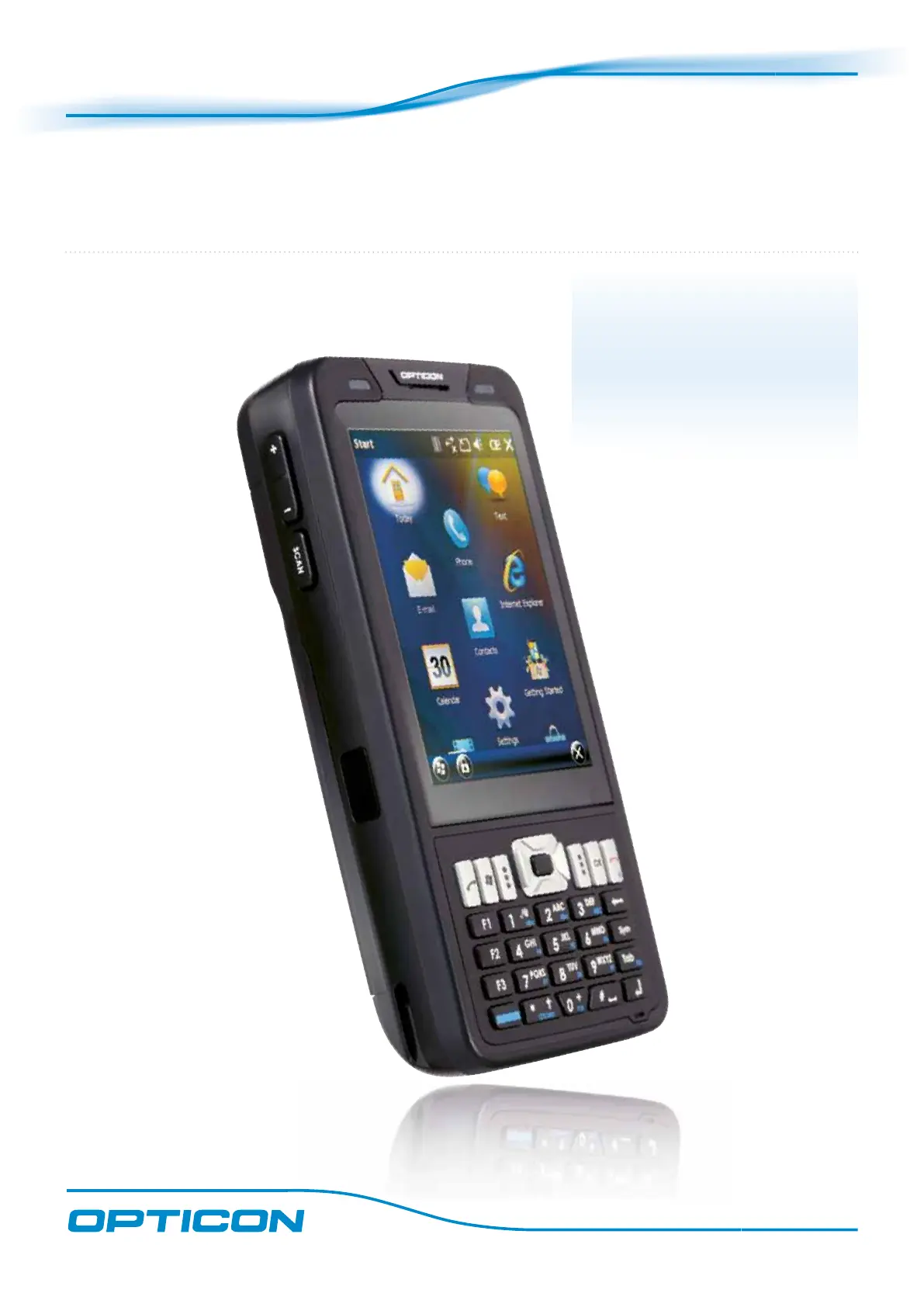

H22 Beyond Smart,

It’s Brilliant

The H22 is designed with the technology and ruggedness to meet the demands

of businesses that deploy ﬁeld workers. The interactive mobile computer with

excellent reading and touch screen performance uses the latest Windows Mo-

bile

6.5.3 platform providing the latest technology for mobile applications.

As well as providing a stable platform for interacting with the operator, the

mobile computer collects signatures and is able to take a photographic record

of an observed event or issue – vital operations for a successful ﬁeld-based

solution.

> 3.7” blanview touch screen

The sharp 3.7” color display with touch

screen is among the largest screens

available for mobile terminals. It provides

users with an extremely user friendly

interface for any ﬁeld worker application.

> ip 65 compliant housing

With its rugged housing, the H22 can

withstand multiple drops onto concrete

from 1.5 meters as well as adverse

environmental conditions, with its IP 65

compliant design.

> 2 Keypad versions

Maximize efﬁcient data entry and choose

the keypad that meets the requirements

of your speciﬁc business applications. The

H22 is available with an (alpha)numeric

layout or a complete QWERTY keypad.

Scanning

> laser engine

The integrated Opticon engine captures a

wide range of linear barcode symbologies.

The laser scan engine reads barcodes at a

speed of 100 scans per second.

> 2d imager

For more scanning options Opticon

provides the model with a 2D imager.

Besides linear barcodes, this engine also

reads 2D and stacked codes, both from

traditional media (labels etc.) as well as

from the screens of other mobile devices.

> rfid

For rapid identiﬁcation of RFID tagged

items, use the H22 with RFID reader.

This model is equipped with a SAM slot.

Designed to provide the safe storage

of cryptographic keys and functions for

H22 to access information securely in

contactless applications, a SAM also

enables secure communication between

H22 and the host system to take place.

> 3.2 megapixel camera

The 3.2 megapixel color camera with

auto-focus and ﬂash light supports visual

information to any issue.

Produkt Specifikationer

Mærke:	Opticon
Kategori:	Stregkodelæser
Model:	H-22
Kode for international beskyttelse (IP):	IP42
Type:	Håndholdt stregkodelæser
Bredde:	151 mm
Dybde:	75 mm
Højde:	25 mm
Vægt:	340 g
Produktfarve:	Sort
Batterispænding:	3.7 V
Batterikapacitet:	3060 mAh
Indbygget skærm:	Ja
Skærmopløsning:	640 x 480 pixel
Batteriteknologi:	Lithium-Ion (Li-Ion)
Skærmteknologi:	TFT
Opbevaringstemperatur (T-T):	-30 - 80 °C
Driftstemperatur (T-T):	-10 - 50 °C
Intern hukommelse:	512 MB
Forbindelsesteknologi:	Trådløs
Certificering:	CE, FCC, PTCRB, GCF, CTIA/IEEE1725, IEC 60825-1 Class 2
LED-indikatorer:	Ja
Strømkilde type:	AC, Battery
Kabellængde:	1.5 m
Baggrundsbelysning:	Ja
USB version:	2.0
Bæredygtighedscertifikater:	RoHS
Processorfrekvens:	806 MHz
Sensortype:	Laser
Standard grænseflader:	Bluetooth
Bølgelængde:	650 nm
Strømforbrug:	18 mA
RAM kapacitet:	256 MB
Lydalarm:	Ja
Indbygget processer:	Marvell PXA320
Læsehastighed (maks.):	100 læs/sek.
Tilt læsningsvinkel:	-20 - 20 °
Pitch læsningsvinkel:	-35 - 35 °
Yaw læsningsvinkel:	-50 - 50 °
Understøtter lineær (1D) stregkoder:	Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128)
Understøtter matrix (2D) stregkoder:	Aztec Code, Data Matrix, MaxiCode, MicroPDF417, PDF417
Arbejdsafstand:	0.127 mm
