Quick Start Guide

• Read this quick start guide carefully before installing and/or using this product.

• Keep this quick start guide for future reference and store in a safe place.

Introduction

OPH

1005

Notice

• This quick start guide may be revised or withdrawn at any time without prior notice.

• This quick start guide may not, in whole or in part, be copied, photocopied, reproduced, translated or con-

verted to any electronic or machine readable form without prior written consent of Opticon.

• Trademarks used are property of their respective owners.

• Under no circumstances shall Opticon be held responsible for any special, incidental, consequential or

indirect damages howsoever caused.

Caution and Warning

1. Laser Safety

• Do not stare into the laser beam.

2. Handling Instructions

【

OPH-1005

】

• Do not attempt to disassemble, modify or update this device.

• Operating the scanner while operating machinery or a vehicle can be distracting.

• Do not drop this product or put heavy items on this product.

• Do not insert foreign substances into the device.

• Do not use this product in the following areas:

- In areas exposed to direct sunlight for long periods of time.

- In dusty environments.

- Near water or other liquids, or in extremely high humidity.

- Near heat sources, such as radiators, heat registers, stoves, or other types of devices that produce heat.

- Near microwaves medical devics. or

•

en cleaning this product, rub gently with either a soft dry cloth or a damp cloth with mild detergent.

【

Battery Pack

】

• Do not attempt to disassemble this battery.

• Do not expose the battery pack to liquids or allow the battery contacts to get wet.

• Do not expose the battery pack to heat sources including other devices that produce heat.

• Do not short the power leads on the battery pack. If the (+) and (-) terminals come in contact with metals

(such as a necklace or hairpin), a short-circuit will occur.

• Do not load the battery pack with its (+) and (-) terminals reversed.

• Check the local regulations for proper battery disposal.

(Please refer to the specification manual and instruction guide for details.)

■

Detailed View

Overview

■

OPH-1005 Basic Specifications

Parameter Specifications

Physical

Features

Size

(H) 136. x (W) 55.4 x (D) 22.8 mm1

Weight

Approx. 140g (including Li-ion battery)

Control

Section

CPU

32bit MCU

Proprietary

Memory

FROM

4MB

RAM

4 BM

Display

Section

Material

LCD (262144 color)

Number of dots

32 240 dots x 0 dots

Dot size

0.24mm x 0.24mm

Dot pitch

0. mm18

Backlight White LEDs

Contrast Control

Enabled

Other Display

Section

LED

Bi-color LED (Red and Green)

Buzzer

Tone and loudness can be conﬁgured

Operation Section

Keys 23 keys

Scanning

Section

Light Source

Red laser diode

Wavelength

650

10nm

Light Output

1mW or less

Scan Rate 100

20scan /sec

Supported

Symbologies

JAN, EAN, UPC-A, UPC-E, NW-

7(Codabar), Industrial 2 of 5,

Int erl eav ed 2 of 5, Code 11,

Code 39, Code 93, Code 128,

MSI/Plessey, UK/Plessey, IATA,

Telepen, Matrix 2 of 5, S-Code,

Tri-Optic, Chinese Post, EAN 128,

R S S -14 , R S S L im it e d , R S S

Expanded, PDF417, MicroPDF417

Power

Supply

Section

Main Battery

Lithium-ion battery (3.7V 1100mAh)

Backup Battery

Manganese dioxide lithium-ion battery (1 mAh)1

Operating Time

Approx. 0 hours (2 scans/10 sec)5

Data Retention Time

More than 24 hours

Comm.

Section

IrDA

IrDA Ver. 1.2

Baud rate: (SiR): 9600 to 115.2kbps

Clock

Section

Real Time

Clock (RTC)

Supports year, month, day, hour,

minute, second (leap year supported)

Durability

Operating Temp.

-10 deg. C to 50 deg. C

Operating Humidity

20% to 85% (non-condensing)

Storage Temp.

-20 deg. C to 60 deg. C

Storage Humidity

20% to % (non-condensing)85

Charging Temp.

0 deg. C to 40 deg. C

Ambient Light

Immunity

Fluorescent: up to 4,000lx

Sunlight: up to 80,000lx

Dust- and Drip-proof

IP54

Shock

Endurance

Dropped 3 times from each of 6 angles

onto concrete from a height of 150cm

with no defects found. (Total 18 times)

No. Item Function

1 A laser portable terminal with a barcode scanning feature.Portable Terminal

Strap

Quick Start Guid

Provides product information and instruction guide.

Before Getting Started

■

What's in the Box

Confirm that you have the following items before getting started:

* The number of accessories may differ depending on the product specification.

Please contact the nearest dealer if accessories are damaged or missing.

No. Part Function

①

LCD

Indicates the status of program

execution, scanned data and so

on.

②

Status LED

(Red and Green)

Alerts users the status of scanning

operation and data communication.

③

Optical Window

The scan engine emits a laser beam

through the optical window while

scanning a barcode.

④

SCAN Key

Starts a barcode scanning operation.

⑤

POWER Key Turns ON or OFF the power.

⑥

IrDA

Communication

Window

This portable terminal communicates

with the designated cradle through

the IrDA communication window.

⑦

Buzzer Hole

Buzzer sounds through the buzzer

hole.

⑧

Battery Cover Protects the battery pack.

⑨

Charging

Terminals

Electrical terminals for power

distri-

bution and power management.

⑩

Strap Hook

・

To avoid communication problems between the portable

terminal and a cradle, keep the IrDA communication

window clean.

・

The IrDA communication performance may decline

due to excessive ambient light especially under

strong sunlight or inverted fluorescent light.

Memo

Overview

■

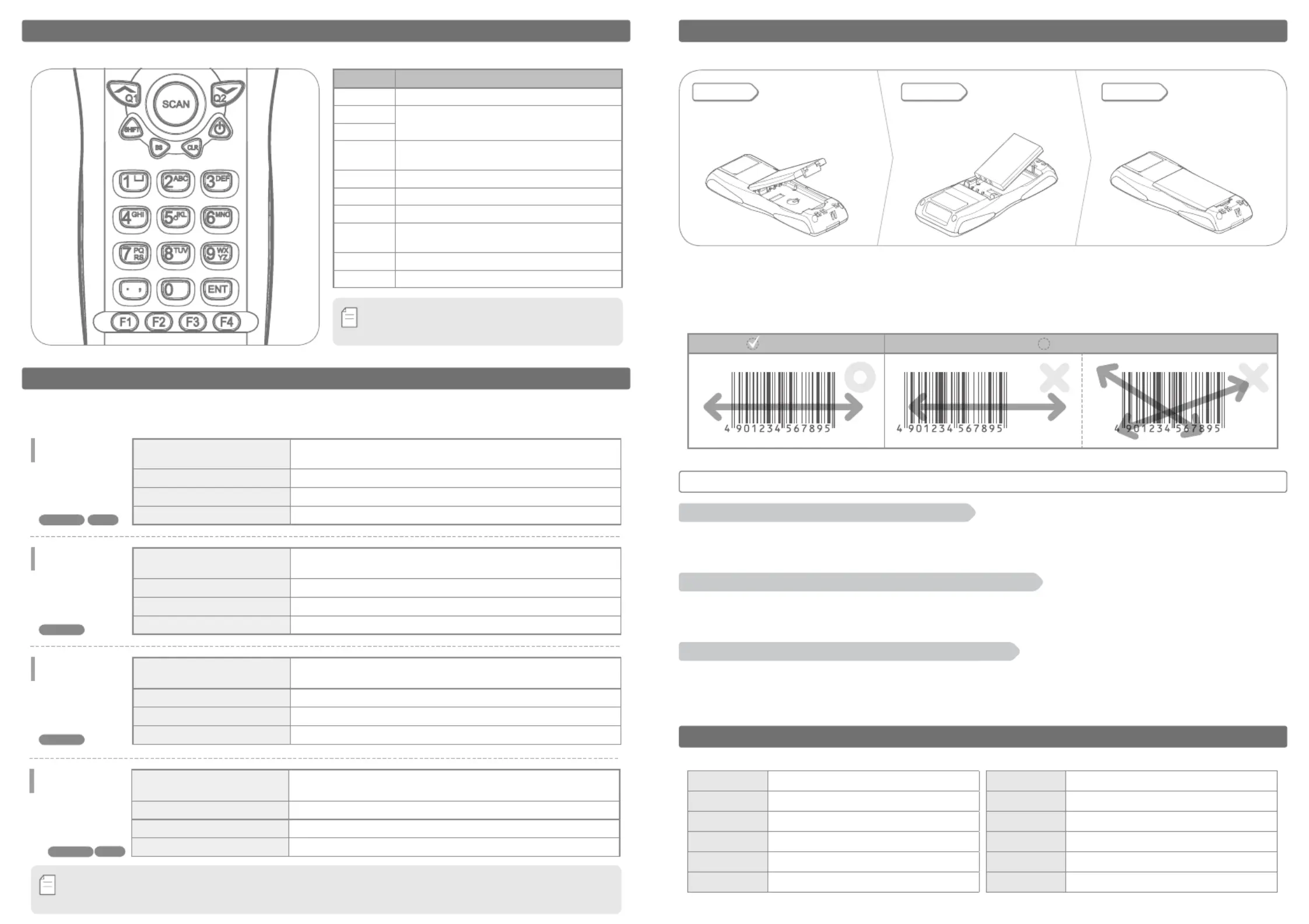

Key Layout

Key Function

SCAN

Scans a barcode.

Navigate through the menu or toggle between options.

( These keys can be programmed suitable for user

s application. )

SHIFT

Shifts from

“

number input mode

”

“

alphabet

input mode

”

and vice versa.

BS Deletes one letter before the cursor.

CLR Cancels an input.

POWER Turns the power ON and OFF.

0-9, .

10 numeric keys to input numbers, alphabets or

symbols.

ENT Determines the input.

F1-F4

4 function keys which can be programmed by a user.

Trouble Shooting

The portable terminal does not get powered ON.

A. The battery level of the portable terminal may be extremely low or empty. Please try again after you charge

the portable terminal.

B. Check if the battery cover is closed tight.

The portable terminal does not read a specific type of barcode.

A. That specific type of barcode may not be supported by the portable terminal. Please confirm the specification manual

of the portable terminal for details of supported symbologies.

B. The specific type of barcode may not be enabled in the application. Change the settings in your application.

The portable terminal does not read a barcode smoothly.

A. The scanning performance of the portable terminal may decline due to inappropriate scan angle. Please adjust

the angle of the portable terminal and try again. Make sure that the barcode is within the width of the laser

aiming pattern.

Using the Portable Terminal

■

How to Insert or Exchange a Battery

STEP 3STEP 2STEP 1

Please open the battery cover before

inserting or exchanging a battery.

STEP

Make sure that the battery contacts are in

contact with the spring contacts of the

portable terminal.

STEP

Please close the battery cover.

STEP

Designated Cradles

(Optional)*

We offer a series of communication and charging cradles with different communication methods.

Please select the most suitable cradle for the desired operation.

* Please refer to the specification manual or the instruction guide for details of designated cradles.

* A designated SIM card will be needed to use the CRD-1003 GSM cradle.

Memo

CRD-1001

Communication &

Charging Cradle

Communication Method

(Cradle to Host)

Communicates with the host via RS-232C or USB interface.

Size

(H)70.0

(W)68.0

(D)96.0 mm Max

Weight 110g Max (excluding AC adapter and cable)

Charging Time

2 hours and 10 minutes

RS-232C USB

* The layout of keys may differ depending on the

product specification.

Memo

The Netherlands

Opticon Sensors Europe B.V.

tel: +31 (0)23-5692700

email: sales@opticon.com

U.S.A.

Opticon Inc.

tel: 800-636-0090

email: opticon@opticonUSA.com

France

Opticon S.A.S.

tel: +33 (0)1-41461260

email: opticon@opticon.fr

Germany

Opticon Sensoren GmbH

tel: +49 (0)6074-91890-0

email: sales.de@opticon.com

Italy

Opticon s.r.l.

tel: +39 (0)051-6321800

email: opticon@opticonitalia.it

Contact

Sweden

Opticon Sensors Nordic AB

tel: +46 (0)8-58548560

email: henrik@opticon-sensors.se

United Kingdom

Opticon Limited

tel: +44 (0)1582-635100

email: sales@opticon.co.uk

Taiwan

Opticon Far Eastern Ltd.

tel: +886 2-27597444 / email: taiwan@opticon.com

China

Opticon Sensors Europe B.V., Shanghai Representative Oce

tel: +86 21-64480881

email: china@opticon.com

Australia

Opticon Sensors Pty. Ltd.

tel: +61 (0)2-43402666

email: sales@opticon.com.au

Brazil

Opticon Sensors Europe B.V., Latin American Oce

tel: +55 11-5081 2088

email: sales.la@opticon.com

Please contact OPTICON or your local dealer.

More product details, additional support, and configuration options (from the Universal Menu Book) are available at www.opticon.com.

QSG- 5OPH100 -00

Communication Method

(Cradle to Host)

Communicates via telephone line and connects to the Public

Switched Telephone Network (PSTN)

Size

(H)70.0

(W)68.0

(D)96.0 mm Max

Weight 100g Max (excluding AC adapter and cable)

Charging Time

2 hours and 10 minutes

MODEM

CRD-1002

Communication &

Charging Cradle

Correct Incorrect

■

How to Scan a Barcode

Please refer to the following examples of a scanning operation.

Make sure that the barcode is within the width of the laser aiming pattern.

* When the cover is not closed correctly the portable terminal will not be turned ON.

Communication Method

(Cradle to Host)

Communicates with the host via GSM (Global System for Mobile

Communications) Network.

Size

(H)70.0

(W)68.0

(D)96.0 mm Max

Weight 115g Max (excluding AC adapter and cable)

Charging Time

3 hours

GSM

CRD-1003

Communication &

Charging Cradle

Communication Method

(Cradle to Host)

Communicates with the host via Ethernet . or USB

Size

(H)70.0

(W)68.0

(D)96.0 mm Max

Weight 115g Max (excluding AC adapter and cable)

Charging Time

3 hours

ETHERNET USB

CRD-1004

Communication &

Charging Cradle

Produkt Specifikationer

Mærke:	Opticon
Kategori:	Stregkodelæser
Model:	OPH1005
Kode for international beskyttelse (IP):	IP54
Type:	Håndholdt stregkodelæser
Bredde:	55 mm
Dybde:	23 mm
Højde:	136 mm
Vægt:	140 g
Produktfarve:	Sort
Batterispænding:	3.7 V
Batterikapacitet:	1000 mAh
Indbygget skærm:	Ja
Skærm diagonal:	2 "
Skærmopløsning:	320 x 240 pixel
Berøringsskærm:	Ingen
Datanetværk:	Ikke understøttet
Batteriteknologi:	Lithium-Ion (Li-Ion)
Skærmteknologi:	LCD
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 85 %
Driftstemperatur (T-T):	-10 - 50 °C
Skærm:	TFT
Intern hukommelse:	128, 4 MB
Husmateriale:	Syntetisk ABS
Forbindelsesteknologi:	Trådløs
Certificering:	CE, FCC, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
LED-indikatorer:	Ja
Strømkilde type:	Batteri
Harmoniseret systemkode (HS):	84713000
Indbygget kamera:	Ingen
Batterilevetid (maks.):	40 t
Bæredygtighedscertifikater:	RoHS
Processorfrekvens:	- GHz
Flash-hukommelse:	0.128 GB
Sensortype:	Laser
Grænseflade:	IrDA
Processormodel:	RX62N
Standard grænseflader:	IrDA
Bølgelængde:	650 nm
Batteriets levetid:	40 t
RAM kapacitet:	4 MB
Lydalarm:	Ja
Indbygget processer:	RX62N 32-bit MCU
ROM kapacitet:	4 MB
Tastaturopsætning:	Alfanumerisk
Læsehastighed (maks.):	100 læs/sek.
Tilt læsningsvinkel:	-20 - 20 °
Pitch læsningsvinkel:	-35 - 35 °
Understøtter lineær (1D) stregkoder:	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C.
Understøtter matrix (2D) stregkoder:	Composite Codes, MicroPDF417, PDF417
Antal taster:	23 taster
