Thank you for giving OSD AUDIO the chance to earn your business! We are condent you will nd that OSD oers an outstanding combination of performance

and value in everything we make. To ensure you get the most out of your new patio speakers, please take a moment to read this manual before you get started.

Installing Speakers

These weather resistant patio speakers are manufactured to resist

a variety of weather condition. The most ideal place to install these

speakers is the undersides of most eaves and overhangs as they

provide the best protection.

Like all speakers, they sound the best when placed no more than

seven feet apart from each other, and slightly higher than ear level.

If the speakers are more than seven feet apart, toe them in toward

the center of the listening area.

These speakers are not waterproof and cannot be submerged under

water.

Placing Speakers

If your application requires the speaker to be mounted, please

follow these directions. Using the hardware supplied, mount the

bracket rst. Attach the speakers to the brackets using the large

plastic knobs supplied. Never mount a speaker on a wall made

of unreinforced drywall or plasterboard. If you are unsure,

consult a professional contractor. (See Diagram 1)

The binding post speaker terminals on the speakers will accommodate

up to 12-guage wire. When using 70V amplier output, please select a

power setting through the knob switch. When connecting the speakers,

it is very important to observe the correct polarity. This means that the

wire attached to the (+), red, or positive terminals on one component

must be attached to the (+), red, or positive terminal on the

corresponding component speaker output terminals. Similarly, the (-),

Black, Negative or ground terminals must connect to the respective (-),

Black, Negative, or ground terminals. This is easy to do by locating the

color stripes that appears on most wire.

Painting the grilles

The metal grilles may also be painted. Use very thin paint (5:1). It will

be easier to paint the grilles while it is o the speaker. Avoid

plugging up the holes with excess paint.

Mounting

To install the bracket on the speaker. Screw the bracket knobs into the

cabinet. Point the speaker toward the listening area. Once the direction

of the speaker has been determined tighten the bracket knobs securely.

(See Diagram 2)

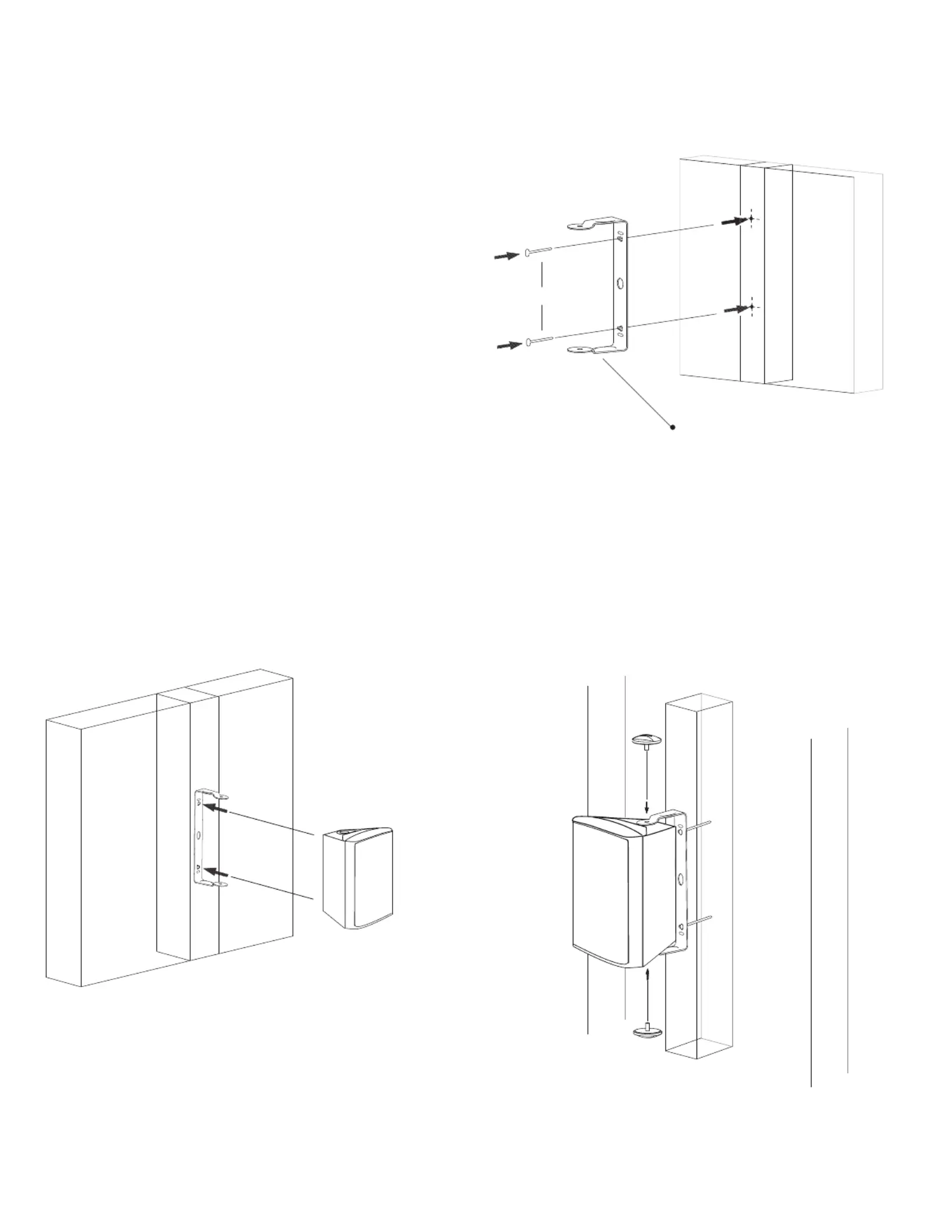

Diagram 1

Screw

Bracket

Diagram 2

First remove the grille fom the speaker using spray paint lightly go

over the front of the grille and then go over the back of the grille.

Two coats may be nessesary for desired look.

Knob
