Side 1/4

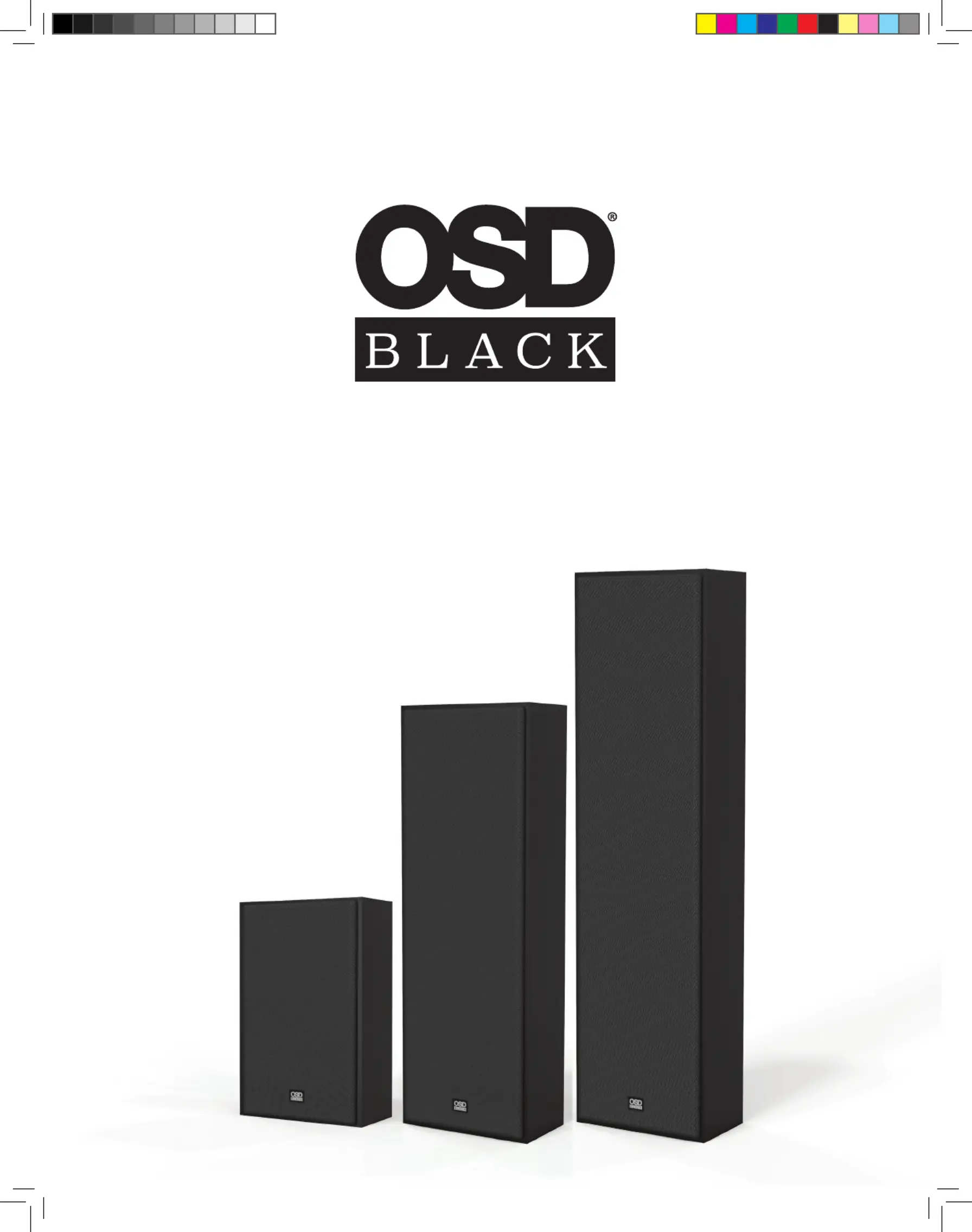

S SERIES MKII

SPECIFICATIONS & FEATURES

Black S Series MK2 Tech R1.indd 1 10/6/21 11:19 AM

S SERIES MKII

Features

Setup 1 Setup 2

1. Custom-designed and -built crossovers. 2nd Order, 12dB per octave crossover. Higher-quality air-core chokes with 100% oxygen

free copper windings, 5% resistors and polypropylene/metal lm German capacitors are used in the elegantly laid out and highly

rened crossovers. All soldering uses Japanese silver solder for better conductivity.

2. The S81 and S82 use a triple tweeter array that sits on a rotatable faceplate, allowing the tweeters to be oriented vertically or

horizontally. This ensures perfect high-frequency timbre matching regardless of orientation. It also provides a way to choose whether

the room’s acoustical characteristics would benet from a wider or narrower sound eld. When mounted vertically the tweeter array

has wider horizontal dispersion and narrower vertical dispersion – reducing oor and ceiling reections. The triple tweeter array also

allows for much higher SPL levels and less restricted sound.

3. The 8-inch woofer’s cones are made from long wood ber. A coarser type of paper that further reduces cone resonance, while

maintaining rigidity at high SPLs, ensures pistonic air displacement and, as a result, lower distortion. The improved magnet structure

uses a larger low-carbon steel magnet. We also introduced a Triangular ‘silent’ spider to attach to the pure copper edge-wound voice

coil. Flat to 80Hz, -3dB at 70Hz and -10dB at 30Hz, the 12dB per octave roll off is an easy match for subwoofers.

2. Triple Tweeter Array

Left

Right

RightCenter Center

Flat Screen TV Flat Screen TV

3. 8” Long Wood Fiber Inter-thread

Double Compressed Woofer Cone

1. Custom Second Order X-Over

Black S Series MK2 Tech R1.indd 2 10/6/21 11:19 AM
