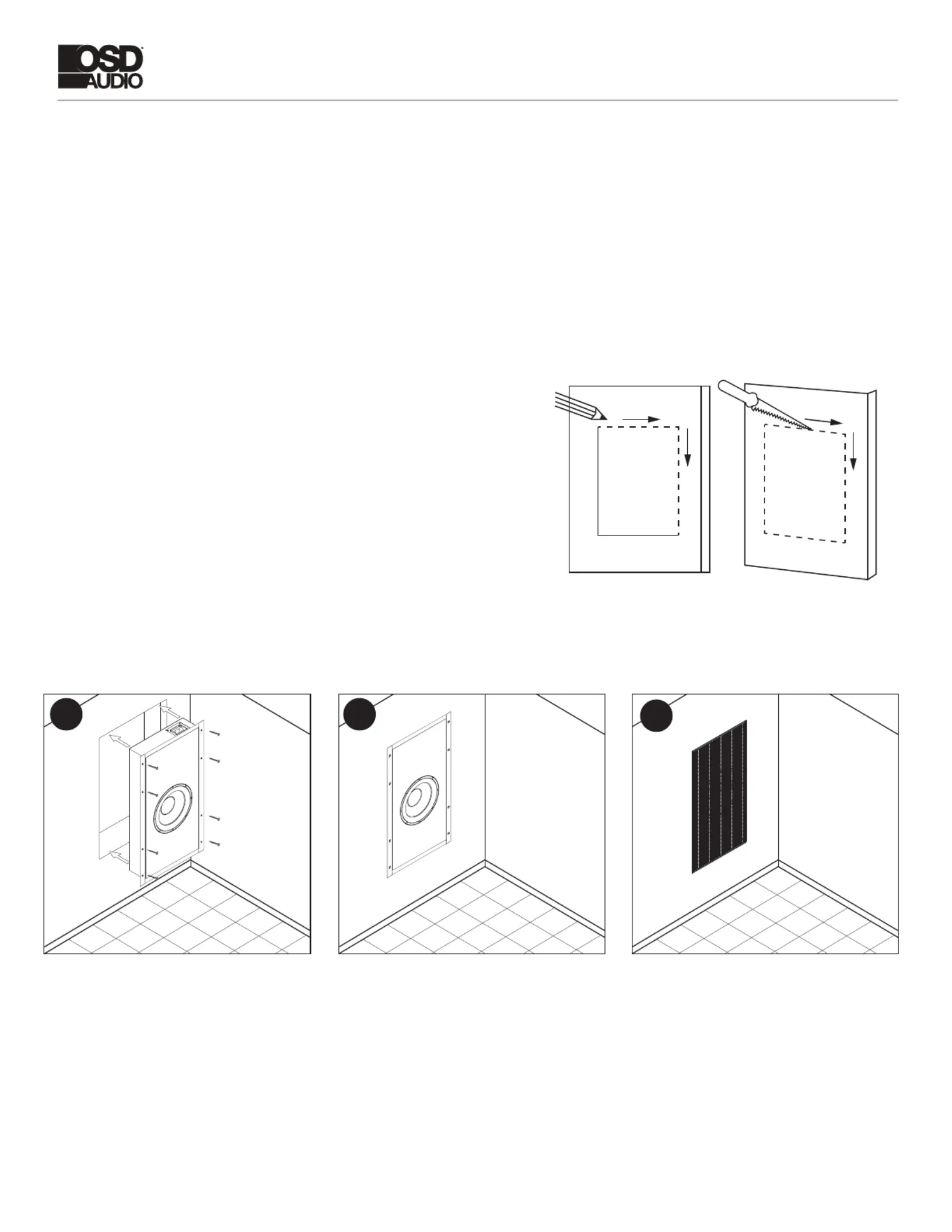

NERO FS800 SUBWOOFER INSTALL GUIDE

Cut and prepare a hole to install

the NERO FS800 into a stud bay

where it can be securely mount to

both wall studs.

Once in place the NERO FS800

should be tested before securely

mounting and moving onto step 3.

Final step, install the magnetic

grille system by simply laying it

into place.

Preparation:

Tools For Installation Speaker Wire Guide

- Pencil

- Drill

- Tape Measure

- Wire Cutter

- Phillips Screwdriver

- Utility Knife

- Safety Eye Wear

- Gloves

- Sandpaper

18AWG minimum - for distances up to …………………. 10 ft

16AWG - from …………………………………..…... 10 to 50 ft

14AWG - from …………………………………...… 50 to 100 ft

Installation:

Cut Out

NOTE: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw.

Using the Cut Out dimensions measure and trace a template on the

wall in the desired location. Cut along the traced line using a drywall

saw or rotary drill. Use a piece of sandpaper to sand down the cut out

edge for a smoother contour. (See Diagram 1.)

Diagram 1

NERO FS800 SUBWOOFER INSTALL GUIDE

Warranty Information

Specifications

OSD NERO FS800 Manual 4/18

OSD Audio | Brea, CA | osdaudio.com

All OSD AUDIO speaker products have (10) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany

all warranty claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for

either parts or labor OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modifications to

the mounting may be necessary and are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD

AUDIO. The unit must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage

are not considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or person not specifically authorized in

writing by OSD Audio. OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and

service. Any OSD AUDIO product purchased from an unauthorized dealer or other source, including retailers, mail order dealers and online sellers will

not be honored or serviced under existing OSD AUDIO warranty policy.

Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable product.

Damage to, or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made

on the basis of the retail value of the parts and labor. To return for repairs, you must email customer service at RMA@audiogeargroup.com for a

Returned Merchandise Authorization (RMA) number# then the unit must be shipped to OSD AUDIO at the owner's expense, along with a note

explaining the nature of service required. Be sure to pack the speaker(s) in a corrugated container with at least 3 inches of resilient material to protect

the unit from damage in transit.

This Warranty Does Not Cover: Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have

been altered or modified • Any product whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and

maintenance.

· Single In-Wall Subwoofer

· Power Handling: 200W

· Woofer: 8" 8 Ohm

· Sealed Tuned Enclosure

· Freq Response: 60Hz - 500Hz

· Overall Dimensions: H 18.7" x W 17.2" x D 4.3"

· Cut Out Dimensions: H17.5 x W 14.5"

· Mounting Depth: 3.9"
