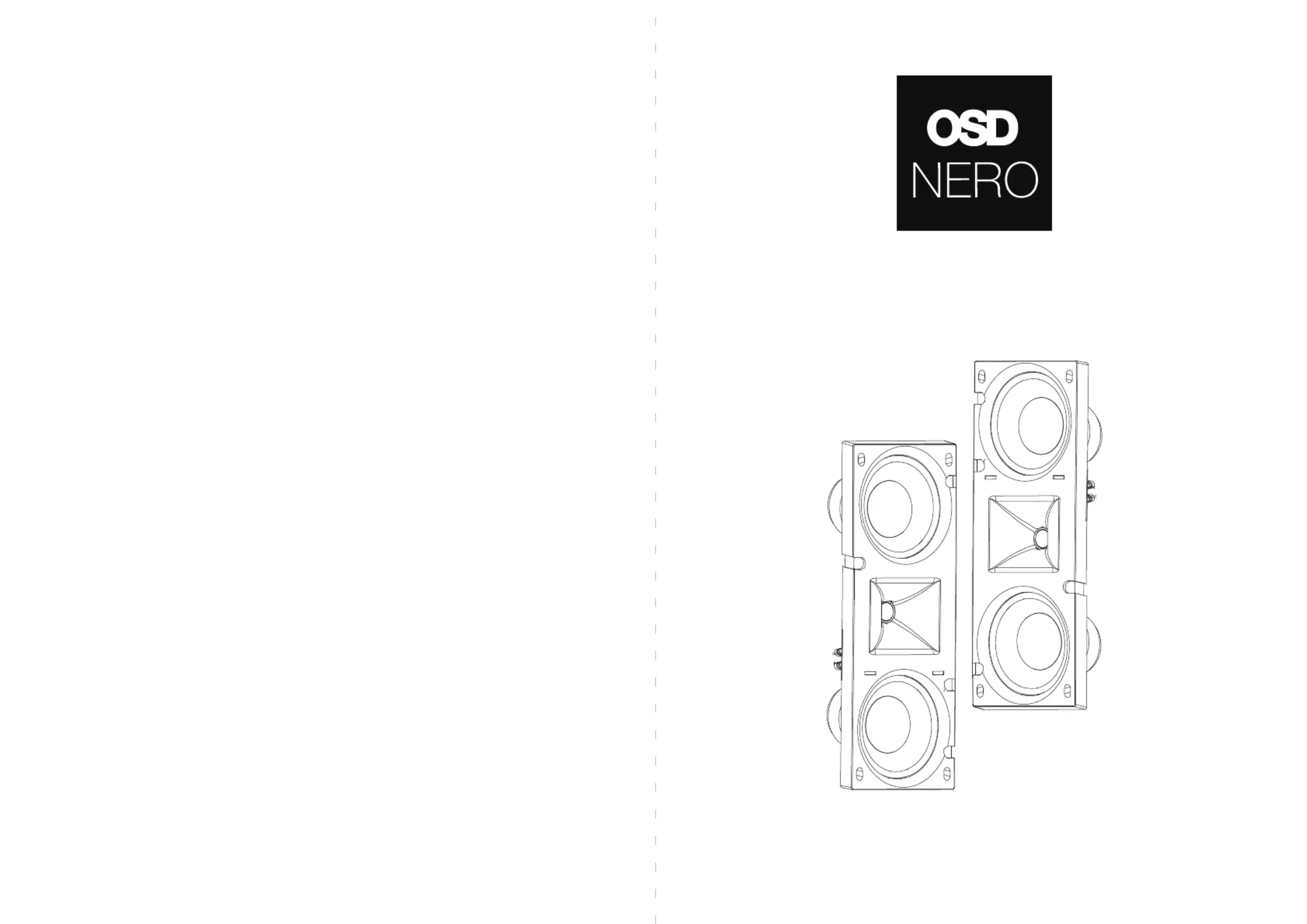

NERO IWLCR53-55

USER MANUAL

Warranty Information

OSD Audio | Brea, CA | osdaudio.com

NERO IWLCR Man. 1/22

All OSD NERO speaker products have a (15) year Limited Warranty against defects in materials and

workmanship. Proof of purchase must accompany all claims. During the warranty period OSD AUDIO will

replace any defective part and correct any defect in workmanship without charge for either parts or labor

OSD AUDIO may replace returned speakers with a product of equal value and performance. In such

cases, some modification to the mounting may be necessary and are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If

necessary, repairs must be performed by OSD AUDIO. The unit must be returned to OSD AUDIO at the

owner’s expense and with prior written permission. Accidental damage and shipping damage are not

considered defects, nor is damaged resulting from abuse or from servicing performed by an agency or

person not specifically authorized in writing by OSD Audio

OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers

obtain proper support and service. Any OSD AUDIO product purchased from an unauthorized dealer or

other source, including retailers, mail over dealers and on-line sellers will not be honored or serviced

under existing OSD AUDIO warranty policy. Any sale of product by an unauthorized source or other

manner not authorized by OSD AUDIO shall void the warranty on the applicable product.

Damage to or destruction of components due to application of excessive power voids the warranty on

those parts. In these cases, repairs will be made on the basis of the retail value of the parts and labor. To

return for repairs, you must email customer service at RMA@ audiogeargroup.com for a Returned

Merchandise Authorization (RMA) number# then the unit must be shipped to OSD AUDIO at the owner’s

expense, along with a note explaining the nature of service required. Be sure to pack the speaker(s) in a

corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.

This Warranty Does Not Cover:

Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any

products that have been altered or modified • Any product whose identifying number of decal, serial #, etc.

has been altered, defaced or removed • Normal wear and maintenance.

Installation Instructions Product Speciﬁcations

1’’ (25 mm) Silk soft dome

50Hz -20kHz

10-150W Peak

88 dB

N/A

8 ohms

Sprung connector

Cut out template, Grille

"17.4" x 7.5" x 4" (100mm x 442mm x 190mm)

ABS

16.33’’ x 6.49’’ (415mm x 165mm )

5’’ x 2 (125 mm) Graphite Cone, Rubber SurroundWoofer

Tweeter

Frequency Range+/-10

Power Handing Peak

Sensitivity

Taps

Impedance

Termination

Included Accessories

Dimensions (H*D*W)

Material

Cut out diameter

Model

NERO-IWLCR53

1’’ (25 mm) Aluminum dome

45Hz -20kHz

10-160W Peak

89 dB

N/A

8 ohms

Sprung connector

Cut out template, Grille

"17.4" x 7.5" x 4" (100mm x 442mm x 190mm)

ABS

16.33’’ x 6.49’’ (415mm x 165mm )

5’’ x 2 (125 mm) Kevlar Cone, Rubber SurroundWoofer

Tweeter

Frequency Range+/-10

Power Handing Peak

Sensitivity

Taps

Impedance

Termination

Included Accessories

Dimensions (H*D*W)

Material

Cut out diameter

Model

NERO-IWLCR55
