Side 1/8

STANDARD EQUIPMENT

Pruning Chainsaw

PRUNING

CHAINSAW

INSTRUCTION MANUAL

ozito.com.au

Bottle for Oil

Guide Bar & Chain

SPECIFICATIONS

Input: 18V

Bar Length: 160mm

Cutting Length: 125mm max.

Chain Speed: 4.8m/s max.

Chain Pitch: 7.62mm

Chain Gauge: 1.0mm (0.039”)

Oil Bottle: 50ml

Weight: 1.1kg

Bar & Chain Cover, Hex Key

PXBPCS-1815

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU

MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS

WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE

OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

WARRANTY

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL

NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER

SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND

ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE

WARRANTY POLICY OR PROCEDURE.

The benets provided under this warranty are in addition to other rights and

remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to

a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of acceptable quality and the failure

does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this

warranty, however, where you have suffered any additional direct loss as a result of

a defective product you may be able to claim such expenses by contacting our

customer service helpline above.

1023

WARNING

The following actions will result in the warranty being

void.

• If the tool has been operated on a supply voltage other

than that specied on the tool.

• If the tool shows signs of damage or defects caused

by or resulting from abuse, accidents or alterations.

• Failure to perform maintenance as set out within the instruction manual.

• If the tool is disassembled or tampered with in any way.

• Professional, industrial or high frequency use.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of

purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it

will be replaced in accordance with the terms of this warranty. Lithium Ion

batteries and chargers are covered by a 36 month

warranty Warranty excludes consumable parts, for example: guide bar, chain

and included accessories.

160

(6¼”)

160

(6¼”)

OZITO. 25 Fox Drive, Dandenong South, Victoria 3175, Australia

This product is intended for use by a competent

trained person. This user manual is a guide only and

should not be treated as a training manual.

• Please seek professional training before use.

• This product is designed for light limbing of branches and or light

pruning of trees, shrubs and bushes while user is rmly footed on the

ground. Not designed for tree-felling purposes.

¼”)

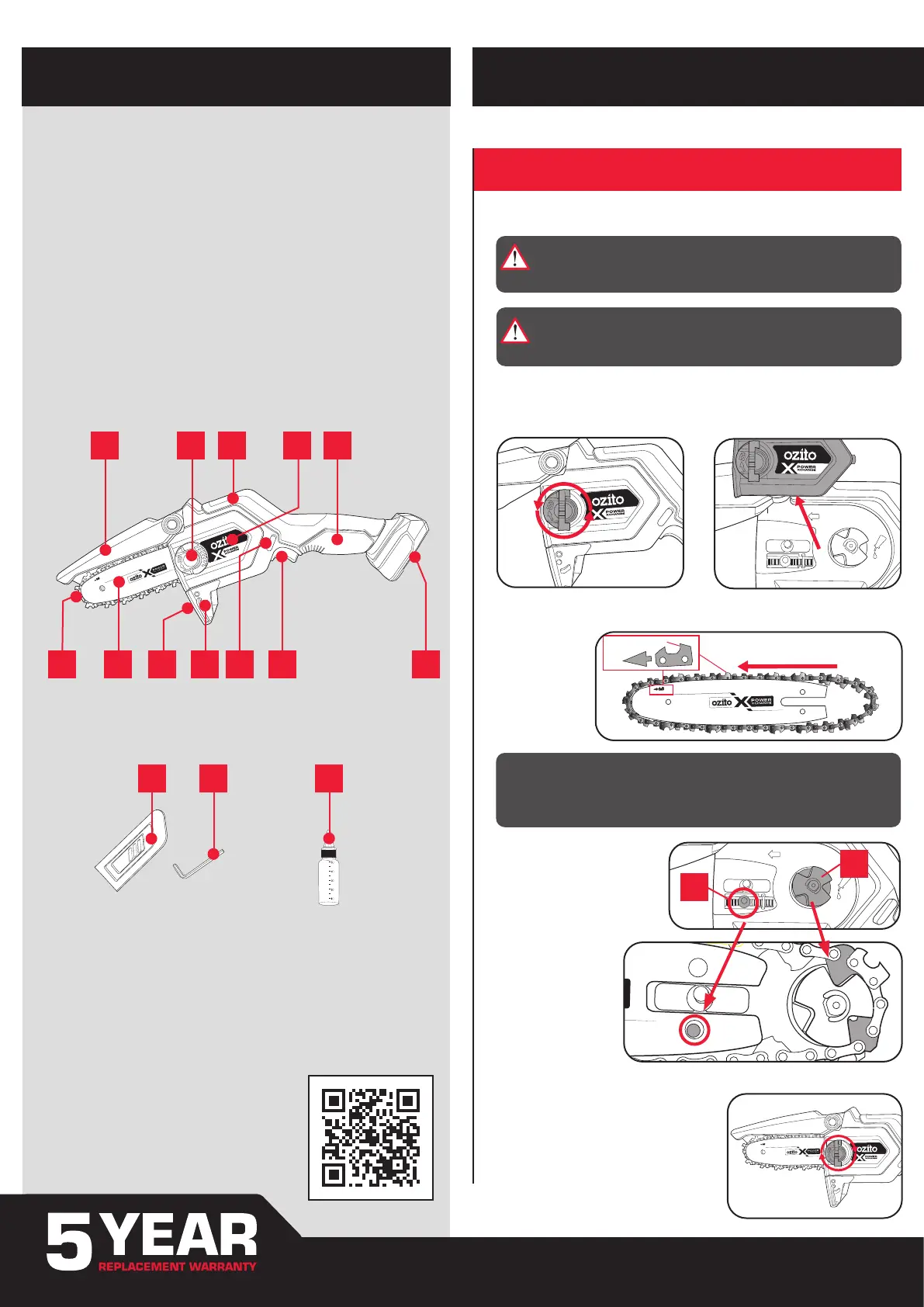

KNOW YOUR PRODUCT SETUP & PREPARATION

1. ASSEMBLY

1. Pivoting Guard

2. Side Cover Lock

3. Front Handle

4. Side Cover

5. Rear Handle

6. Chain

7. Guide Bar

8. Front Hand Guard

9. Hex Key Storage

10. Safety Switch

11. On/Off Trigger

12. Battery Seating

13. Chain & Bar Cover

14. Hex Key

15. Bottle for Oil

PRUNING CHAINSAW

1 42

6 7 8

BATTERY & CHARGER

This tool is compatible with all battery and chargers

from the Ozito PXC Range.

ONLINE MANUAL

Scan this QR Code with your

mobile device to take you to the

online manual.

10 119

WARNING!: ENSURE THE CHAINSAW IS SWITCHED

OFF AND THE BATTERY IS DISCONNECTED BEFORE

PERFORMING ANY OF THE FOLLOWING TASKS.

WARNING!: ALWAYS WEAR GLOVES WHEN HANDLING

THE CHAIN. THE CHAIN CUTTERS ARE SHARP AND

COULD CUT YOU.

160

(6¼”)

3 5

Cutter Face

160

(6¼”)

Direction of Rotation

IMPORTANT: IF THE CHAIN IS INSTALLED BACKWARDS

(CHAIN CUTTERS ARE FACING IN THE OPPOSITE DIRECTION

OF ROTATION) THE CHAINSAW WILL VIBRATE EXCESSIVELY

AND NOT CUT.

4. Place the Guide Bar and

Chain in position, ensuring

that the chain is around

sprocket and the chain (A)

links are in the groove of

the Guide Bar and

the Sprocket. Also

ensure that the pin

(B) ts into the

hole of the Guide

Bar.

5. Attach the Side Cover and secure

it with the Side Cover Lock.

Do not fully tighten until after

adjusting the chain tension.

(See Adjusting the Chain

Tension).

1. Lift the tab on the Side Cover

Lock and completely unscrew,

rotating counter clockwise.

Fitting the Chain & Bar

2. Remove the Side Cover.

3. Fit the Chain in the groove on the Guide Bar, making sure that the

cutters are

facing in the

direction of

rotation.
