STANDARD EQUIPMENT
Chainsaw
TOP HANDLE
CHAINSAW
INSTRUCTION MANUAL
ozito.com.au
Guide Bar Cover
Guide Bar & Chain
SPECIFICATIONS
Input: 18V
Bar Length: 200mm (8”)
Cutting Length: 140mm max.
Chain Speed: 7m/s max.
Chain Pitch: 9.53mm (3/8”)
Chain Gauge: 1.1mm (0.043”)
Oil Tank: 75ml max.
Weight: 3.0kg
PXTCSS-1820
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
0923
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specied on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty Warranty excludes consumable parts, for example: guide bar, chain
and included accessories.
OZITO. 25 Fox Drive, Dandenong South, Victoria 3175, Australia
This product is intended for use by a competent
trained person. This user manual is a guide only and
should not be treated as a training manual.
• Please seek professional training before use.
• This product is designed for light limbing of branches and or light
pruning of trees, shrubs and bushes while user is rmly footed on the
ground.

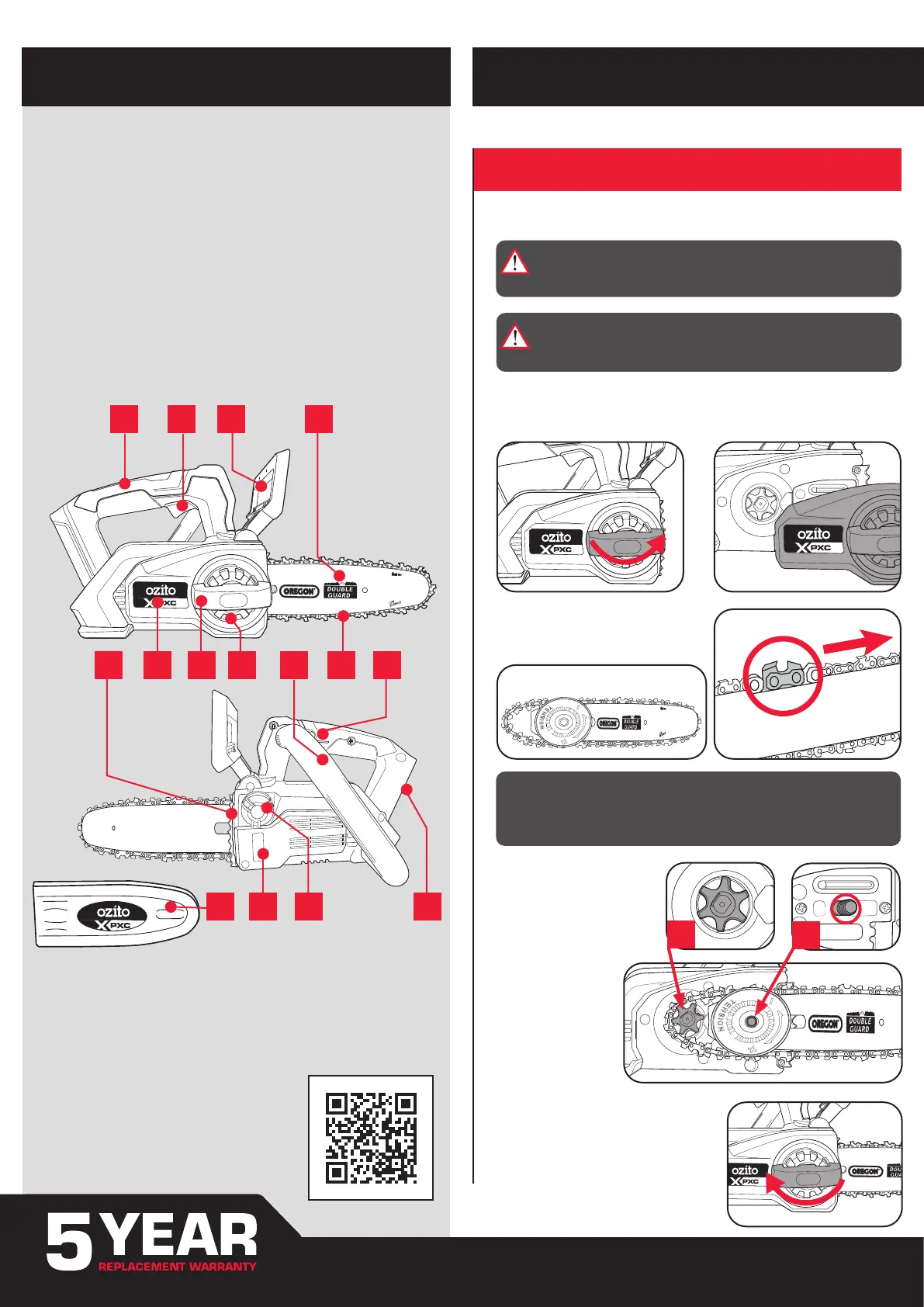

KNOW YOUR PRODUCT SETUP & PREPARATION
1. ASSEMBLY
1. Top Handle
2. On/Off Trigger
3. Hand Guard/Chain Brake
4. Guide Bar
5. Bucking Spikes
6. Side Cover
7. Guide Bar Lock Knob
8. Chain Tensioning Dial
9. Front Handle
10. Chain
11. Safety Lock-Off
12. Guide Bar Cover
13. Oil Level Window
14. Oil Tank Cap
15. Battery Seating
BRUSHLESS CHAINSAW
1 3 4
6 7 8
BATTERY & CHARGER
This tool is compatible with all battery and chargers
from the Ozito PXC Range.
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
14
10 119
1512 13
WARNING!: ENSURE THE CHAINSAW IS SWITCHED
OFF AND THE BATTERY IS DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING!: ALWAYS WEAR GLOVES WHEN HANDLING
THE CHAIN. THE CHAIN CUTTERS ARE SHARP AND
COULD CUT YOU.
2
5
IMPORTANT: IF THE CHAIN IS INSTALLED BACKWARDS
(CHAIN CUTTERS ARE FACING IN THE OPPOSITE DIRECTION
OF ROTATION) THE CHAINSAW WILL VIBRATE EXCESSIVELY
AND NOT CUT.
AB
4. Place the guide bar and
chain in position, ensuring
that the chain is around
sprocket . Also ensure (A)
that the threaded pin (B)
ts into the guide
bar tension dial.
If it does not t,
it can be adjusted
slightly by turning
the dial.
5. Attach the side cover and secure
it with the guide bar lock knob. Do
not fully tighten the guide bar lock
knob until after adjusting the chain
tension.
1. Completely unscrew the guide
bar lock knob, rotating in a
counter clockwise direction.
Fitting the Chain & Bar
2. Remove the side cover.
3. Fit the chain over the guide bar,
making sure that the cutters are
facing in the direction of rotation.
