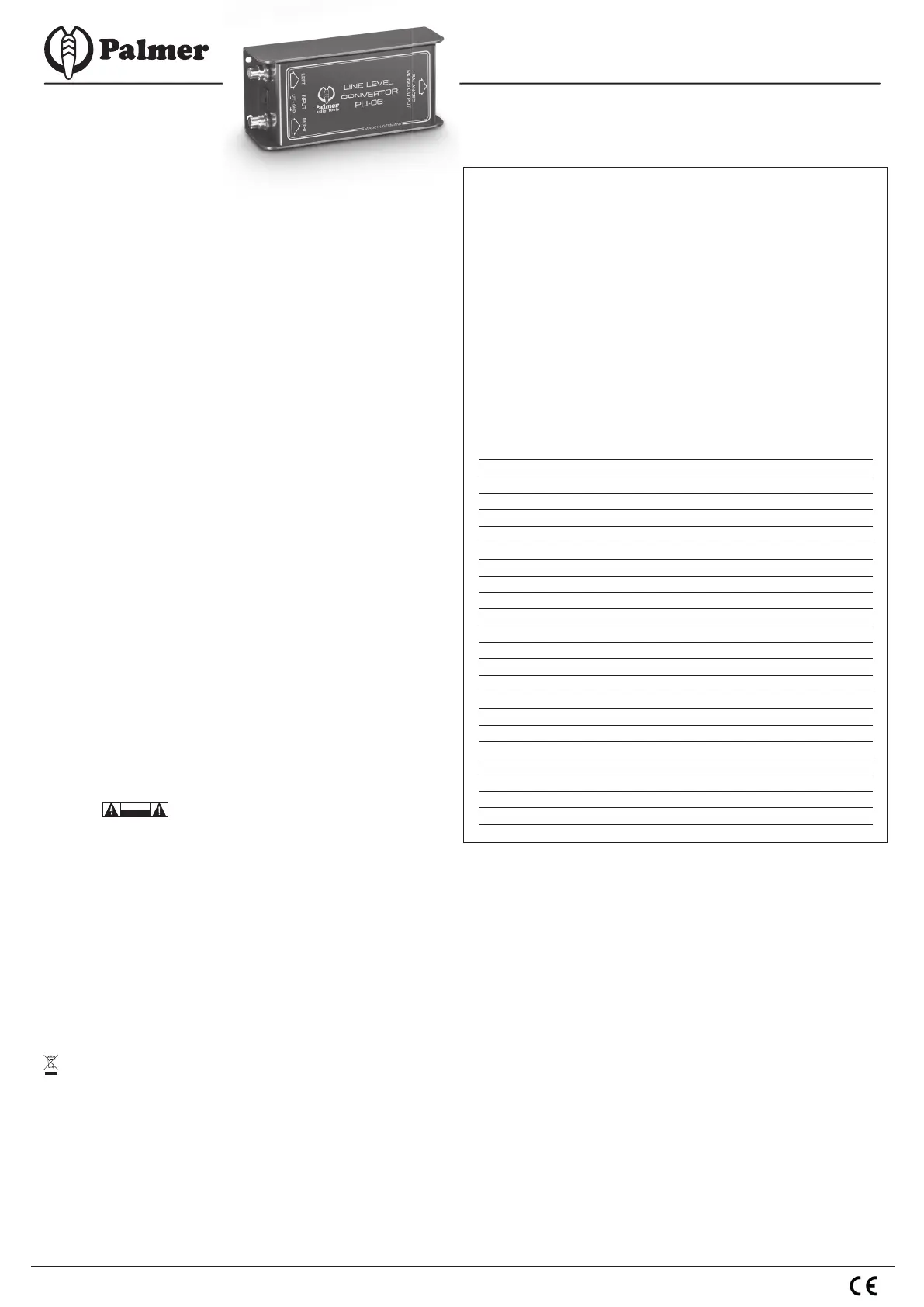

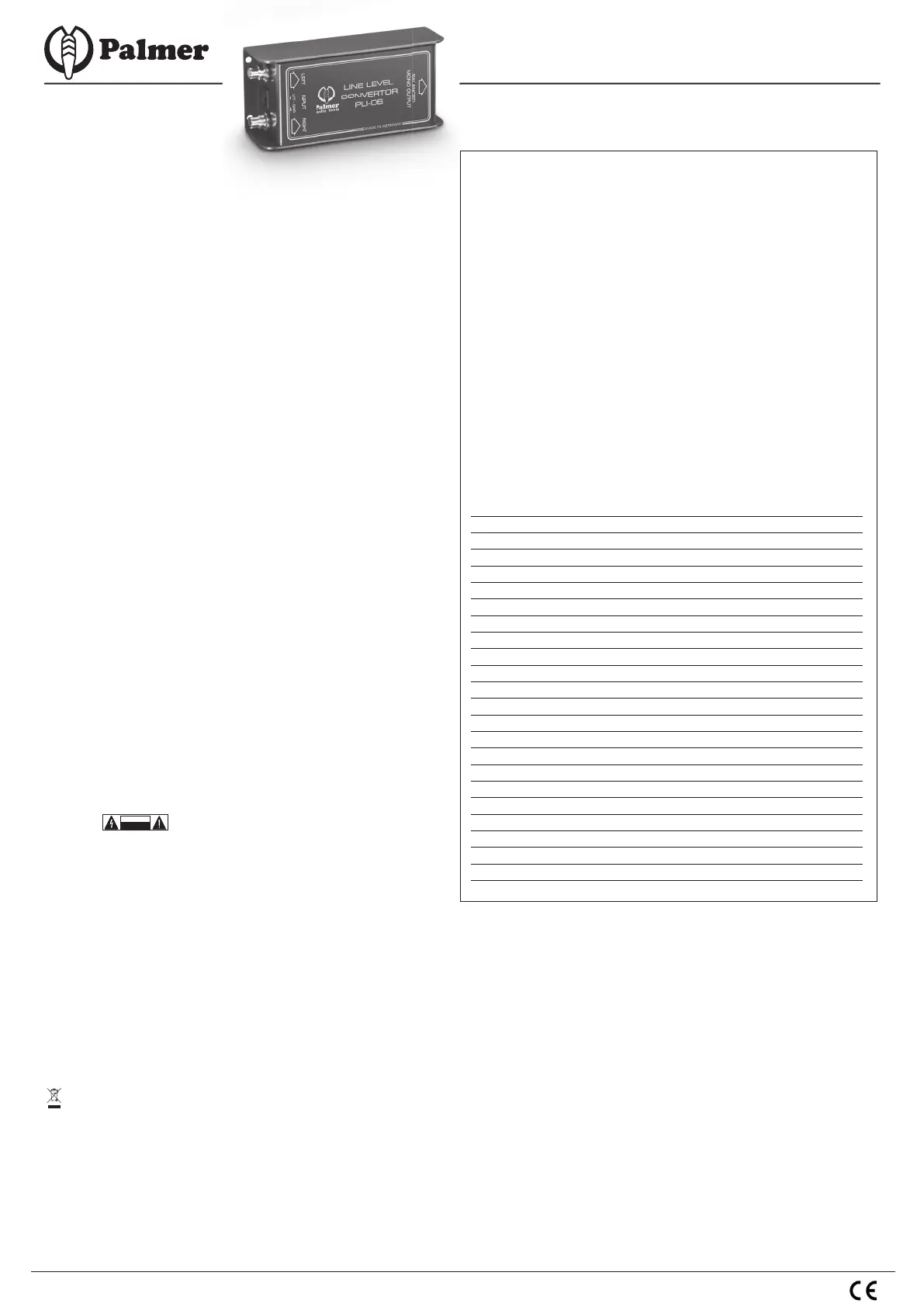

PLI06 – Line Level Convertor 2 In 1 Out

SAFETY INFORMATION

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make cer-

tain that wall mounts are properly installed and secured. Make certain that the equipment is installed

securely and cannot fall down.

7. During installation, observe the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat.

Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor

equipment - in this case, observe the special instructions noted below. Do not expose this equipment

to flammable materials, fluids or gases.

12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers

filled with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Open the device for changing the battery, do not modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due

to tripping hazards.

17. During transport, make certain that the equipment cannot fall down and possibly cause property

damage and personal injuries.

18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equip-

ment or if it has been damaged in another way, switch it off immediately and unplug it from the

mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified

personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please sep-

arate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

22. If the equipment has been exposed to strong fluctuations in temperature (for example, after trans-

port), do not switch it on immediately. Moisture and condensation could damage the equipment. Do

not switch on the equipment until it has reached room temperature.

23. Do not step on the power cord. Make certain that the power cable does not become kinked, especially

at the mains outlet and/or power adapter and the equipment connector.

24. When connecting the equipment, make certain that the power cord or power adapter is always freely

accessible. Always disconnect the equipment from the power supply if the equipment is not in use

or if you want to clean the equipment. Always unplug the power cord and power adapter from the

power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and

power adapter with wet hands.

25. To disconnect the equipment from the power mains completely, unplug the power cord or power

adapter from the power outlet.

26. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike

or before extended periods of disuse.

CAUTION:

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject

to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam

Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to

high volume and prolonged exposure: When in use, this product is capable of producing high sound-pres-

sure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience

members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.

MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY

You can find our current warranty conditions and limitation of liability at: http://www.adamhall.com/media/

shop/downloads/documents/manufacturersdeclarations.pdf

To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu

Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0

PROPER DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance

may not be treated as household waste. This is to avoid environmental damage or personal injury due

to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it

recycled to promote sustainable economic activity.

SCOPE OF APPLICATION

Today, lectures and presentations are mostly held with audio and visual media support. Connecting laptop

computers to the mixing consoles of PA systems, however, can be a major problem due to incompatible

connector formats. The Palmer Line Level Convertor PLI06 is a dedicated interface to feed the unbalanced

stereo signal typically provided by a laptop to the balanced (mono) microphone inputs of professional

mixing desks. It mixes the stereo output to mono while impedance matching and signal balancing are

achieved by a high quality audio transformer especially designed for the unit. Moreover, it also prevents

ground loops and the annoying hum they result in. The PLI06 is entirely passive and does not require

mains power or batteries.

CONNECTIONS

Equipment providing audio output on RCA phono sockets is connected to the PLI06’s inputs using a

shielded RCA stereo cable. For best results with laptops we recommend using their headphones output

which is usually on a 3.5 mm miniature stereo socket. Use a shielded TRS mini jack to 2x RCA phono

cable for connection to the PLI06. Place the unit close to the signal source and keep the input cable as

short as possible since the unbalanced signal path is susceptible to interference. The PLI06’s output

is on a standard wiring male XLR connector. Use a high quality microphone cable for connection to

the mixing console. Due to the balanced lo-Z signal provided by the Palmer Line Level Converter cable

lengths are uncritical while interference-free signal integrity is maintained.

TECHNICAL SPECIFICATIONS

Product Type: line isolator

Type: passive

Channels: 1

Inputs: 2

Input Connections: RCA

Max. Input Level: + 6 dBu

Input Impedance: 6 k Ohm(s)

Input Type: unbalanced

Outputs: 1

Output Connections: XLR

Output Type: balanced

Output Impedance: 600 Ohm(s)

Max. Output Levels: + 6 dB

Frequency Response: 20 - 20,000 Hz

Transformer-balanced: yes

Ratio: 1:1

Housing Material: sheet steel / aluminium

Housing Surface: powder coated

Width: 130 mm

Depth: 60 mm

Height: 35 mm

Weight: 0.25 kg

FAX: ++49 (0)6081 43280 WEB: www.adamhall.com, www.palmer-germany.com EMAIL: info@palmer-germany.com
