English
Operating Instructions
Air Conditioner
Operating Instructions
Air Conditioner
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
The included Installation Instructions should be kept and read
by the installer before installation.
Remote control is packaged in the indoor unit and removed
by the installer before installation.
Model No.
Indoor Unit Outdoor Unit
CS-XV9UKD-3
CS-XV12UKD-3
CU-XV9UKD-3
CU-XV12UKD-3
POWER / AVS
ACXF55-16960
ACXF55-16960_YA0118-0.indd 1ACXF55-16960_YA0118-0.indd 1 12/29/2017 2:56:54 PM12/29/2017 2:56:54 PM
2

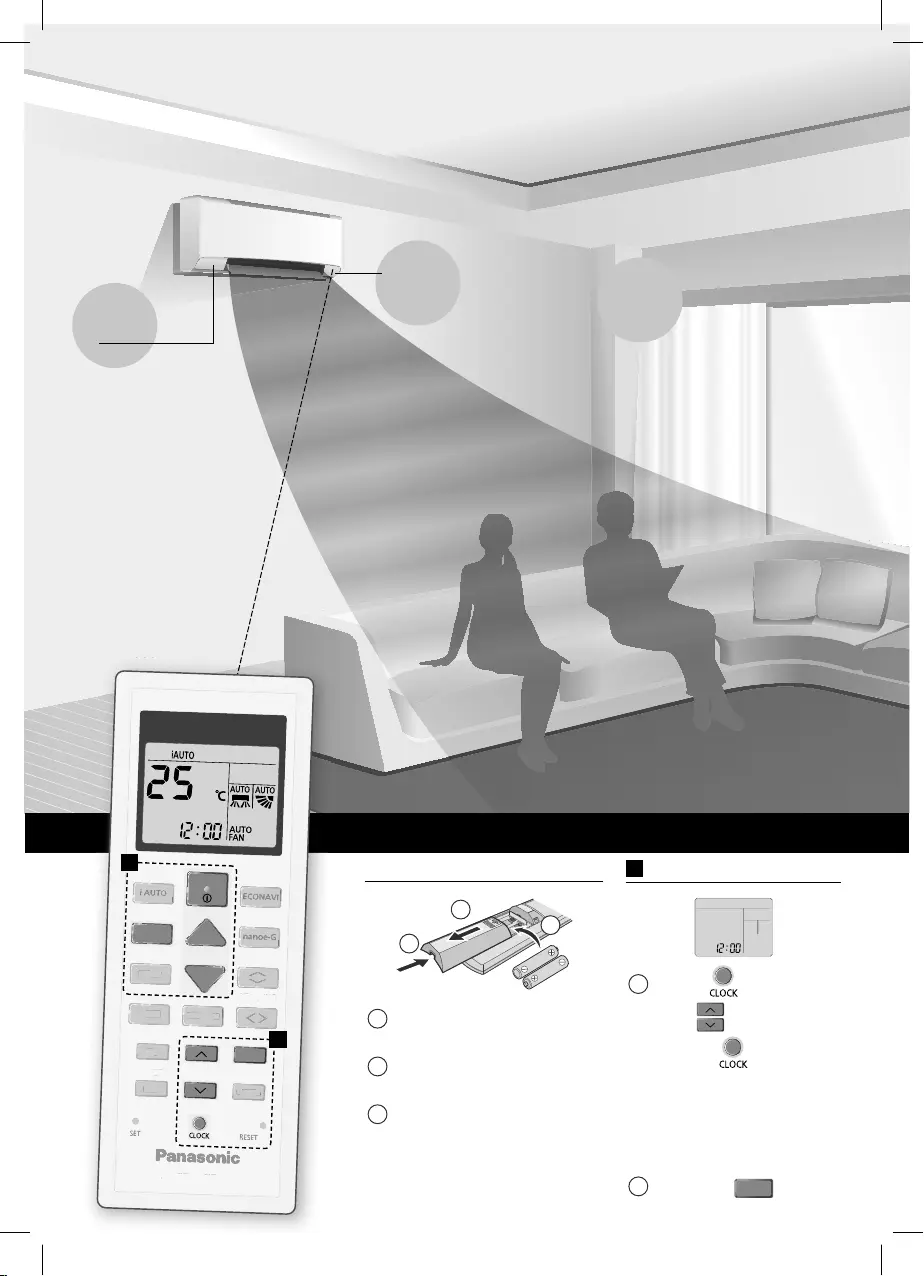

Provides fast cooling, maximum comfort and clean air.
Use remote
control within 8 m
from the remote
control receiver of
the indoor unit.
Quick Guide
Inserting the batteries
1
2
3
1
Pull out the back cover
of remote control.
2
Insert AAA or R03
batteries.
3
Close the cover.
A
Clock setting
1
Press
and
set the
time .
• Press and hold
for approximately
5 seconds to show
time in 12-hour
(am/pm) or 24 hour
indication.
2
Confi rm
SET
.
• Area Search
• Activity Detection
• Absence Detection
Human activity
sensor
Sunlight sensor and
remote control receiver
Econavi
The intelligent human
activity and sunlight
sensors monitor human
location, movements,
absence and sunlight
intensity.
See “To learn more...” for details.
he indoor u
AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
SLEEP
QUIET
AIR SWING
TEMP
OFF/ON
AIR CONDITIONER
ON
OFF
TIMER
CANCEL
FAN SPEED
SLEEP
QUIET
AIR SWING
A
B
ACXF55-16960_YA0118-0.indd 2ACXF55-16960_YA0118-0.indd 2 12/29/2017 2:56:54 PM12/29/2017 2:56:54 PM
3
Table of contents
Safety precautions
…………
4-5
How to use
………………………
6-7
To learn more...
...................
8-9
Cleaning instructions
………
10
Troubleshooting
…………
11-12
Information………Back cover
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2
The illustrations in this manual are for
explanation purposes only and may differ
from the actual unit. They are subject
to change without notice for future
improvement.
B
Basic operation
1
Press
MODE
to select
the desired mode.
DRYiAUTO COOL
2
Press
OFF/ON
OFF/ON
to
start/stop the
operation.
POWER
• Please note that
the
indication
is on display to
start the unit.
3
Select the desired
temperature.
TEMP
Up
Down
Selection range:
16 °C ~ 30 °C /
60 °F ~ 86 °F.
• Press and hold
for
approximately 10 seconds
to switch the temperature
indication in °C or °F.
Thank you for purchasing
Panasonic Air Conditioner.
English
ACXF55-16960_YA0118-0.indd 3ACXF55-16960_YA0118-0.indd 3 12/29/2017 2:56:55 PM12/29/2017 2:56:55 PM
4

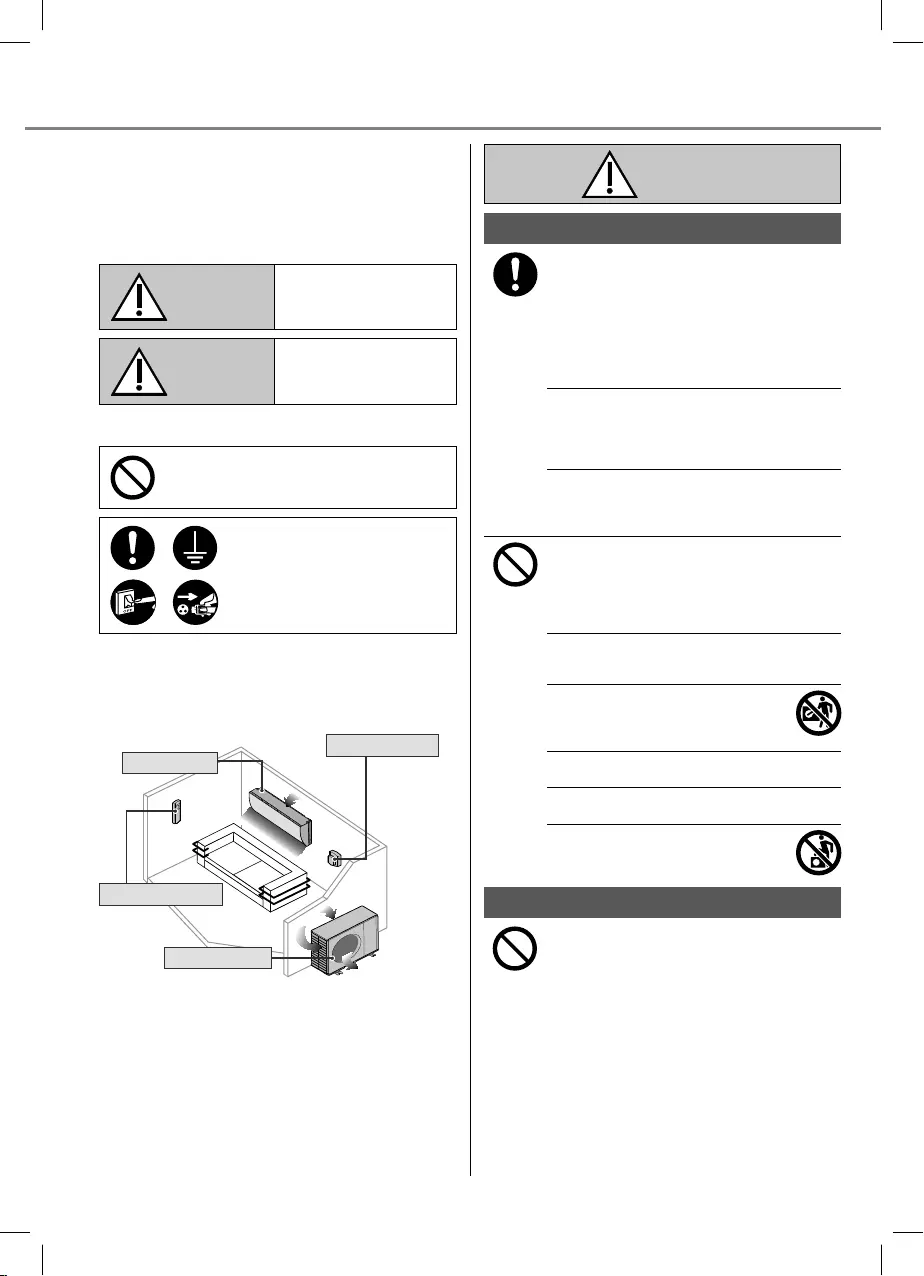

Safety precautions
WARNING
Indoor unit and outdoor unit
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
Please consult authorised dealer or specialist
to clean the internal parts, repair, install,
remove and reinstall the unit. Improper
installation and handling will cause leakage,
electric shock or fi re.
Confi rm with authorised dealer or specialist on
usage of any specifi ed refrigerant type. Using
refrigerant type other than the specifi ed may
cause product damage, burst and injury etc.
Do not use means to accelerate the defrosting
process or to clean, other than those
recommended by manufacturer.
Any unfi t method or using incompatible material
may cause product damage, burst and serious
injury.
Do not install the unit in a potentially explosive
or fl ammable atmosphere.
Failure to do so could result in fi re.
Do not insert your fi ngers or other
objects into the air conditioner indoor
or outdoor unit, rotating parts may
cause injury.
Do not touch the outdoor unit during lightning, it
may cause electric shock.
Do not expose yourself directly to cold air for a
long period to avoid excess cooling.
Do not sit or step on the unit, you may
fall down accidentally.
Remote control
Do not allow infants and small children to play
with the remote control to prevent them from
accidentally swallowing the batteries.
To prevent personal injury, injury to others or property
damage, please comply with the following:
Incorrect operation due to failure to follow instructions
below may cause harm or damage, the seriousness of
which is classifi ed as below:
This appliances is not intended for accessibility by the
general public.
WARNING
This sign warns of death
or serious injury.
CAUTION
This sign warns of injury
or damage to property.
The instructions to be followed are classifi ed by the
following symbols:
This symbol denotes an action that
is PROHIBITED.
These symbols denote actions
COMPULSORY.
Indoor unit
Outdoor unit
Power supply
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet
ACXF55-16960_YA0118-0.indd 4ACXF55-16960_YA0118-0.indd 4 12/29/2017 2:56:56 PM12/29/2017 2:56:56 PM
5

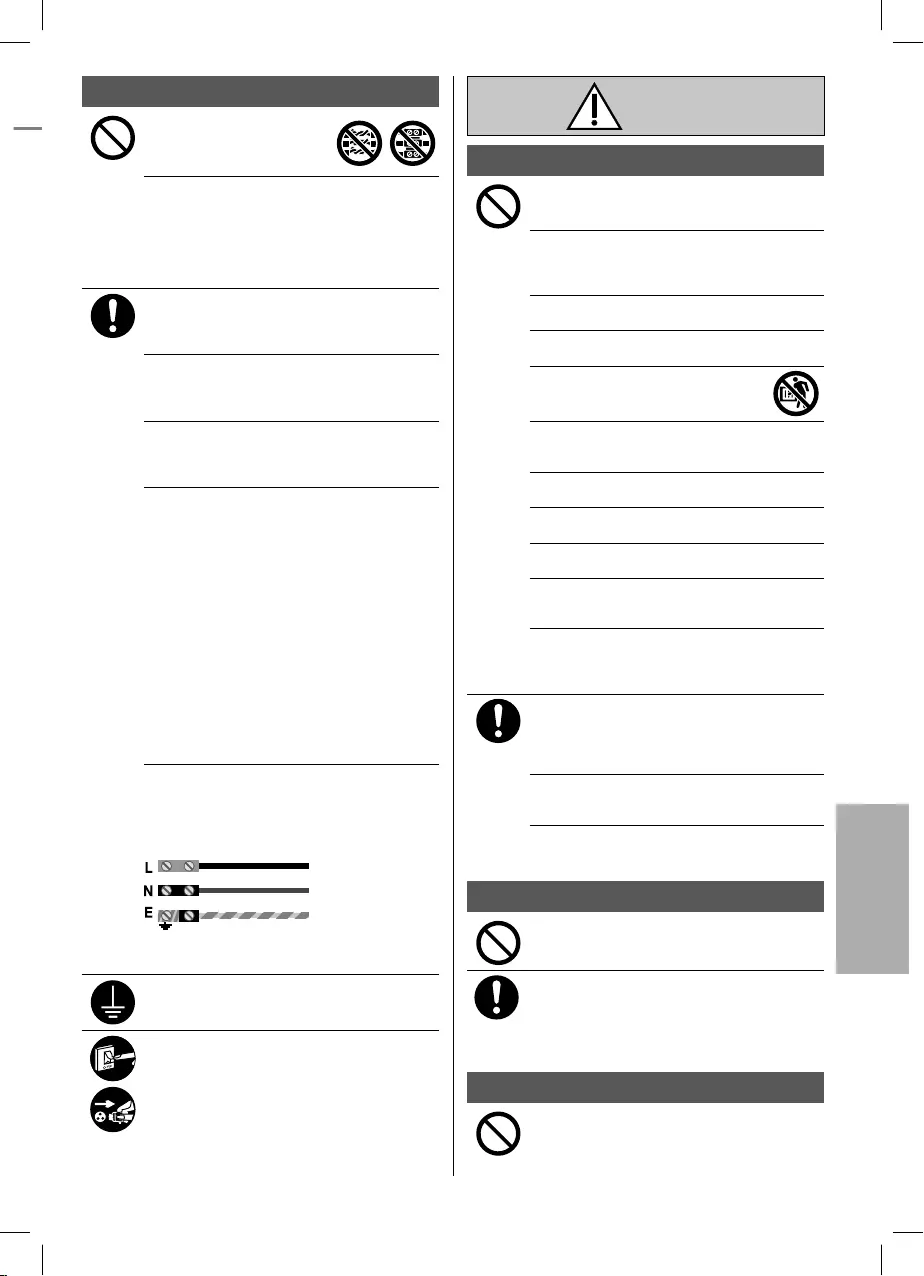

Safety precautions
Power supply
Do not use a modifi ed cord,
joint cord, extension cord or
unspecifi ed cord to prevent
overheating and fi re.
To prevent overheating, fi re or electric shock:
• Do not share the same power outlet with other
equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or
pulling out the power plug.
If the supply cord is damaged, it must be
replaced by the manufacturer, service agent
or similarly qualifi ed persons in order to avoid
a hazard.
It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or fi re.
To prevent overheating, fi re or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be periodically
wiped with a dry cloth.
Stop using the product if any abnormality/
failure occurs and disconnect the power plug or
turn off the power switch and breaker.
(Risk of smoke/fi re/electric shock)
Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is
observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it
is switched on for operation.
• The fan does not stop even if the operation
is stopped.
Contact your local dealer immediately for
maintenance/repair.
Replacement or installation of power plugs
shall be performed by authorised/qualifi ed
personnel only. The wires in this mains lead are
coloured in accordance with the following code:
Terminals
Red
wires
live
neutral
earth
colours (GB Standard)
blue
green-yellow
brown
Black
Green/Yellow
Wiring colour may vary depending on a country
wiring code’s standard.
This equipment must be earthed to prevent
electrical shock or fi re.
Prevent electric shock by switching off the
power supply and unplug:
- Before cleaning or servicing,
- When extended non-use, or
- During abnormally strong lightning activity.
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit with water,
benzine, thinner or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation of precise
equipment, food, animals, plants, artwork
or other objects. This may cause quality
deterioration, etc.
Do not use any combustible equipment in front
of the airfl ow outlet to avoid fi re propagation.
Do not expose plants or pet directly to airfl ow to
avoid injury, etc.
Do not touch the sharp aluminium fi n,
sharp parts may cause injury.
Do not switch ON the indoor unit when waxing
the fl oor. After waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and smoky areas
to prevent damage to the unit.
Do not dismantle the unit for cleaning purpose
to avoid injury.
Do not step onto an unstable bench when
cleaning the unit to avoid injury.
Do not place a vase or water container on the
unit. Water may enter the unit and degrade the
insulation. This may cause an electric shock.
Do not open window or door for long time
during operation, it may lead to ineffi cient
power usage and uncomfortable temperature
changes.
Prevent water leakage by ensuring drainage
pipe is:
- Connected properly,
- Kept clear of gutters and containers, or
- Not immersed in water
After a long period of use or use with any
combustible equipment, aerate the room
regularly.
After a long period of use, make sure the
installation rack does not deteriorate to prevent
the unit from falling down.
Remote control
Do not use rechargeable (Ni-Cd) batteries. It
may damage the remote control.
To prevent malfunction or damage of the
remote control:
• Remove the batteries if the unit is not going to
be used for a long period of time.
• New batteries of the same type must be
inserted following the polarity stated.
Power supply
Do not disconnect the plug by pulling the cord
to prevent electric shock.
English
ACXF55-16960_YA0118-0.indd 5ACXF55-16960_YA0118-0.indd 5 12/29/2017 2:56:56 PM12/29/2017 2:56:56 PM
POWER / AVS
6

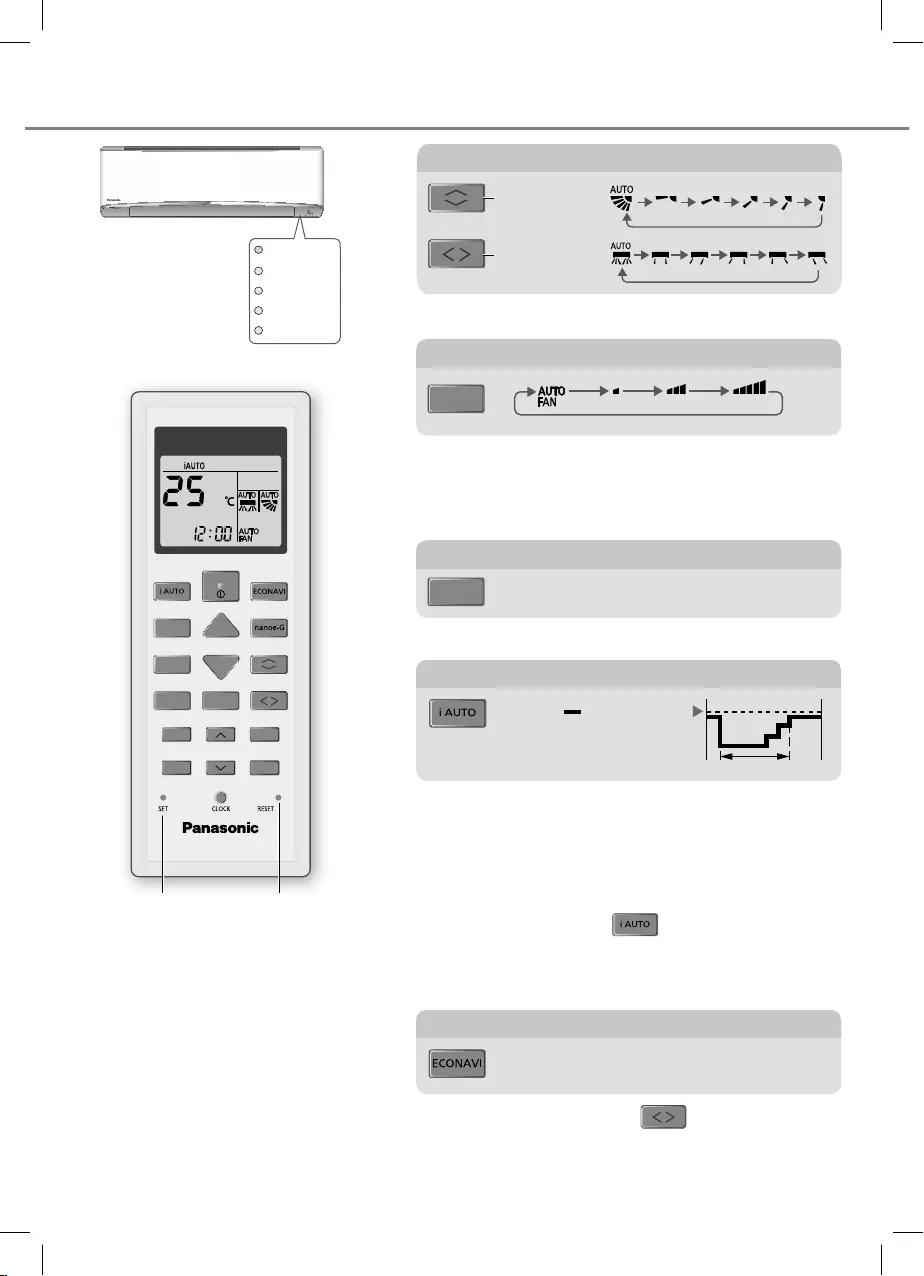

How to use
Indicator
POWER/AVS
TIMER
i AUTO
nanoe-G
ECONAVI
To save energy
• When manual AIR SWING is selected, the
ECONAVI operations will be cancelled.
• Do not adjust the fl ap by hand.
To adjust airfl ow directionTo adjust airfl ow direction
AIR SWING
Upper direction
Lateral direction
To adjust fan speed
FAN SPEED
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• If i AUTO mode is set, fan speed is fi xed to AUTO.
To adjust fan speed, cancel i AUTO mode.
• The unit controls set temperature according to
room temperature to accelerate room cooling.
• After max 4 hours, the set temperature follows the
last set temperature setting.
• Fan speed is fi xed at AUTO, fan speed selection is
prohibited.
• During unit is off, press
will turn on the unit
with i AUTO mode.
• i AUTO mode can be cancelled by pressing the
respective button again.
To reach temperature quickly
i AUTO
Set
temperature
-1°C /
-2°F
Max = 4 hours
• This operation reduces airfl ow noise.
To enjoy quiet operation
QUIET
AIR CONDITIONER
ON
OFF
SET
TIMER
CANCEL
OFF/ON
FAN SPEED
MODE
SLEEP
QUIET
AIR SWING
TEMP
OFF/ON
Not used
in normal
operations.
Press to restore
the remote
control to default
setting.
ACXF55-16960_YA0118-0.indd 6ACXF55-16960_YA0118-0.indd 6 12/29/2017 2:56:57 PM12/29/2017 2:56:57 PM
7

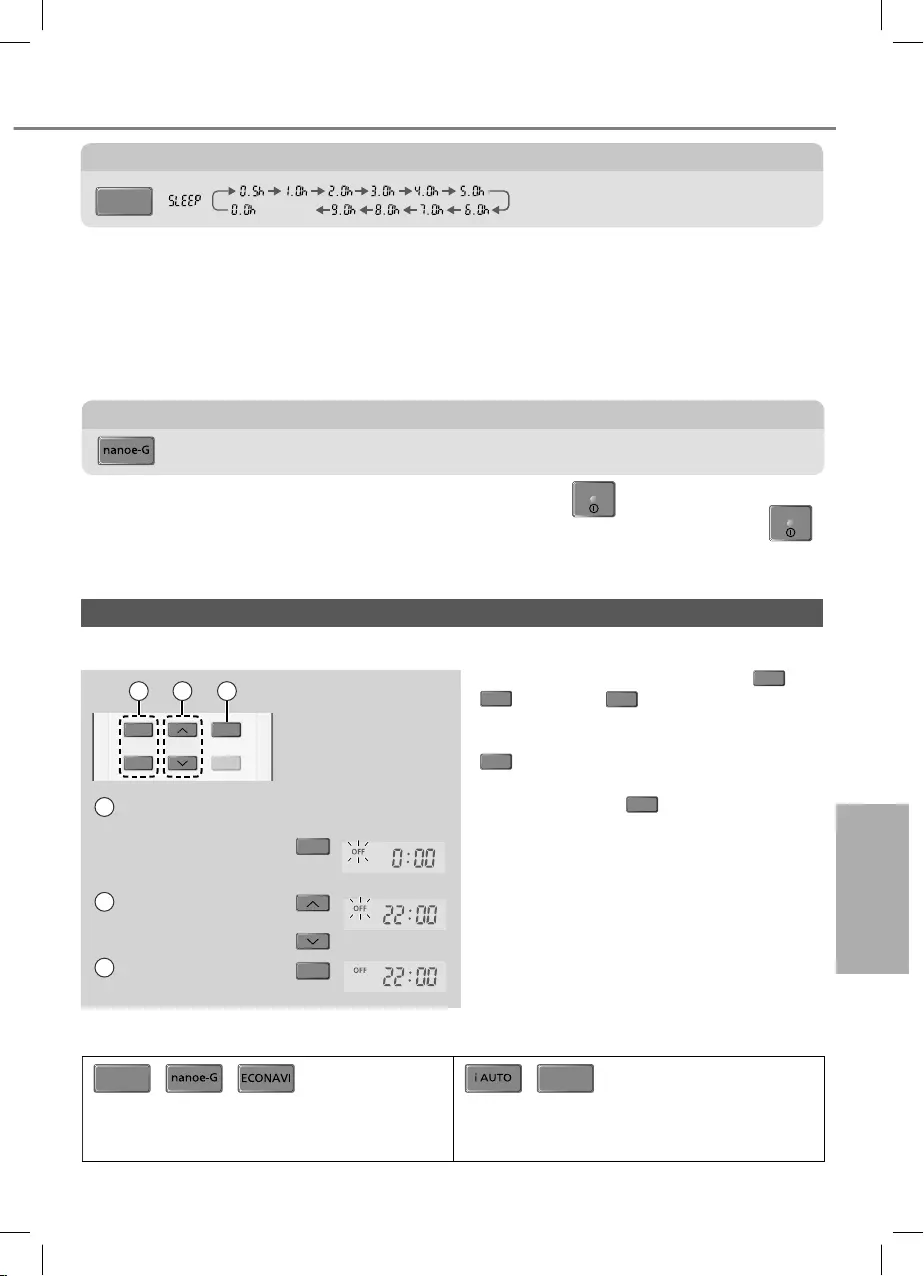

English
See "To learn more..." for details.
Note
SLEEP
, ,
,
QUIET
• Can be activated in all modes and can be
cancelled by pressing the respective button
again.
• Cannot be selected at the same time.
How to use
To purify the air
• nanoe-G starts automatically when the unit is turned on with
OFF/ON
OFF/ON
.
• nanoe-G will not start automatically during ON timer if the unit has been turned off by
OFF/ON
OFF/ON
.
• Can be activated even when the unit is turned off. In this condition, the unit will operate as a
fan with AUTO fan speed and fl ap swing.
To maximise comfort while sleeping
(CANCEL)
• This operation provides you with a comfortable environment while sleeping. It will
automatically adjust the sleep pattern temperature during the activation period.
• The indoor unit indicator will dim when this operation is activated. This is not applicable if
the indicator brightness has been manually dimmed.
• This operation is incorporated with the activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 hours).
•
This operation can be set together with timer. Sleep operation has the priority over OFF timer.
• This operation can be cancelled by pressing the respective button when the sleep timer
reaches 0.0h.
To set the timer
ON
OFF
SET
TIMER
CANCEL
C
AN
C
E
L
1 2 3
1
Select ON or OFF
timer
Example:
OFF at 22:00
OFF
2
Set the time
3
Confi rm
SET
• To cancel ON or OFF timer, press
ON
or
OFF
then press
CANCEL
.
• If timer is cancelled manually, you can
restore the previous setting by pressing
SET
.
• If power failure, you can restore the timer
again by pressing
SET
.
• Timer operation is based on the clock set
in the remote control and repeats daily
once set. For clock setting, please refer to
Quick guide.
To turn ON or OFF the unit at a preset time.
SLEEP
ACXF55-16960_YA0118-0.indd 7ACXF55-16960_YA0118-0.indd 7 12/29/2017 2:56:58 PM12/29/2017 2:56:58 PM
8
To learn more...
Operation mode
i AUTO : The fast cooling is ideal when you come home on a hot day.
COOL : Provides effi cient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
Energy saving temperature setting
Operating the unit within the recommended temperature range may save energy.
COOL : 26 °C ~ 28 °C /
79 °F ~ 82 °F.
Air fl ow direction
In i AUTO/COOL/DRY mode:
If AUTO is set, the fl aps swings left/right and up/down automatically.
If manual is set, the horizontal fl ap are fi xed at the predetermined position.
Automatic Voltage Switcher (AVS)
When power supply is unstable, where the AC voltage supplied is below 185 V or above 260 V, AVS will
switch off the outdoor unit to protect the compressor. During this condition, the AVS indicator will turn on.
POWER/AVS
Indicator Indoor unit Outdoor unit
Green ON ON
Orange ON OFF
Auto restart control
If power is resumed after a power failure, the operation will restart automatically after a
period of time with previous operation mode and airfl ow direction.
• This control is not applicable when TIMER is set.
nanoe-G in-fi lter deactivation
Depending on the unit’s accumulated operation time, nanoe-G in-filter deactivation may
activate only once a day after the unit turned off.
To remove the moisture left in the internal parts, the fan will operate for 30 minutes with flap
opened slightly. This process only applicable when the unit is operated in COOL/DRY mode
before turned off. Then, nanoe-G deactivates viruses/bacteria on the filter for 2 hours with
fan stopped and flap closed.
Do not turn off the power supply during this operation. After power failure, this operation will
not resume.
ACXF55-16960_YA0118-0.indd 8ACXF55-16960_YA0118-0.indd 8 12/29/2017 2:56:59 PM12/29/2017 2:56:59 PM
9

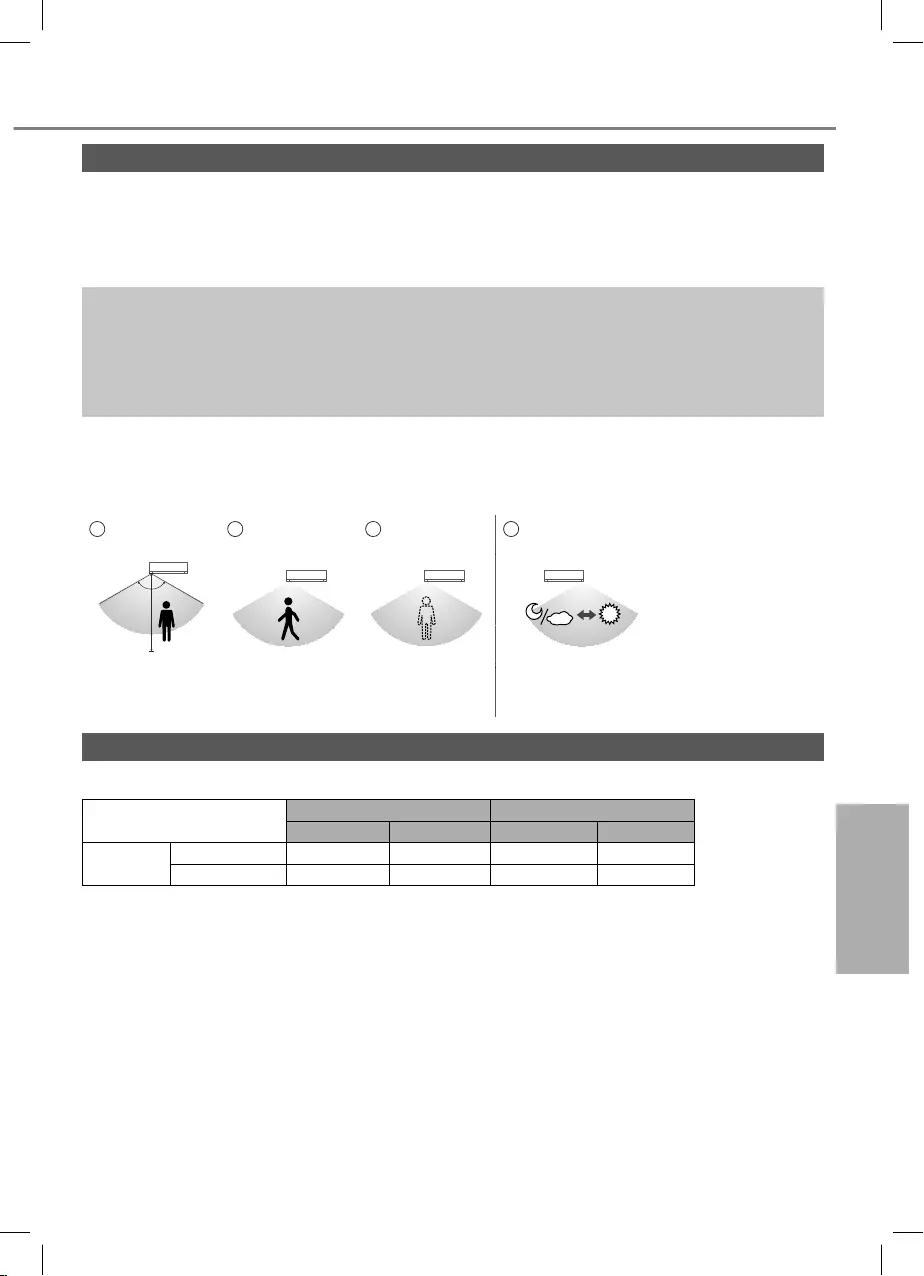

English To learn more...
ECONAVI
■ Econavi with intelligent eco sensors
Intelligent eco sensors detect potential waste of energy using the human activity sensor and
sunlight sensor.
The human activity sensor scans areas of heat source and movement in a room.
• Based on area activeness, fl ap will adjust its position automatically.
• The human activity sensor is infl uenced by the location of the indoor unit, the movement speed of
human/non-human activity, temperature range, etc.
• The human activity sensor may mistakenly detect non-human activity and source of heat, such as
pets, or may not detect the human activity or source of heat if the person stays motionless.
• Do not place large objects near the sensor and keep away heating units or humidifi er from the
sensor’s detections area.
The sunlight sensor detects changes in sunlight intensity in the room. It reduces the waste
of energy under less sunlight conditions.
4 Features
1
Area search
2
Activity
detection
3
Absence
detection
4
Sunlight
detection
7m
120º
Human activity sensor detects presence/absence
of human beings and the movement speed of human
activities minimising the required amount of energy.
Adjusts power to
changes in sunlight
intensity.
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F)
Indoor Outdoor
DBT WBT DBT WBT
COOL
Max. 32 (89.6) 23 (73.4) 46 (114.8) 26 (78.8)
Min. 16 (60.8) 11 (51.8) 16 (60.8) 11 (51.8)
DBT : Dry bulb temperature, WBT : Wet bulb temperature
ACXF55-16960_YA0118-0.indd 9ACXF55-16960_YA0118-0.indd 9 12/29/2017 2:56:59 PM12/29/2017 2:56:59 PM
10

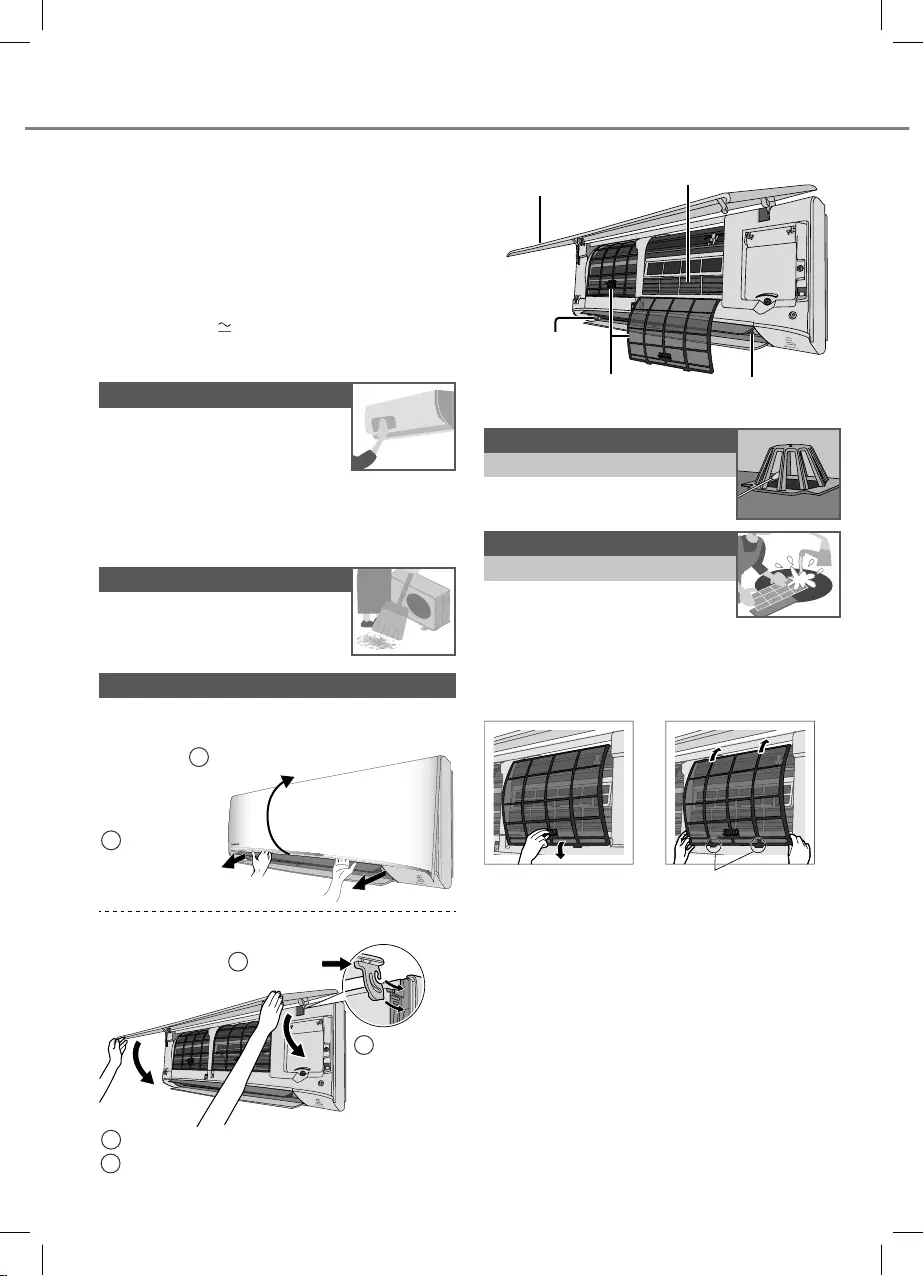

Cleaning instructions
To ensure optimal performance of the unit,
cleaning has to be carried out at regular
intervals. Dirty unit may cause malfunction and
you may see nanoe-G indicator blinks. Please
consult authorised dealer.
• Switch off the power supply and unplug before
cleaning.
• Do not touch the aluminium fi n, sharp parts may
cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household
detergent.
• Do not use water hotter than 40 °C / 104 °F.
Indoor unit
nanoe-G Generator
Once every 2 weeks
• Clean with dry cotton bud.
• Do not touch during operation.
Air fi lters
Once every 2 weeks
• Wash/rinse the fi lters gently
with water to avoid damage
to the fi lter surface.
• Dry the fi lters thoroughly under shade, away
from fi re or direct sunlight.
• Replace any damaged fi lters.
Remove air fi lter Attach air fi lter
Insert into the unit
POWE
R
/ AVS
Aluminium fi n
Front panel
Air fi lters nanoe-G Generator
Human activity
sensor
Indoor unit
Wipe the unit gently with a
soft, dry cloth.
Coils and fans should be clean
for at least every 6 months by an
authorised dealer.
Human activity sensor
Do not hit or violently press or poke it with a sharp
object. This can lead to damage and malfunction.
Outdoor unit
Clear debris that surround the unit.
Clear any blockage from drain pipe.
Front panel
Wash gently and dry.
Remove the front panel
1
Release the
hooks at
both ends
2
Pull out and lift up
POWE
R
/ A
VS
Close it securely
POW
E
R
/ A
VS
1
Insert
at both
sides
2
Push in
3
Close down
4
Press both ends and center of the front panel
ACXF55-16960_YA0118-0.indd 10ACXF55-16960_YA0118-0.indd 10 12/29/2017 2:56:59 PM12/29/2017 2:56:59 PM
11
English
Troubleshooting
Cleaning instructions / Troubleshooting
The following symptoms do not indicate malfunction.
Symptom Cause
POWER indicator blinks before the unit
is switched on.
• This is a preliminary step in preparation for the
operation when the ON timer has been set.
• When ON Timer is set, the unit may start earlier
(up to 15 minutes) before the actual set time in
order to achieve the desired temperature on time.
TIMER indicator is always on. • The timer setting repeats daily once set.
Operation is delayed a few minutes after
restarting.
• The delay is a protection to the unit’s
compressor.
Indoor fan stops occasionally during
automatic fan speed setting.
• This helps to remove the surrounding odour.
The room has a peculiar odour. • This may be due to damp smell emitted by the
wall, carpet, furniture or clothing.
Cracking sound during operation. • Changes of temperature caused the expansion/
contraction of the unit.
Water fl owing sound during operation. • Refrigerant fl ow inside the unit.
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Discoloration of some plastic parts. • Discoloration is subject to material types used in
plastic parts, accelerated when exposed to heat,
sun light, UV light or environmental factor.
Dust may have collected around the front
panel, grilles and wall surrounding the
unit after extended use.
• The dust accumulation is due to air purifi cation
effect of negative ions from nanoe-G. Remove
the dust regularly with a clean dampened cloth.
Check the following before calling for servicing.
Symptom Check
Operation in COOL mode is not working
effi ciently.
• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the fi lters.
• Clear any obstruction at the air inlet and air outlet
vents.
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is
weak.)
• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from
the remote control.
• Make sure the receiver is not obstructed.
•
Certain fl uorescent lights may interfere with signal
transmitter. Please consult authorised dealer.
ACXF55-16960_YA0118-0.indd 11ACXF55-16960_YA0118-0.indd 11 12/29/2017 2:57:00 PM12/29/2017 2:57:00 PM
12

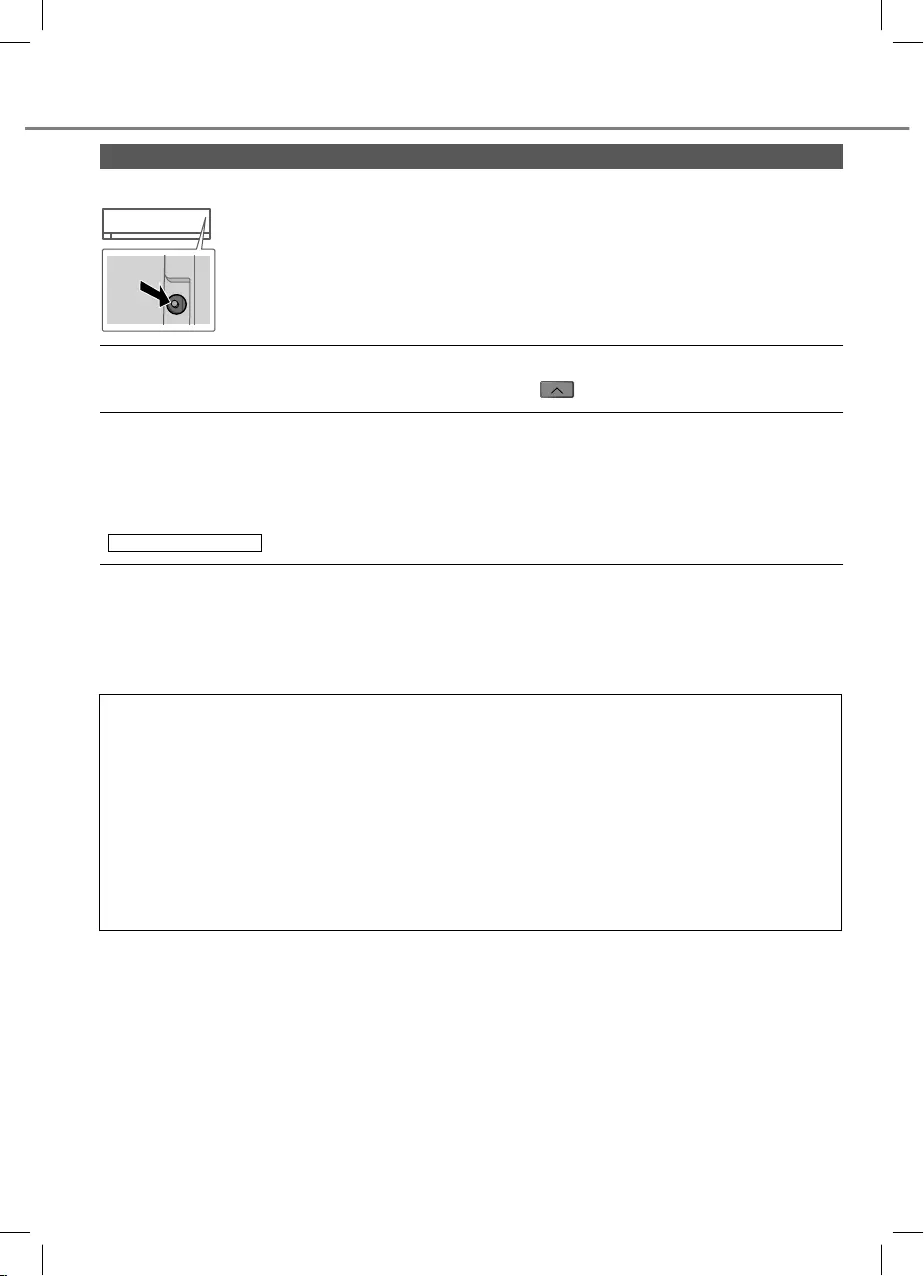

Troubleshooting
NON SERVICEABLE CRITERIAS
TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised
dealer when in following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
• The unit stops and the TIMER indicator blinks (insuffi cient refrigerant detected).
When...
■The remote control is missing or a malfunction has occurred
AUTO
OFF/ON
1.Raise the front panel.
2.Press the button once to use in i AUTO mode.
3. Press and hold the button until you hear 1 beep, then release to use in
forced COOL mode.
4.Press the button again to turn off.
■The indicators are too bright
• To dim or restore the unit’s indicator brightness, press
and hold for 5 seconds.
■ Conducting a seasonal inspection after extended non-use
• Check the remote control batteries.
• Check that there is no obstruction around the air inlet and outlet vents.
• Use Auto OFF/ON button to select COOL operation. After 15 minutes of operation, it is
normal to have the following temperature difference between the air inlet and outlet vents:
COOL: ≥ 8 °C / 14.4 °F
■ The units are not going to be used for a long period of time
• Activate nanoe-G operation for 2~3 hours as an alternative to remove moisture left in the
internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
ACXF55-16960_YA0118-0.indd 12ACXF55-16960_YA0118-0.indd 12 12/29/2017 2:57:00 PM12/29/2017 2:57:00 PM
Memo
ACXF55-16960_YA0118-0.indd 15ACXF55-16960_YA0118-0.indd 15 12/29/2017 2:57:00 PM12/29/2017 2:57:00 PM
Produkt Specifikationer
| Mærke: | Panasonic |
| Kategori: | Aircondition |
| Model: | CS-XV9UKD-3 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Panasonic CS-XV9UKD-3 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Aircondition Panasonic Manualer
9 April 2025
2 Februar 2025
12 Januar 2025
28 December 2024
28 December 2024
28 December 2024
22 December 2024
21 December 2024
21 December 2024
21 December 2024
Aircondition Manualer
- Fuji Electric
- Insignia
- SVAN
- Chigo
- American Comfort
- Sheffield
- Adler
- Kenmore
- Mitsubishi
- Be Quiet!
- Infiniton
- Sharp
- Challenge
- Airwell
- Trisa
Nyeste Aircondition Manualer
11 August 2025
11 August 2025
11 August 2025
11 August 2025
5 August 2025
3 August 2025
2 August 2025
2 August 2025
1 August 2025
1 August 2025
