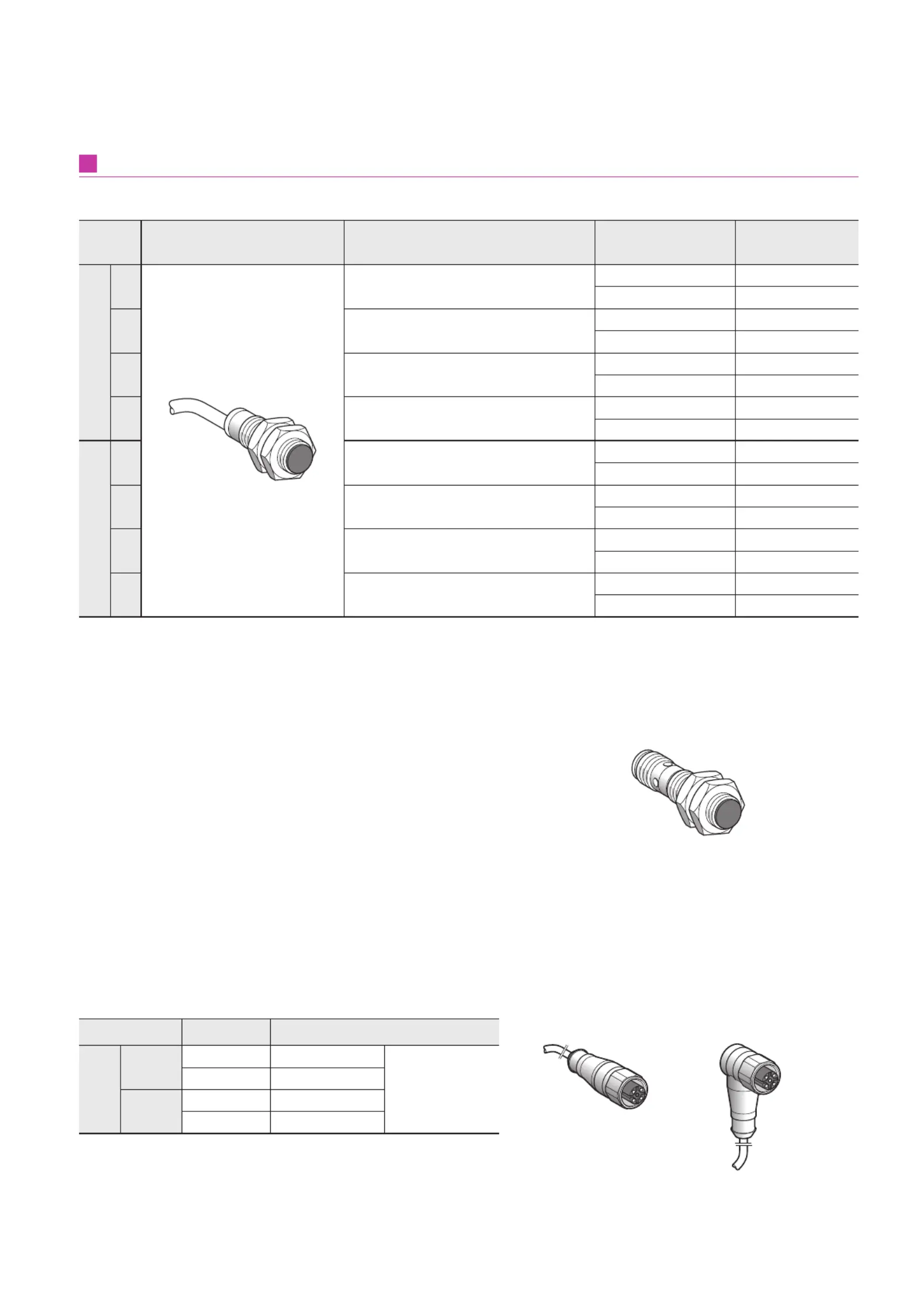

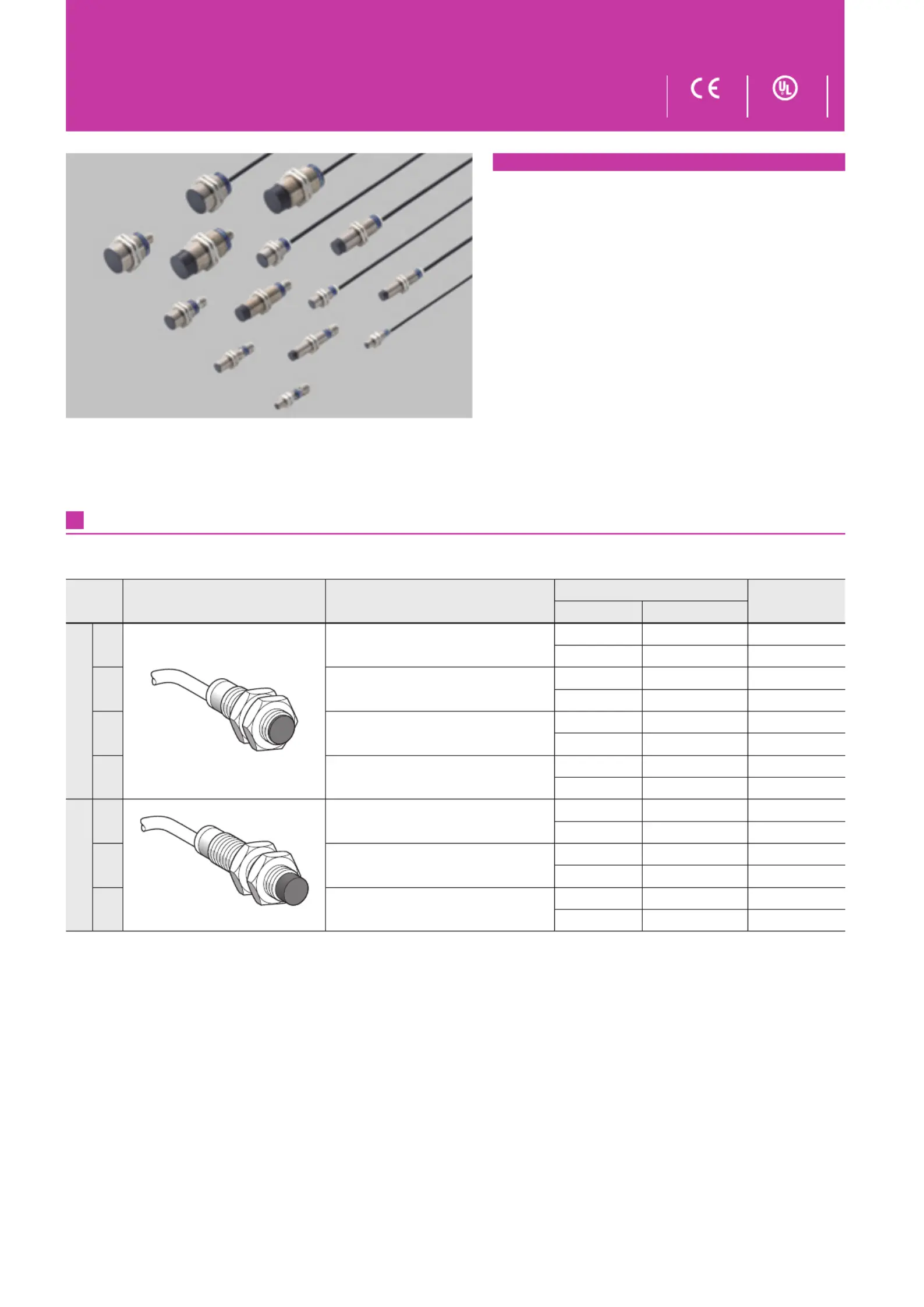

Side 1/7
GX-M SERIES
• Wide product range
Types: DC 3-wire shielded type
DC 3-wire non-shielded type
DC 2-wire standard type
DC 2-wire long range type
Size: M8, M12, M18, M30
Connector: 2 m cable length type
M12 plug-in connector type
M8 type only, On sale soon)
• Strong resistance IP68 (GX-M8 : IP67)□
Features
ORDER GUIDE
Type Appearance Sensing range (Note 1,2)
Model No.
Output
operation
NPN output PNP output
Shielded
M8
Max. operation distance: 1.5 mm 0.06 in
(Stable sensing range 0 to 1.2 mm )0.05 in
GX-M8A GX-M8A-P
Normally open
GX-M8B GX-M8B-P
Normally closed
M12
Max. operation distance: 2 mm 0.08 in
(Stable sensing range 0 to 1.6 mm )0.06 in
GX-M12A GX-M12A-P
Normally open
GX-M12B GX-M12B-P
Normally closed
M18
Max. operation distance: 5 mm 0.20 in
(Stable sensing range 0 to 4 mm )0.16 in
GX-M18A GX-M18A-P
Normally open
GX-M18B GX-M18B-P
Normally closed
M30
Max. operation distance: 10 mm 0.39 in
(Stable sensing range 0 to 8 mm )0.32 in
GX-M30A GX-M30A-P
Normally open
GX-M30B GX-M30B-P
Normally closed
Non-shielded
M12
Max. operation distance: 7 mm 0.28 in
(Stable sensing range 0 to 5.6 mm )0.22 in
GX-MK12A GX-MK12A-P
Normally open
GX-MK12B GX-MK12B-P
Normally closed
M18
Max. operation distance: 12 mm 0.47 in
(Stable sensing range 0 to 9.6 mm )0.38 in
GX-MK18A GX-MK18A-P
Normally open
GX-MK18B GX-MK18B-P
Normally closed
M30
Max. operation distance: 22 mm 0.87 in
(Stable sensing range 0 to 17.6 mm )0.69 in
GX-MK30A GX-MK30A-P
Normally open
GX-MK30B GX-MK30B-P
Normally closed
Cylindrical Inductive Proximity Sensor
Notes: 1) It is the value in state where the circumference of a detection side has a metal object.
2) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient
temperature drift and/or supply voltage uctuation.
DC 3-wire type (2 m cable length type)
Ex.) GX-M12□
Ex.) GX-MK12□
Listing
(2 m cable length type only)
Conformingto
EMCDirective
7
M12 plug-in connector type is also available.
When ordering this type, “ ” for the M12 plug-in connector type to the model No.-Z
(e.g.) M12 plug-in connector type of is “ ”.GX-M8A-P GX-M8A-P-Z
M12 pigtailed type is also available.
When ordering this type, “ ” for the M12 pigtailed type to the model No.-J
(e.g.) M12 pigtailed type of is “ ”.GX-M8A-U GX-M8A-U-J
M12 plug-in connector type (except for GX-M8□-U and GX-ML8□-U)
M12 pigtailed type (for GX-M8□-U and GX-ML8□-U only, On sale soon)
Notes: 1) It is the value in state where the circumference of a detection side has a metal object.
2) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient
temperature drift and/or supply voltage uctuation.
ORDER GUIDE
Type Appearance Sensing range (Note 1,2) Model No. Output operation
Standard
M8
Max. operation distance: 1.5 mm 0.06 in
(Stable sensing range 0 to 1.2 mm )0.05 in
GX-M8A-U
Normally open
GX-M8B-U
Normally closed
M12
Max. operation distance: 2 mm 0.08 in
(Stable sensing range 0 to 1.6 mm )0.06 in
GX-M12A-U
Normally open
GX-M12B-U
Normally closed
M18
Max. operation distance: 5 mm 0.20 in
(Stable sensing range 0 to 4 mm )0.16 in
GX-M18A-U
Normally open
GX-M18B-U
Normally closed
M30
Max. operation distance: 10 mm 0.39 in
(Stable sensing range 0 to 8 mm )0.32 in
GX-M30A-U
Normally open
GX-M30B-U
Normally closed
Long range
M8
Max. operation distance: 2.5 mm 0.10 in
(Stable sensing range 0 to 2 mm )0.08 in
GX-ML8A-U
Normally open
GX-ML8B-U
Normally closed
M12
Max. operation distance: 4 mm 0.16 in
(Stable sensing range 0 to 3.2 mm )0.13 in
GX-ML12A-U
Normally open
GX-ML12B-U
Normally closed
M18
Max. operation distance: 8 mm 0.32 in
(Stable sensing range 0 to 6.4 mm )0.25 in
GX-ML18A-U
Normally open
GX-ML18B-U
Normally closed
M30
Max. operation distance: 15 mm 0.59 in
(Stable sensing range 0 to 12 mm )0.47 in
GX-ML30A-U
Normally open
GX-ML30B-U
Normally closed
Cylindrical Inductive Proximity Sensor
GX-M SERIES
DC 2-wire type (2 m cable length type)
Ex.) GX-M12□-U
Mating cable
• Straight type • Elbow type
Mating cable
(2 cables are required for the thru-beam type.)
Type Model No. Description
For M12 plug-in
connector type
Straight
CN-24C-C2
Length: 2 m 6.56 ft
Clamping ring :
ø14mm 0.55 in
Cable outer :
ø5.3mm 0.21 in
CN-24C-C5
Length: 5 m 16.40 ft
Elbow
CN-24CL-C2
Length: 2 m 6.56 ft
CN-24CL-C5
Length: 5 m 16.40 ft
