Side 1/2

Email:

techsupport@panduit.com

EU Website: www.panduit.com/emea

EU Email: emeatoolservicecenter@panduit.com

Technical Support:

Tel: 1-800-777-3300

Panduit Europe • EMEA Service Center

Tel: 31 546 580 452 • Fax: 31 546 580 441

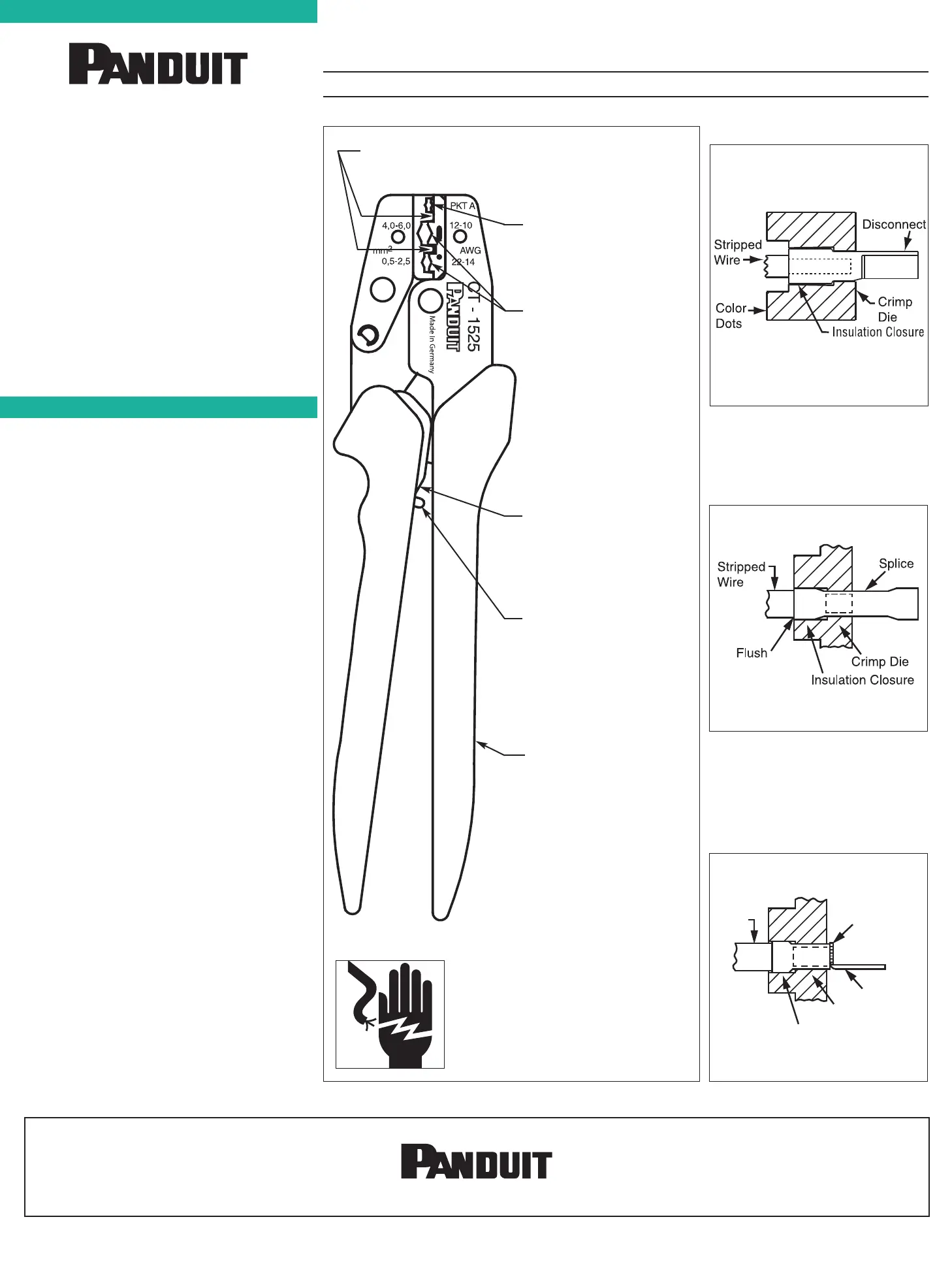

Part No. CT-1525

OPERATION INSTRUCTIONS

Contour Crimp

CONTROLLED CYCLE

CRIMPING TOOL

Crimps Panduit #26-#22 AWG

nsulated terminals/splices, #22-#10

AWG fully insulated disconnects/

insulated parallel splices; and

specific #22-14 AWG barrel

insulated disconnects.

Provides UL Listed and CSA Certified terminations

with applicable Panduit terminals.

INSULATED TERMINAL CRIMPING

INSTRUCTIONS

1. With the handles in the open position, and the

back of the terminal tongue turned toward the

color dots, insert the terminal into the proper

crimp pocket (See Figure 1). Refer to product

packaging for selection of proper crimp pocket.

2. Close handles until the barrel is held snugly in

position — do not deform the barrel.

3. Insert the stripped wire into the terminal until

the wire stops. Refer to product packaging for

wire strip length.

4. Crimp the terminal by closing the handles until

the controlled cycle mechanism releases.

Upon release, the handles will open automati-

cally and the crimped terminal can be removed.

NOTE: Visual inspection dots (formed by the

crimp dies) on the insulation sleeve verify

proper crimp cycle.

• One (1) dot for PKT A crimp pocket

• Two (2) dots for red and blue crimp

pocket

• Three (3) dots for yellow crimp pocket

Figure 4

PERATION INSTRUCTIONS

Page: 1 of 2

PA22241A01

Rev.: 08 1-2017

CT-1525

Figure 1

Figure 2

Figure 3

INSULATED DISCONNECT CRIMPING

INSTRUCTIONS

1. With the handles in the open position, insert

the disconnect in the proper crimp pocket (See

Figure 1), so that the barrel is flush with the

crimp die (See Figure 2). Refer to product

packaging for selection of proper crimp pocket.

2. Close the tool handles until the barrel is held

snugly in place—do not deform the barrel.

3. Insert the stripped wire into the disconnect.

Refer to product packaging for wire strip length.

Crimp the disconnect by closing the handles

until the controlled cycle mechanism releases.

Upon release, the handles will open automati-

cally and the crimped disconnect can be

removed. After crimping, inspect that the crimp

is centered on the disconnect barrel in order to

achieve optimal pullout performance.

Stripped

Wire

Slot for

Wire Stop

Terminal

Crimp Die

Insulation Closure

Die Closure Alignment

(not a crimp pocket)

CAUTION: Verify power is “OFF”

before working on wiring with

this tool. The cushioned grips

are for the user’s comfort, and

are not intended to insulate

against shock while working on

live electrical circuits.

www.panduit.com

CRIMP POCKETS for

Pan-Term INSULATED

terminals, disconnects and

splices.

CRIMP POCKETS for

Pan-Term fully INSULATED

isconnects, insulated

splices and barrel insulated

disconnects.

Refer to product packaging

for wire range and proper

rimp pocket. Crimp pock-

ets are color coded to match

color of product insulator,

and identified with

applicable wire range.

Controlled cycle mechanism

prevents tool from opening

before crimp cycle is

complete.

Manual release lever, push

forward in the event that

controlled cycle mechanism

must be released.

Cushioned Handle Grips
