Thank you very much for purchasing our Patlite products.
● Request the installation and wiring be performed by a professional
contractor if construction work is involved.
● Prior to installation, read this manual thoroughly before using this
product to ensure correct use.
● In addition, please store this manual for future reference when
●For options and repair parts, please visit our website
(https://www.patlite.com).
●
If there are any questions concerning this product, refer to the contact
information at the end of this document and contact your nearest
PATLITE Sales Representative.
Notice to Customer
● Ensure that the product is installed in an environment that meets the following
conditions:
- Where excessive vibration is not present.
- On a sturdy surface.
- On a level surface.
●
When it is necessary to waterproof the backside of the installation surface;
- Provide a sealant coating around the nuts of the backside of the installation
surface.
- Waterproof the cable mounting area.
●
Ensure that the product is mounted upright when installed outdoors.
●
Ensure that the speaker is facing forward when installing the buzzer models.
● Depending on your operating environment, additional waterproofing may be
required on the Terminal Block openings for SKH-M
□
T models.
Globe
Nameplate
Case
Cabtyre Cable
J
3-Screw Mounting • Cabtyre Cable
M1
12 - 24 V DC
M2
100 - 240 V AC
N
No Buzzer
B
With Buzzer *
R
Red
Y
Amber
G
Green
B
Blue
R
Red
Y
Amber
G
Green
B
Blue
SF
SL
KT
2-point Hole Type Mounting • Terminal block
3-point Hole Type Mounting • Terminal block (SL15 only)
●
Ø80
●
12 - 24 V DC
●
2-point hole type mounting • Terminal block
● With buzzer ● Red color
● Ø100 ● 12 - 24 V DC ● Cabtyre Cable ● With buzze ● Red color
08
Ø80
10
Ø100
15
Ø150
(SL only)
Series
Rated Voltage
Install
ation • Wir
ing
Buzzer
LED Unit Color
Model
− −
Terminal block
(SKH only)
J
B
(None)
T
Cabtyre Cable
Series
Rated Voltage
Installation • Wiring Buzzer
LED Unit Color
Model
No Buzzer
With Buzzer
(SKH only)
S
Ø80
H
Ø100
P
Ø150
SK − −
M1
12 - 24 V DC
M2
100 - 240 V AC
Globe
Case
Model
9 mm
8 mm
10 mm
Maximum Board Thickness
SF08/SL08/SKS
SF10/SL10/SKH
SL15/SKP
Terminal block
(1) Insert the bolts of the beacon into
the holes of the mounting surface.
(2) Use the nuts and washer
(accessory) to secure in place.
(2)
(1)
NameModel
SF
□□ □□ □□ □□- KT/SL - KT
SF08- J/SL08- J/SKS Model□□ □□
SF10- J/SL10- J/SKH Model□□ □□
SL15- J/SKP Model□□
Mounting Bracket, Waterproof Sheet
M4 Nut, Plain Washer
M5 Nut, Plain Washer
M8 Nut, Plain Washer
QTY
1
3
3
3
Buzzer Opening (Model with Buzzer Only)
* The SF model has a rotary switch
inside of the globe.
Nameplate
Buzzer Opening (Model with Buzzer Only)
Warning
● To prevent from short-circuits or damage, observe the following:
- Be sure the power is disconnected before replacement or repair, including the
replacement of the fuse.
- Use this product in a properly maintained condition. (Replace or repair if the
globe, case, etc. are damaged.)
● If installing this product requires construction work, ask a specialist in order to
avoid fire, or personal injury.
● When this product is used for security purposes, it should be inspected daily.
In case a malfunction should occur, it is recommended that you use this
product together with other security products.
● After installation, do not use this product to climb up onto the equipment with.
Failure to comply will result in product damage and/or falling off the machinery.
Caution
● Be sure to put a fuse in the wiring circuit between the power source and
equipment for protection. If a fuse is not added, it may result in product and/or
equipment failure.
● Be sure to prevent electrostatic damage due to discharge when working with
this product for wiring, exchanging units, setting up parameters, etc. by
discharging static electricity on your body, etc.
● Do not disassemble or detach during operation.
Failure to observe the following may result in
death or serious injury.
Failure to comply with the following points may
result in injury, physical loss or damage.
2-point Hole Type Mounting 3-point Hole Type Mounting
Caution
Caution
● Make sure the power is OFF before wiring. A short circuit
may damage internal circuits.
● Ensure the proper working voltage is used. Any mistake in wiring may result in
damage.
● Do not pull the wire, or stu ff it inside of this case.
●
Be sure the wiring is done properly. Any mistake in wiring may result in damage.
●
In the M2 model, do not perform blinking control by turning the power supply
ON / OFF. Any mistake in wiring may result in damage.
● Do not apply a voltage to the common wire. (M1 type)
Do not apply a voltage to any wire other than the power supply wire. (M2 type)
Failure to comply will result in product damage.(except buzzer wire of SKH-M1)
● Do not expose the wiring from the device. If tension is applied to the wiring, the
wiring may be disconnected, resulting in a short circuit or an electric shock.
● Use either a Contact Switch or Contact Relay for External Contact that power
supply wire of SF, SL, SK Models and buzzer wire of SK Model. Failure comply
may result in fire, product malfunction.
(3)
(1)
Position Indicator
Mounting Bracket + Waterproof Sheet
< Locked >
< Unlocked >
The position
indicator can be
seen through
window in locked
position.
● Use a soft cloth moistened with water to clean the globe or
case. (Do not use thinner, benzine, gasoline or oil.)
Rotary switch (SF model only)
Rotary switch
(SF model only)
(2)
<Conformity Standards>
● EMC Directive (EN61000-6-4, EN61000-6-2)
● RoHS Directive (EN50581)
● UL508, CSA-C22.2 No.14 (File No. E215660)
● FCC Part 15 Subpart B Class A
<Conformity requirements for the CE Marking>
This product conforms to EN standards and shows the CE Marking.
This product has been tested and found to comply with the limits for a Class A
device, pursuant to EMC DIRECTIVE.
These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in
a commercial environment.
This product must not be used in residential areas.
<Conformity to FCC Compliance>
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
The equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in aresidential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
(
Note
)
● Dimensions and specifications may change without notice due to
continual product improvement.
● PATLITE and the PATLITE logo is a trademark, or registered trademark of
the PATLITE Corporation of Japan and each country.
(Importer for EU)
PATLITE Europe GmbH Am Soeldnermoos 8, D-85399 Hallbergmoos, Germany
■
Recommended lead wire specifications
■
Installation
UL1007 / UL1430
Wire Type
0.13 ~ 1.5 mm
2
Wire Gauge (Solid Wire)
AWG28 ~ 14
Wire Gauge (Stranded Wire)
Note
Terminal Block Wiring
•
Strip 8-9 mm f wire in ula ion rom he lead wire in ert he erminal bloc o s t f t to s into t t k.
• Do not tug on to the lead wire to remove- always unlock the lever before
removing the wires.
• The tip of the flathead screwdriver should be no more than 2mm wide and
0.5 mm thick.
• Do not put excessive force on the lever, as this may cause the lever to break.
• Temperature rating should be above 75°C, and the conductor material should
be of copper wire.
Model
12 - 24 V DC (Non-polar)
100 - 240 V AC (50/60 Hz)
12 - 24 V DC (Non-polar)
100 - 240 V AC (50/60 Hz)
12 - 24 V DC (Non-polar)
100 - 240 V AC (50/60 Hz)
12 - 24 V DC (Non-polar)
100 - 240 V AC (50/60 Hz)
Rated Voltage
SF08-M1/SF10-M1
SF08-M2/SF10-M2
SL08-M1/SL10-M1/SL15-M1
SL08-M2/SL10-M2/SL15-M2
SKS-M1J/SKH-M1J/SKP-M1J
SKS-M2J/SKH-M2J/SKP-M2J
SKH-M1T
SKH-M2T
■
Removal
2
1
Align a flathead screwdriver to the groove of
the lever. Press down to release the lock.
Pull out the lead wire.
BottomView
The stripped side of the
lead wire is inserted in
the slot. And lock.
2
J
KT
T
Re er he ns alla ion Manuaf t to "I t t l".
FrontView
FrontView
Re er he ns alla ion Manuaf t to "I t t l".
Re er he ns alla ion Manuaf t to "I t t l".
Notice
* only(SL15 : No Buzzer)
KT
Nameplate
Note
● The type with a buzzer, if the buzzer opening is splashed
with water, the Sound Pressure Level may drop.
[
External contact capacity of power supply wire
]
[ Fuse ]
Fuse Rating
250 V 1 A
M2M1
3A or more 1A or moreCurrent Capacity (Is)
[ External contact capacity of signal wire and buzzer wire ]
Withstand Voltage (Vs)
Current Capacity (Is)
0.5 Aormore
35 V or more
M2M1
Withstand Voltage (Vs)
Current Capacity (Is)
10 mAormore
20 V or more
Leakage Current
*
(IL)
0.1 mA or less
M2M1
Cabtyre Cable ends
Notice
● The protection rating does not include the Cabtyre Cable
ends.
If the ends of the it are in contact with water or exposed to dew or
condensation, refer to the indications below to dress the wire ends for water
resistance.
-
Connect the it ends in a location which will not expose the ends to water.
-
Use Fillers, such as silicon, etc., to seal the it ends.
Read this First (Safety Precautions)
1
Installation
4
Model Number Configuration
2
■
Cable type
■
Terminal block type
Part Names
3
Model Number Example
SF08-M1K B-T R
Model Number Example
S RKH-M1JB-
■ SF • SL Models
■ SK Model
Maximum Board Thickness of Mounting Surface
Installation Example
Installation Dimensions
■ 3-Screw Mounting Type
Accessory List
Wiring
5
Wiring Example
Installation Example
Installation Dimensions
Specifications
6
■ 2-point Hole Type Mounting (SF • SL Models)
3-point Hole Type Mounting (SL15 Model Only)
J
T KT
SK Model
SF SL Models・  
10 mAormore
20 V or more
0.1 mA or less
0.5 Aormore
20 V or more
*
When using an NPN open-collector transistor.
Model
4.4 mm
5.7 mm
4.8 mm
Screw Hole Depth
of Mounting Bracket
SF08/SL08
SF10/SL10
SL15
Nominal Diameter
M4
M5
M8
Wire Type / Wire Gauge
Rotating Beacons
SKS / SKH / SKP
TYPE
Multi-function Beacons
SF08 / SF10
TYPE
Flashing Beacons
SL08 / SL10 / SL15
TYPE

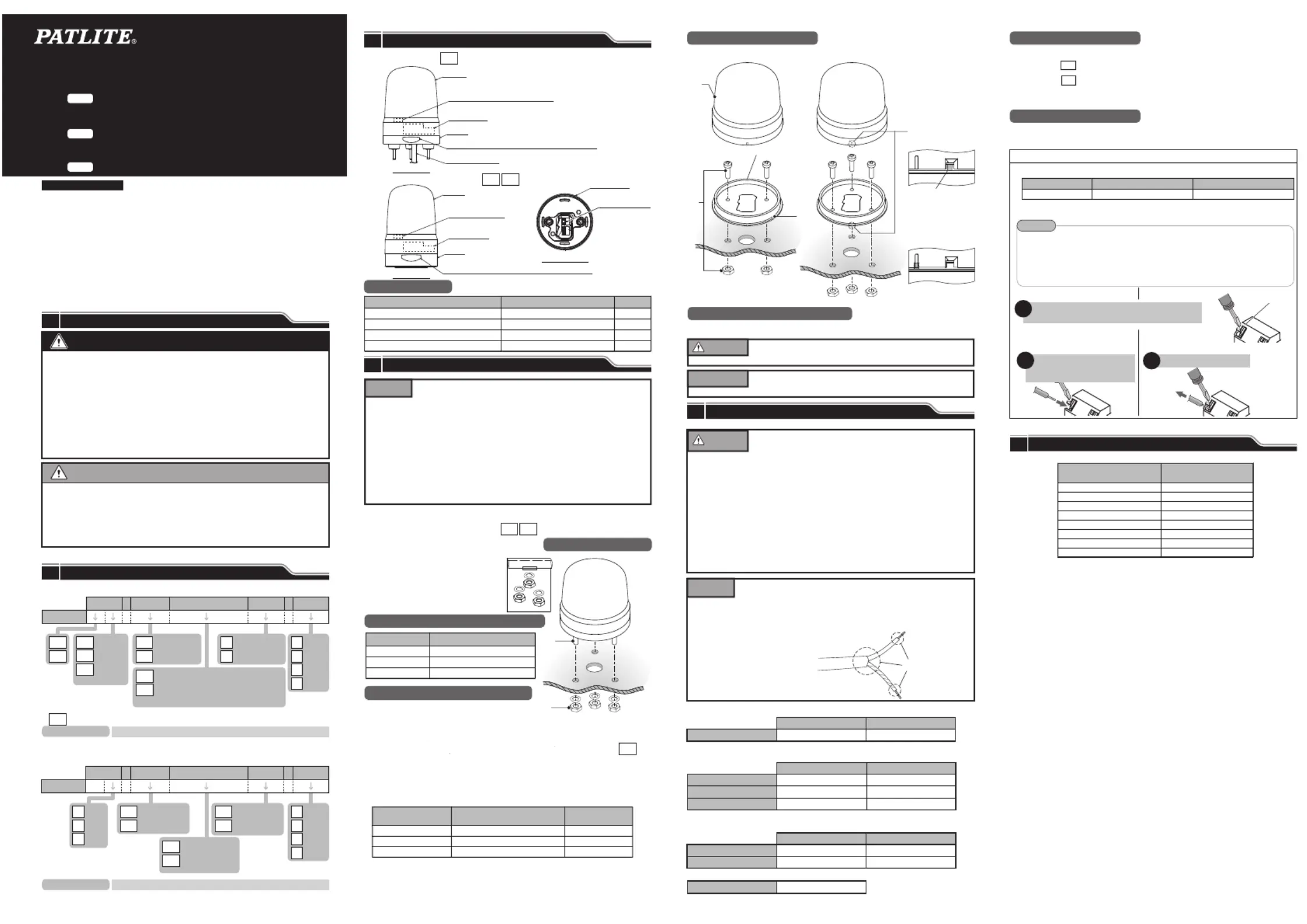

INSTRUCTION MANUAL
(1) Use the screws or bolts, nuts. to secure the mounting bracket
(accessory) to the mounting surface.
(Installation screws and nuts are not included with this product.
Binding head screws or pan head screws are recommended.)
(2) Check that the O-ring is not twisted.
(3) Align the main unit of product with the positioning Indicator and
turn it clockwise to lock it.
Wire Gauge :
Wire Type : UL2464
AWG22
M1
Power Supply Wire
Excluding Power Supply Wire
M2
AWG18
AWG24

Produkt Specifikationer

Mærke: PATLITE
Kategori: Ikke kategoriseret
Model: SKH-M2TB-R

Har du brug for hjælp?

Hvis du har brug for hjælp til PATLITE SKH-M2TB-R stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret PATLITE Manualer

PATLITE

PATLITE SL08-M2KTB Manual

3 September 2025
PATLITE

PATLITE SL08-M1JN Manual

2 April 2025
PATLITE

PATLITE NE-24A-B Manual

29 August 2024
PATLITE

PATLITE SKP-M1J-B Manual

29 August 2024
PATLITE

PATLITE SF10-M2KTN-Y Manual

29 August 2024
PATLITE

PATLITE SF08-M2KTN-G Manual

29 August 2024
PATLITE

PATLITE SF10-M2KTB-G Manual

29 August 2024
PATLITE

PATLITE l SKH-M1JB-Y Manual

29 August 2024
PATLITE

PATLITE SKH-M1JB-B Manual

29 August 2024
PATLITE

PATLITE SL10-M2KTB-B Manual

29 August 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Joy-It

Joy-It SEN-DHT22 Manual

9 Oktober 2025
Axxess

Axxess AXBUCH-T1 Manual

9 Oktober 2025
Lofrans

Lofrans THETIS 1002 Manual

9 Oktober 2025
Crown

Crown IC-150A Manual

9 Oktober 2025
ACTi

ACTi INR-415 Manual

9 Oktober 2025
Pioneer

Pioneer ND-BC011 Manual

9 Oktober 2025
Axxess

Axxess AXSSO-CH Manual

9 Oktober 2025
Caliber

Caliber MPD 297 Manual

8 Oktober 2025
ENTES

ENTES ENT.CXD.H-450-12,5 Manual

8 Oktober 2025
Vollrath

Vollrath LP55278 Manual

8 Oktober 2025
