Features:
• Peavey Exclusive Lo Max® 18"
Subwoofer
• Extended frequency response down to
33 Hz (half-space)
• 2400 watts of program power rating
• Full power low frequency response
down to 38 Hz!
• Neutrik® Speakon® professional input
• Compact design
• Speaker pole mount tunnel built-in
• Heavy-duty steel handles inset on both
sides
• Acrylic polyurethane painted finish,
black or white
• Steel grille for speaker protection
• Made in the U.S.A.

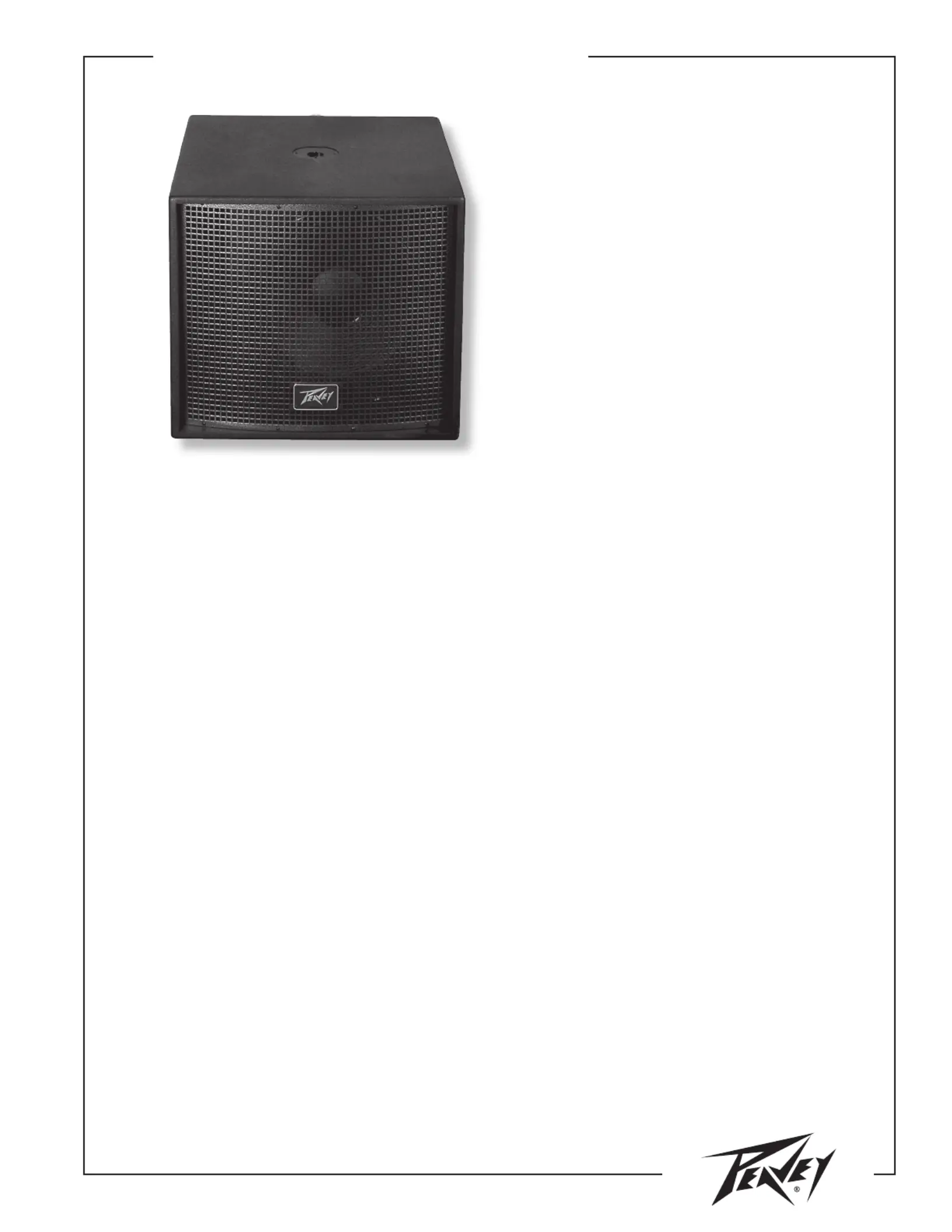

Description
The Versarray 118 Sub incorporates the the ultra-high power Lo Max 18" woofer into a new compact cabinet design. The Versarray
118 Sub is a direct radiator vented subwoofer designed specifically for the most demanding Pro-Audio applications.
The Versarray 118 is compact for its power handling, sound pressure level (SPL) output, distortion performance and bass
extension. This is made possible by special characteristics designed into the Lo Max woofer.
The Lo Max 18" driver in the Versarray 118 cabinet is Peavey’s pinnacle of high-power subwoofer design. An incredible 2,400 watt
program rating and extra-long cone excursion add up to amazing levels of clean, deep bass from a single 18" woofer. Incorporating
all of the features that Peavey has engineered into their woofers over the years, including the field-replaceable basket, Kevlar®-
impregnated cone for increased strength and lower distortion due to greater dampening of excess cone vibrations, polyimide-
impregnated fiberglass former for higher sensitivity and frequency response, die-cast aluminum frame, and a 4" diameter edge-
wound voice coil with solderless diffusion welded OFHC copper leads.
This makes the Versarray 118 Sub a superior choice for the bass end of any high performance sound system, primarily designed for
professional touring and high performance permanent install.
Extreme Bracing Cabinet Design
The Versarray 118 Sub cabinet is well braced and very stiff, as internal pressures produced by the Lo Max woofer can be very high.
The vent design integrated into the enclosure includes a middle brace to further increase enclosure stiffness. The Versarray 118
Sub’s large vent area and long path length allow for a large volume of air to move with very low resistance. This is important due
to the huge airflow volumes that the Lo Max woofer can produce. Each cabinet side wall and vent wall are tied together at multiple
points using multiple interlocking girdle braces, making this one of the sturdiest subwoofer enclosures on the market. A knuckle-
rap test will prove this immediately. The Versarray 118 Sub is constructed of premium 13-ply Baltic birch plywood and is finished
with a tough acrylic polyurethane paint, for good looks and durability. The finish is available in black or white. A 16-gauge powder-
coated perforated metal grille covers the front of the system to protect the speakers from external damage.
Input connection to the system is made via two 4-pin Neutrik jacks in parallel, or an 8-pin Neutrik jack. A 4-pin Neutrik thru jack
is provided for bi-amping flexibility while maintaining superior signal integrity. The inclusion of a standard 4-pin Neutrik jack in
parallel for the main inputs allows for daisy chaining to another cabinet. A pole tunnel is built-in so that a Versarray specific pole
can be used to pole mount up to two Versarray 112 modules above the Versarray 118 Sub.
Despite its compact dimensions for a single 18" bass enclosure, this system generates extremely high sound pressure levels
(SPLs) and accepts up to 2,400 watts program of clean amplifier power, resulting in large area coverage with excellent punch and
high reliability.
SPECIFICATIONS Versarray™ 118 Sub
2
S CIFICATIONS VPE ersa 118 Surray ™ b
Fr requency esponse, meter on-axis 1 ,
swept-sine:
Anechoic envi onment r :
47 Hz 1.5 kHz (±3 dB – )
Half-space envi onment r :
43 Hz
Usable low frequency limi t
(-10 :dB point)
Anechoic envi onment: r 37 Hz
Half-space envi onment: 33 r Hz
Pow :er handling
1,200 W continuous
2,400 W program
4,800 W Peak
Sound pressure v 1 1 :le el, watt, meter
Anechoic envi onment r :
97 dB L, input SP (2.83 V )
Half-space envi onment r :
103 SPLdB
Maximum sound essu pr re vel le
(1 meter) :
Anechoic envi onment r :
1 SPL s27 dB continuou
1 SPL k33 dB pea
Half-space envi onment: r
1 SPL s33 dB continuou
1 SPL k39 dB pea
Transducer complement :
1 x v d18 in. ente
Lo rMax® 18 woofe
Box fr :tuning equency
35 Hz
Harmonic disto tion r :
1% ated r power
S :econd Harmonic
1 : %00 Hz 0.61
500 Hz 0.44 : %
Third :Harmonic
1 : 73%00 Hz 0.
500 Hz 0.47 : %
1 r0% ated power
S :econd Harmonic
1 : %00 Hz 3.94
500 Hz 1.62 : %
Third :Harmonic
1 : 74%00 Hz 0.
500 Hz 1.41 :
%
Recommended Acti ve Crossover
Fr Requency egion and Slope :
1 ve m20 Hz at 18 dB/octa minimu
Impedance (Z):
Low Frequency:
Nominal: 8.0 Ω
Minimum: 6.6 Ω
Input connections:
2 x 4-pin Neutrik® Speakon® inputs in
Parallel
1 x 8-pin Neutrik Speakon input
1 x 4-pin Neutrik Speakon thru
(for use with 8-pin Input)
Enclosure materials & nish:
18 mm 13-ply Baltic birch plywood
nished in acrylic polyurethane paint,
black or white
Mounting provisions:
This unit is not designed for over head
suspension. Satellite stand mounting
provided for via built-in pole mount
tunnel. Four rubber feet for oor use.
Dimensions (H x W x D):
22.88 in. x 25.06 in. x 26.30 in.
581 mm x 636 mm x 668 mm
Net Weight:
109 lbs. (49.5 kg)
Companion Loudspeakers
(sold separately):
Versarray 112 line array module
speaker system
Optional Accessories:
Versarray subwoofer stand mount pole
(Peavey part number 00584860)
Frequency Response
This meas ement is seful ur u in
dete term g how urainin acc ly a given
unit ep oduce an inp signal. r r s ut
e Th
frequency response of the Versarray 118
Su edb is m surea at a dis 1-tance of
meter using a 1 watt (into the nominal
impedance) swept-sine input signal. As
shown in gure 1, the selected driver in
the Versarray 118 Sub combine to give a
smooth frequency response from 47 Hz
to 1.5 kHz.
Power Handling
There are many dierent approaches to
power handling ratings. Peavey rates this
loudspeaker system's power handling
using the AES Standard 2-1984. Using
audio band 40 Hz to 400 Hz pink noise
with peaks of four times the RMS level,
this strenuous test signal assures the
user that every portion of this system
can withstand today's high technology
music. This rating is contingent upon
having a minimum of 3 dB of amplier
headroom available.
Harmonic Distortion
Second and third harmonic distortions
vs. frequency are plotted in gures 3
and 4 for two power levels. Ten percent
(10%) of rated input power and either
one percent
(1%) of rated input power
or one watt, whiche er is eate v gr r.
Disto tion is ead om the aphr r fr gr as
the dierence between the fundamental
sig req r ) d the nal (f uency esp seon an
des ed ex mp e,ir m . As har onic an a l a
distortion curve that is down 40 dB from
the fundamental equi alent to is v 1%
distortion.
Mounting
Caution: This unit is not designed
for overhead suspension!
Architectural and Engineering
Specications
The loudspeaker system shall have an
operating bandwidth of 47 Hz to 1.5 kHz,
measured on axis at 1m in an anechoic
environment, with +/- 3 dB tolerance.
The nominal output level shall be 97
dB when measured at a distance of one
meter with an input of one watt. The
nominal impedance shall be 8 ohms. The
maxi t uo power d g mum con in us han lin
shall be 1,200 watts, maximum program
power of 2,400 watts and a peak power
input of at least 4,800 watts, with a
minimum amplier headroom of 3 dB.
The outside dimensions
shall be
22.88
inches high by 25.06 inches wide by
26.30 inches deep. The weight shall be
1 p s. e d e tem 09 ound Th lou sp aker sys
shall be a Peavey model Versarray 118.
WARNING! The Versarray 118
Sub is extremely ecient and
handles a lot of power! This sound
sy rm ent damage stem can pe an ly
he g! U r re g arin se ext eme ca settin
the overall maximum loudness! Due
to the clear, clean sound output of
the Versarray 118 Sub and the lack
of distortion or obvious distress, the
sound level seems much lower than
it actually is. This system is capable
of SPLs in excess of 133 dB at 1 meter
from the speaker!
