Side 1/4

Important Safety Instructions

1. Read, follow, and keep all instructions.

2. Heed all warnings.

3. Thoroughly familiarize yourself with the information in this manual prior to installation and operation.

4. Servicing should be done only by qualified service personnel.

5. Only use replacement parts recommended by Pelco.

Description

These lenses are varifocal lenses designed for 1/3-inch format cameras with 5 megapixels (MPx) or less in resolution. These lenses, which were designed

for CS-mount cameras, produce high precision images from the image center to the image corner, fully exploiting the performance of megapixel cameras.

Megapixel lenses are best suited for high-quality image surveillance with a megapixel camera as well as with a standard definition camera.

MODELS

Installation

1. Press the threaded portion of the lens mount against the threaded portion of the camera mount.

2. Slowly rotate the lens clockwise.

3. Screw in the lens mount.

4. Connect the auto iris lens cable to the electrical connector on the camera.

NOTES:

• The lens mount is equipped with a slip mechanism. To change the rotational position of the lens, rotate the lens until it reaches the stop (cannot be

rotated further), and then rotate it counterclockwise to the required position.

• The iris control for this lens cannot be activated with a video signal. Use a camera that can send a DC signal.

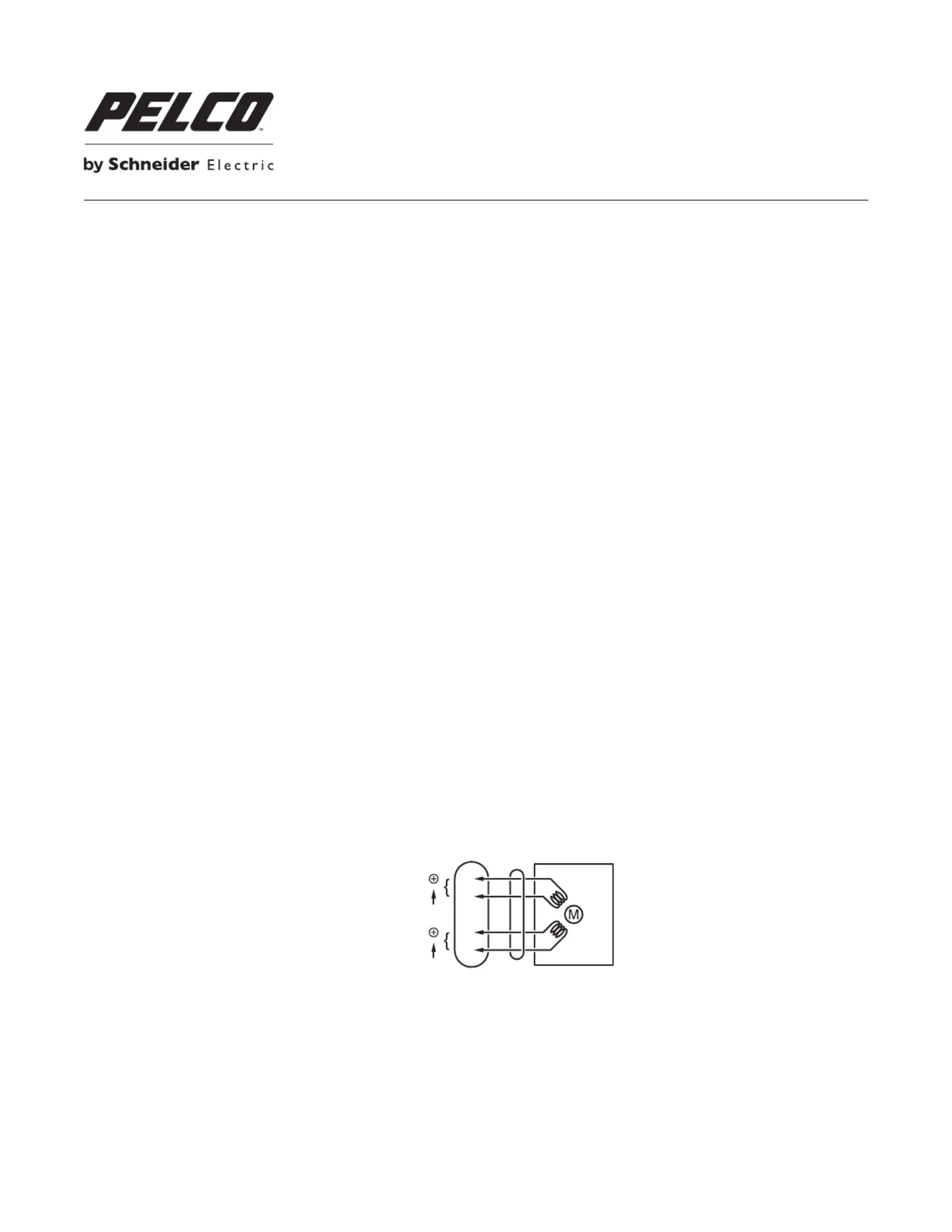

Figure 1. Lens and Connector Wiring

13M2.2-6 1/3-inch format, up to 5 MPx varifocal lens; 2.2 ~ 6.0 mm; f/1.3 ~ 2.0 auto iris; CS mount

13M2.8-8 1/3-inch format, up to 5 MPx varifocal lens; 2.8 ~ 8.0 mm; f/1.2 ~ 1.9 auto iris; CS mount

13M2.8-12 1/3-inch format, up to 5 MPx varifocal lens; 2.8 ~ 12.0 mm; f/1.4 ~ 2.7 auto iris; CS mount

13M15-50 1/3-inch format, up to 5 MPx varifocal lens; 15 ~ 50.0 mm; f/1.5 ~ 2.1 auto iris; CS mount

OPEN

DAMP. OILC

OPEN

DRIVE OILC

LENS

C CONNE TOR

4-PIN PLUG

INSTALLATION/OPERATION

13M Series Megapixel Varifocal Lens

C785M-C (3/13)

2 C3459M-C (3/13)

Operation

ADJUSTING THE ZOOM

NOTE: The lens is a varifocal lens. After a zoom operation, you will need to set the focus.

1. Loosen the zoom tightening knob.

2. Rotate the zoom ring to select the appropriate angular field of view.

• Rotate the ring to “W” to set the zoom to wide.

• Rotate the ring to “T” to set the zoom to telephoto.

3. Adjust the focus; refer to Setting the Focus.

4. Tighten the zoom tightening knob.

SETTING THE FOCUS

1. Loosen the focus tightening knob.

2. Rotate the focus ring to adjust the focus.

• Rotate the ring to “F” to set the focus to infinity.

• Rotate the ring to “N” to set the focus to near.

3. Tighten the focus tightening knob.

SETTING THE AUTO BACK FOCUS

Megapixel lenses work with Pelco’s Sarix® cameras. The auto back focus feature of Sarix cameras saves time because a single button sets the auto back

focus mechanism.

To Set the auto back focus:

1. Press the button once to center the auto back focus mechanism and to fully open the iris.

2. Press and hold the button for three seconds to start the auto back focus mechanism.

NOTE: If you do not have a camera with auto back focus and you cannot get the lens to focus despite repeated attempts, refer to Adjusting the Camera

Flange Focal Length and the appropriate camera manual for detailed instructions.

ADJUSTING THE CAMERA FLANGE FOCAL LENGTH

1. Open the lens iris.

2. Set the zoom at the wide end and the focus at the near end for 13M2.2-6, 13M2.8-8, and 13M2.8-12. For the 13M15-50 lens, set the zoom at the

telephoto end and the focus at the infinity end.

3. Operate the flange focal length adjustment mechanism on the camera, and then focus on an object at 11.8 inches (0.3 m) from the lens for the

13M2.2-6, 13M2.8-8 and 13M2.8-12 lenses. For the 13M15-50 lens, focus on an object that is more than 8.8 yards (8.0 m) from the lens.

4. Confirm the focus at the telephoto end, around the middle, and at the wide end throughout the zoom range.

5. If necessary, repeat this procedure until the focus is correct.

For additional assistance, contact Pelco Product Support at 1-800-289-9100 (USA and Canada) or +1-559-292-1981 (international).

Megapixel 13M 2.8-8

ZOOM TIGHTENING

KNOB

FO US TIGHTENINGC

KNOB

ZOOM RING

CS MOUNTFO US RINGC

Figure 2. Adjustment Controls (13M2.8-8 Shown)

FO US TIGHTENINGC

KNOB

ZOOM TIGHTENING

KNOB

CS MOUNT

FO US RINGZOOM RING C

Figure 3. Adjustment Controls (13M15-50 Shown)
