Side 1/2
Valve Body
Backnut
Base Seal
Shower Outlet
Nipple
Banjo
Connection
HOT IN
Cover & Handle
Base Ring
Rosette
COLD IN
1
9
/
16
"
MAX
1
3
/
8
"
ø
Hole
1
3
/
8
"
ø
Hole
1
3
/
8
"
ø
Hole
3
/
4
"
NPT
Rough installation cap
provided for centerbody
An extra backnut is supplied
for rough
installations
Nut
Extension
Hose - 1m
HANDSHOWER SOCKET DETAIL
Rosette
Tap ered
Bushes
Handshower
Flex - 2m

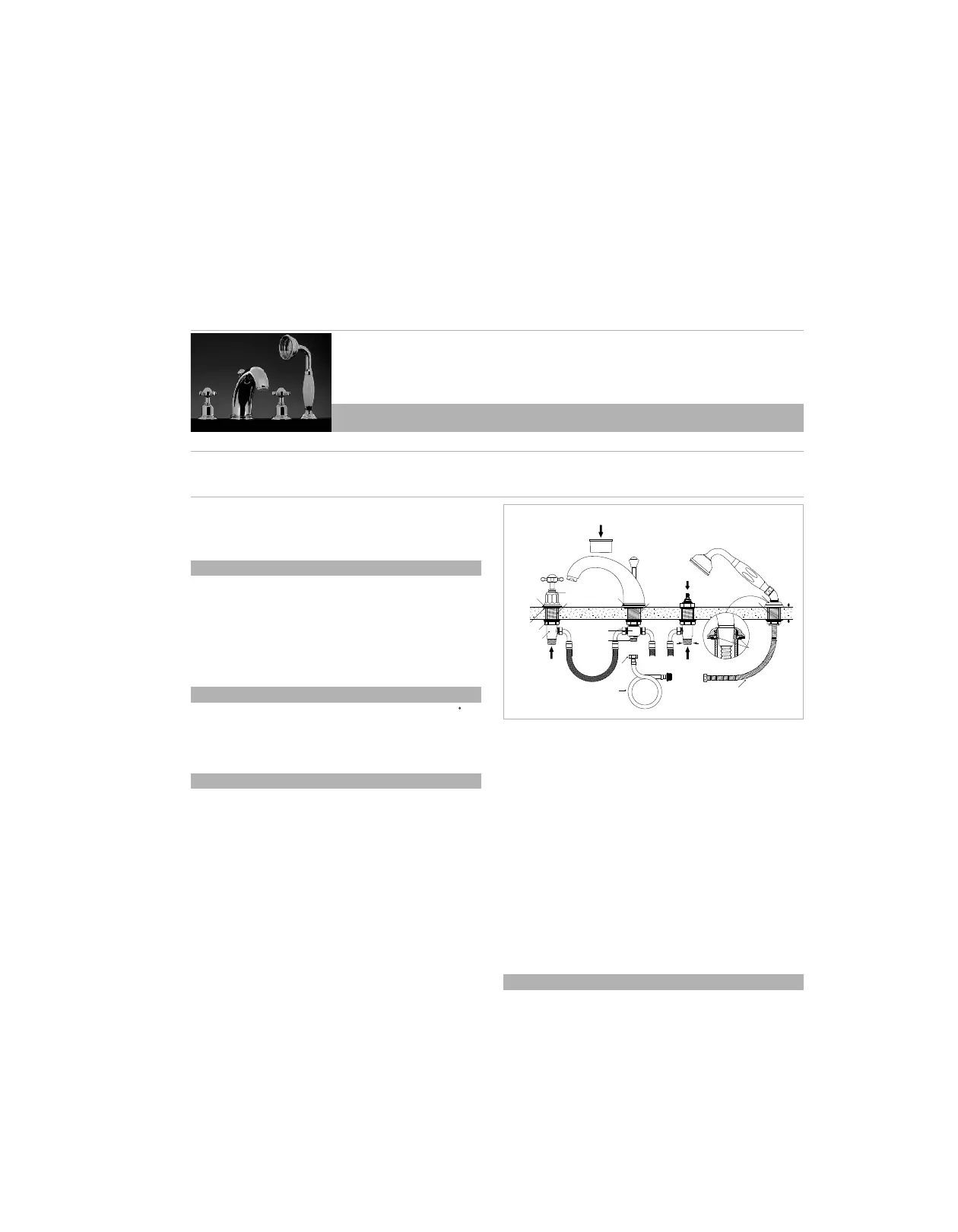

Fig 1.
Installation of Faucet
Before you proceed...
We recommend you engage the services
of a registered plumber to install this product.
Read the instructions on this leaflet carefully.
Congratulations on the purchase of your Perrin & Rowe Bathroom Faucet.
Correctly installed and with sensible care, it will give many years of trouble free service.
U.3245L U.3246X U.3248L U.3249X U.3737L U.3738X
U.3745L U.3746X
4
4
H
H
o
o
l
l
e
e
T
T
u
u
b
b
W
W
i
i
d
d
e
e
s
s
p
p
r
r
e
e
a
a
d
d
s
s
PREPARATION
Flush the plumbing system before installing the mixer faucet. This is
to
avoid plumbing residues clogging the aerator, or possibly
damaging the ceramic valves. This is especially important where
extensive plumbing work has been carried out.
The Hot supply should be on the left when viewed from the front of
the
fit ting.
It is essential to leave adequate access to the underside of the bath
to
allow for maintenance.
CHECK LIST
! Temperature of the hot water supply does not exceed 185 F !
! Recommended minimum water supply pressure - 15 psi !
! Recommended maximum water supply pressure - 70 psi !
! Ideal water pressure is 55psi
! Ideal performance obtained with equal hot & cold pressures !
ASSEMBLY - Refer to Fig 1.
Assemble the nozzle by placing the shank through the hole in the
worksurface en sur ing that the base ring & seal are in place.
Place backnut onto shank and tighten to underside of worksurface.
Fit banjo connection onto shank using shower outlet nipple, taking
ca
re not to overtighten.
Assemble handshower socket to worksurface ensuring base seal is in
pl
ace under body.
Place flex through the socket, nut end first, to leave tapered end
sho
wing.
Assemble the two tapered bushes (larger internal diameter to top)
then
push into handshower socket.
Place rosette over flex and assemble to socket.
Assemble handshower to tapered end of flex.
Fit nut end of hose to outlet. To allow servicing of the handshower
flex, the hose should allow the connection to be pulled up through
the handshower socket. If required extend the reach by connecting
to the banjo with a copper connection.
Fit handshower flex to hose.
To assemble side valve, ensure the brass backnut and
washer are in place on the valve body, then from the underside of
worksurface, push the valve body through the hole. Assemble
rosette as shown so that the valve body thread shows at top.
Ensure that the connection for the flexible hose is facing towards
the nozzle.
Assemble cover & handle onto the valve body ensuring that it is
aligned properly. If it is not, re move and turn a few splines until
correct align ment achieved.
Screw the rosette up to the underside of cover.
Repeat this procedure for the second side valve.
Make the connections between the side valves and the nozzle.
Tighten the brass backnut and washer to the underside of the
work surface.
Connect the side valves to the nozzle using the flexible hoses.
Assemble and connect pop-up waste.
Ensure all connections are firmly tightened.
Connect Hot & Cold water supplies to side valve inlets.
BEFORE USE
Carefully check the installation for leaks.
If further building work is to be carried out in the vicinity, cover the
fa
ucet with a plastic bag to avoid damaging the finish.
Please ensure that the installation complies with the local plumbing
co
des.
