INSTALLATION GUIDE
Installationsanleitung | Guide d’installation | Guía de instalación | 安装指南
Legenda
Legende | Légende | Leyenda | 传奇
Remove
|
Install
|
Installieren | Installer | Instalar | 安装
Loosen
|
Lösen | Desserrer | Aojar | 拧松
01
THIS MANUAL IS FOR THE FOLLOWING MODELS
PH-GO240D30_XXX01
PH-GO360D30_XXX01
PH-GO420D30_XXX01
Glacier One D30-240
Glacier One D30-360
Glacier One D30-420
Phanteks will not take responsibility for any damages incurred due to incorrect
installation or usage of this product.
Phanteks übernimmt keine Verantwortung für Schäden, die durch eine falsche
Installation oder Verwendung dieses Produkts entstehen.
Phanteks décline toute responsabilité en cas de dommages résultant d’une
installation ou d’une utilisation incorrecte de ce produit.
Phanteks no se responsabilizará de los daños ocasionados por la instalación o el uso
incorrectos de este producto.
Phanteks 不会对安装中失误造成的任何损失负责，请仔细阅读本手册。
EN
DE
FR
ES
CN

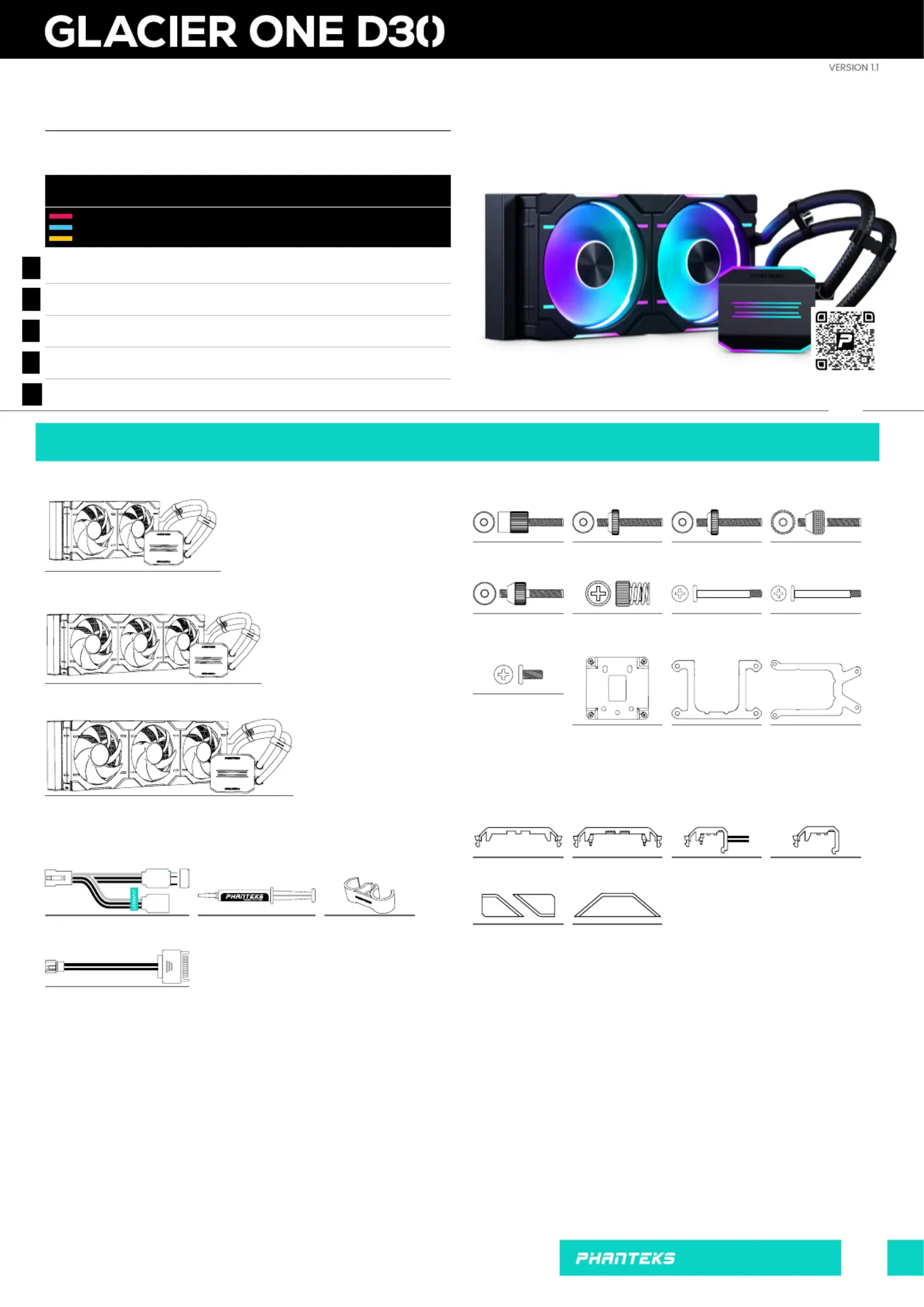

SCOPE OF DELIVERY
Lieferumfang | Contenu de la livraison | Alcance de la entrega | 供货范围
Dieses Handbuch gilt für die folgenden Modelle Ce manuel concerne les modèles |
suivants Este manual es para los siguientes modelos | | 此手册适用于以下型号
Online Manual
Online-Handbuch
Manuel en ligne
Manual en Linea
在线手册
GLACIER ONE D30
ACCESSORIES
Zubehör | Accessoires | Accesorios | 配件
MOUNTING HARDWARE
Montagematerial | le matériel de montage | accesorios de montaje | 安装硬件
D30 ACCESSORIES
D30-Zubehör | Accessoires D30 | Accesorios D30 | D30配件
Bridge Clip
1x | 2x
AM4 | AM5 Stand-off
4x
Screw Cover Corner
2x | 2x
Bridge Clip Connector
1x | 2x
Silver Color
TR4 Stand-off
4x 360 Models Only
Thumb Nut
4x
Intel 1700 Stand-off
4x
Dark Color
Intel 2011 2066 |
Stand-off
4x
intel 115X 1200 |
Stand-off
4x
33mm Radiator
Screws
8x | 12x 6-32 UNC
6mm Radiator Screws
8x | 12x 6-32 UNC
Intel 115X | 1200 | 1700
Backplate
1x
AMD AM4 | AM5
Bracket
1x
Intel Bracket Pre-installed
AMD TR4 Bracket
1x 360 & 420 Models Only
35mm Radiator
Screws
8x | 12x 6-32 UNC
Screw Cover Bridge
2x | 4x
Corner Clip Cable
2x
Corner Clip
3x
Tube Clip
3x
PH-NDC Thermal Compound
1x
3-Pin D-RGB Motherboard Adapter
1x 600mm
SATA to 2-Pin Pump Adapter
1x
Glacier One D30-420
1x 420 Radiator | 3x D30-140mm Fans
Glacier One D30-240
1x 240 Radiator | 2x D30-120mm Fans
Glacier One D30-360
1x 360 Radiator | 3x D30-120mm Fans
INSTALLATION GUIDE | www.phanteks.com
02
4x
115X 1200 |
Stand-Off
4x
1700 Stand-
Off

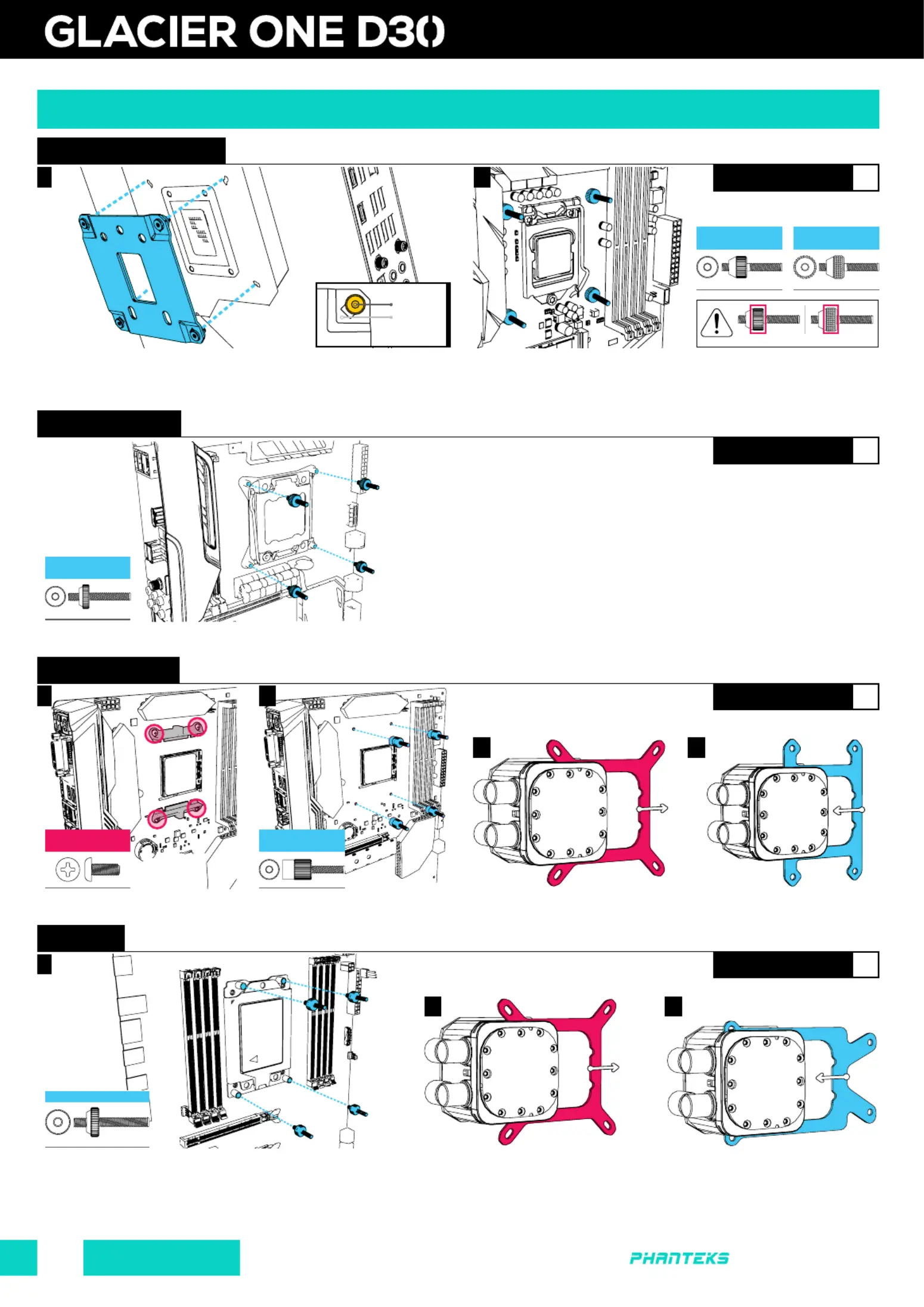

PREPARE MOTHERBOARD
Bereiten Sie das Motherboard vor | Préparer la carte mère | Preparar placa base | 准备主板
AMD AM4 AM5|
AMD TR4
INTEL 2011 2066|
INTEL 115X 1200 1700| |
1700
115X 1200|
115X 1200 1700 |
PROCEED TO STEP 2.
>
PROCEED TO STEP 2.
>
PROCEED TO STEP 2.
>
PROCEED TO STEP 2.
>
4x
2011 2066 |
Stand-Off
Silver Color
4x
AM4 AM5 |
Stand-Off
4x
AM4 Bracket
Screws
TR4 Stand-off
4x
Silver Color
Fahren Sie mit Schritt 2 fort. | Passez à
l’étape 2. | Continúe con el paso 2. | 继续
执行步骤 2.
Fahren Sie mit Schritt 2 fort. | Passez à
l’étape 2. | Continúe con el paso 2. | 继续
执行步骤 2.
Fahren Sie mit Schritt 2 fort. | Passez à
l’étape 2. | Continúe con el paso 2. | 继续
执行步骤 2.
Fahren Sie mit Schritt 2 fort. | Passez à
l’étape 2. | Continúe con el paso 2. | 继续
执行步骤 2.
1
1
1
2
3
2 3
4
2
Insert the backplate through the motherboard.
Secure the 4x Intel 2011 | 2066 Stand-offs to the motherboard.
Remove the stock mounting brackets.
Secure the 4x TR4 Stand-offs to the motherboard. Remove the pre-installed Intel bracket
rst by sliding it off the cooling module.
For the AMD TR4 socket, slide the bracket on
the cooling module.
Secure the 4x AM4/AM5 Stand-offs to
the motherboard.
Remove the pre-installed Intel bracket
rst by sliding it off the cooling module.
Attach the AM4/AM5 bracket by sliding it
on the cooling module.
Secure the backplate with the 4x Stand-
offs. Make sure to use the correct socket
stand-off.
ATTENTION
Check the stand-off texture to make
sure you got the correct socket stand-
off.
