Dear Customer
Thank you for buying our range hood. Please read the user manual
carefully and store in a handy place for later reference.
This hood is designed for tting in a cabinet.
Read the following carefully to avoid damage or injury.
SAFETY AND WARNINGS
Where applicable, this appliance is supplied with xings. Please
ensure you use the correct xings suitable for the substrate where
the appliance will be installed and that they are able to support
the weight of the appliance.
Before connecting the hood, check that the supplied voltage and
frequency match with that indicated on the appliance rating plate.
If in doubt, ask for advice instore or from a qualied installer.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a safety hazard.
Use only the same size of fittings and mounting screws as
recommended in this instruction manual. Failure to follow these
instructions may result in electrical hazards.
Means for full disconnection must be incorporated in the fixed
wiring in accordance with the local wiring installation rules for
your country. An all-pole disconnection switch having a contact
separation of at least 3mm in all poles should be connected
during installation.
When the extractor hood is located above an appliance, the
minimum distance between the supporting surface for the cooking
vessels on the hob and the lowest part of the hood shall be at
least 650mm.
Consult local regulations regarding extraction outlets and ensure
these are complied with. Do not connect the hood to a ventilation
EN
4
or hot air duct containing combustion fumes from burning gas or
other fuels. Conrm that room ventilation is appropriate with the
local authorities.
The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels
The hood may stop working during an electrostatic discharge
(e.g. lightning). This involves no risk of damage. Switch off the
electricity supply to the hood and reconnect after one minute.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Do not install the appliance outdoors in a damp place or in an
area which may be prone to water leaks such as under or near a
sink unit. In the event of a water leak a󰀨ecting the appliance, do
not use and contact customer services to arrange for inspection.
Do not use ammable sprays in close vicinity to the appliance.
Please dispose of the packing material carefully. There is a
fire risk if cleaning is not carried out in accordance with the
instructions. Refer to the Care and Maintenance sections carefully
for details on how to clean and replace the aluminium and carbon
lters (if tted).
Refer to the Care and Maintenance section for details on the type
of lamps that can be used and how to replace them.
Do not use a steam cleaner for care and maintenance.
The appliance is not intended to be operated by means of an
5
external timer or separate remote control system.
There shall be adequate ventilation of the room when the hood is
used at the same time as appliances burning gas or other fuels.
Ensure that the negative pressure of the installation site does not
exceed 4 Pa (0.04 mbar) to ensure combustion fumes are not
drawn back into the room.
Do not use the hood if it shows signs of damage or imperfection.
Contact customer services for assistance.
Switch o󰀨 the appliance at the mains supply before carrying out
any maintenance work or cleaning.
CAUTION:
Accessible parts may become hot when used with
cooking appliances.
Do not flambé under the hood. To avoid the risk of fire, clean
or replace the grease filter regularly and closely monitor pans
containing hot oil.
The manufacturer declines all liability for personal or material
damage as a result of misuse or incorrect installation of this
appliance.
The appliance is for domestic use only as an extractor hood.
INSTALLATION INSTRUCTIONS
All installation must be carried out by a competent person or
qualied electrician. Before connecting the mains supply ensure that
the mains voltage corresponds to the voltage on the rating plate.
The appliance must be connected directly to the mains using an
omnipolar circuit breaker with a minimum opening of 3mm between
the contacts.
The installer must ensure that the correct electrical connection has
been made and that it complies with the wiring diagram.
Regularly check the power plug and power cord for damage. If the
supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
WARNING: This is a Class II appliance and MUST NOT be
earthed
.
7
INSTALLATION
2 mm
Positioning
650mm
top of cooking
surface

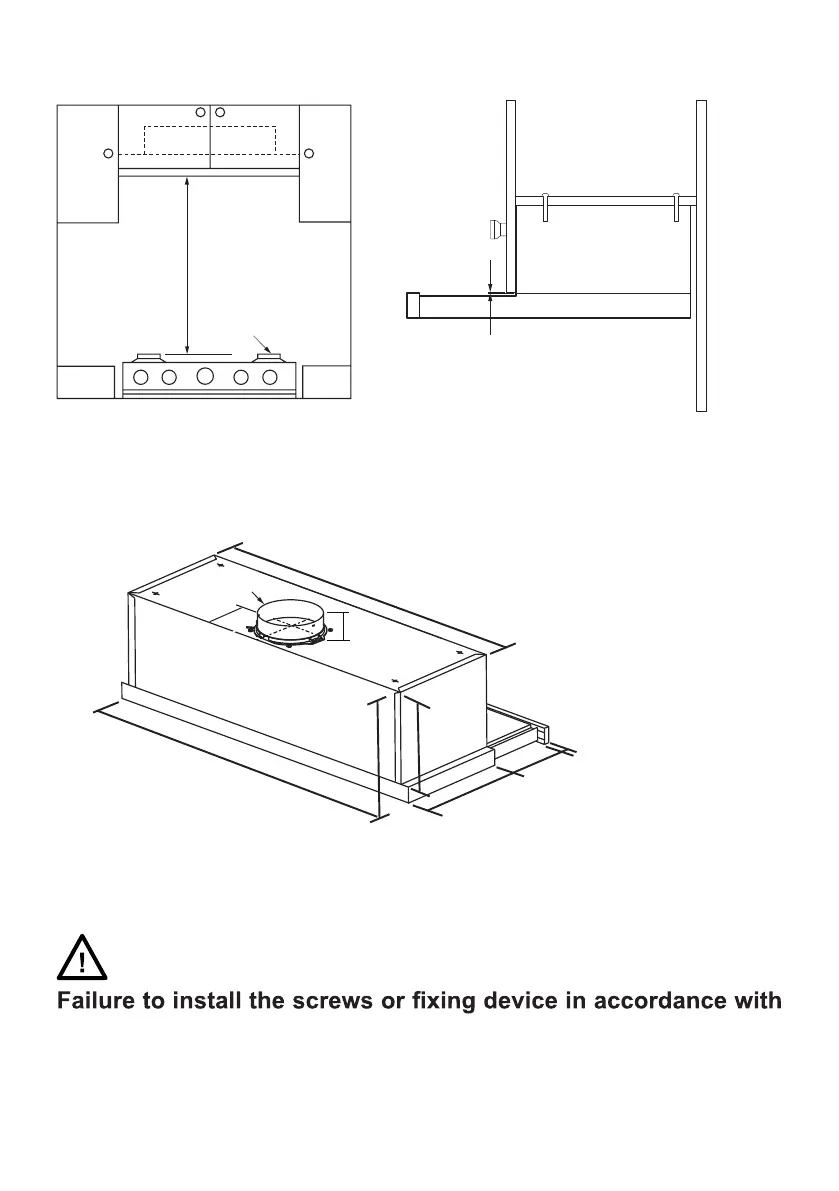

Fixing dimensions
555/855
230
Ø150
272
WARNING!
these instructions may result in electrical hazards.
88
45
0~160
280
20
600/900
8

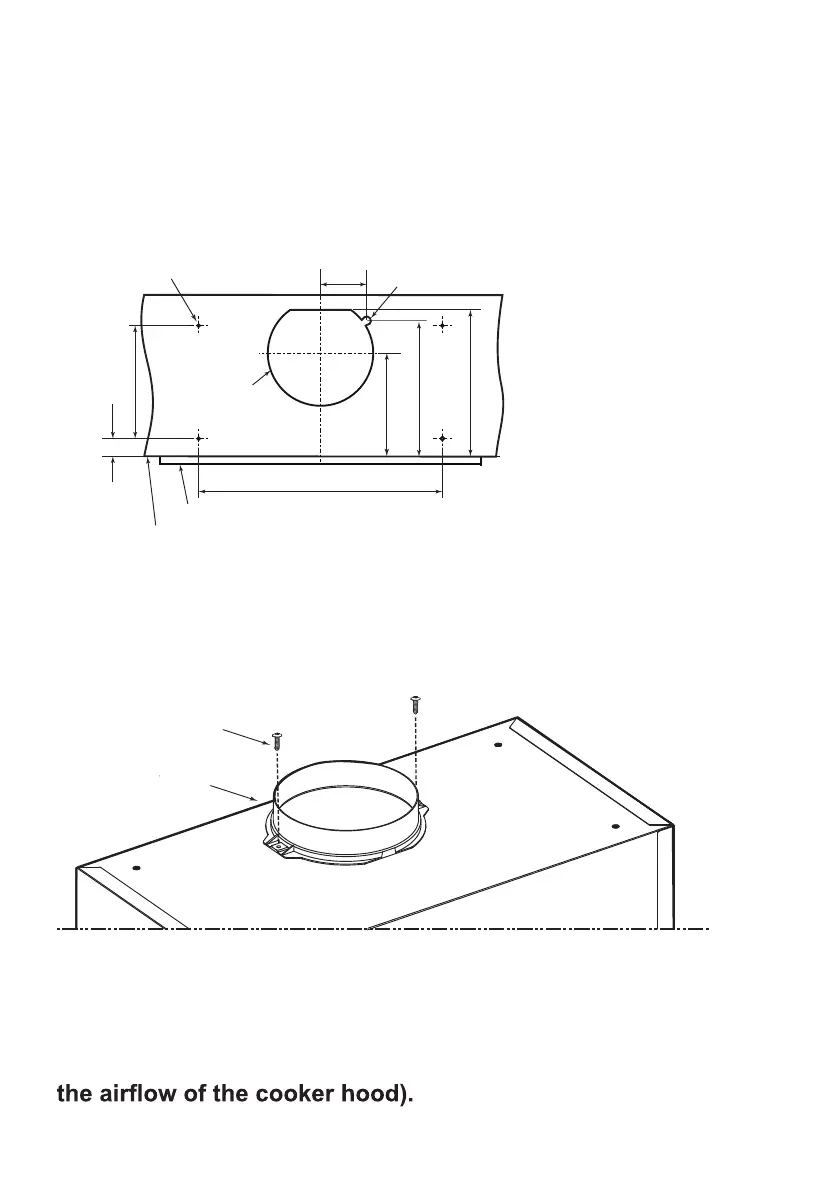

Drilling holes
Drill the holes on top of wooden cupboard
drill Ø 7mm hole
drill Ø 16mm hole
cut Ø 196mm hole
Ø7 for hood
fastening screws
86
Ø16 for cable
clearance
Ø
clearance
453/753
33
210
272
252
192
196 for flue
Front of cabinet
Door/hood fascia
Fixing the ducting adapter
Ø150mm
Ducting adapter
Ø150mm
eht ot retpada mm521 ot 051 eht tcennoc ,yrossecen fI
ducting adapter.
Important! For best performance, Ø150mm ducting is
recommended 125mm ducting can be used, but will reduce
Connect Ø150mm ducting adapter to the blower outlet and
use screws to fix it to the range hood.
Screw ST3.5 x 10mm
Ø
Ø
9

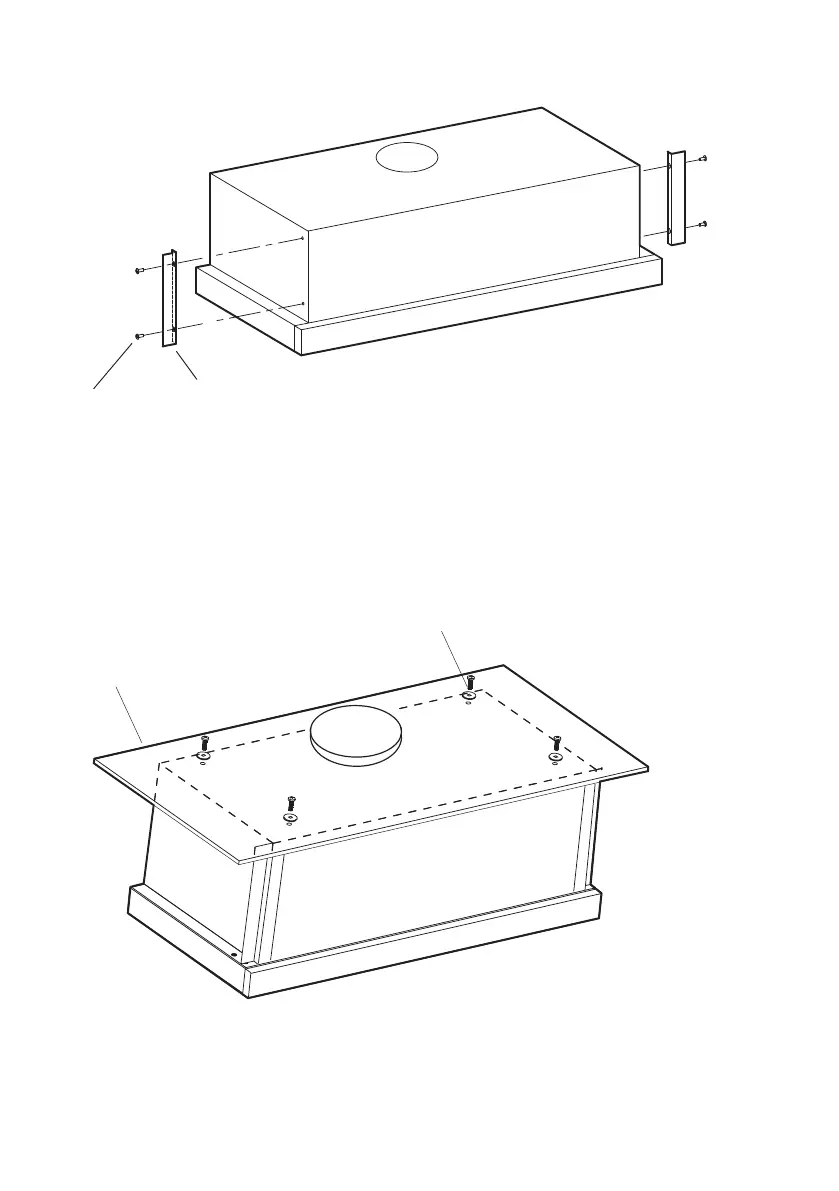

Fixing the Lateral spacers
Screw
Lateral spacer
Mounting the rangehood to the underside of cupboard
Attach the rangehood to wooden support and x it with the 4 screws
supplied.
Cupboard
Screw M4 x 60mm and washers
ST3 x 12mm
11
OPERATING INSTRUCTIONS

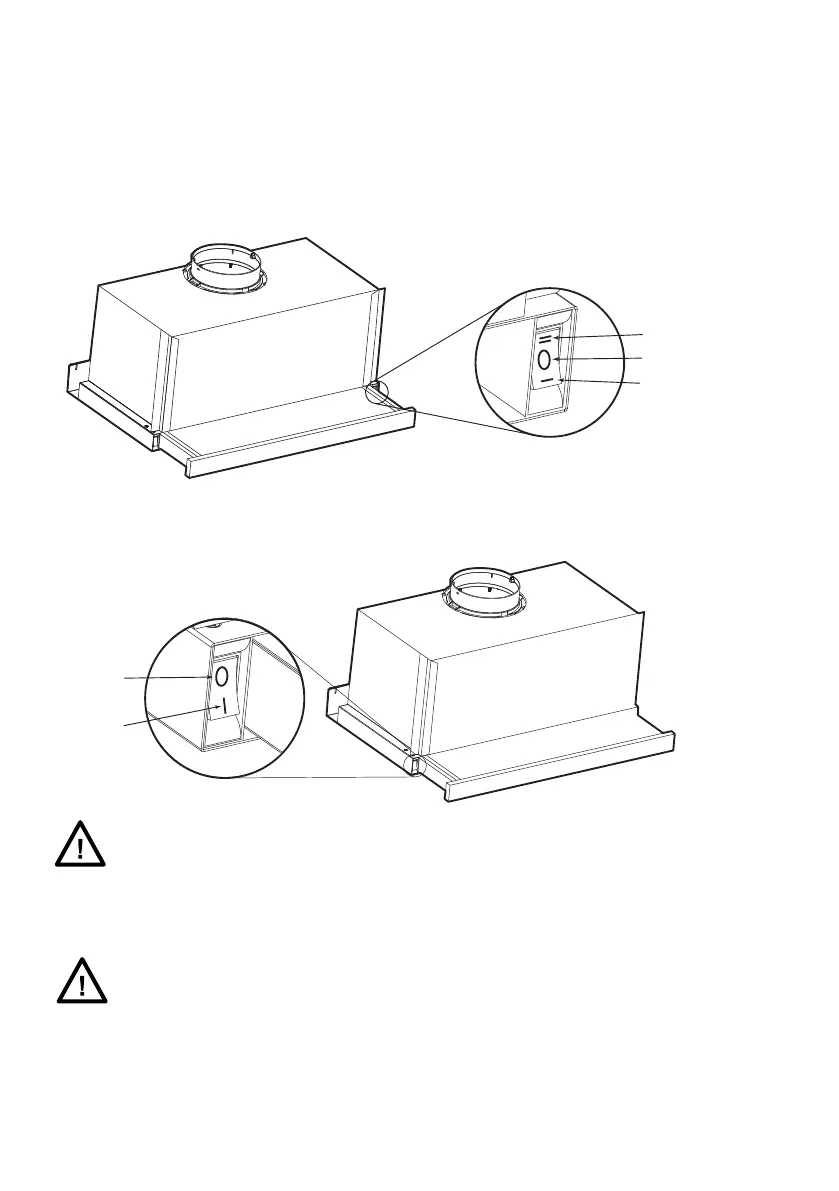

Control panel features
To operate the rangehood, pull out the retractable hood and select
the extraction level using the switch on the right hand side
High
Low
Lamp
Lamp
On
Off
Off
To switch on the rangehood light, use the switch located on the left
hand side of the rangehood.
High
Low
Lamp
Lamp
On
Off
Off
CLEANING AND MAINTENANCE
Warning: always switch off the electricity supply before
carrying out maintenance work on the hood. In the event of a
fault, contact an o󰀩cial distributor or Customer Service.
Exterior Cleaning : Use non-corrosive, liquid detergent and avoid the
use of abrasive cleaning products.
Right
Warning: the lighting should not be used as permanent
light source but only for cooking.
