Side 1/106
English Français Español
CD RDS RECEIVER
AUTORADIO CD RDS
REPRODUCTOR DE CD CON RECEPTOR RDS
DEH-X8800BHS
DEH-X7800BHS
DEH-X6800BS
Owner’s Manual
Mode d’emploi
Manual de instrucciones
Important (Serial number)
The serial number is located on the bottom of this unit. For your own security and
convenience, be sure to record this number on the enclosed warranty card.
Important (Numéro de série)
Le numéro de série se trouve au bas de cet appareil. Pour votre sécurité et votre commodité,
veillez à noter ce numéro sur la carte de garantie fournie.
Importante (Número de serie)
El número de serie se encuentra en la parte inferior de esta unidad. Por su propia seguridad
y comodidad, asegúrese de anotar este número en la tarjeta de garantía que se adjunta.
DIGITAL MEDIA RECEIVER
RÉCEPTEUR MÉDIA NUMÉRIQUE
RECEPTOR DE MEDIOS DIGITALES
MVH-X580BS
2En
Before You Start....................................................................................... 2
Getting Started........................................................................................ 3
HD Radio™ Technology/Radio .............................................................. 7
CD/USB/iPod®/AUX................................................................................. 8
Bluetooth................................................................................................ 10
App Mode............................................................................................... 12
Pandora®................................................................................................. 13
Spotify® ................................................................................................... 14
SiriusXM Satellite Radio....................................................................... 14
Using Pioneer ARC APP ........................................................................ 16
Audio adjustments ............................................................................... 17
Settings ................................................................................................... 19
FUNCTION settings .............................................................................. 19
AUDIO settings...................................................................................... 21
SYSTEM settings ................................................................................... 22
ILLUMINATION settings ....................................................................... 23
MIXTRAX settings ................................................................................. 24
Connections/Installation..................................................................... 24
Additional Information ........................................................................ 27
About this manual:
•In the following instructions, a USB memory or USB audio player are referred to as
“USB device”.
•In this manual, iPod® and iPhone are referred to as “iPod”.
Table of Contents
Thank you for purchasing this PIONEER product
To ensure proper use, please read through this manual before using this product. It is especially
important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the
manual in a safe and accessible place for future reference.
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a safe level—a level that lets the sound come
through clearly without annoying blaring or distortion and, most importantly, without affecting your
sensitive hearing. Sound can be deceiving.
Before You Start
FCC ID: AJDK071
MODEL NO.: DEH-X8800BHS/DEH-X7800BHS/DEH-X6800BS/MVH-X580BS
IC: 775E-K071
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of this device.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The Bluetooth antenna cannot be removed (or replaced) by user.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels
of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But
it is desirable that it should be installed and operated keeping the radiator at least 20cm or more
away from person’s body (excluding extremities: hands, wrists, feet and ankles).
Alteration or modifications carried out without appropriate authorization may invalidate the user’s
right to operate the equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
–Consult the dealer or an experienced radio/TV technician for help.
3En
English
Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal”
can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a
safe level BEFORE your hearing adapts.
ESTABLISH A SAFE LEVEL:
•Set your volume control at a low setting.
•Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
•Once you have established a comfortable sound level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
•Do not turn up the volume so high that you can’t hear what’s around you.
•Use caution or temporarily discontinue use in potentially hazardous situations.
•Do not use headphones while operating a motorized vehicle; the use of headphones may create a
traffic hazard and is illegal in many areas.
WARNING
• Do not attempt to install or service this product by yourself. Installation or servicing of this
product by persons without training and experience in electronic equipment and automotive
accessories may be dangerous and could expose you to the risk of electric shock, injury or other
hazards.
•Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle
in a safe location before attempting to use the controls on the device.
•This product contains chemicals known to the State of California and other governmental entities to
cause cancer and birth defects or other reproductive harm. Wash hands after handling.
CAUTION
•Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result.
Also, damage to this unit, smoke, and overheating could result from contact with liquids.
•Always keep the volume low enough to hear outside sounds.
•This product is evaluated in moderate and tropical climate condition under the Audio, video and
similar electronic apparatus - Safety requirements, IEC 60065.
After-sales service for Pioneer products
Please contact the dealer, distributor from where you purchased this unit or the authorized PIONEER
Service Station for after-sales service or any other information. In case the necessary information is not
available, please contact the companies listed below:
Please do not ship your unit to the companies at the addresses listed below for repair without
contacting them in advance.
CAUTION:
USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION:
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.
CAUTION
This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.
For warranty information please see the Limited Warranty sheet included with this unit.
DEH-X8800BHS/X7800BHS/X6800BS
U.S.A. and CANADA
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760
Long Beach, CA 90801-1760
800-421-1404
Getting Started

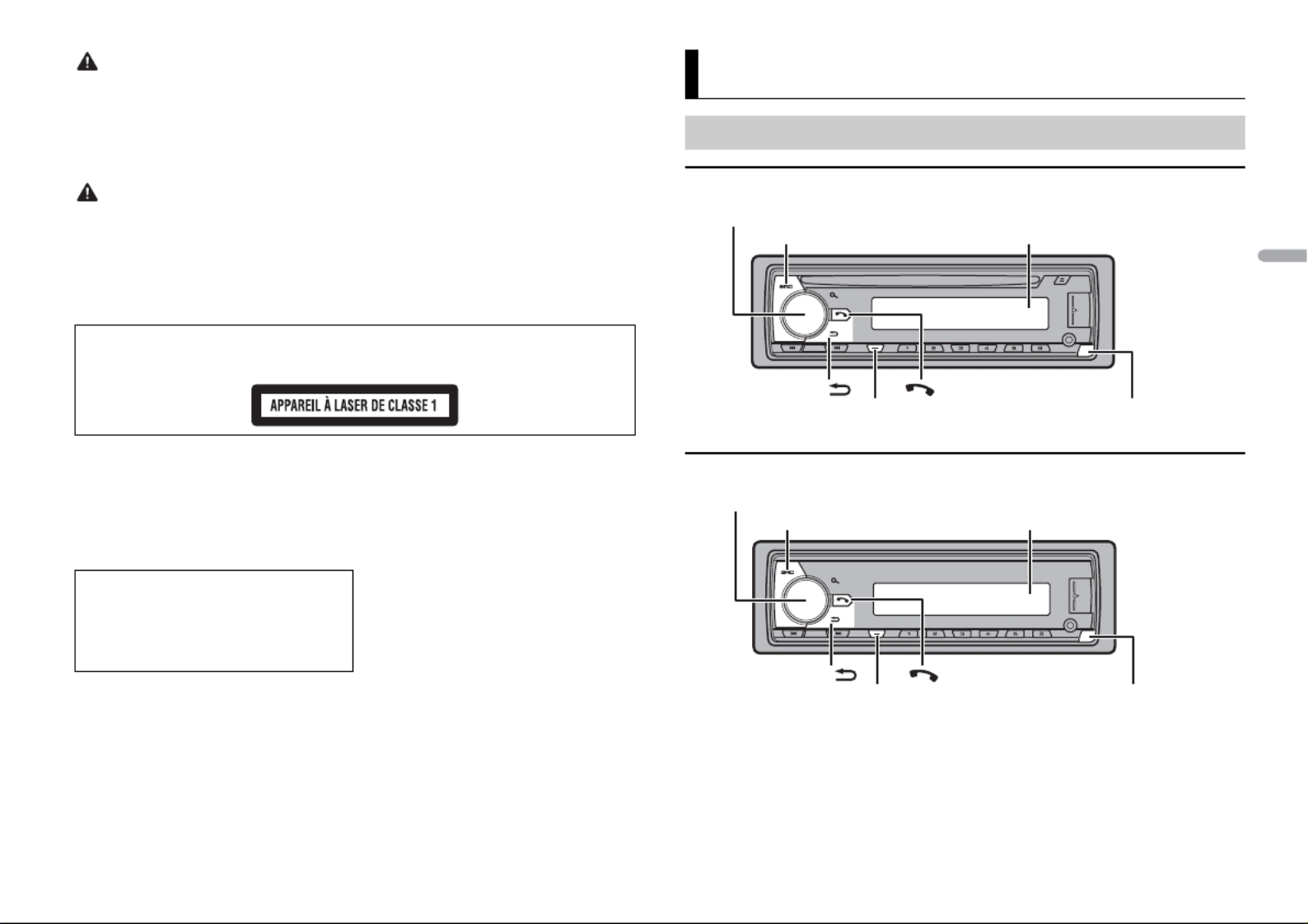

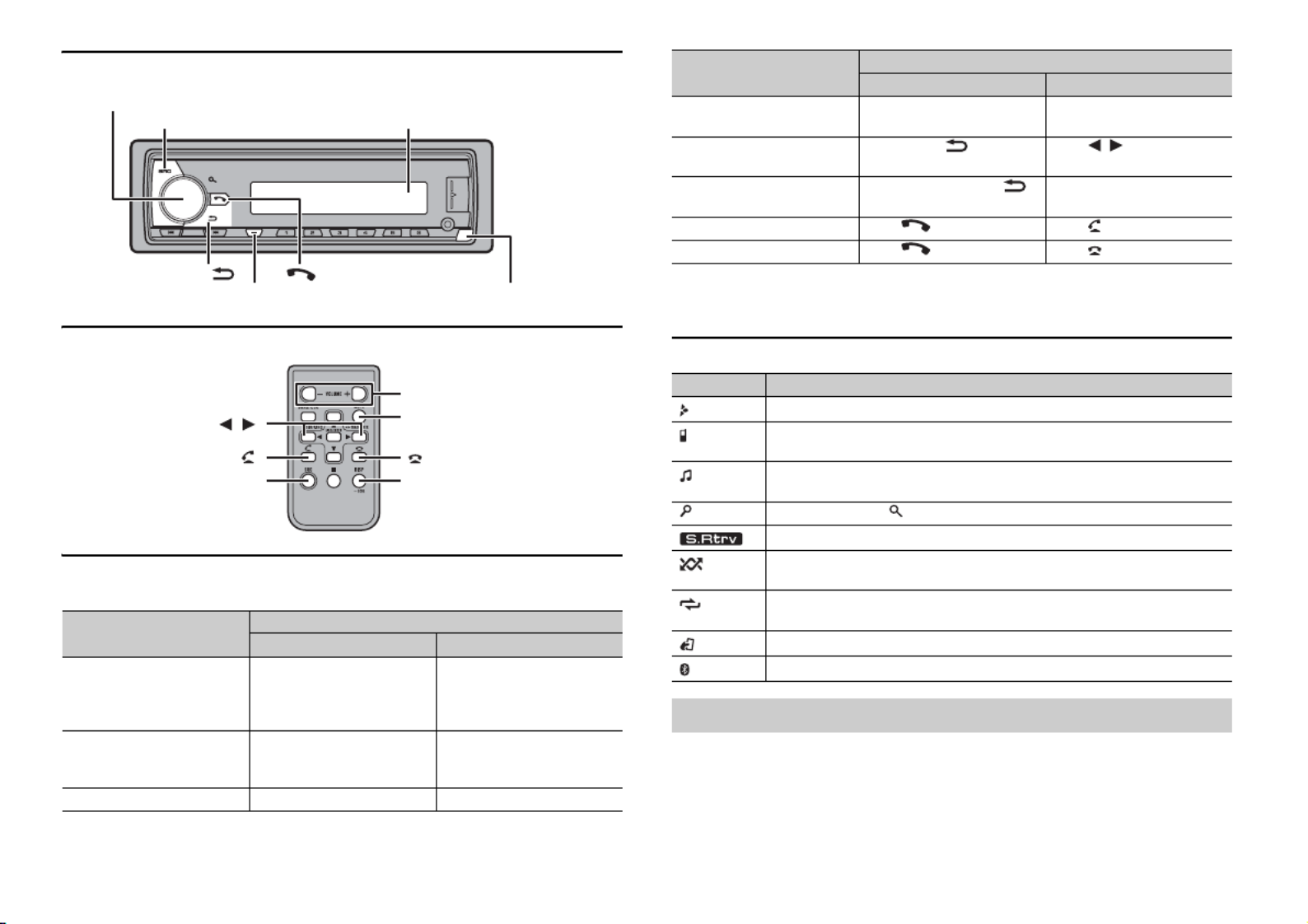

Basic operation
SRC (source)/OFF
Detach button
Display window
M.C. (multi-control) dial
BAND/
DISP (display)
4En
MVH-X580BS

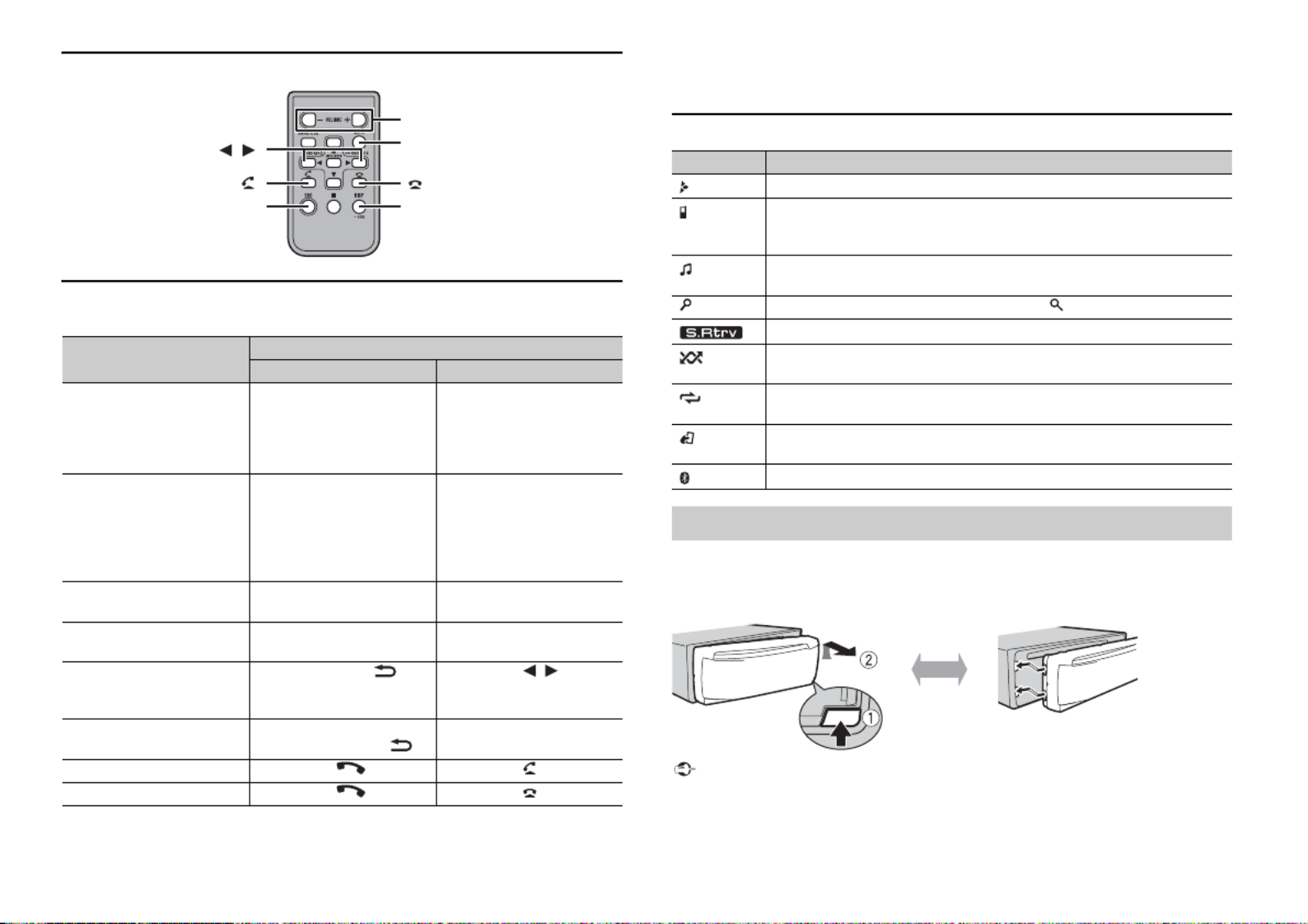

Remote Control
Frequently used operations
The available buttons vary depending on the unit.
Purpose Operation
Head Unit Remote Control
Turn on the power* Press SRC/OFF to turn on
the power.
Press and hold SRC/OFF to
turn off the power.
Press SRC to turn on the
power.
Press and hold SRC to turn
off the power.
Adjust the volume Turn the M.C. dial. Press VOLUME .+ or –
Press MUTE to mute the
unit. Press again to unmute.
Select a source Press SRC/OFF repeatedly. Press SRC repeatedly.
SRC (source)/OFF
Detach button
Display window
M.C. (multi-control) dial
BAND/
DISP (display)
/
SRC (source)
VOLUME +/–
MUTE
DISP (display)
* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal,
the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the
source off.
Display indication
Detach the front panel to prevent theft. Remove any cables and devices attached to the
front panel and turn off the unit before detaching it.
Change the display
information
Press DISP repeatedly. Press DISP repeatedly.
Return to the previous
display/list
Press BAND/ . Press / to select the
next/previous folder.
Return to the normal display
from the menu
Press and hold BAND/ .–
Answering a call Press . Press .
Ending a call Press . Press .
Indication Description
Appears when a lower tier of the menu or folder exists.
Appears when a Bluetooth telephone is connected to this unit by HFP
(Hands Free Profile) (page 10) and flashes while the telephone is on hold.
Appears when a Bluetooth audio player is connected to this unit by A2DP
(Advanced Audio Distribution Profile) (page 10).
Appears when the button is pressed.
Appears when the sound retriever function is set (page 20).
Appears when random/shuffle play is set (except when BT AUDIO is
selected as the source).
Appears when repeat play is set (except when BT AUDIO is selected as the
source).
Appears when the iPod control function is set (page 9).
Appears when a Bluetooth connection is made (page 10).

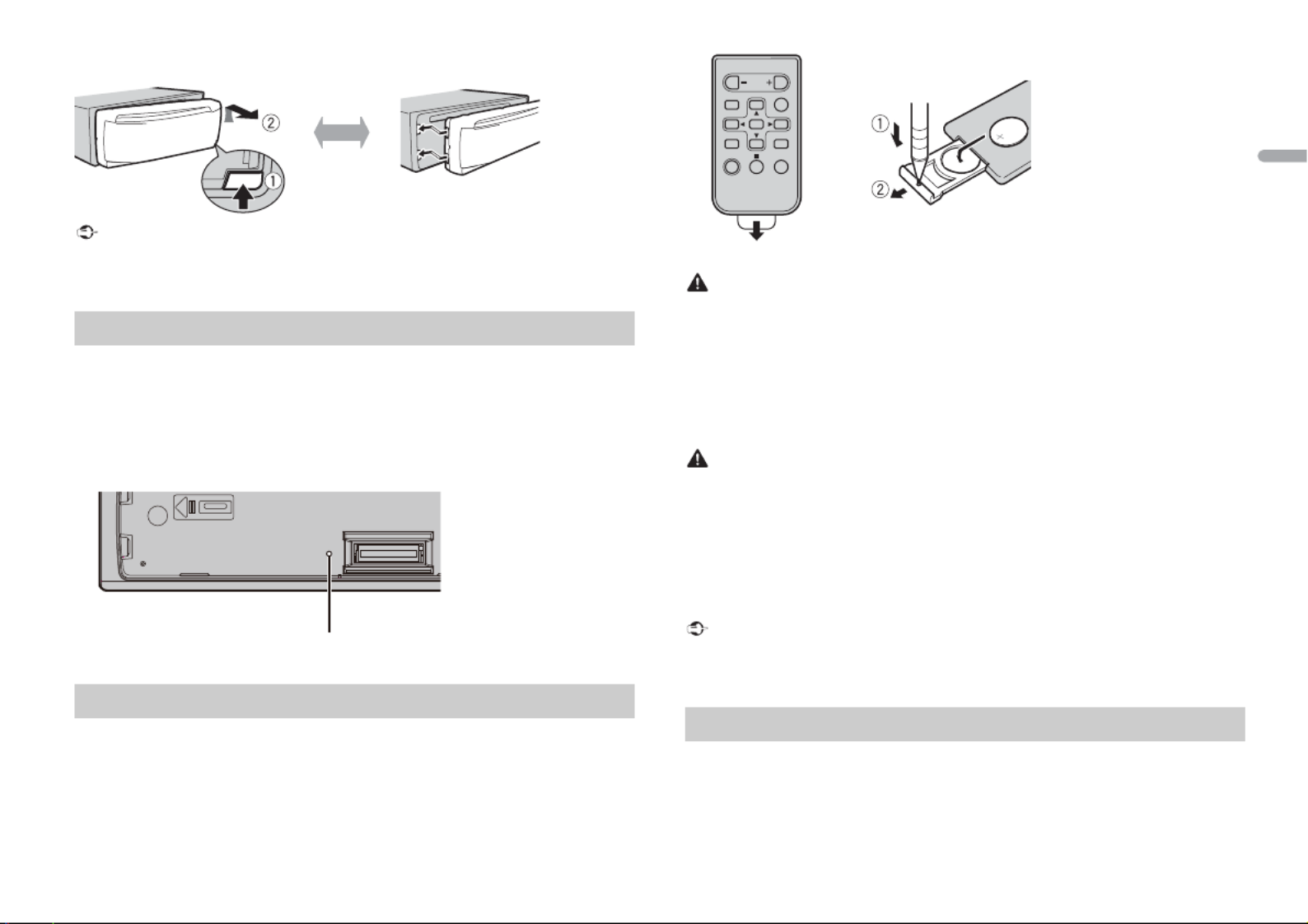

Detaching the front panel
Purpose Operation
Head Unit Remote Control
5En
English
Important
•Avoid subjecting the front panel to excessive shock.
•Keep the front panel out of direct sunlight and high temperatures.
•Always store the detached front panel in a protective case or bag.

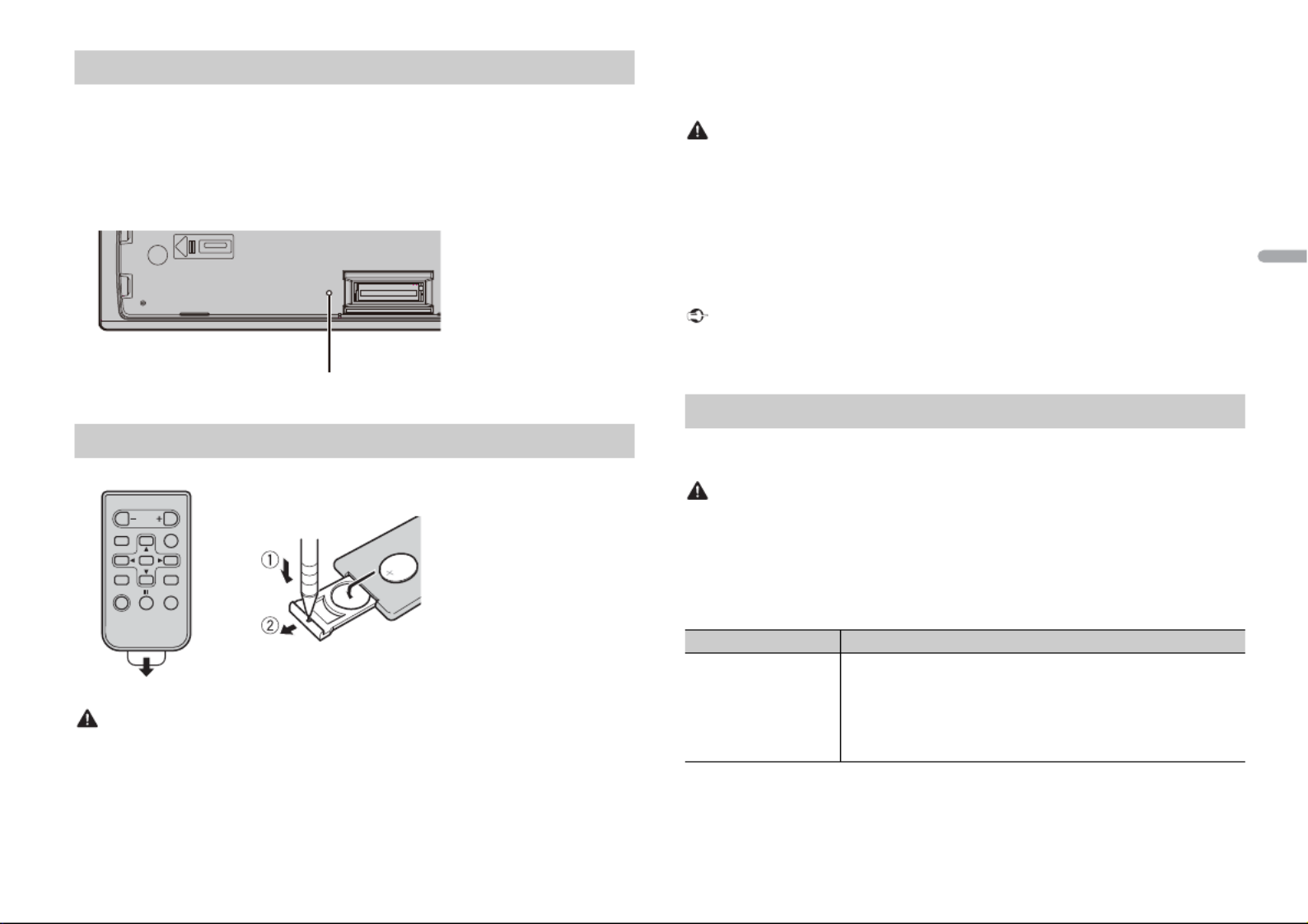

The microprocessor must be reset in the following situations:
– Before using this unit for the first time after installation
– If the unit fails to operate properly
– When strange or incorrect messages appear on the display
1Remove the front panel (page 4).
2Press the RESET button with a pointed instrument longer than 8 mm.
Remove the insulation sheet before use.
Resetting the microprocessor
Preparing the remote control
Detach Attach
RESET button
WARNING
•Do not ingest the battery, Chemical Burn Hazard.
•This product, including the supplied remote control, contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause severe internal burns in just two hours and can lead to
death.
•Keep new or used batteries out of the reach of children. If the battery is swallowed or placed inside
any part of the body, consult a doctor immediately.
•If the battery compartment does not close securely, stop using the product and keep it away from
children.
•Do not expose the battery or remote control to excessive heat such as direct sunlight or fire.
CAUTION
•There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the
battery, replace it with the same type.
•Do not handle or store the battery with metallic tools or objects.
•If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a
new battery.
•When disposing of used batteries, please comply with governmental regulations or environmental
public institutions’ rules that apply in your country/area.
•“Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.)”
Important
•Do not store the remote control in high temperatures or direct sunlight.
•Do not let the remote control fall onto the floor, where it may become jammed under the brake or
accelerator pedal.
When you turn the ignition switch to ON after installation, the setup menu appears in
the display.
Setup menu
How to replace the battery
Insert the CR2025 (3 V) battery with the plus (+) and
minus (–) poles orientated properly.
6En
WARNING
Do not use the unit in standard mode when a speaker system for network mode is connected to the
unit. Do not use the unit in network mode when a speaker system for standard mode is connected to
the unit. This may cause damage to the speakers.
1Turn the M.C. dial to select the options, then press to confirm.
To proceed to the next menu option, you need to confirm your selection.
2[QUIT :YES] appears when all the settings have been made.
To return to the first item of the setup menu, turn the dial to select [QUIT :NO], M.C.
then press to confirm.
3Press the M.C. dial to confirm the settings.
NOTE
[CLOCK SET] can be made at any time. See page 22 for more details.
1Press the M.C. dial to display the main menu.
2Turn the M.C. dial to select [SYSTEM], then press to confirm.
3Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4Turn the M.C. dial to select [YES], then press to confirm.
Menu Item Description
CLOCK SET Set the clock.
1Turn the M.C. dial to adjust the hour, then press to confirm.
The indicator moves to the minute setting automatically.
2Turn the M.C. dial to adjust the minute, then press to confirm.
SPEAKER MODE Switch between two operation modes: the 2-way network mode
(NETWORK) and the standard mode (STANDARD) according to
the connections you have established. For details on operation
modes, see page 17.
After selecting the appropriate mode, turn the M.C. dial to
select [YES], then press to confirm.
•You cannot complete the setup menu without setting the
[SPEAKER MODE].
•Once the speaker mode is set, this setting cannot be changed
unless the default settings of this product are restored. Restore
the default settings to change the speaker mode setting (refer
to SYSTEM RESET on page 6).
[STANDARD],
[NETWORK]
Canceling the demonstration display (DEMO OFF)
1Press and hold SRC/OFF until the unit turns off.
2Press the M.C. dial to display the main menu.
3Turn the M.C. dial to select [INITIAL], then press to confirm.
4Turn the M.C. dial to select an option, then press to confirm.
NOTE
The options vary depending on the unit.
INITIAL settings
Menu Item Description
ACTIVE USB Select the USB port you use to connect a USB device/iPod. The
USB port you do not select can be used for charging.
•When the setting is changed, [USB AUTO] (page 23) is
automatically performed if [USB AUTO] is set to [ON].
[FRONT], [REAR]
REAR-SP Select when there is a full-range speaker connected to the rear
speaker output leads.
[FUL]
[SW] Select when there is a subwoofer connected directly to the rear
speaker output leads without any auxiliary amplifier.
AUTO TA & EQ Select to perform the auto TA and EQ function using the
microphone supplied with the device (page 18).
SYSTEM UPDATE Select [SYSTEM INFO] to confirm the latest system information
on the unit.
Select [S/W UPDATE] to update the unit to the latest software
and initialize the unit settings. For details on the latest software
and updating, visit our website.
[SYSTEM INFO], [S/
W UPDATE]
SXM RESET Select to initialize the SiriusXM settings.
[YES], [CANCEL]
SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be
restarted automatically.
(Some of the settings may be retained even after resetting the
unit.)
[YES], [CANCEL]
7En
English

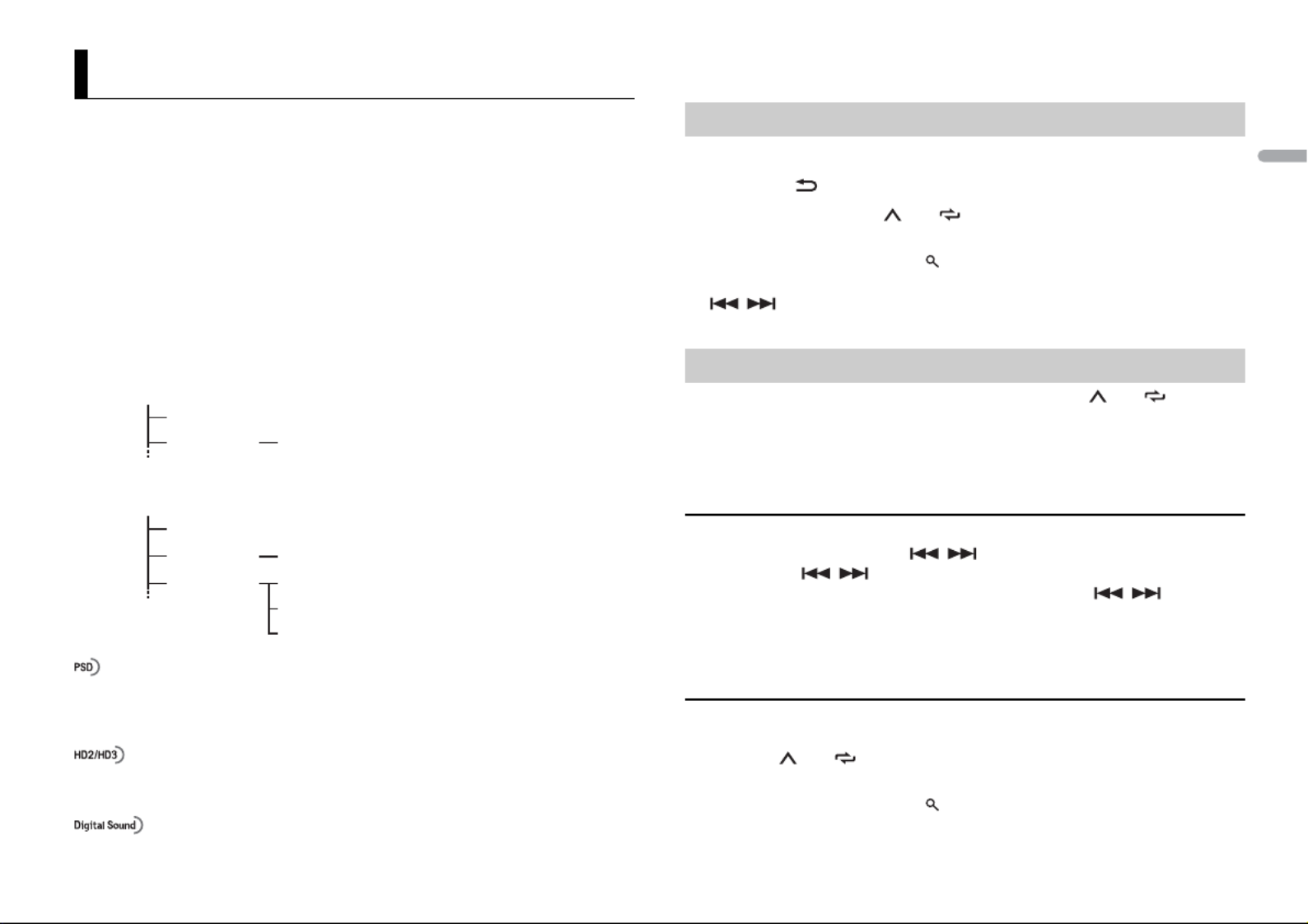

(HD Radio™ Technology is only available for DEH-
X8800BHS/X7800BHS.)
(Radio is only available for DEH-X6800BS/MVH-X580BS.)
The tuner frequencies on this unit are allocated for use in North America. Use in other
areas may result in poor reception.
About HD Radio™ stations
HD Radio™ stations offer high-quality audio and data services. HD Radio stations are
brought to you by local FM/AM stations.
HD Radio stations feature the following:
– High quality audio
– FM multicasting
– Data services
Program Service Data: Contributes to the superior user experience of HD Radio
Technology. Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other
relevant data streams.
Adjacent to traditional main stations are extra local FM channels. These HD2/HD3
Channels provide new, original music as well as deep cuts into traditional genre.
HD Radio™ Technology/Radio
Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast
a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.
1Press SRC/OFF to select [HD RADIO] or [RADIO].
2Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM].
3Press a number button (1/ to 6/ ).
NOTE
You can select a preset channel by pressing and turning the M.C. dial.
TIP
The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the
FUNCTION settings (page 19).
The six strongest stations are stored on the number buttons (1/ to 6/ ).
1After selecting the band, press the M.C. dial to display the main menu.
2Turn the M.C. dial to select [FUNCTION], then press to confirm.
3Turn the M.C. dial to select [BSM], then press to confirm.
To seek a station manually
1After selecting the band, press / to select a station.
Press and hold / then release to seek an available station. Scanning stops
when the unit receives a station. To cancel seek tuning, press / .
NOTES
•[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 19).
•Depending on the reception status, seek tuning can be changed between digital station seek and all
station seek (page 19) (only for DEH-X8800BHS/X7800BHS).
To store stations manually
1While receiving the station you want to store, press and hold one of the number
buttons (1/ to 6/ ) until it stops flashing.
NOTE
You can select a preset channel by pressing and turning the M.C. dial. After selecting a channel,
press and hold the M.C. dial to store a station.
Receiving preset stations
Best stations memory (BSM)
8En
(Only for DEH-X8800BHS/X7800BHS)
1While receiving an emergency announcement, press .
The last four items that have been received appear.
2Turn the M.C. dial to select one of the items, then press to confirm.
The detail of the selected item appears.
NOTE
[/TEST/] appears at the beginning of an item if it was a test message.
To delete an alert history
1Press and hold the M.C. dial in step 2 above.
2Turn the M.C. dial to select [DELETE YES], then press to confirm.
NOTE
CD function is not available for MVH-X580BS.
Disconnect headphones from the device before connecting it to the unit.
* Not equipped for MVH-X580BS
Alert history

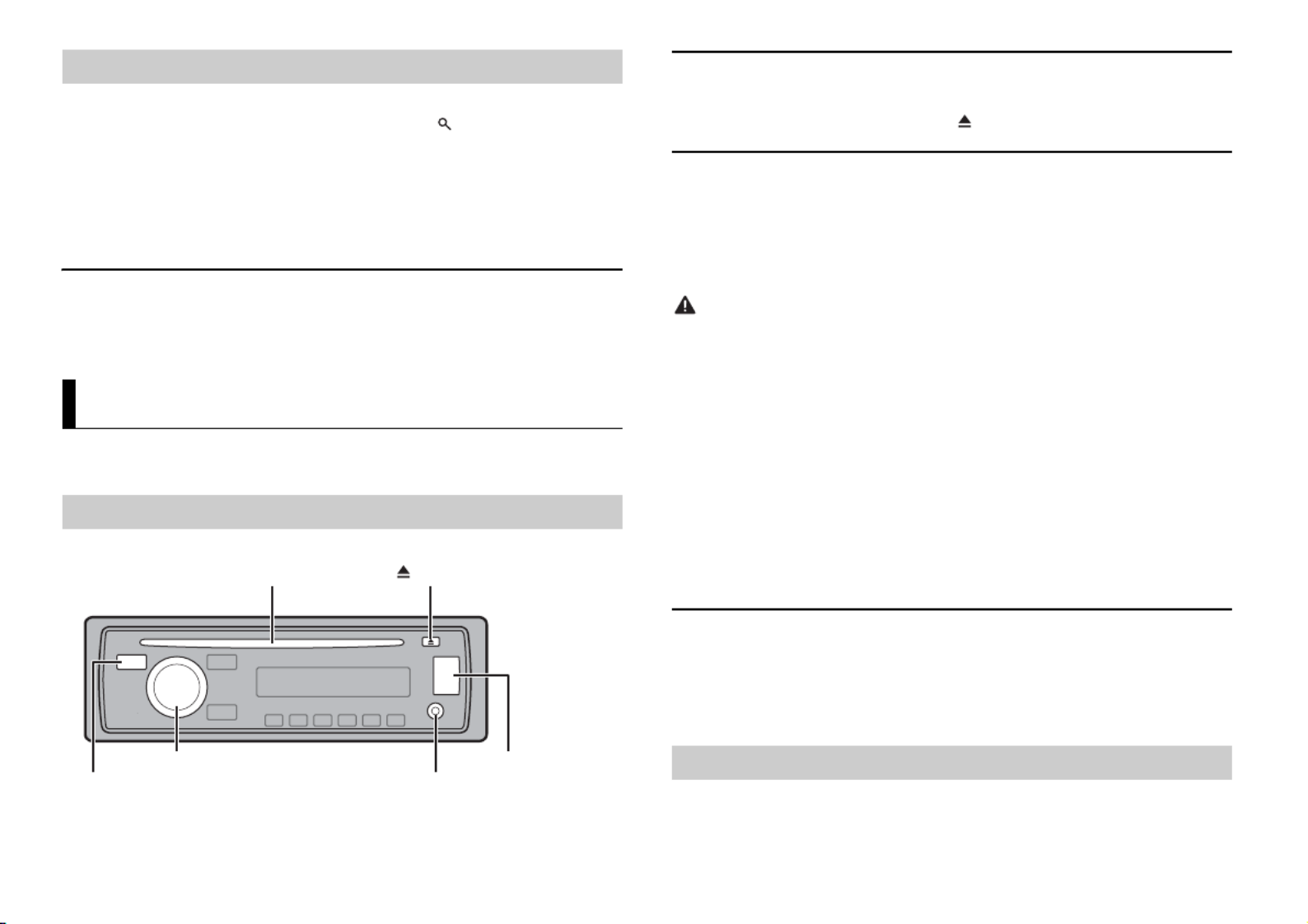

CD/USB/iPod®/AUX
Playing back
AUX input jack (3.5 mm stereo jack)
(eject)*Disc loading slot*
USB port
SRC (source)/OFF
M.C. (multi-control) dial
CD
1Insert a disc into the disc loading slot with the label side up.
To eject a disc, stop playback first then press .
USB devices (including Android™)/iPod
1Open the USB port cover.
2Plug in the USB device/iPod using an appropriate cable.
NOTE
To automatically switch to [USB] source when a USB device/iPod is connected to the unit, set [USB
AUTO] to [ON] in the SYSTEM settings (page 23).
CAUTION
Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected
directly to the unit will protrude out from the unit, which could be dangerous.
Before removing the device, stop playback.
AOA connections
For details on AOA connection, see page 16.
MTP connection
A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable
supplied with the device. However, depending on the connected device and the numbers of the files in
the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is
not compatible with WAV file formats and FLAC file formats, and cannot be used with the MIXTRAX
function.
NOTE
If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings
(page 23).
AUX
1Insert the stereo mini plug into the AUX input jack.
2Press SRC/OFF to select [AUX] as the source.
NOTE
If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 22).
You can make various adjustments in the FUNCTION settings (page 19).
Note that the following operations do not work for an AUX device. To operate an AUX
device, use the device itself.
Operations
9En
English
*1 Compressed audio files only
*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may
be not correct.
Purpose Operation
Select a folder/album*1 Press 1/ or 2/ .
Select a track/song (chapter) Press or .
Fast forward or reverse*2 Press and hold or .
Search for a file from a list 1Press to display the list.
2Turn the M.C. dial to select the desired
file (folder) name or category, then press
to confirm.
3Turn the M.C. dial to select the desired
file, then press to confirm.
Playback starts.
View a list of the files in the selected folder/
category*1
Press the M.C. dial when a folder/category
is selected.
Play a song in the selected folder/
category*1
Press and hold the M.C. dial when a folder/
category is selected.
Alphabetical search (iPod only) 1Press to display the list.
2Turn the M.C. dial to select the desired
category list, then press to enter the
alphabetical search mode.
(Turning the M.C. dial twice also enters
the alphabetical search mode.)
3Turn the M.C. dial to select a letter, then
press to display the alphabetical list.
To cancel alphabetical search, press BAND/
.
Repeat play Press 6/ .
Random/shuffle play Press 5/ .
Shuffle all play (iPod only) Press and hold 5/ .
Pause/resume playback Press 4/PAUSE.
Return to root folder (CD/USB only)*1 Press and hold .
Switch between compressed audio and CD-
DA (CD only)
Press BAND/ .
Link play mode
You can access songs based on the artist, album, or genre currently playing.
1While listening to a song, press and hold to enter the link play mode.
2Turn the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to
confirm.
The selected song/album will be played after the currently playing song.
NOTE
The selected song/album may be canceled if you use functions other than those from the link play
mode (e.g. fast forward and reverse).
iPod control
You can control the unit via a connected iPod.
The following iPod models are not compatible with this function.
– iPod nano 1st generation, iPod with video
1Press BAND/ during playback, then select the control mode.
[CONTROL iPod]: The unit’s iPod function can be operated from the connected iPod.
[CONTROL AUDIO]: The unit’s iPod function can only be operated by the buttons on
the unit or supplied remote control. In this mode, the connected iPod cannot be
turned on or off.
NOTES
•Switching the control mode to [CONTROL iPod] pauses song playback. Use the connected iPod to
resume playback.
•The following operations are still accessible from the unit, even if the control mode is set to
[CONTROL iPod].
– Pause, fast forward/reverse, song/chapter selection
•The volume can only be adjusted from the unit.
The MIXTRAX function creates a non-stop mix of your music library, accompanied by
illumination effects. For details on MIXTRAX settings, see page 24.
NOTES
•This function is not compatible with an Android device connected via MTP.
•Depending on the file/song, sound effects may not be available.
•Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.
1Press 3/MIX to turn MIXTRAX on/off.
Useful functions for iPod
About MIXTRAX (USB/iPod only)
10 En
Important
If three or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may
not work properly.
1Turn on the Bluetooth function of the device.
2Press to display the phone menu.
3Turn the M.C. dial to select [BT SETTING], then press to confirm.
4Turn the M.C. dial to select [ADD DEVICE], then press to confirm.
The unit starts to search for available devices, then displays them in the device list.
•To cancel searching, press the M.C. dial.
•If the desired device is not in the list, select [RE-SEARCH].
•If there is no device available, [NOT FOUND] appears in the display.
5Turn the M.C. dial to select a device from the device list, then press to confirm.
Press and hold the M.C. dial to switch the displayed device information between the
Bluetooth device address and device name.
6Select [Pioneer BT Unit] shown in the device display.
7Make sure the same 6-digit number appears on this unit and the device, then
select “Yes” on the device.
NOTES
•[DEVICE FULL] appears if the unit has already been paired with three other devices. In this case, delete
one of the paired devices. See [DEL DEVICE] or [GUEST MODE] in the Bluetooth settings (page 10).
•Depending on the device, the PIN code is required in step 7. In this case, input [0000].
TIP
The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so,
[VISIBLE] in the Bluetooth settings needs to be set to [ON]. For details on a Bluetooth device operations,
refer to the operating instructions supplied with the Bluetooth device.
Bluetooth settings
Bluetooth
Bluetooth connection
Menu Item Description
DEVICELIST Display the list of paired Bluetooth devices. “*” appears on the
device name when the Bluetooth connection is established.
First, make a Bluetooth connection with the Bluetooth telephone (page 10). Up to two
Bluetooth telephones can be connected simultaneously.
Important
•Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running
can drain the vehicle’s battery.
•Be sure to park your vehicle in a safe place and apply the parking brake before operation.
To make a phone call
1Press to display the phone menu.
When two phones are connected, a phone name appears first then a phone menu
will display. To switch to another phone, press again.
DEL DEVICE Delete the device information.
[DELETE YES],
[DELETE NO]
ADD DEVICE Register a new device.
A.CONN Select [ON] to connect to a Bluetooth device automatically.
[ON], [OFF]
VISIBLE Select [ON] so that a Bluetooth device can detect the unit when
the unit is connected via Bluetooth to another device.
[ON], [OFF]
PIN CODE Change the PIN code.
1Press the M.C. dial to display the setting mode.
2Turn the M.C. dial to select a number.
3Press the M.C. dial to move the cursor to the next position.
4After inputting the PIN code, press and hold the M.C. dial.
After inputting the PIN code, pressing the M.C. dial returns you
to the PIN code input display, and you can change the PIN code.
DEV. INFO Switch the device information on the display between the
device name and Bluetooth device address.
GUEST MODE Select [ON] to move to the [DEL DEVICE] screen automatically
when the unit has already been paired with three devices.
[ON], [OFF]
A.PAIRING Select [ON] to pair the unit and iPhone automatically when an
iPhone is connected to the unit via USB. (This function may not
be available depending on the version of iOS you are using.)
[ON], [OFF]
Bluetooth telephone
Menu Item Description
11En
English
2Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm.
If you select [PHONE BOOK], proceed to step 4.
3Turn the M.C. dial to select [MISSED], [DIALED] or [RECEIVED], then press to
confirm.
4Turn the M.C. dial to select a name or phone number, then press to confirm.
The phone call starts.
To answer an incoming call
1Press when a call is received.
TIP
When two phones are connected to the unit via Bluetooth and there is an incoming call while one
phone is being used for a call, a message will appear in the display. To answer that incoming call, you
need to end the existing call.
Basic operations
To preset phone numbers
1Select a phone number from a phone book or call history.
2Press and hold one of the number buttons (1/ to 6/ ).
The contact is stored in the selected preset number.
To make a call using a preset number, press one of the number buttons (1/ to 6/ ),
then press the M.C. dial.
Voice recognition (Only for iPhone)
This function is only available when an iPhone equipped with voice recognition is
connected to the unit via Bluetooth.
Purpose Operation
End a call Press .
Reject an incoming call Press and hold when a call is received.
Switch between the current caller
and a caller on hold
Press the M.C. dial.
Cancel a caller on hold Press and hold .
Adjust the volume of the caller’s
voice (When private mode is on,
this function is not available.)
Turn the M.C. dial during the call.
Turn the privacy mode on or off Press BAND/ during the call.
1Press and hold to activate the voice recognition mode.
2Press the M.C. dial and then talk into the microphone to input voice commands.
To exit the voice recognition mode, press BAND/ .
NOTE
For details on the voice recognition features, refer to the manual supplied with your iPhone.
Phone menu
Menu Item Description
RECENTS Display the missed call history.
[MISSED]
[DIALED] Display the dialed call history.
[RECEIVED] Display the received call history.
PHONE BOOK*1 Display the contacts which have been transferred from your
phone. Set [VISIBLE] in the Bluetooth settings to [ON] to browse
the contacts via this unit.
PRESET 1-6 Recall the preset phone numbers. You can also recall the preset
phone numbers by pressing one of the number buttons (1/
to 6/ ).
A.ANSR*2 Select [ON] to answer an incoming call automatically.
[ON], [OFF]
R.TONE Select [ON] if the ring tone does not come out from the car
speakers. Depending on the connected phone, this function
may not work.
[ON], [OFF]
PB INVT Invert the order of names in the phone book (name view).
PB A.SYNC Select whether or not to transfer the contacts from your phone
automatically when your phone is connected to the unit.
•When connected for the first time, the contacts from your
phone are transferred automatically, regardless of the [PB
A.SYNC] setting.
•If you switch from [ON] to [OFF], the auto synchronization will
not be performed on the next connection.
•If you switch from [OFF] to [ON], the auto synchronization will
be performed when your phone is connected to the unit.
•During the auto synchronization, you cannot cancel the
synchronization, even if you select [OFF].
[ON], [OFF]
BT SETTING You can adjust various settings for Bluetooth connections. For
details on Bluetooth settings, see page 10.
12 En
*1 The contacts on your phone will normally be transferred automatically when the phone is
connected. If they are not, use your phone to transfer the contacts.
*2 If two phones are connected, this function does not work on incoming calls that are received while
one of the phones is being used for a call.
Important
•Depending on the Bluetooth audio player connected to this unit, the available operations will be
limited to the following two levels:
– A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.
– AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select
song, etc.
•The sound of the Bluetooth audio player will be muted when the phone is in use.
•When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone
automatically.
•Depending on the type of Bluetooth audio player you have connected to this unit, operation and
information displayed may vary based on availability and functionality.
1Make a Bluetooth connection with the Bluetooth audio player.
2Press SRC/OFF to select [BT AUDIO] as the source.
3Press BAND/ to start playback.
Basic operations
You can make various adjustments in the FUNCTION settings (page 19).
* Depending on the connected device, these operations may not be available.
Bluetooth audio
Purpose Operation
Fast forward or reverse Press and hold or .
Select a track Press or .
Repeat play* Press 6/ .
Random play* Press 5/ .
Pause/resume playback Press 4/PAUSE.
Search for a file from a list 1Press to display a list.
2Turn the M.C. dial to select the desired
folder name, then press to confirm.
3Turn the M.C. dial to select the desired
file, then press to confirm.
Playback starts.
You can enjoy listening to an application on an iPhone/Android device via the unit. In
some cases, you can control an application by using the unit.
For details on compatible devices, visit our website.
Important
Use of third party apps may involve or require the provision of personally identifiable information,
whether through the creation of a user account or otherwise, and for certain applications, the provision
of geolocation data.
ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT
LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING
THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE
PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT
CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY
APP.
For iPhone users
This function is compatible with iPhones and iPod touches installed with iOS 5.0 or later.
For Android device users
This function is compatible with devices that have Android OS 2.3 or later installed.
NOTE
PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION
THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE
SOLE RESPONSIBILITY OF THE APP PROVIDER.
1Connect this unit with the mobile device.
•iPhone via USB (page 8)
•iPhone/Android device via Bluetooth (page 10)
2Press the M.C. dial to display the main menu.
3Turn the M.C. dial to select [SYSTEM], then press to confirm.
4Turn the M.C. dial to select [PHONE CONNECT], then press to confirm.
5Turn the M.C. dial to select one of the below, then press to confirm.
•Select [IPHONE/IPOD] for iPhone.
•Select [ANDROID] for Android device.
6Turn the M.C. dial to select one of the below.
•Select [WIRED] for the USB connection.
•Select [BLUETOOTH] for the Bluetooth connection.
App Mode
Playback of an application via the unit
13En
English
NOTE
When the connection setting is changed, a message that lets you know that the connection
setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to
select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is
executed.
7Press SRC/OFF to select [APP].
8Operate the mobile device to start up the application.
Basic operations
You can make various adjustments in the FUNCTION settings (page 19).
Pandora internet radio is a music service not affiliated with Pioneer. More information is
available at http://www.pandora.com.
The Pandora mobile application is available for iPhone and Android phones. Please visit
www.pandora.com/everywhere/mobile for the latest compatibility information.
Update the firmware of the Pandora application to the latest version before use.
1Connect this unit with the mobile device.
•iPhone via USB (page 8)
•iPhone/Android device via Bluetooth (page 10)
If you choose a USB connection, proceed to step 6.
2Press SRC/OFF to select [PANDORA].
3Press and hold BAND/ to display [PHONE CONNECT].
4Turn the M.C. dial to select one of the below, then press to confirm.
•Select [IPHONE/IPOD] for iPhone.
•Select [ANDROID] for Android device.
Purpose Operation
Select a track Press or .
Fast forward or reverse Press and hold or .
Pause/resume playback Press BAND/ .
Pandora®
Listening to Pandora
5Turn the M.C. dial to select [BLUETOOTH] for iPhone/Android device via
Bluetooth.
NOTE
When the connection setting is changed, a message that lets you know that the connection
setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to
select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is
executed.
6Press SRC/OFF to select [PANDORA].
7Launch the Pandora application on the mobile device and start playback.
Basic operations
You can make various adjustments in the FUNCTION settings (page 19).
NOTE
Some functions of Pandora may not be operated from the unit.
Purpose Operation
Skip a track Press .
Switch between Shuffle and the
station
Press (list), then turn the M.C. dial to select the
Shuffle or the desired station.
Change the sort order Press (list), then select one of the following.
[ABC]: Sort the items in the list alphabetically.
[DATE]: Sort the items in the list in order of the
dates on which the items were created.
Play When Shuffle or the station is selected, press the
M.C. dial.
Delete a station 1When the station is selected, press and hold the
M.C. dial.
[DELETE YES] appears.
2Press the M.C. dial.
To cancel, press BAND/ in step 1.
Pause/resume playback Press 4/PAUSE.
Thumbs Up Press 1/ .
Thumbs Down Press 2/ .
Create a new station based on the
track currently being played
Press and hold 5/ .
Create a new station based on the
artist currently being played
Press and hold 6/ .
14 En
Spotify is a music streaming distribution service not affiliated with Pioneer. More
information is available at http://www.spotify.com.
The Spotify application is available for iPhone and Android phones, please visit https://
support.spotify.com/ for the latest compatibility information.
To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android
device. You can download it on the iTunes® App Store® or Google Play™. Choose a free
account or a paid Premium account, either in the app or at spotify.com. A Premium
account gives you more features, like offline listening.
Important
•This product incorporates Spotify software which is subject to 3rd party licenses found here:
www.spotify.com/connect/third-party-licenses.
•For information on the countries and regions where Spotify can be used, take a look at https://
www.spotify.com/us/select-your-country/.
Update the firmware of the Spotify application to the latest version before use.
1Connect this unit with the mobile device.
•iPhone via USB (page 8)
•iPhone/Android device via Bluetooth (page 10)
If you choose a USB connection, proceed to step 6.
2Press SRC/OFF to select [SPOTIFY].
3Press and hold BAND/ to display [PHONE CONNECT].
4Turn the M.C. dial to select one of the below, then press to confirm.
•Select [IPHONE/IPOD] for iPhone.
•Select [ANDROID] for Android device.
5Turn the M.C. dial to select [BLUETOOTH] for iPhone/Android device via
Bluetooth.
NOTE
When the connection setting is changed, a message that lets you know that the connection
setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to
select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is
executed.
6Press SRC/OFF to select [SPOTIFY].
7Launch the Spotify application on the mobile device and start playback.
Spotify®
Listening to Spotify
Basic operations
You can make various adjustments in the FUNCTION settings (page 19).
NOTE
The available operations may vary according to the type of contents (track/album/artist/playlist/radio)
you want to play.
NOTE
Some functions of Spotify may not be operated from the unit.
Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over
140 channels, including commercial-free music plus the best sports, news, talk, comedy
and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and
Subscription are required. For more information, visit www.siriusxm.com
Replay™
You can pause, rewind or replay live satellite radio as well as the channel you are
currently listening to.
Purpose Operation
Skip a track Press or .
Search for a track from a list 1Press (list) to display the list.
2Turn the M.C. dial to select the desired
category, then press to confirm.
3Turn the M.C. dial to select the desired
file, then press to confirm.
Playback starts.
Pause/resume playback Press 4/PAUSE.
Thumbs Up (Only for radio) Press 1/ .
Thumbs Down (Only for radio) Press 2/ .
Random play (Only for track/album/artist/
playlist)
Press 5/ .
Repeat play (Only for track/album/artist/
playlist)
Press 6/ .
Start a radio channel based on the song
currently being played.
1Press and hold (list) to start a radio.
2Press the M.C. dial.
•This function may not be available
depending on the selected song.
SiriusXM Satellite Radio
15En
English
TuneStart™
Automatically start songs from the beginning when you tune to one of your preset
music channels stored on the current band of presets. For details, refer to TUNE START on
page 20.
NOTE
TuneStart is compatible with SXV200 or later tuner models. Not compatible with SXV100.
TuneScan™
Scan through short previews of songs you may have missed on music channels stored
on the current band of presets.
Each song in the current channel plays for six seconds at a time.
For details, refer to TUNE SCAN (scanning the songs) on page 20.
NOTE
TuneScan is compatible with SXV200 or later tuner models. Not compatible with SXV100.
TuneMix™
Create a music channel that’s a blend of songs made up from the music channels stored
on the current band of presets. For details, refer to TUNEMIX on page 20.
NOTE
TuneMix™ is compatible with the SXV300 or later tuner models. Not compatible with the SXV200 or
SXV100.
1Press SRC/OFF to select [SIRIUSXM].
2Press / to select Channel 0.
The Radio ID appears on the display.
In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle
Tuner.
NOTE
The Radio ID does not include the letters I, O, S or F.
3Activate the SiriusXM service online or by phone.
For US Subscriptions:
•Visit www.siriusxm.com/activatenow
•Call SiriusXM Listener Care at 1-866-635-2349
For Canadian Subscriptions:
•Visit www.siriusxm.ca/activatexm
•Call 1-877-438-9677
4[SUBSCRIPTION UPDATED] appears on the display when your SiriusXM Connect
Vehicle Tuner has been subscribed successfully.
Preparing for the SiriusXM Satellite Radio service
Press any key to clear the activation message.
NOTE
The activation process usually takes 10 minutes to 15 minutes but may take up to an hour in some
cases. Do not turn off the unit until you clear the activation message in step 4.
1Press and hold DISP, then select [CHANNEL].
You can also select the operation mode by the SiriusXM settings (page 20).
2Press SRC/OFF to select [SIRIUSXM].
3Press BAND/ to select a band from [SXM1], [SXM2] or [SXM3].
4Press / to select a channel.
Pressing and holding either button will rapidly browse through the channels.
Press and hold either button then release to tune automatically. Scanning stops
when the unit receives a channel. To cancel seek tuning, press / .
Basic operations
1Press and hold DISP to select the operation mode [CHANNEL] or [REPLAY].
NOTE
You can exit the replay mode by pressing and holding BAND/ .
NOTE
You can also make various adjustments in the SiriusXM settings (page 20).
Category scan
The live broadcast for each channel in the current category plays for six seconds at a
time. Follow the instructions below.
Listening to a channel
Purpose Operation
Select a channel 1Set the operation mode to [CHANNEL].
2Press or .
Pressing and holding either button will
rapidly browse through the channels.
Skip backward/forward 1Set the operation mode to [REPLAY].
2Press or .
Fast forward or reverse 1Set the operation mode to [REPLAY].
2Press and hold or .
16 En
To search for a channel from a list
1Press during playback.
2Turn the M.C. dial to select a category.
3Select one of the operations below.
Category scan: Press and hold the M.C. dial to switch to category scan.
Channel search: Press the M.C. dial to stop a scan.
NOTE
Press DISP to change the display information between “Channel Name”, “Artist Name”, “Song Title”,
“Content Info” and “Channel Number”.
Scan options
To preset a channel
1While receiving a channel you want to store, press and hold one of the number
buttons (1/ to 6/ ) until it stops flashing.
To play the stored channels, select the band and then press a number button (1/ to
6/ ).
To preset a channel from a list
1While receiving a channel you want to store, press .
2Turn the M.C. dial to select [PRESETS], then press to confirm.
3Turn the M.C. dial to select a preset channel.
4 Press and hold the M.C. dial to store.
To receive the stored channels, turn the M.C. dial to select a preset channel, then press
to confirm.
Purpose Operation
Stopping a scan (selecting the channel or
song playing)
Press the M.C. dial.
Switching to the next/previous song during
TuneScan
Press or .
Switching to the next/previous channel
during the category scan
Press or .
Aborting a scan (The last channel or song
will continue to play when scan ends.)
Press BAND/ .
Parental Control
Some SiriusXM channels contain mature content. You can lock these channels. For
details, see [PARENTAL CTRL] in SiriusXM settings (page 21).
You can operate the unit from Pioneer ARC APP installed on an iPhone/Android device.
In some cases, you can control aspects of the application, such as source selection,
pause, etc., by using the unit.
For details on what operations are available on the application, see the application’s help
section.
WARNING
Do not attempt to operate the application while driving. Make sure to pull off the road and park your
vehicle in a safe location before attempting to use the controls on the application.
For iPhone users
This function is compatible with iPhones (iPhone 5 or later) and iPod touches installed
with iOS 8.0 or later.
You can download Pioneer ARC APP on iTunes App Store.
For Android device users
This function is compatible with devices that have Android OS 4.1 or later installed and
also support AOA (Android Open Accessory) 2.0.
You can download Pioneer ARC APP on Google Play.
NOTE
Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own
software design, regardless of the OS version.
1Connect this unit with the mobile device.
•iPhone/Android device via USB (page 8)
•iPhone/Android device via Bluetooth (page 10)
2Press the M.C. dial to display the main menu.
3Turn the M.C. dial to select [SYSTEM], then press to confirm.
4Turn the M.C. dial to select [PHONE CONNECT], then press to confirm.
5Turn the M.C. dial to select one of the below, then press to confirm.
Using Pioneer ARC APP
Making a connection with Pioneer ARC APP
17En
English
•Select [IPHONE/IPOD] for iPhone.
•Select [ANDROID] for Android device.
6Turn the M.C. dial to select one of the below.
•Select [WIRED] for the USB connection.
•Select [BLUETOOTH] for the Bluetooth connection.
Proceed to step 10 if you select the USB connection for iPhone or the Bluetooth
connection.
NOTE
When the connection setting is changed, a message that lets you know that the connection
setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to
select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is
executed.
7Repeat steps 2 to 3.
8Turn the M.C. dial to select [ANDROID WIRED], then press to confirm.
9Turn the M.C. dial to select [APP CONTROL] for an Android device connected via
USB.
If [ON] is selected in [P.APP AUTO ON] (page 23), Pioneer ARC APP on the Android
device starts automatically, and all the steps are finished.
NOTE
If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you
to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to
clear the message (page 23).
10Press SRC/OFF to select any source.
11Launch Pioneer ARC APP on the mobile device.
NOTE
You can also launch the application by pressing and holding the M.C. dial if you select the USB
connection for iPhone or the Bluetooth connection.
1Press SRC/OFF to select [ANDROID].
Basic operations
Listening to music on Android
Purpose Operation
Select a track Press or .
Fast forward or reverse Press and hold or .
Pause/resume playback Press 4/PAUSE.
You can also make various adjustments in the AUDIO settings (page 21).
This unit features two operation modes: network mode and standard mode. You can
switch between modes as desired (page 6).
Network mode
You can create a 2-way + SW multi-amp and multi-speaker system with high range
speaker, middle range speaker and subwoofer for reproduction of high, middle and low
frequencies (bands).
Standard mode
You can create a 4-speaker system with front and rear speakers or front speakers and
subwoofers, or a 6-speaker system with front and rear speakers and subwoofers.
You can adjust the cut-off frequency value and the slope value of each speaker.
The following speakers can be adjusted.
Network mode:
[HIGH] (high-range speaker HPF), [MID HPF] (middle-range speaker HPF), [MID LPF]
(middle-range speaker LPF), [SUBWOOFER]
Standard mode:
[FRONT], [REAR], [SUBWOOFER]
NOTE
[SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 21).
1Press the M.C. dial to display the main menu.
2Turn the M.C. dial to select [AUDIO], then press to confirm.
3Turn the M.C. dial to select [CROSSOVER], then press to confirm.
4Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to
confirm.
5Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter),
then press to confirm.
Audio adjustments
Operation modes
Adjusting the cut-off frequency value and the slope
value
18 En
6Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit
(filter) selected in step 4, then press to confirm.
Network mode:
[1.25K] to [12.5K] (if you choose [HIGH] or [MID LPF])
[25] to [250] (if you choose [MID HPF] or [SUBWOOFER])
Standard mode:
[50HZ] to [200HZ]
7Turn the M.C. dial to select an appropriate slope for the speaker unit (filter)
selected in step 4.
Network mode:
[–6] to [–24] (if you choose [HIGH], [MID HPF] or [MID LPF])
[–12] to [–36] (if you choose [SUBWOOFER])
Standard mode:
[–6] to [–24]
(Only for DEH-X8800BHS)
Auto-time alignment automatically adjusts the time alignment according to the
distance between the listener and each speaker.
The auto-equalizer automatically measures the vehicle’s interior acoustics, and then
creates an equalizer curve based on that information.
WARNING
A loud tone (noise) may be emitted from the speakers when measuring the vehicle’s interior acoustic
characteristics. Never perform auto TA and EQ measurement while driving.
Before performing the auto TA and EQ function
Important
•Perform auto TA and EQ in a place as quiet as possible, with both the vehicle engine and air
conditioning switched off. Also turn off any car phones or cellular phones in the vehicle, or remove
them from the vehicle. Sounds other than the measurement tone (such as ambient noise, engine
sound, telephones ringing) may prevent correct measurement of the vehicle’s interior acoustic
characteristics.
•Be sure to perform auto TA and EQ using the supplied microphone. Using another microphone may
prevent measurement or result in incorrect measurement of the vehicle’s interior acoustic
characteristics.
•To perform auto TA and EQ, the front speakers must be connected.
•When this unit is connected to a power amp with input level control, auto TA and EQ may not be
possible if the power amp’s input level is set below the standard level.
Auto TA and EQ (auto-time alignment and auto-
equalizing)
•When this unit is connected to a power amp with an LPF (low pass filter), turn off the LPF before
performing auto TA and EQ. Also set the cut-off frequency for the built-in LPF of an active subwoofer
to the highest frequency.
•The time alignment value resulting from auto TA and EQ is calculated by a computer and is the
optimum delay time for producing accurate results. Be sure to use the resulting value, even though it
may differ from the actual distance when:
– The interior of the vehicle strongly reflects sound, and delays occur.
– The LPF on active subwoofers or external amps delay the lower sounds.
•Previous settings for auto TA and EQ will be overwritten.
•When connecting tweeters, please confirm the tweeter’s usable frequency range. When you set the
cut-off frequency, set a value that is higher than the lowest usable frequency of the tweeter.
•Auto TA uses a range higher than 10 kHz for measurement. Therefore, using a tweeter that cannot
reproduce sounds in the 10 kHz frequency range may cause damage to the tweeter. When auto TA
and EQ is performed, be sure to set the appropriate cut-off frequency. Also, use a tweeter that can
reproduce 10 kHz at the lowest usable frequency.
Performing auto TA and EQ
You can perform the auto TA and EQ function using the microphone supplied with the
unit.
CAUTION
•Thoroughly check the conditions before performing auto TA and EQ, as the speakers may be
damaged if this function is performed under the following conditions:
– The speakers are incorrectly connected. (For example, when a rear speaker is connected to a
subwoofer output.)
– A speaker is connected to a power amp delivering output higher than the speaker’s maximum
power input capability.
•Do not turn off the vehicle while the measurement is in progress.
•If the microphone is placed in an unsuitable position, the measurement tone may become loud and
measurement may take a long time, resulting in battery drainage. Be sure to place the microphone in
the specified location.
NOTES
•The fader/balance settings return to their center positions by performing the auto TA and EQ
(page 21).
•When a subwoofer is connected to this unit, the subwoofer will be adjusted automatically to both the
subwoofer output and high pass filter setting for the rear speaker by performing the auto TA and EQ.
1Park the vehicle in a quiet place, close all the doors, windows, and sun roof, and
then turn the engine off.
If the engine is left running, engine noise may cause incorrect auto TA and EQ
measurements.

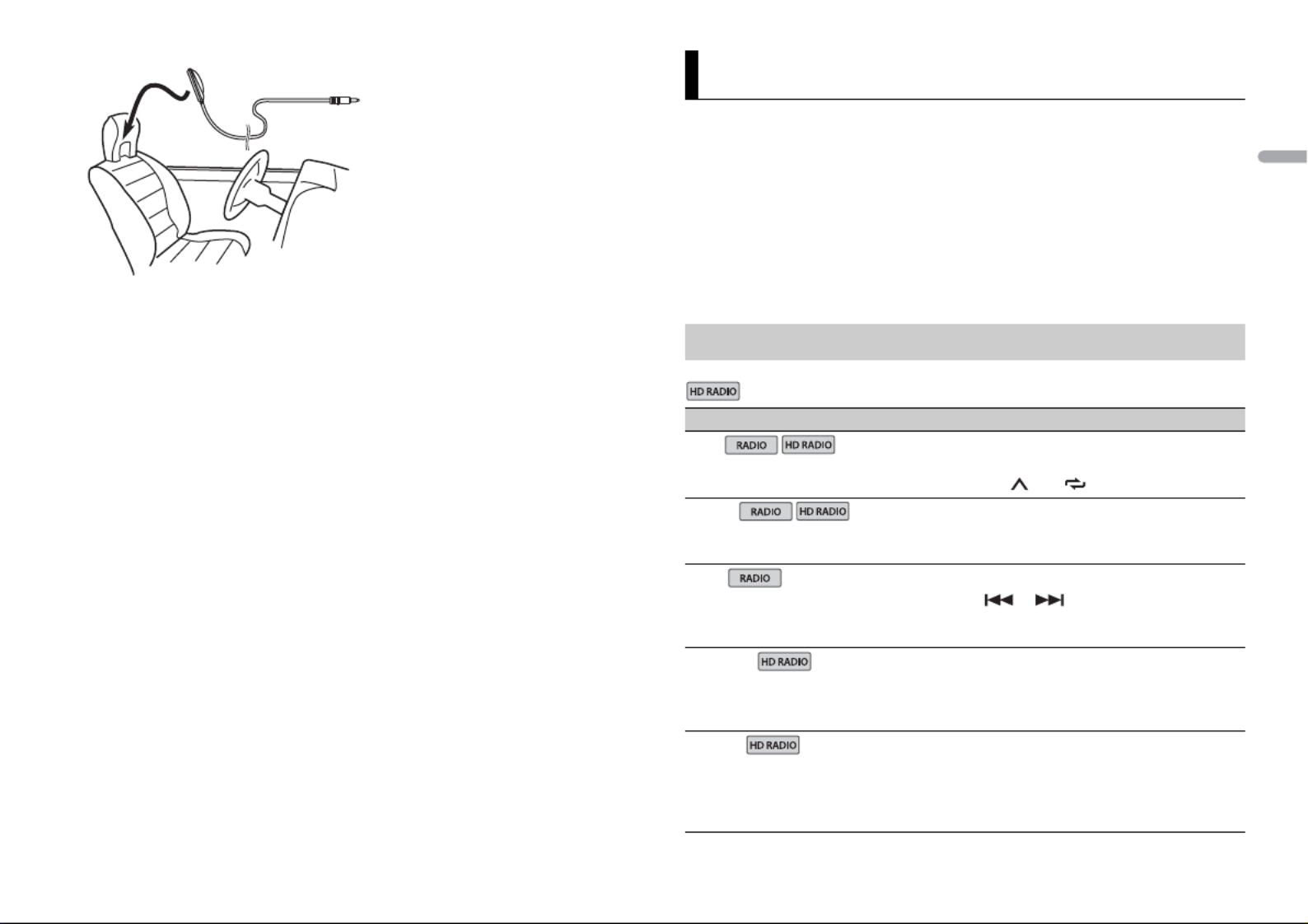

2Attach the supplied microphone to the center of the headrest of the driver’s seat,
facing forward.
19En
English
3Turn the ignition switch to ON.
•If the vehicle’s air conditioner or heater is turned on, turn it off.
•Press SRC/OFF to turn on the source if this unit is turned off.
4Press and hold SRC/OFF until the unit turns off.
5Press the M.C. dial to display the main menu.
6Turn the M.C. dial to select [INITIAL], then press to confirm.
7Turn the M.C. dial to select [AUTO TA & EQ], then press to confirm.
8Plug the microphone into the AUX input jack on the unit (page 8).
9Turn the M.C. dial to select [FL] (front seat left) or [FR] (front seat right) in
[POSITION] according to the seat to which the microphone is attached, then press
to confirm.
10When [CONNECT MIC?] appears in the display, press the M.C. dial.
11Turn the M.C. dial to select [YES], then press to confirm.
12When the 10-second countdown starts, get out of the vehicle and close the door
within the time limit.
The measurement tone (noise) is output from the speakers, and auto TA and EQ
begins.
13When auto TA and EQ is completed, [COMPLETED] appears in the display.
When correct measurement of a vehicle’s interior acoustic characteristics is not
possible, an error message is displayed (page 30).
14Store the supplied microphone carefully in the glove compartment or another
safe place.
If the microphone is subjected to direct sunlight for an extended period, high
temperatures may cause distortion, color change, or malfunction.
You can adjust various settings in the main menu.
1Press the M.C. dial to display the main menu.
2Turn the M.C. dial to select one of the categories below, then press to confirm.
•FUNCTION settings (page 19)
•AUDIO settings (page 21)
•SYSTEM settings (page 22)
•ILLUMINATION settings (page 23)
•MIXTRAX settings (page 24)
3Turn the M.C. dial to select the options, then press to confirm.
The menu items vary according to the source.
is only available for DEH-X8800BHS/X7800BHS.
Settings
FUNCTION settings
Menu Item Description
BSM
Store the six strongest stations on the number
buttons (1/ to 6/ ) automatically.
LOCAL
FM: [OFF], [LV1], [LV2], [LV3], [LV4]
AM: [OFF], [LV1], [LV2]
Restrict the tuning station according to the
signal strength.
SEEK
[MAN], [PCH] Assign or buttons to seek the stations
one by one (manual tuning) or select a station
from the preset channels.
HD SEEK*
[ON], [OFF] Change seek tuning setting between digital
station seek ([ON]) and all station seek ([OFF])
depending on the reception status.
BLEND*
[ON], [OFF] Set [ON] to switch to the analog broadcast of the
same frequency level automatically if a digital
broadcast reception is poor. Set [OFF] to receive
analog broadcast only.
20 En
SAVE
Store the information about the song currently
being played to your music list on Spotify.
UNSAVE
Remove the song information stored in [SAVE].
SEL DEVICE
Connect a Bluetooth device in the list.
ACTIVE RADIO
[ON], [OFF] Interrupt the currently selected source with
emergency announcements or test messages. A
beep can be heard when an emergency
announcement or test message breaks in. Select
[OFF] to disable this function. (In some cases
when a test message is received, a notification
will appear in the display instead of a beep.)
S.RTRV
[1] (effective for low compression
rates),
[2] (effective for high
compression rates),
[OFF]
Enhance compressed audio and restore rich
sound.
AUDIO BOOK
[FASTER], [NORMAL], [SLOWER] Change the playback speed. (Not available when
[CONTROL iPod] is selected in the control mode.)
BOOKMARK
Store the track information currently being
played in your Pandora account.
NEW STATION
[FROM TRACK], [FROM ARTIST] Create a new station based on the track or artist
currently being played.
PAUSE
Pause or resume playback.
PLAY
Start playback.
Menu Item Description
* If [HD SEEK] is set to [ON] and [BLEND] is set to [OFF], the tuner cannot receive broadcasts. In this
case, [HD SEEK] or [BLEND] is changed automatically as follows:
– When [HD SEEK] is set to [ON], if you switch [BLEND] from [ON] to [OFF], [HD SEEK] is changed to
[OFF].
– When [BLEND] is set to [OFF], if you switch [HD SEEK] from [OFF] to [ON], [BLEND] is changed to
[ON].
SiriusXM settings
STOP
Stop playback.
Menu Item Description
PAUSE
Pause or resume playback.
OPERATE MODE
[CHANNEL], [REPLAY] Assign or buttons to select a channel
or skip backward/skip forward.
TUNEMIX
[ON], [OFF] Create a music channel that’s a blend of songs
made up from the music channels stored on the
current band of presets.
TUNE SCAN
Scan through songs from your music channel
presets.
TUNE START
[ON], [OFF] Start playback of the broadcast from the
beginning of a song when tuning to a preset
music channel.
Menu Item Description
21En
English
PARENTAL CTRL
[LOCKED CH], [CLEAR ALL], [EDIT
CODE]
Input the current passcode on the [PASSCODE]
screen (the default passcode is 0000).
1Turn the M.C. dial to select a number.
2Press the M.C. dial to move the cursor to the
next position.
3After inputting the passcode, press the M.C.
dial.
4Turn the M.C. dial to select one of the
following menu items, then press to confirm.
•[LOCKED CH]: Lock the current channel, which
contains mature content.
1Press the M.C. dial to turn the lock on or off.
•[CLEAR ALL]: Unlock all the channels that have
restricted access.
1Turn the M.C. dial to switch to [YES], then
press to confirm.
•[EDIT CODE]: Change the passcode.
1Repeat steps 1 to 3 to enter a new passcode.
2After inputting the passcode, press the M.C.
dial.
The new passcode is saved.
AUDIO settings
Menu Item Description
EQ SETTING
[SUPER BASS], [POWERFUL],
[NATURAL], [VOCAL], [CUSTOM1],
[CUSTOM2], [FLAT]
Select an equalizer band and
level for further customizing.
Equalizer band: [50HZ] to
[12.5kHZ]
Equalizer level: [–6] to [+6]
Select or customize the equalizer curve.
•When you select a setting other than
[CUSTOM1] and [CUSTOM2], you can also
customize the equalizer curve by pressing and
holding the M.C. dial, then store the
customized equalizer curve in [CUSTOM1].
FADER*1 (Only for standard mode)
Adjust the front and rear speaker balance.
BALANCE
Adjust the left and right speaker balance.
Menu Item Description
SUBWOOFER
[ON], [OFF] Set to [ON] when using a subwoofer speaker.
SUBWOOFER*2
[NOR], [REV] Select the subwoofer phase.
SPEAKER LEVEL
Network mode: [HIGH L], [HIGH
R], [MID L], [MID R], [SUBWOOFER]
Standard mode: [FRONT L],
[FRONT R], [REAR L], [REAR R],
[SUBWOOFER]
Output level: [–24] to [10]
Select a speaker unit (filter) and adjust the
output level.
•Each value you have adjusted changes when
you change the [POSITION] setting (page 21).
CROSSOVER
Select a speaker unit (filter) to adjust the HPF or
LPF cut-off frequency and the slope for each
speaker unit.
For details on the [CROSSOVER] setting, see
page 17.
POSITION
[OFF], [FRONT LEFT] (front seat
left), [FRONT RIGHT] (front seat
right), [FRONT] (front seats), [ALL]*
* Only for standard mode
Select a listening position to adjust the speakers'
output levels automatically and add a delay time
that corresponds to the number and locations of
occupied seats.
TIME ALGNMNT
[INITIAL], [ATA], [OFF], [CUSTOM]
Select a type of speaker and
adjust the speaker distance for
further customizing in [CUSTOM].
Network mode: [HIGH L], [HIGH
R], [MID L], [MID R], [SUBWOOFER]
Standard mode: [FRONT L],
[FRONT R], [REAR L], [REAR R],
[SUBWOOFER]
Speaker distance (inch): [140] to
[0]
Select or customize the time alignment settings
to reflect the distance between the listener’s
position and each speaker.
•Select [INITIAL] to initialize the setting value.
•Select [ATA] to reflect the results of [AUTO TA &
EQ] in the setting value. [ATA] can only be
selected, if auto TA and EQ has already been
performed (page 18).
•Select [OFF] to reset all setting values to 0.
•The [CUSTOM] setting is available when
[FRONT LEFT] or [FRONT RIGHT] is selected in
[POSITION] (page 21).
•The [CUSTOM] setting is not available when
[OFF] is selected in [SUBWOOFER] (page 21).
Menu Item Description
22 En
*1 Not available when [SW] is selected in [REAR-SP] in the INITIAL settings (page 6).
*2 Not available when [FUL] is selected in [REAR-SP] in the INITIAL settings (page 6).
A-EQ & TA
[ON], [OFF] Set the auto-adjusted equalizer to suit the
vehicle’s acoustics. To use this function, the
vehicle’s acoustics must be measured in advance
(page 18).
Select [OFF] to manually adjust the equalizer
curve.
SAVE SETTINGS
[YES], [CANCEL] Save to later recall the following sound settings
at their current values: [CROSSOVER], [SPEAKER
LEVEL], [EQ SETTING], [POSITION], [TIME
ALGNMNT], [BASS BOOST], [SUBWOOFER].
LOAD SETTINGS
[AEQ SETTING], [SOUND
SETTING]
Load the auto EQ setting or the sound settings.
•[AEQ SETTING] is only available when you have
already performed auto TA and EQ (page 18).
•[SOUND SETTING] is only available when you
have already performed [SAVE SETTINGS].
BASS BOOST
[0] to [+6] Select the bass boost level.
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
AUTO LV CTRL
[OFF], [MODE1], [MODE2] Adjust the difference in volume levels among
sources or audio files automatically.
SLA
[+4] to [–4] Adjust the volume level for each source except
FM.
Each of the below combinations are set to the
same setting automatically.
•When making a USB connection, set USB, iPod,
PANDORA, ANDROID, SPOTIFY, and APP.
•When making a Bluetooth connection, set BT
AUDIO, iPod, PANDORA, ANDROID, SPOTIFY,
and APP.
Menu Item Description
You can also access to these menus when the unit is turned off.
SYSTEM settings
Menu Item Description
CLOCK SET
Set the clock (page 6).
12H/24H
[12H], [24H] Select the time notation.
BEEP TONE
[ON], [OFF] A beep can be heard when any button is pushed.
Select [OFF] to disable this function.
INFO DISPLAY
[SOURCE/BTINFO], [SOURCE/
SPEANA], [CLOCK/BTINFO],
[CLOCK/SPEANA], [LEVEL METER],
[SPEANA], [OFF]
Display the item on the sub information display.
•When [SOURCE/SPEANA] or [CLOCK/SPEANA] is
selected, display the antenna instead of the
speana on the radio source.
DOT DISPLAY
[SPEANA], [ICON] Select [SPEANA] or [ICON] to appear on the left
side of the display.
AUX
[ON], [OFF] Set to [ON] when using an auxiliary device
connected to the unit.
BT AUDIO
[ON], [OFF] Set the Bluetooth signal on/off.
SPOTIFY
[ON], [OFF] Set to [ON] when using the Spotify function.
BT MEM CLEAR
[YES], [CANCEL] Clear the Bluetooth device data (device list, PIN
code, call history, phone book, preset phone
numbers) stored in the unit.
[CLEARED] appears when data is successfully
deleted.
23En
English
PHONE CONNECT
[IPHONE/IPOD], [ANDROID] Select the type of device ([IPHONE/IPOD] or
[ANDROID]) and the appropriate connection
method ([WIRED] or [BLUETOOTH]) according to
your device.
•When [BLUETOOTH] is selected, USB
connections cannot be made regardless of the
current Bluetooth connection to the unit.
•Select [ANDROID] when you connect the
mobile device other than iPhone or Android.
•When the setting is changed, [USB AUTO]
(page 23) is automatically performed if [USB
AUTO] is set to [ON].
ANDROID WIRED
[MEMORY], [APP CONTROL] Select the appropriate connection method for an
Android device.
•This setting is not available when [BLUETOOTH]
is selected in [PHONE CONNECT].
P.APP AUTO ON
[ON], [OFF]
Select [ON] to automatically launch Pioneer ARC
APP when an Android device is connected to the
unit via AOA. (Not available when [MEMORY] is
selected in [ANDROID WIRED].)
USB AUTO
[ON], [OFF] Select [ON] to automatically switch to [USB]
source when a USB device/iPod is connected to
the unit.
Select [OFF] when a USB device/iPod is being
connected to the unit just for charging.
Menu Item Description
ILLUMINATION settings
Menu Item Description
COLOR
[KEY COLOR], [DISP COLOR],
[BOTH COLOR]
Select color for the keys/display of the unit from 12
preset colors, [SCAN] or [CUSTOM]*.
•[SCAN]: Cycle through a variety of colors
automatically.
•[CUSTOM]*:
1Press and hold the M.C. dial until the color
setting display appears.
2Set the primary color (R (red)/G (green)/B
(blue)) and brightness level ([0] to [60]).
You cannot select a level below 10 for all three
of R (red), G (green), B (blue) at the same time.
You can also customize the preset colors. Select
one of the preset colors, then press and hold the
M.C. dial until the color setting display appears.
* The CUSTOM setting is only available for [KEY
COLOR] and [DISP COLOR].
DIM SETTING
[SYNC ILLUMI], [SYNC CLOCK],
[ON], [OFF]
Change the display brightness.
BRIGHTNESS
[1] to [10] Change the display brightness.
The available setting ranges differ depending on
[DIM SETTING].
PHONE COLOR
[FLASHING] Select the key color when a call is received.
Applies the color set by [KEY COLOR].
[FLASH FX1] to [FLASH FX6] Cycle through a variety of colors automatically.
[OFF] No change in key color made.
ILLUMI FX
[ON], [OFF] The illumination effect can be seen when:
–there is an incoming call
–you are on a phone call
–a CD is inserted/ejected
The illumination effect will activate when the
ACC power is turned on/off regardless of this
setting.
24 En
MIXTRAX settings
Menu Item Description
SHORT PLAYBCK
[1.0 MIN], [1.5 MIN], [2.0 MIN],
[2.5 MIN], [3.0 MIN], [OFF]
Select the length of the playback time.
FLASH AREA
[KEY/DISPLAY], [KEY], [OFF] Select the area for the illumination effect.
When [OFF] is selected, the color set under the
ILLUMINATION settings (page 23) is used as the
display color.
FLASH PATTERN
[SOUND LEVEL 1] to [SOUND LEVEL
6]
Change the illumination effect according to
the sound and bass level.
The flash pattern changes according to the
sound level.
[LOW PASS 1] to [LOW PASS 6] The flash pattern changes according to the
bass level.
[RANDOM1] The flash pattern changes randomly according
to the sound level mode and low pass mode.
[RANDOM2] The flash pattern changes randomly according
to the sound level mode.
[RANDOM3] The flash pattern changes randomly according
to the low pass mode.
DISPLAY FX
[ON], [OFF] Set the MIXTRAX special effects on/off.
CUT IN FX
[ON], [OFF] Turn the MIXTRAX sound effects on/off while
manually changing the tracks.
In the following, "NW" represents network
mode and "STD" represents standard
mode. According to the connections you
have established, change the speaker
mode to standard mode (STD) or network
mode (NW) (page 6).
WARNING
•When speaker output is used by 4
channels, use speakers over 50 W
(maximum input power) and between 4
Ω to 8 Ω (impedance value). Do not use 1
Ω to 3 Ω speakers for this unit.
•When rear speaker output is used by 2 Ω
of subwoofer, use speakers over 70 W
(maximum input power).
* Please refer to connections for a
connection method.
•The black cable is ground. When
installing this unit or power amp (sold
separately), make sure to connect the
ground wire first. Ensure that the ground
wire is properly connected to metal parts
of the car’s body. The ground wire of the
power amp and the one of this unit or
any other device must be connected to
the car separately with different screws. If
the screw for the ground wire loosens or
falls out, it could result in fire, generation
of smoke or malfunction.
Important
•When installing this unit in a vehicle
without an ACC (accessory) position on
the ignition switch, failure to connect the
red cable to the terminal that detects
operation of the ignition key may result
in battery drain.
•Use this unit with a 12-volt battery and
negative grounding only. Failure to do so
may result in a fire or malfunction.
•To prevent a short-circuit, overheating or
malfunction, be sure to follow the
directions below.
–Disconnect the negative terminal of the
battery before installation.
–Secure the wiring with cable clamps or
adhesive tape. Wrap adhesive tape
around wiring that comes into contact
with metal parts to protect the wiring.
– Place all cables away from moving parts,
such as the shift lever and seat rails.
–Place all cables away from hot places,
such as near the heater outlet.

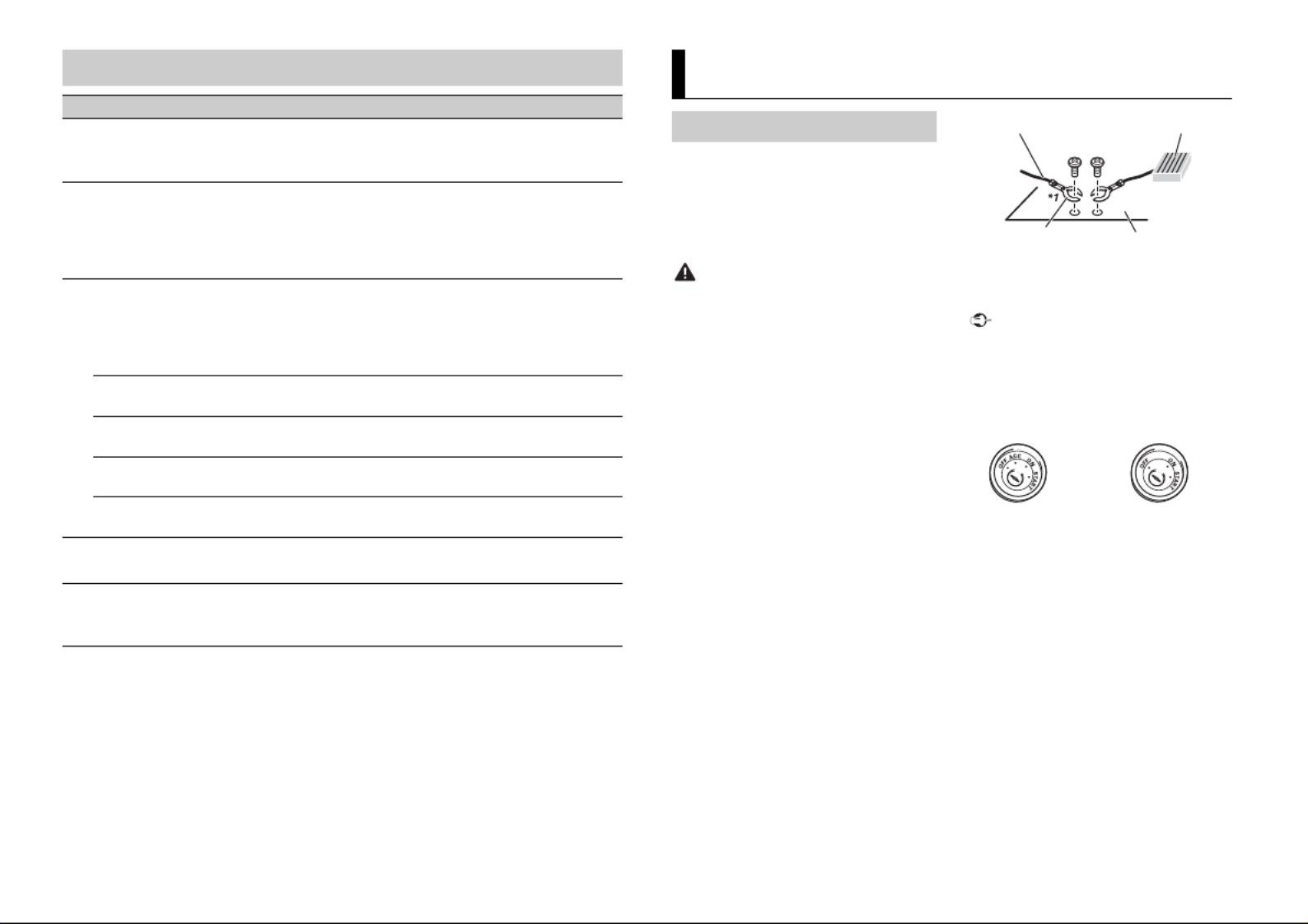

Connections/Installation
Connections
Ground wire POWER AMP
Other devices
(Another electronic
device in the car)
Metal parts of
car’s body
*1 Not supplied for this unit
ACC position No ACC position
25En
English
–Do not connect the yellow cable to the
battery by passing it through the hole
to the engine compartment.
–Cover any disconnected cable
connectors with insulating tape.
–Do not shorten any cables.
–Never cut the insulation of the power
cable of this unit in order to share the
power with other devices. The current
capacity of the cable is limited.
–Use a fuse of the rating prescribed.
–Never wire the negative speaker cable
directly to ground.
–Never band together negative cables of
multiple speakers.
•When this unit is on, control signals are
sent through the blue/white cable.
Connect this cable to the system remote
control of an external power amp or the
vehicle’s auto-antenna relay control
terminal (max. 300 mA 12 V DC). If the
vehicle is equipped with a glass antenna,
connect it to the antenna booster power
supply terminal.
•Never connect the blue/white cable to
the power terminal of an external power
amp. Also, never connect it to the power
terminal of the auto antenna. Doing so
may result in battery drain or a
malfunction.
•The graphical symbol placed on
the product means direct current.

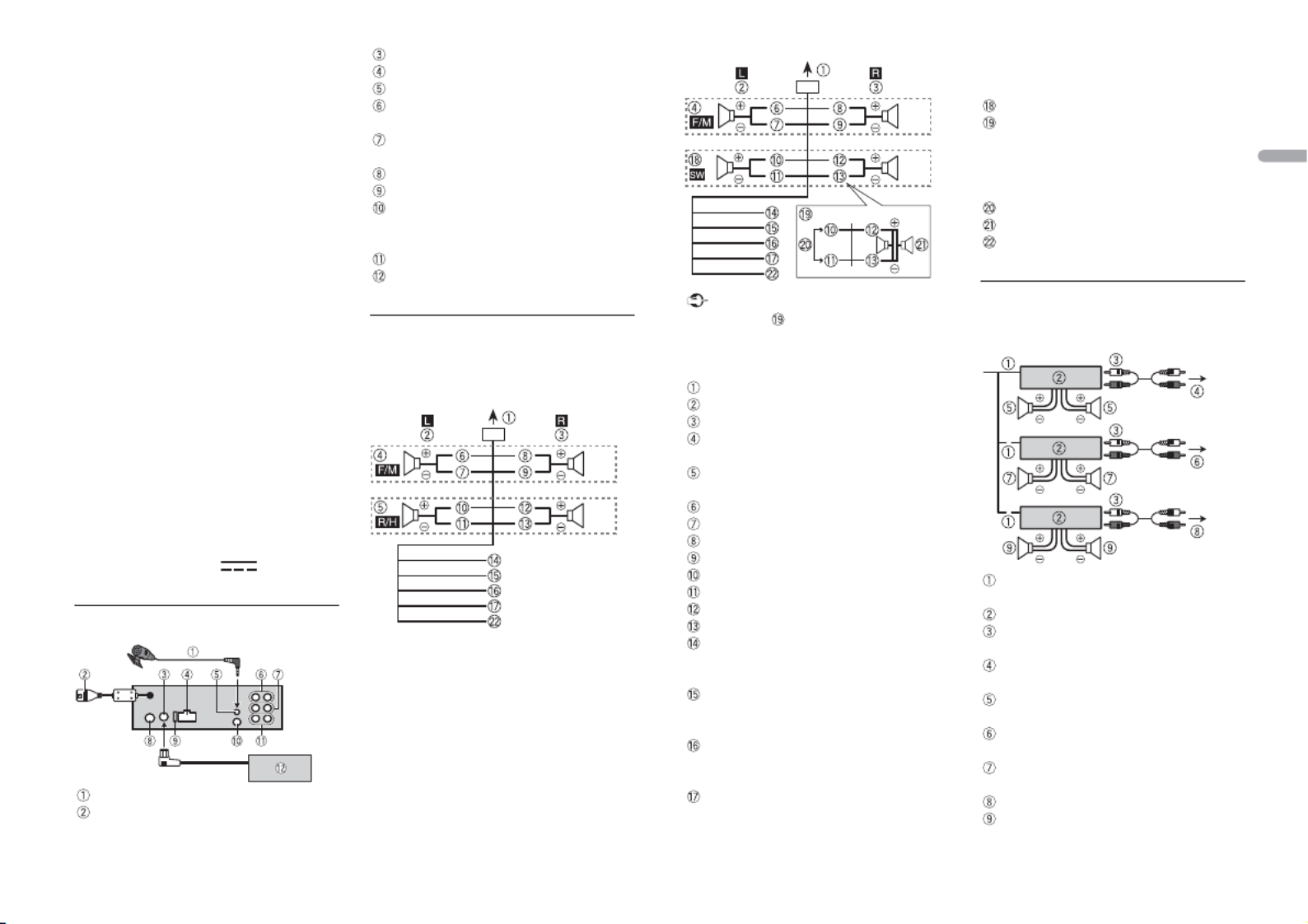

This unit
Microphone 3 m (9 ft. 10-1/8 in.)
USB cable 1.5m (4 ft. 11 in.) (Only for
DEH-X8800BHS)
SiriusXM Connect Vehicle Tuner input
Power cord input
Microphone input
Rear output (STD) or middle range
output (NW)
Front output (STD) or high range output
(NW)
Antenna input
Fuse (10 A)
Wired remote input
Hard-wired remote control adapter can
be connected (sold separately).
Subwoofer output
SiriusXM Connect Vehicle Tuner (sold
separately)
Power cord
Perform these connections when not
connecting a rear speaker or middle range
speaker lead to a subwoofer.
Perform these connections when using a
subwoofer without the optional amplifier.
Important
In the case of above, two 4 Ω
subwoofers wired in parallel will represent
a 2 Ω load.
To power cord input
Left
Right
Front speaker (STD) or high range
speaker (NW)
Rear speaker (STD) or middle range
speaker (NW)
White
White/black
Gray
Gray/black
Green
Green/black
Violet
Violet/black
Black (chassis ground)
Connect to a clean, paint-free metal
location.
Yellow
Connect to the constant 12 V supply
terminal.
Red
Connect to terminal controlled by the
ignition switch (12 V DC).
Blue/white
Connect to the system control terminal
of the power amp or auto-antenna relay
control terminal (max. 300 mA 12 V DC).
Subwoofer (4 Ω)
When using a subwoofer of 2 Ω, be sure
to connect the subwoofer to the violet
and violet/black leads of this unit. Do
not connect anything to the green and
green/black leads.
Not used.
Subwoofer (4 Ω) × 2
Orange/white
Connect to a car’s illumination signal.
Power amp (sold separately)
Perform these connections when using the
optional amplifier.
System remote control
Connect to blue/white cable.
Power amp (sold separately)
Connect with RCA cables (sold
separately)
To rear output (STD) or middle range
output (NW)
Rear speaker (STD) or middle range
speaker (NW)
To front output (STD) or high range
output (NW)
Front speaker (STD) or high range
speaker (NW)
To subwoofer output
Subwoofer
26 En
Important
•Check all connections and systems before
final installation.
•Do not use unauthorized parts as this
may cause malfunctions.
•Consult your dealer if installation requires
drilling of holes or other modifications to
the vehicle.
•Do not install this unit where:
–it may interfere with operation of the
vehicle.
–it may cause injury to a passenger as a
result of a sudden stop.
•The semiconductor laser will be damaged
if it overheats. Install this unit away from
hot places such as near the heater outlet.
•Optimum performance is
obtained when the unit is
installed at an angle of less
than 60°.
•When installing, to ensure proper heat
dispersal when using this unit, make sure
you leave ample space behind the rear
panel and wrap any loose cables so they
are not blocking the vents.

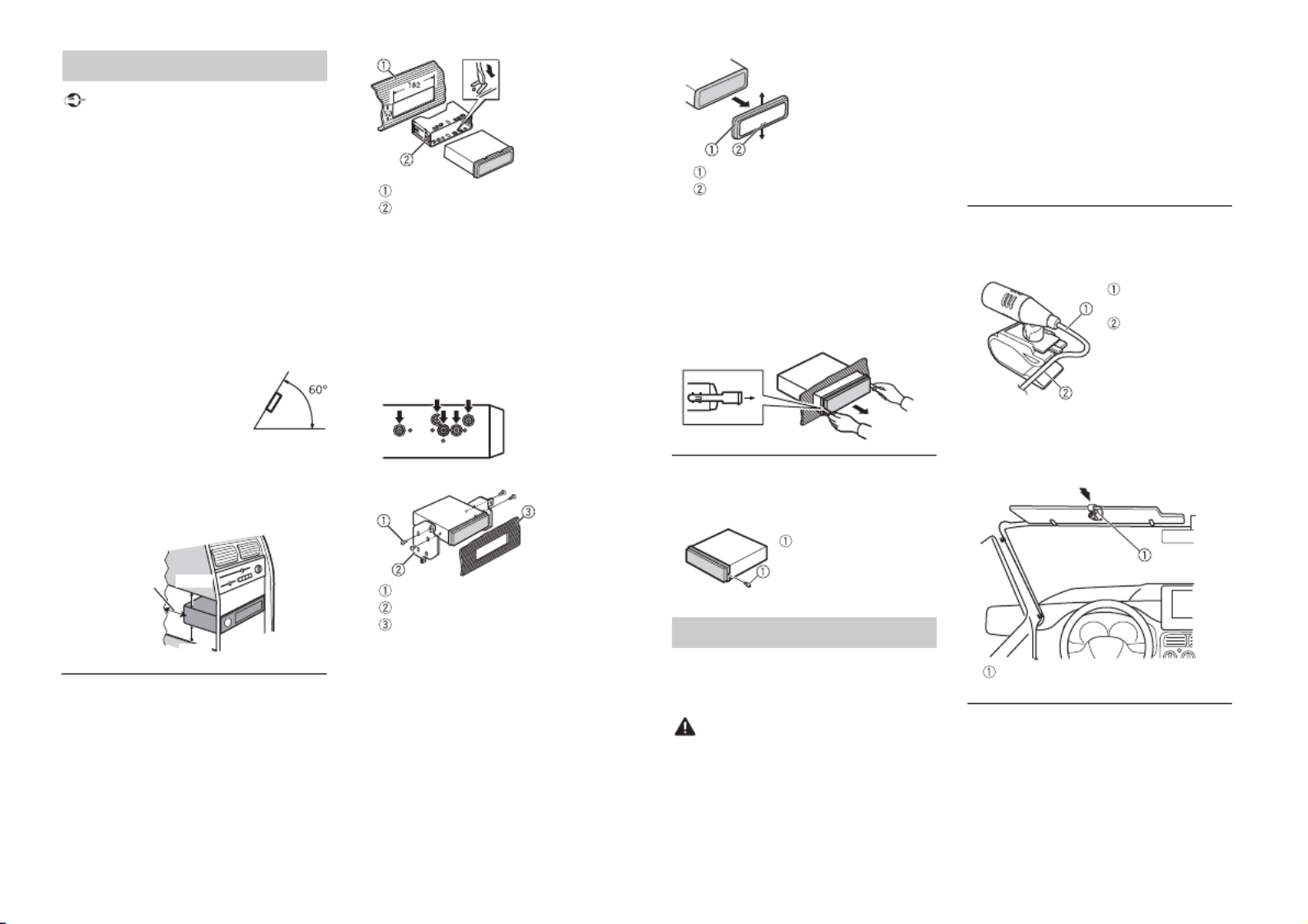

DIN mount installation
1Insert the supplied mounting sleeve
into the dashboard.
2Secure the mounting sleeve by using a
screwdriver to bend the metal tabs
(90°) into place.
Dashboard
Mounting sleeve
•Make sure that the unit is installed
securely in place. An unstable
installation may cause skipping or
other malfunctions.
When not using the supplied
mounting sleeve
1Determine the appropriate position
where the holes on the bracket and
the side of the unit match.
2Tighten two screws on each side.
Screw
Mounting bracket
Dashboard or console
•Use either truss (5 mm × 9 mm) or
flush surface (5 mm × 9 mm) screws,
depending on the bracket screw
holes.
Removing the unit (installed with
the supplied mounting sleeve)
1Remove the trim ring.
Installation
Leave ample
space
5 cm
5 cm
Trim ring
Notched tab
•Releasing the front panel allows easier
access to the trim ring.
•When reattaching the trim ring, point
the side with the notched tab down.
2Insert the supplied extraction keys
into both sides of the unit until they
click into place.
3Pull the unit out of the dashboard.
To secure the front panel
The front panel can be secured with the
supplied screw.
The microphone should be placed directly
in front of the driver at a suitable distance
to pick up their voice clearly.
CAUTION
It is extremely dangerous to allow the
microphone lead to become wound
around the steering column or shift lever.
Be sure to install the microphone in such a
way that it will not obstruct driving. It is
recommended to use the clamps (sold
separately) to arrange the lead.
NOTE
Depending on the vehicle model, the
microphone cable length may be too short
when you mount the microphone on the
sun visor. In such cases, install the
microphone on the steering column.
To install on the sun visor
1Fit the microphone lead into the
groove.
2Install the microphone clip on the sun
visor.
Lowering the sun visor reduces the
voice recognition rate.
To install on the steering
column
1Slide the microphone base to detach it
from the microphone clip.
Installing the microphone
Screw
Microphone
lead
Groove
Microphone clip
27En
English

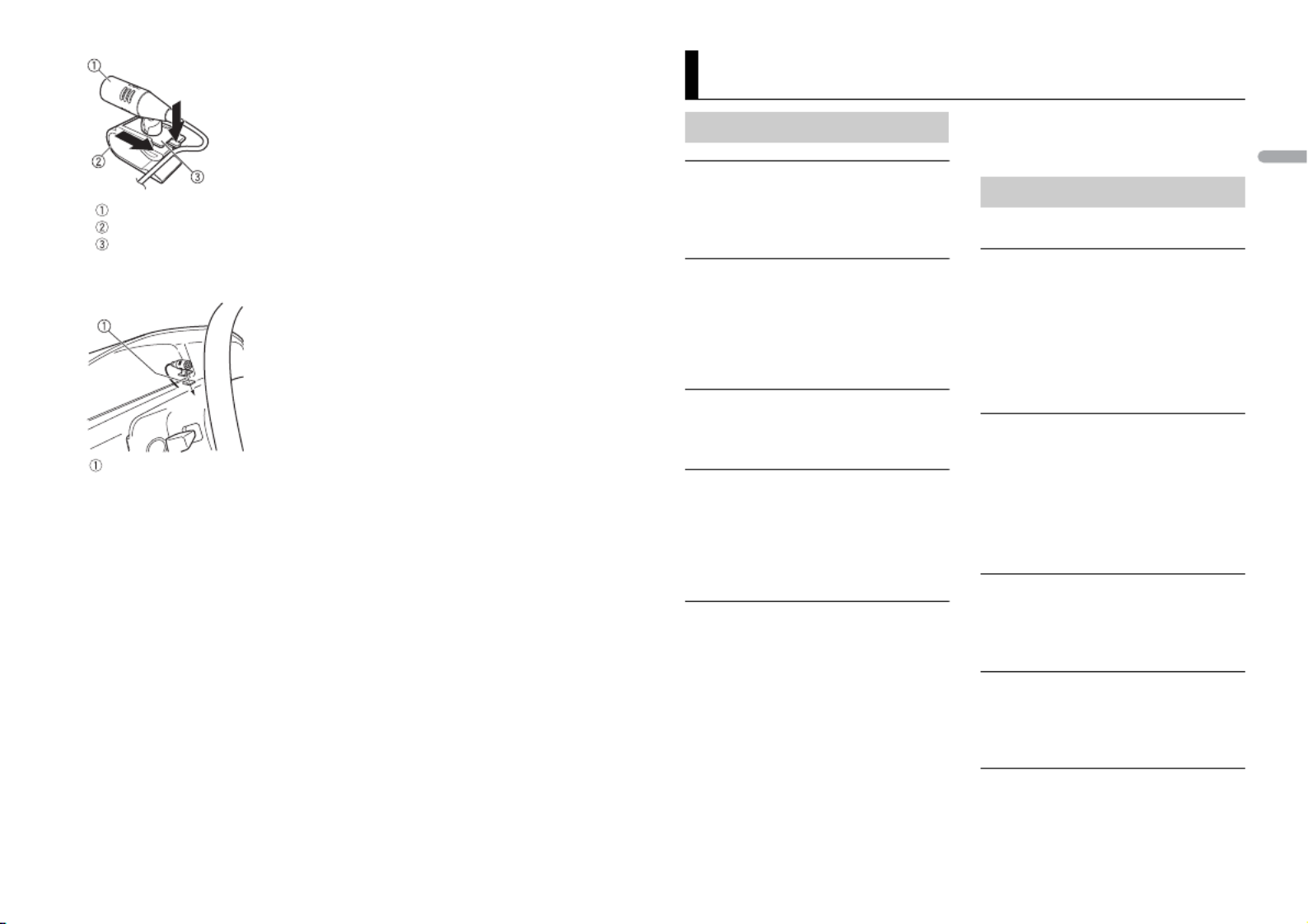

Microphone
Microphone clip
Microphone base
2Install the microphone on the rear side
of the steering column.
Double-sided tape
The display automatically returns to the
normal display.
→No operations have been made for
about 30 seconds.
– Perform an operation.
The repeat play range changes
unexpectedly.
→Depending on the repeat play range,
the selected range may change when
another folder or track is being selected
or during fast forwarding/reversing.
– Select the repeat play range again.
A subfolder is not played back.
→Subfolders cannot be played when
[FLD] (folder repeat) is selected.
– Select another repeat play range.
The sound is intermittent.
→You are using a device, such as a cellular
phone, that may cause audible
interference.
– Move electrical devices that may be
causing the interference away from
the unit.
The sound from the Bluetooth audio
source is not played back.
→There is a call in progress on a
Bluetooth-connected cellular phone.
– The sound will be played back when
the call is terminated.
→A Bluetooth-connected cellular phone
is currently being operated.
– Stop using the cellular phone.
→The connection between the unit and
the cellular phone is not established
correctly after a call made by a
Bluetooth-connected cellular phone.
– Make a Bluetooth connection
between the unit and the cellular
phone again.
Common
AMP ERROR
→This unit fails to operate or the speaker
connection is incorrect.
→The protective circuit is activated.
– Check the speaker connection.
– Turn the ignition switch OFF and back
to ON again. If the message remains,
contact your dealer or an authorized
Pioneer Service Station for assistance.
NO XXXX (NO TITLE, for example)
→There is no embedded text information.
– Switch the display or play another
track/file.
CD player (Only for DEH-
X8800BHS/X7800BHS/
X6800BS)
ERROR-07, 11, 12, 17, 30
→The disc is dirty.
–Clean the disc.
→The disc is scratched.
–Replace the disc.
ERROR-07, 10, 11, 12, 15, 17, 30, A0
→There is an electrical or mechanical
error.
– Turn the ignition switch OFF and back
to ON, then back to the CD player.
ERROR-15
→The inserted disc is blank.
–Replace the disc.
Additional Information
Troubleshooting
Error messages
28 En
ERROR-23
→Unsupported CD format.
– Replace the disc.
FORMAT READ
→Sometimes there is a delay between the
start of playback and when you start to
hear any sound.
– Wait until the message disappears and
you hear sound.
NO AUDIO
→The inserted disc does not contain any
playable files.
– Replace the disc.
SKIPPED
→The inserted disc contains DRM
protected files.
– The protected files are skipped.
PROTECT
→All the files on the inserted disc are
embedded with DRM.
– Replace the disc.
USB device/iPod
FORMAT READ
→Sometimes there is a delay between the
start of playback and when you start to
hear any sound.
– Wait until the message disappears and
you hear sound.
NO AUDIO
→There are no songs.
–Transfer the audio files to the USB
device and connect.
→The connected USB device has security
enabled.
– Follow the USB device instructions to
disable the security.
SKIPPED
→The connected USB device contains
DRM protected files.
– The protected files are skipped.
PROTECT
→All the files on the connected USB
device are embedded with DRM.
– Replace the USB device.
N/A USB
→The connected USB device is not
supported by this unit.
– Disconnect your device and replace it
with a compatible USB device.
HUB ERROR
→The USB device connected via a USB
hub is not supported by this unit.
– Connect the USB device directly to this
unit using a USB cable.
CHECK USB
→The USB connector or USB cable has
short-circuited.
– Check that the USB connector or USB
cable is not caught in something or
damaged.
→The connected USB device consumes
more than maximum allowable current.
– Disconnect the USB device and do not
use it. Turn the ignition switch OFF
and back to ACC or ON. Connect only
compliant USB devices.
→The iPod operates correctly but does
not charge.
– Make sure the connection cable for
the iPod has not shorted out (e.g., not
caught in metal objects). After
checking, turn the ignition switch OFF
and back to ON, or disconnect the
iPod and reconnect.
ERROR-19
→Communication failed.
– Perform one of the following
operations, then return to the USB
source.
•Turn the ignition switch OFF and
back to ON.
•Disconnect the USB device.
•Change to a different source.
→iPod failure.
– Disconnect the cable from the iPod.
Once the iPod’s main menu is
displayed, reconnect the iPod and
reset it.
ERROR-23
→USB device was not formatted properly.
– Format the USB device with FAT12,
FAT16 or FAT32.
ERROR-16
→The iPod firmware version is old.
– Update the iPod version.
→iPod failure.
– Disconnect the cable from the iPod.
Once the iPod’s main menu is
displayed, reconnect the iPod and
reset it.
STOP
→There are no songs in the current list.
– Select a list that contains songs.
NOT FOUND
→No related songs.
– Transfer songs to the iPod.
NO BT DEVICE GO TO BT MENU TO
REGISTER
→No Bluetooth device found.
– Connect the unit and iPod via
Bluetooth (page 10).
CONN. FAILED PRESS BAND KEY TO
RETRY
→Bluetooth connection with iPod failed.
– Press BAND/ to make a
connection again.
DISCONNECTED PRESS BAND KEY TO
RETRY
→Bluetooth connection with iPod failed.
– Press BAND/ to make a
connection again.
Bluetooth device
ERROR-10
→The power failed for the Bluetooth
module of the unit.
– Turn the ignition switch OFF and back
to ACC or ON.
Pandora
ERROR-19
→Communication failed.
– Disconnect the cable from the device.
Once the device’s main menu is
displayed, reconnect the device and
reset it.
START UP APP
→The Pandora application has not started
running yet.
– Start up the Pandora application.
RATING ERROR
→The thumb rating operation was
disabled.
– Run the same command for another
track.
CAN'T SKIP
→The skip operation was disabled.
– Run the same command for another
track.
TRY LATER
→Unable to save thumb rating.
→Unable to save BookMark.
→Unable to add station.
– Try again later.
MAINTENANCE
→Pandora system is undergoing
maintenance.
– Try again later.
SKIP LIMIT
→Due to music licensing restrictions,
Pandora limits the total number of skips
per hour.
29En
English
– Wait until Pandora allows you to skip
again.
UPDATE APP
→This version of the Pandora application
is not supported.
– Connect a device that has a
compatible version of the Pandora
application installed.
LOGIN ERROR
→Your Pandora account is not logged in.
– Disconnect the cable from the device,
and log in to your Pandora account.
Then reconnect the device.
CHECK DEVICE
→Device error message displayed in the
Pandora application.
– Check the connected device.
PLEASE CREATE A STATION ON THE
PHONE
→No station found.
– Create a station in the Pandora
application on your connected device.
SELECT STN
→No station selected.
– Select a station.
NO BT DEVICE GO TO BT MENU TO
REGISTER
→No Bluetooth device found.
– Connect the unit and the device via
Bluetooth (page 10).
CONN. FAILED PRESS BAND KEY TO
RETRY
→Bluetooth connection failed.
– Press BAND/ to make a
connection again.
CHECK APP PRESS BAND KEY TO RETRY
→Connection to the Pandora application
failed.
– Press BAND/ to make a
connection again.
DISCONNECTED PRESS BAND KEY TO
RETRY
→Bluetooth connection lost.
– Press BAND/ to make a
connection again.
STATION FULL
→A new station cannot be added.
– Delete an old station to open a spot
for a new one.
CAN.T DELETE
→The station could not be deleted.
– Run the same command for another
station.
NO NETWORK
→The connected device is out of area.
– Connect the device to a network.
NO SERVICE IN THIS COUNTRY
→The connected device is out of area.
– Connect the device to a network.
STN DELETED
→The operation was disabled.
– Run the same command for another
station.
Apps
NO BT DEVICE GO TO BT MENU TO
REGISTER
→No Bluetooth device found.
– Connect the unit and the device via
Bluetooth (page 10).
CONN. FAILED PRESS BAND KEY TO
RETRY
→Bluetooth connection failed.
– Press BAND/ to make a
connection again.
DISCONNECTED PRESS BAND KEY TO
RETRY
→Bluetooth connection failed.
– Press BAND/ to make a
connection again.
CHECK APP
→Connection to the application failed.
– Follow the instructions that appear on
the screen.
START UP APP
→The application has not started running
yet.
–Operate the mobile device to start up
the application.
Spotify
NO BT DEVICE GO TO BT MENU TO
REGISTER
→No Bluetooth device found.
– Connect the unit and the device via
Bluetooth (page 10).
CONN. FAILED PRESS BAND KEY TO
RETRY
→Bluetooth connection failed.
– Press BAND/ to make a
connection again.
CHECK APP PRESS BAND KEY TO RETRY
→Connection to the Spotify application
failed.
– Press BAND/ to make a
connection again.
DISCONNECTED PRESS BAND KEY TO
RETRY
→Bluetooth connection lost.
– Press BAND/ to make a
connection again.
CHECK APP
→Connection to the Spotify application
failed.
– Follow the instructions that appear on
the screen.
SiriusXM Satellite Radio
CHECK ANTENNA
→The antenna cable may be either
disconnected or damaged.
– Check the antenna connection or
replace if damaged.
CHECK TUNER
→The radio is having difficulty
communicating with the SiriusXM
Connect Vehicle Tuner. The tuner may
be disconnected or damaged.
– Verify that the SiriusXM Connect
Vehicle Tuner cable is securely
connected to the radio.
NO SIGNAL
→The SiriusXM Connect Vehicle Tuner is
having difficulty receiving the SiriusXM
satellite signal.
– Move your vehicle outdoors with a
clear view of the southern sky.
– Make sure that the SiriusXM magnetic
mount antenna is mounted on a metal
surface on the outside the vehicle.
– Move the SiriusXM antenna away from
any obstructions.
SUBSCRIPTION UPDATED
→This unit has detected a change in your
SiriusXM subscription status.
– Press any key to clear the message.
CH UNAVAIL
→The channel that you have requested is
not available.
– Check the SiriusXM channel lineup.
CHAN UNSUB
→The channel that you have requested is
not included in your SiriusXM
subscription package.
– Check the content of your SiriusXM
subscription package.
30 En
CH LOCKED
→The channel has been locked by the
Parental Control function.
– Set [LOCKED CH] to [OFF] or [CLEAR
ALL] to [YES] in the FUNCTION settings
(page 21).
NO TUNEMIX CH
→There is only one music in the band.
– Select a band with two or more
channels.
– Add more music channels to the
current band.
Auto TA and EQ (Only for DEH-
X8800BHS)
CHECK MIC
→The microphone is not connected.
– Plug the supplied microphone
securely into the AUX input jack.
CHECK F SP, CHECK FL SP, CHECK FR SP,
CHECK RR SP, CHECK RL SP, CHECK HI SP,
CHECK MID SP
→The microphone cannot pick up the
measuring tone of a speaker.
– Confirm that the speakers are
connected correctly.
– Correct the input level setting of the
power amp connected to the
speakers.
– Set the microphone correctly.
CHECK NOISE
→The ambient noise level is too high.
– Park your vehicle in a place that is
quiet, and switch off the engine, air
conditioner and heater.
– Set the microphone correctly.
UNKNOWN ERROR
→The TA and EQ measurement failed.
– Try again later.
Discs and player
•Use only discs that feature either of the
following two logos.
•Use 12-cm discs.
•Use only conventional, fully circular discs.
•The following types of discs cannot be
used with this unit:
–DualDiscs
–8-cm discs: Attempts to use such discs
with an adaptor may cause the unit to
malfunction.
– Oddly shaped discs
–Discs other than CDs
– Damaged discs, including discs that are
cracked, chipped or warped
– CD-R/RW discs that have not been
finalized
•Do not write on or apply chemicals to the
surface of the discs.
•To clean a CD, wipe the disc with a soft
cloth outward from the center.
•Condensation may temporarily impair
the player’s performance. Let it rest for
about one hour to adjust to a warmer
temperature. Also, wipe any damp discs
off with a soft cloth.
•When using discs that can be printed on
label surfaces, check the instructions and
the warnings of the discs. Depending on
the discs, inserting and ejecting may not
be possible. Using such discs may result
in damage to this equipment.
•Do not attach commercially available
labels or other materials to the discs.
– The discs may warp making the disc
unplayable.
– The labels may come off during
playback and prevent ejection of the
Handling guidelines
discs, which may result in damage to
the equipment.
USB storage device
•Connections via USB hubs are not
supported.
•Firmly secure the USB storage device
before driving. Do not let the USB storage
device fall onto the floor, where it may
become jammed under the brake or
accelerator pedal.
•Depending on the USB storage device,
the following problems may occur.
–Operations may vary.
–The storage device may not be
recognized.
– Files may not be played back properly.
– The device may cause audible
interference when you are listening to
the radio.
iPod
•Do not leave the iPod in places with high
temperatures.
•Firmly secure the iPod when driving. Do
not let the iPod fall onto the floor, where
it may become jammed under the brake
or accelerator pedal.
•The settings of the iPod such as the
equalizer and repeat play are changed
automatically when the iPod is
connected to the unit. Once the iPod is
disconnected, those settings will return
to the original settings.
•Incompatible text saved on the iPod will
not be displayed by the unit.
•Only the first 32 characters can be
displayed as a file name (including the file
extension) or a folder name.
•The unit may not work properly
depending on the application used to
encode WMA files.
•There may be a slight delay at the start of
the playback of audio files embedded
with image data, or audio files stored on a
USB device with numerous folder
hierarchies.
CAUTION
•Pioneer cannot guarantee compatibility
with all USB mass storage devices, and
assumes no responsibility for any loss of
data on media players, smartphones, or
other devices while using this product.
•Do not leave discs or a USB storage
device in any place that is subject to high
temperatures.
WMA files
MP3 files
Compressed audio
compatibility
File extension .wma
Bit rate 48 kbps to 320 kbps
(CBR), 48 kbps to 384
kbps (VBR)
Sampling frequency 32 kHz, 44.1 kHz, 48
kHz
Windows Media™
Audio Professional,
Lossless, Voice/DRM
Stream/Stream with
video
Not compatible
File extension .mp3
Bit rate 8 kbps to 320 kbps
(CBR), VBR
Sampling frequency 8 kHz to 48 kHz (32
kHz, 44.1 kHz, 48 kHz
for emphasis)
Compatible ID3 tag
version
1.0, 1.1, 2.2, 2.3, 2.4
(ID3 tag Version 2.x is
given priority over
Version 1.x.)
M3u playlist Not compatible
31En
English
WAV files
•WAV file formats cannot be connected via
MTP.
AAC files
FLAC files
•FLAC file formats cannot be connected
via MTP.
•FLAC files may not be playable,
depending on the encoder.
Disc (DEH-X8800BHS/
X7800BHS/X6800BS only)
•Regardless of the length of the blank
section between the songs from the
original recording, compressed audio
discs play with a short pause between
songs.
USB device
•There may be a slight delay when starting
playback of audio files on a USB storage
device with numerous folder hierarchies.
This unit supports only the following iPod
models. Supported iPod software versions are
shown below. Older versions may not be
supported.
Made for
–iPod touch® (1st through 6th generation)
–iPod classic®
–iPod with video
–iPod nano® (1st through 7th generation)
–iPhone 6s
–iPhone 6s Plus
–iPhone 6
–iPhone 6 Plus
–iPhone 5s
MP3i (MP3
interactive), mp3 PRO
Not compatible
File extension .wav
Quantization bits 8 and 16 (LPCM), 4
(MSADPCM)
Sampling frequency 16 kHz to 48 kHz
(LPCM), 22.05 kHz and
44.1 kHz (MS ADPCM)
Compatible format AAC encoded by
iTunes
File extension .m4a
Sampling frequency 11.025 kHz to 48 kHz
Transmission rate 16 kbps to 320 kbps,
VBR
Apple Lossless Not compatible
AAC file bought from
the iTunes Store (.m4p
file extension)
Not compatible
File extension .flac
Sampling frequency 8/11.025/12/16/22.05/
24/32/44.1/48/96 kHz
Quantization bit rate 16/24 bit
Channel mode 1/2 ch
Playable folder
hierarchy
Up to eight tiers (A
practical hierarchy is
less than two tiers.)
Playable folders Up to 99
Playable files Up to 999
File system ISO 9660 Level 1 and
2, Romeo, Joliet
Multi-session
playback
Compatible
Packet write data
transfer
Not compatible
Playable folder
hierarchy
Up to eight tiers (A
practical hierarchy is
less than two tiers.)
Playable folders Up to 1 500
Playable files Up to 15 000
Playback of copyright-
protected files
Not compatible
Partitioned USB
device
Only the first partition
can be played.
iPod compatibility
–iPhone 5c
–iPhone 5
–iPhone 4s
–iPhone 4
–iPhone 3GS
–iPhone 3G
–iPhone
•Operations may vary depending on the
generation and/or software version of
the iPod.
•Users of iPhone with the Lightning®
Connector should use the Lightning to
USB Cable (supplied with iPhone).
•Users of iPod with the Dock Connector
should use the CD-IU51. For details,
consult your dealer.
•Refer to the iPod manuals for information
about the file/format compatibility.
•Audiobook, Podcast: Compatible
CAUTION
Pioneer accepts no responsibility for data
lost on the iPod, even if that data is lost
while this unit is used.
The user cannot assign folder numbers and
specify playback sequences with this unit.
Sequence of audio file depends on the
connected device.
Note that the hidden files in a USB device
cannot be played back.

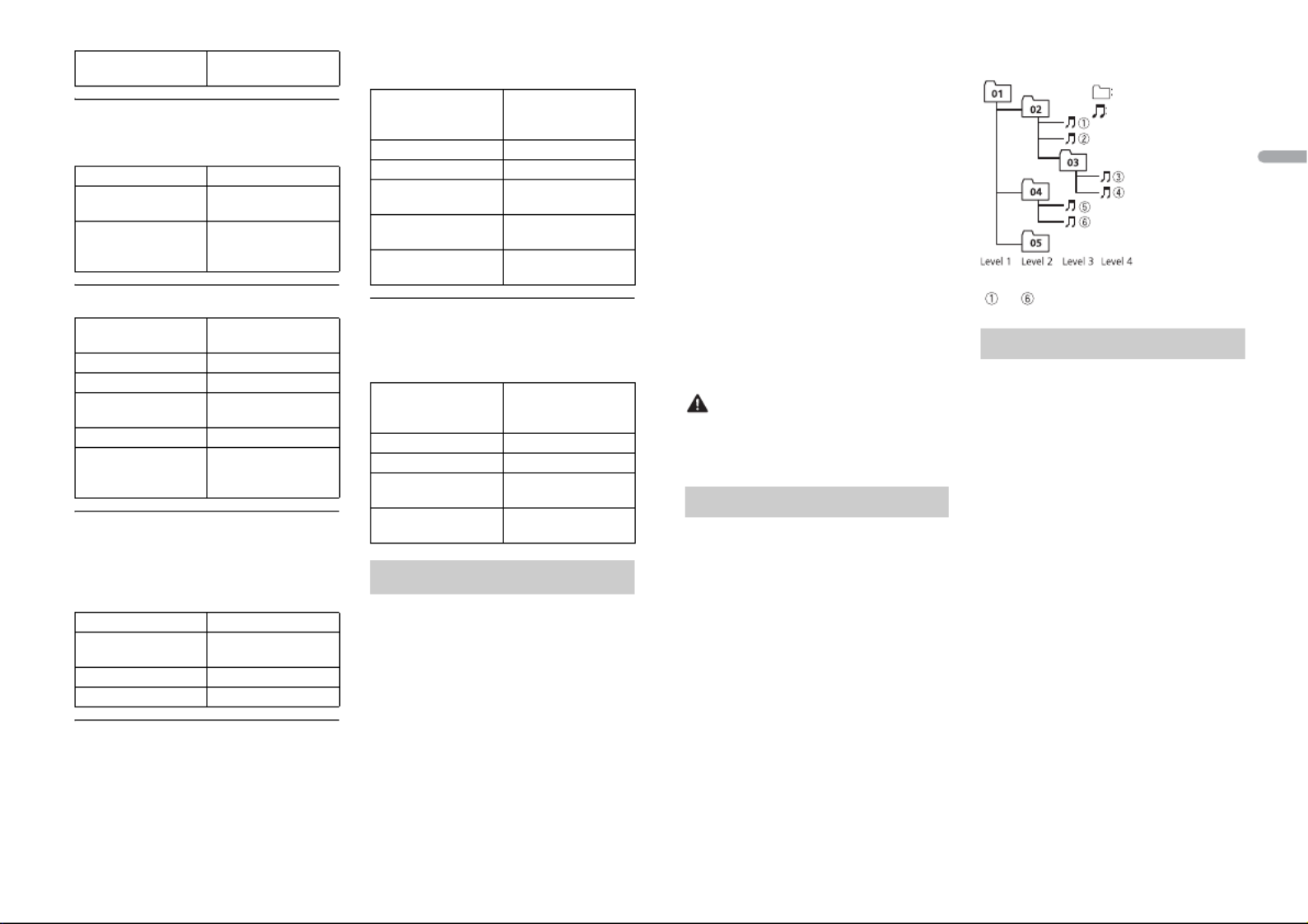

Example of a hierarchy
Bluetooth
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by PIONEER
CORPORATION is under license. Other
trademarks and trade names are those of their
respective owners.
iTunes
Apple and iTunes are trademarks of Apple
Inc., registered in the U.S. and other
countries.
WMA
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
This product includes technology owned
by Microsoft Corporation and cannot be
used or distributed without a license from
Microsoft Licensing, Inc.
FLAC
Copyright © 2000-2009 Josh Coalson
Copyright © 2011-2014 Xiph.Org
Foundation
Redistribution and use in source and
binary forms, with or without modification,
Sequence of audio files
Copyright and trademark
Folder
Compressed
audio file
to : Playback sequence
01 to 05: Folder number
32 En
are permitted provided that the following
conditions are met:
– Redistributions of source code must
retain the above copyright notice, this list
of conditions and the following
disclaimer.
– Redistributions in binary form must
reproduce the above copyright notice,
this list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.
– Neither the name of the Xiph.org
Foundation nor the names of its
contributors may be used to endorse or
promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
iPhone and Lightning
Use of the Made for Apple badge means
that an accessory has been designed to
connect specifically to the Apple
product(s) identified in the badge, and has
been certified by the developer to meet
Apple performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and
regulatory standards.
Please note that the use of this accessory
with an Apple product may affect wireless
performance.
iPhone and Lightning are trademarks of
Apple Inc., registered in the U.S. and other
countries.
Siri®
Works with Siri through the microphone.
Android & Google Play
Android, Google Play, and the Google Play
logo are trademarks of Google Inc.
SiriusXM Satellite Radio
Sirius, XM and all related marks and logos
are trademarks of Sirius XM Radio Inc. All
rights reserved.
Pandora® internet radio
PANDORA, the PANDORA logo, and the
Pandora trade dress are trademarks or
registered trademarks of Pandora Media,
Inc. Used with permission.
Pandora is only available in certain
countries. Please visit
http://www.pandora.com/legal
for more information.
MIXTRAX
MIXTRAX is a trademark of the PIONEER
CORPORATION.
HD Radio™ Technology
HD Radio Technology manufactured under
license from iBiquity Digital Corporation.
U.S. and Foreign Patents. HD Radio™ and
the HD, HD Radio, and “Arc” logos are
proprietary trademarks of iBiquity Digital
Corp.
Spotify®
SPOTIFY and the Spotify logo are among
the registered trademarks of Spotify AB.
Compatible mobile digital devices and
premium subscription required, where
available, see https://www.spotify.com.
T-Kernel 2.0
This product uses the source code of T-
Kernel 2.0 under T-License 2.0 granted by
T-Engine Forum (www.tron.org).
MP3
Copyright (C) 1998-2009 PacketVideo
Licensed under the Apache License,
Version 2.0 (the "License"); you may not use
this file except in compliance with the
License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-
2.0
Unless required by applicable law or
agreed to in writing, software distributed
under the License is distributed on an "AS
IS" BASIS, WITHOUT WARRANTIES OR
CONDITIONS OF ANY KIND, either express
or implied.
See the License for the specific language
governing permissions and limitations
under the License.
General
Power source: 14.4 V DC (10.8 V to 15.1 V
allowable)
Grounding system: Negative type
Maximum current consumption: 10.0 A
Dimensions (W × H × D):
DIN
Chassis: 178 mm × 50 mm × 165 mm
(7 in. × 2 in. × 6-1/2 in.)
Nose: 188 mm × 58 mm × 16 mm (7-
3/8 in. × 2-1/4 in. × 5/8 in.)
D
Chassis: 178 mm × 50 mm × 165 mm
(7 in. × 2 in. × 6-1/2 in.)
Nose: 170 mm × 46 mm × 16 mm (6-
3/4 in. × 1-3/4 in. × 5/8 in.)
Weight: 1 kg (2.2 lbs) (DEH-X8800BHS/
X7800BHS/X6800BS), 0.7 kg (1.5 lbs)
(MVH-X580BS)
Audio
Maximum power output:
• 50 W × 4 ch/4 Ω (for no subwoofer)
• 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω
(for subwoofer)
Continuous power output:
22 W × 4 (50 Hz to 15 000 Hz, 5 %
THD, 4 Ω load, both channels driven)
Load impedance: 4 Ω (4 Ω to 8 Ω (2 Ω for 1
ch) allowable)
Preout maximum output level: 4.0 V (DEH-
X8800BHS), 2.0 V (DEH-X7800BHS/
X6800BS/MVH-X580BS)
Equalizer (13-Band Graphic Equalizer):
Frequency: 50 Hz/80 Hz/125 Hz/200
Hz/315 Hz/500 Hz/800 Hz/1.25 kHz/2
kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz
Gain: ±12 dB (2 dB step)
High pass filter (Standard mode):
Frequency: 50 Hz/63 Hz/80 Hz/100
Hz/125 Hz/160 Hz/200 Hz
Slope: -6 dB/oct, -12 dB/oct, -18 dB/
oct, -24 dB/oct, OFF
Subwoofer/Low pass filter (Standard
mode):
Frequency: 50 Hz/63 Hz/80 Hz/100
Hz/125 Hz/160 Hz/200 Hz
Slope: -6 dB/oct, -12 dB/oct, -18 dB/
oct, -24 dB/oct, OFF
Gain: +10 dB to –24 dB (1 dB step)
Phase: Normal/Reverse
Speaker level (Standard mode):
+10 dB to –24 dB (1 dB step)
Time alignment (Standard mode):
0 Inch to 140 Inch (1 inch/Step)
Bass boost (Standard mode):
Gain: +12 dB to 0 dB
Specifications
33En
English
High pass filter (HIGH) (Network mode):
Frequency: 1.25 kHz/1.6 kHz/2 kHz/
2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/
8 kHz/10 kHz/12.5 kHz
Slope: -6 dB/oct, -12 dB/oct, -18 dB/
oct, -24 dB/oct
High pass filter (MID) (Network mode):
Frequency: 25 Hz/31.5 Hz/40 Hz/50
Hz/63 Hz/80 Hz/100 Hz/125 Hz/160
Hz/200 Hz/250 Hz
Slope: -6 dB/oct, -12 dB/oct, -18 dB/
oct, -24 dB/oct, OFF
Low pass filter (MID) (Network mode):
Frequency: 1.25 kHz/1.6 kHz/2 kHz/
2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/
8 kHz/10 kHz/12.5 kHz
Slope: -6 dB/oct, -12 dB/oct, -18 dB/
oct, -24 dB/oct, OFF
Subwoofer (Network mode):
Frequency: 25 Hz/31.5 Hz/40 Hz/50
Hz/63 Hz/80 Hz/100 Hz/125 Hz/160
Hz/200 Hz/250 Hz
Slope: -12 dB/oct, -18 dB/oct, -24 dB/
oct, -30 dB/oct, -36 dB/oct, OFF
Gain: +10 dB to –24 dB (1 dB step)
Phase: Normal/Reverse
Speaker level (Network mode):
+10 dB to –24 dB (1 dB step)
Time alignment (Network mode):
0 Inch to 140 Inch (1 inch/Step)
Bass boost (Network mode):
Gain: +12 dB to 0 dB
CD player
(DEH-X8800BHS/X7800BHS/X6800BS)
System: Compact disc audio system
Usable discs: Compact disc
Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A
network)
Number of channels: 2 (stereo)
MP3 decoding format: MPEG-1 & 2 Audio
Layer 3
WMA decoding format: Ver. 7, 7.1, 8, 9, 10,
11 (2 ch audio) (Windows Media
Player)
AAC decoding format: MPEG-4 AAC (iTunes
encoded only) (Ver. 10.6 and earlier)
WAV signal format: Linear PCM & MS
ADPCM (Non-compressed)
USB
USB standard specification: USB 2.0 full
speed
Maximum current supply: 1 A
USB Protocol:
MSC (Mass Storage Class)
MTP (Media Transfer Protocol)
AOA (Android Open Accessory) 2.0
File system: FAT12, FAT16, FAT32
MP3 decoding format: MPEG-1 & 2 Audio
Layer 3
WMA decoding format: Ver. 7, 7.1, 8, 9, 10,
11 (2 ch audio) (Windows Media
Player)
AAC decoding format: MPEG-4 AAC (iTunes
encoded only) (Ver. 10.6 and earlier)
FLAC decoding format: v1.3.0 (Free
Lossless Audio Codec)
WAV signal format: Linear PCM & MS
ADPCM (Non-compressed)
FM tuner
Frequency range: 87.9 MHz to 107.9 MHz
Usable sensitivity: 11 dBf (1.0 μV/75 Ω,
mono, S/N: 30 dB)
Signal-to-noise ratio: 80 dB (digital
broadcasting) (IHF-A network) (DEH-
X8800BHS/X7800BHS)
Signal-to-noise ratio: 72 dB (analog
broadcasting) (IHF-A network)
AM tuner
Frequency range: 530 kHz to 1 710 kHz
Usable sensitivity: 25 μV (S/N: 20 dB)
Signal-to-noise ratio: 80 dB (digital
broadcasting) (IHF-A network) (DEH-
X8800BHS/X7800BHS)
Signal-to-noise ratio: 62 dB (analog
broadcasting) (IHF-A network)
Bluetooth
Version: Bluetooth 3.0 certified
Output power: +4 dBm Maximum (Power
class 2)
Frequency band(s): 2 400 MHz to 2 483.5
MHz
Bluetooth profiles:
GAP (Generic Access Profile)
SDAP (Service Discovery Application
Profile)
HFP (Hands Free Profile) 1.6
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio/Video Remote Control
Profile) 1.5
SPP (Serial Port Profile) 1.1
CEA2006 Specifications
Power output: 14 W RMS × 4 Channels (4 Ω
and 1 % THD+N)
S/N ratio: 91 dBA (reference: 1 W into 4 Ω)
NOTE
Specifications and the design are subject
to modifications without notice.
<
=
2Fr
Avant de commencer ............................................................................. 2
Pour commencer..................................................................................... 3
Technologie HD Radio™/Radio ............................................................. 7
CD/USB/iPod®/AUX ................................................................................. 8
Bluetooth................................................................................................ 10
Mode d’application............................................................................... 13
Pandora®................................................................................................. 14
Spotify®................................................................................................... 15
Radio satellite SiriusXM ....................................................................... 16
Utilisation de Pioneer ARC APP.......................................................... 18
Réglages audio...................................................................................... 19
Réglages ................................................................................................. 21
Réglages FUNCTION ............................................................................ 21
Réglages AUDIO.................................................................................... 23
Réglages SYSTEM ................................................................................. 24
Réglages ILLUMINATION..................................................................... 26
Réglages MIXTRAX............................................................................... 26
Connexions/Installation ...................................................................... 27
Informations complémentaires.......................................................... 30
À propos de ce manuel :
•Dans les instructions suivantes, une mémoire USB ou un lecteur audio USB est nommé
« périphérique USB ».
•Dans ce mode d’emploi, les iPod® et iPhone sont nommés « iPod ».
Table des matières
Nous vous remercions d’avoir acheté cet appareil PIONEER
Pour garantir une utilisation adéquate, lisez bien ce mode d’emploi avant d’utiliser cet appareil. Il est
particulièrement important que vous lisiez et respectiez les indications ATTENTION et PRÉCAUTION
de ce mode d’emploi. Conservez-le dans un endroit sûr et facilement accessible pour toute
consultation ultérieure.
La protection de votre ouïe est entre vos mains
Pour assurer le rendement optimal de votre matériel et – plus important encore – la protection de votre
ouïe, réglez le volume à un niveau raisonnable. Pour ne pas altérer votre sens de la perception, le son
doit être clair mais ne produire aucun vacarme et être exempt de toute distorsion. Votre ouïe peut vous
jouer des tours.
Avec le temps, votre système auditif peut en effet s’adapter à des volumes supérieurs, et ce qui vous
semble un « niveau de confort normal » pourrait au contraire être excessif et contribuer à endommager
votre ouïe de façon permanente. Le réglage de votre matériel à un volume sécuritaire AVANT que votre
ouïe s’adapte vous permettra de mieux vous protéger.
CHOISISSEZ UN VOLUME SÉCURITAIRE :
•Réglez d’abord le volume à un niveau inférieur.
•Montez progressivement le volume jusqu’à un niveau d’écoute confortable ; le son doit être clair et
exempt de distorsions.
•Une fois que le son est à un niveau confortable, ne touchez plus au bouton du volume.
N’OUBLIEZ PAS DE RESPECTER LES DIRECTIVES SUIVANTES :
•Lorsque vous montez le volume, assurez-vous de pouvoir quand même entendre ce qui se passe
autour de vous.
•Faites très attention ou cessez temporairement l’utilisation dans les situations pouvant s’avérer
dangereuses.
•N’utilisez pas des écouteurs ou un casque d’écoute lorsque vous opérez un véhicule motorisé ; une
telle utilisation peut créer des dangers sur la route et est illégale à de nombreux endroits.
Avant de commencer
ID FCC : AJDK071
MODÈLE Nº : DEH-X8800BHS/DEH-X7800BHS/DEH-X6800BS/MVH-X580BS
IC : 775E-K071
Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
L'antenne Bluetooth ne peut pas etre supprime (ou remplace) par l'utilisateur.
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un
environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes
directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences
radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est
considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet
équipement doit être installé et utilisé en gardant une distance de 20cm ou plus entre le dispositif
rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).
3Fr
Français
ATTENTION
• N’essayez pas d’installer cet appareil ou d’en faire l’entretien vous-même. L’installation ou
l’entretien de cet appareil par des personnes sans formation et sans expérience en équipement
électronique et en accessoires automobiles peut être dangereux et vous exposer à des risques
d’électrocution ou à d’autres dangers.
•N’essayez pas de démonter ou de modifier cet appareil. Veillez à quitter la route et garer votre véhicule
en lieu sûr avant d’essayer d’utiliser les commandes de l’appareil.
PRÉCAUTION
•Ne laissez pas cet appareil entrer en contact avec de l’humidité et/ou des liquides. Cela pourrait
provoquer une électrocution. Tout contact avec des liquides pourrait également provoquer des
dommages, de la fumée et une surchauffe de l’appareil.
•Maintenez le niveau d’écoute à une valeur telle que vous puissiez entendre les sons provenant de
l’extérieur.
•Ce produit a été évalué sous des conditions climatiques tempérées et tropicales, selon la norme CEI
60065, « Appareils audio, vidéo et appareils électroniques analogues – Exigences de sécurité ».
Service après-vente des produits Pioneer
Veuillez contacter le détaillant ou le distributeur auprès duquel vous avez acheté cet appareil ou un
centre d’entretien PIONEER agréé pour le service après-vente ou toute autre information. Dans le cas où
les informations nécessaires ne seraient pas disponibles, veuillez contacter les entreprises indiquées ci-
dessous :
N’expédiez pas l’appareil pour réparation à l’une des adresses figurant ci-dessous sans avoir pris
contact au préalable.
Pour les informations de garantie, veuillez consulter le feuillet Garantie limitée qui accompagne cet
appareil.
PRÉCAUTION
Cet appareil est un produit laser de Classe 1, classé selon l’article IEC 60825-1:2007 relatif à la Sécurité
des produits laser.
ÉTATS-UNIS et CANADA
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760
Long Beach, CA 90801-1760
800-421-1404
DEH-X8800BHS/X7800BHS/X6800BS
MVH-X580BS
Pour commencer
Fonctionnement de base
SRC (source)/OFF
Touche de retrait
Fenêtre d’affichage
Commande M.C. (multi-contrôle)
BAND/
DISP (affichage)
SRC (source)/OFF
Touche de retrait
Fenêtre d’affichage
Commande M.C. (multi-contrôle)
BAND/
DISP (affichage)
4Fr
Télécommande
Opérations fréquemment utilisées
Les touches disponibles varient en fonction de l’appareil.
Objectif Opération
Appareil principal Télécommande
Mise en marche de
l’appareil*
Appuyez sur SRC/OFF pour
mettre l’appareil en marche.
Appuyez de manière
prolongée sur SRC/OFF
pour éteindre l’appareil.
Appuyez sur SRC pour
mettre l’appareil en marche.
Appuyez de manière
prolongée sur SRC pour
éteindre l’appareil.
Réglage du volume Tournez la commande M.C.. Appuyez sur VOLUME + ou
–.
Appuyez sur MUTE pour
couper le son de l’appareil.
Appuyez à nouveau pour
réactiver le son.
Sélection d’une source Appuyez plusieurs fois sur
SRC/OFF.
Appuyez plusieurs fois sur
SRC.
Changement des
informations de l’affichage
Appuyez plusieurs fois sur
DISP.
Appuyez plusieurs fois sur
DISP.
Retour à la liste/l’affichage
précédent
Appuyez sur
BAND/
.
Appuyez sur / pour
sélectionner le dossier
suivant/précédent.
Retour à l’affichage normal à
partir du menu
Appuyez de manière
prolongée sur BAND/ .–
Réponse à un appel Appuyez sur . Appuyez sur .
Fin d’un appel Appuyez sur . Appuyez sur .
/
SRC (source)
VOLUME +/–
MUTE
DISP (affichage)
* Si le fil bleu/blanc de cet appareil est connecté à la borne de commande du relais d’antenne
automatique du véhicule, celle-ci se déploie lorsque la source est activée. Pour rétracter l’antenne,
désactivez la source.
Indications affichées
Retirez la face avant pour prévenir le vol. Retirez tous les câbles et périphériques
connectés à la face avant et éteignez l’appareil avant de la retirer.
Important
•Évitez de soumettre la face avant à des chocs importants.
•N’exposez pas la face avant à la lumière directe du soleil ou à des températures élevées.
•Rangez toujours la face avant retirée dans un sac ou un boîtier protecteur.
Indication Description
Apparaît lorsqu’un niveau inférieur de menu ou de dossier existe.
Apparaît lorsqu’un téléphone Bluetooth est connecté à cet appareil à
l’aide du profil HFP (Profil mains libres) (page 10) et clignote pendant que
le téléphone est en attente.
Apparaît lorsqu’un lecteur audio Bluetooth est connecté à cet appareil à
l’aide du profil A2DP (Profil de distribution audio avancé) (page 10).
Apparaît lorsque vous appuyez sur la touche .
Apparaît lorsque la fonction de correcteur sonore est réglée (page 22).
Apparaît lorsque la lecture aléatoire est réglée (sauf lorsque vous
sélectionnez BT AUDIO comme source).
Apparaît lorsque la lecture répétée est réglée (sauf lorsque vous
sélectionnez BT AUDIO comme source).
Apparaît lorsque la fonction de commande à l’aide d’un iPod est réglée
(page 10).
Apparaît lorsqu’une connexion Bluetooth est établie (page 10).
Retrait de la face avant
Retirer Fixer
5Fr
Français
Le microprocesseur doit être réinitialisé dans les situations suivantes :
– Avant la première utilisation de cet appareil après l’installation
– Si l’appareil ne fonctionne pas correctement
– Lorsque des messages étranges ou incorrects s’affichent
1Retirez la face avant (page 4).
2Appuyez sur la touche RESET avec un instrument pointu de plus de 8 mm.
Retirez la feuille de protection avant l’utilisation.
ATTENTION
•Ne pas ingérer la pile, car il y a risque de brûlure chimique.
•Ce produit et la télécommande fournie contiennent une pile bouton. Si elle est avalée, la pile bouton
peut causer de graves brûlures internes au bout d’à peine deux heures et entraîner le décès.
•Gardez les piles neuves ou usagées hors de l’atteinte des enfants. Si la pile est avalée ou pénètre dans
toute partie du corps, consultez immédiatement un médecin.
Réinitialisation du microprocesseur
Préparation de la télécommande
Touche RESET
Comment remplacer la pile
Insérez la pile CR2025 (3 V) avec les pôles plus (+) et
moins (–) orientés correctement.
•Si le compartiment de pile ne se ferme pas bien, cessez d’utiliser le produit et gardez-le hors de
l’atteinte des enfants.
•N’exposez pas la pile ou la télécommande à une chaleur excessive, notamment aux rayons directs du
soleil ou à une flamme.
PRÉCAUTION
•Un remplacement incorrect de la pile peut entraîner un risque d’explosion. Lors du remplacement de
la pile, remplacez-la uniquement par une pile de type identique.
•Ne manipulez ou ne rangez pas la pile avec des outils ou objets métalliques.
•En cas de fuite de la pile, retirez cette dernière et nettoyez soigneusement la télécommande. Installez
ensuite une nouvelle pile.
•Lors de la mise au rebut des piles usagées, respectez les règlements nationaux ou les instructions
locales en vigueur dans le pays ou la région en matière de conservation ou de protection de
l’environnement.
•« Matériaux de perchlorate – une manutention spéciale peut s’appliquer.
Voir www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable à la Californie, États-Unis) »
Important
•Ne laissez pas la télécommande exposée à des températures élevées ou à la lumière directe du soleil.
•Ne laissez pas la télécommande tomber sur le plancher, où elle pourrait gêner le bon fonctionnement
de la pédale de frein ou d’accélérateur.
Lorsque vous tournez le commutateur d’allumage à ON après l’installation, le menu de
configuration s’affiche.
ATTENTION
N’utilisez pas l’appareil en mode standard lorsqu’un système de haut-parleurs pour mode réseau est
connecté à l’appareil. N’utilisez pas l’appareil en mode réseau lorsqu’un système de haut-parleurs pour
mode standard est connecté à l’appareil. Cela pourrait endommager les haut-parleurs.
1Tournez la commande M.C. pour sélectionner les options, puis appuyez pour
confirmer.
Pour passer à la prochaine option de menu, vous devez confirmer votre sélection.
Menu de configuration
Option de menu Description
CLOCK SET Réglage de l’horloge.
1Tournez la commande M.C. pour régler l’heure, puis appuyez
pour confirmer.
L’indicateur passe automatiquement au réglage des minutes.
2Tournez la commande M.C. pour régler les minutes, puis
appuyez pour confirmer.
6Fr
2[QUIT :YES] s’affiche lorsque tous les réglages sont effectués.
Pour retourner à la première option du menu de configuration, tournez la
commande M.C. pour sélectionner [QUIT :NO], puis appuyez pour confirmer.
3Appuyez sur la commande M.C. pour confirmer les réglages.
REMARQUE
Le réglage [CLOCK SET] peut être effectué à tout moment. Consultez la page 24 pour plus de détails.
1Appuyez sur la commande M.C. pour afficher le menu principal.
2Tournez la commande M.C. pour sélectionner [SYSTEM], puis appuyez pour
confirmer.
3Tournez la commande M.C. pour sélectionner [DEMO OFF], puis appuyez pour
confirmer.
4Tournez la commande M.C. pour sélectionner [YES], puis appuyez pour confirmer.
1Appuyez de manière prolongée sur SRC/OFF jusqu’à ce que l’appareil s’éteigne.
2Appuyez sur la commande M.C. pour afficher le menu principal.
SPEAKER MODE Commutation entre deux modes de fonctionnement : le mode
réseau 2 voies (NETWORK) et le mode standard (STANDARD) en
fonction des connexions établies. Pour les détails sur les modes
de fonctionnement, consultez la page 19.
Après la sélection du mode approprié, tournez la commande
M.C. pour sélectionner [YES], puis appuyez pour confirmer.
•Vous ne pouvez pas terminer les ajustements du menu de
configuration sans effectuer le réglage de [SPEAKER MODE].
•Une fois le mode de haut-parleurs réglé, ce réglage ne peut
être modifié qu’après le rétablissement des réglages par
défaut de ce produit. Rétablissez les réglages par défaut pour
modifier le réglage de mode de haut-parleurs (reportez-vous à
SYSTEM RESET à la page 6).
[STANDARD],
[NETWORK]
Annulation de l’affichage de démonstration (DEMO
OFF)
Réglages INITIAL
Option de menu Description
3Tournez la commande M.C. pour sélectionner [INITIAL], puis appuyez pour
confirmer.
4Tournez la commande M.C. pour sélectionner une option, puis appuyez pour
confirmer.
REMARQUE
Les options varient en fonction de l’appareil.
Option de menu Description
ACTIVE USB Sélection du port USB utilisé pour la connexion d’un
périphérique USB/iPod. Le port USB qui n’est pas sélectionné
peut être utilisé pour la charge.
•Lorsque le réglage est modifié, [USB AUTO] (page 25) est
exécuté automatiquement si [USB AUTO] est réglé à [ON].
[FRONT], [REAR]
REAR-SP Sélectionnez cette option lorsqu’un haut-parleur pleine gamme
est connecté aux fils de sortie de haut-parleur arrière.
[FUL]
[SW] Sélectionnez cette option lorsqu’un haut-parleur d’extrêmes
graves est connecté directement aux fils de sortie de haut-
parleur arrière sans amplificateur auxiliaire.
AUTO TA & EQ Sélectionnez cette option pour effectuer les réglages TA et EQ
auto en utilisant le microphone fourni avec l’appareil (page 20).
SYSTEM UPDATE Sélectionnez [SYSTEM INFO] pour confirmer les plus récentes
informations de système de l’appareil.
Sélectionnez [S/W UPDATE] pour mettre à jour l’appareil avec le
logiciel le plus récent et initialiser les réglages de l’appareil. Pour
les détails sur le logiciel le plus récent et la mise à jour, visitez
notre site Web.
[SYSTEM INFO], [S/
W UPDATE]
SXM RESET Sélection de la fonction d’initialisation des réglages SiriusXM.
[YES], [CANCEL]
SYSTEM RESET Sélectionnez [YES] pour initialiser les réglages de l’appareil.
L’appareil redémarrera automatiquement.
(Certains des réglages pourraient être conservés même après la
réinitialisation de l’appareil.)
[YES], [CANCEL]

Produkt Specifikationer

Mærke: Pioneer
Kategori: Bilradio
Model: DEH-X7800BHS

Har du brug for hjælp?

Hvis du har brug for hjælp til Pioneer DEH-X7800BHS stil et spørgsmål nedenfor, og andre brugere vil svare dig


Bilradio Pioneer Manualer

Pioneer

Pioneer AVH-201EX Manual

11 Juli 2025
Pioneer

Pioneer AVH-3300NEX Manual

10 Juli 2025
Pioneer

Pioneer AVH-500EX Manual

10 Juli 2025
Pioneer

Pioneer AVH-601EX Manual

10 Juli 2025
Pioneer

Pioneer AVH-310EX Manual

10 Juli 2025
Pioneer

Pioneer AVH-4200NEX Manual

10 Juli 2025
Pioneer

Pioneer AVH-2300NEX Manual

10 Juli 2025
Pioneer

Pioneer AVH-501EX Manual

10 Juli 2025
Pioneer

Pioneer AVH-2330NEX Manual

10 Juli 2025
Pioneer

Pioneer AVH-210EX Manual

10 Juli 2025

Bilradio Manualer

Nyeste Bilradio Manualer

Blaupunkt

Blaupunkt GTr 135 A Manual

28 Juli 2025
Blaupunkt

Blaupunkt Oslo 600 DAB Manual

28 Juli 2025
Blaupunkt

Blaupunkt GTr 115 A Manual

27 Juli 2025
Sencor

Sencor SCT 4055MR Manual

26 Juli 2025
Marquant

Marquant MCR-1407 Manual

23 Juli 2025
Harman Kardon

Harman Kardon CH140 Manual

23 Juli 2025
Rockville

Rockville RXD-F30 Manual

22 Juli 2025
Rockville

Rockville RXD-F20 Manual

22 Juli 2025
Harman Kardon

Harman Kardon CH161 Manual

22 Juli 2025
Harman Kardon

Harman Kardon CR151 Manual

22 Juli 2025
