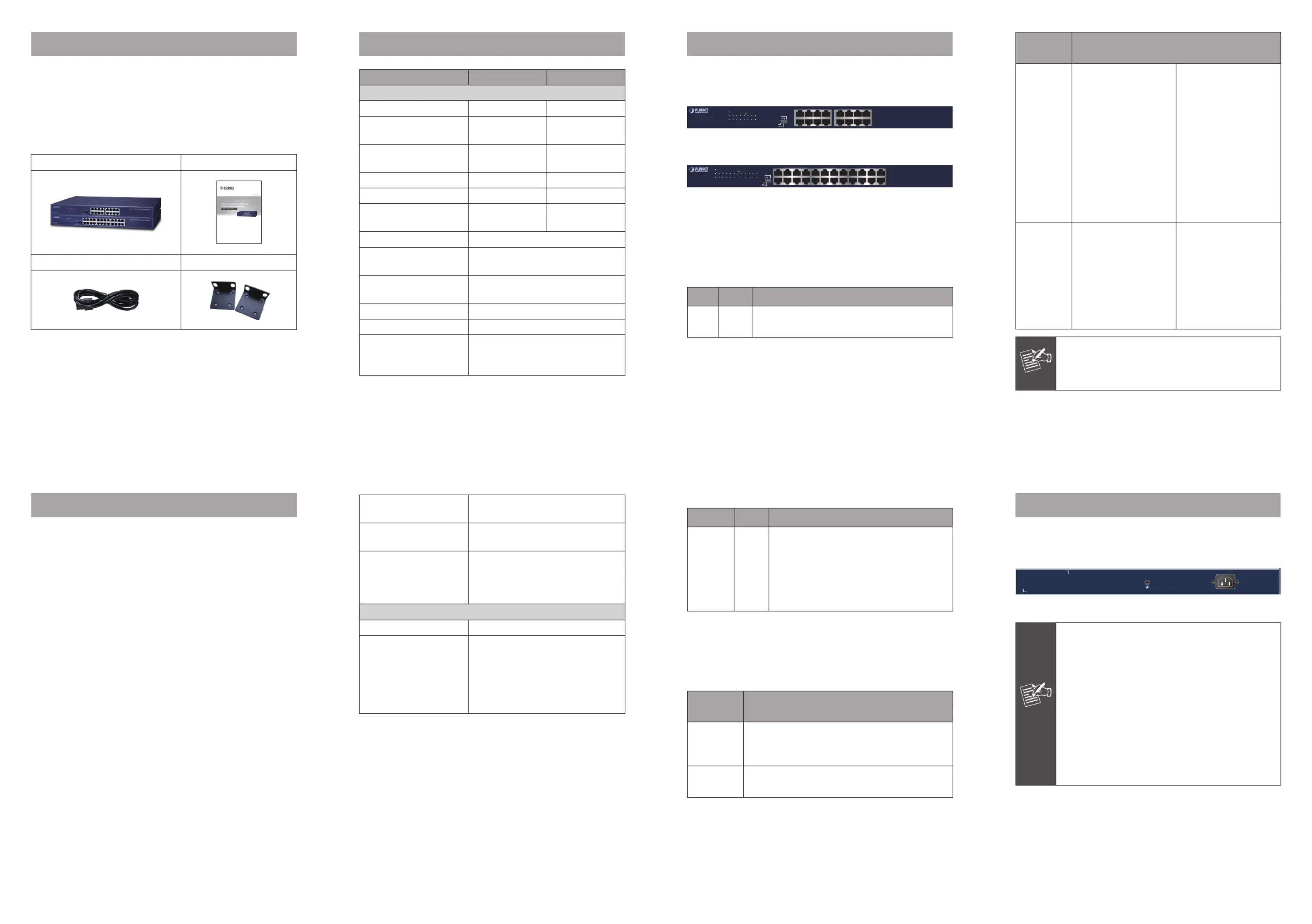

1. Package Contents

Thank you for purchasing PLANET 16-/24-Port

10/100BASE-TX Unmanaged Fast Ethernet Switch, FNSW-

1601/FNSW-2401. “Fast Ethernet Switch” mentioned in

this User’s Manual refers to the FNSW-1601/FNSW-2401.

Open the box of the Fast Ethernet Switch and carefully

unpack it. The box should contain the following items:

Fast Ethernet Switch x 1 User’s Manual x 1

Power Cord x 1 Accessories x 1

If any of these are missing or damaged, please contact

your dealer immediately; if possible, retain the carton

including the original packing material, and use them again

to repack the product in case there is a need to return it to

us for repair.

3. Product Specications

Product FNSW-1601 FNSW-2401

Hardware Specications

Hardware Version V9 V11

10/100BASE-TX MDI/

MDIX Ports

16 24

Throughput

(packet per second)

2.38Mpps 3.57Mpps

Switch Fabric 3.2Gbps 4.8Gbps

Weight 1.3kg 1.4kg

Power Consumption/

Dissipation

2.5 watts/

8.5BTU

3.5 watts/

11.9BTU

Power Requirements 100~240V AC, 0.2A, 50-60Hz

Dimensions

(W x D x H)

440 x 140 x 44mm, 1U height

Switch Processing

Scheme

Store-and-Forward

Address Table 8K entries

Maximum Packet Size 1522bytes

Flow Control

Back pressure for half duplex,

IEEE 802.3x Pause Frame for full

duplex

DIP Switch

Mode

Function

VLAN

This mode makes the

FNSW-1601 operate

as a VLAN isolation

switch and

1. Port 1 to port

14 will isolate

respectively.

2. Port 1 to port

14 can only

communicate with

port 15 and port 16

(uplink port).

This mode makes the

FNSW-2401 operate

as a VLAN isolation

switch and

1. Port 1 to port

22 will isolate

respectively.

2. Port 1 to port

22 can only

communicate with

port 23 and port 24

(uplink port).

Extend

This mode makes

the FNSW-1601

operate as a distance

extension switch and

port 1 to port 8 can

only transmit distance

of 200m at speed of

10Mbps.

This mode makes

the FNSW-2401

operate as a distance

extension switch and

port 1 to port 8 can

only transmit distance

of 200m at speed of

10Mbps.

Note

Change the DIP switch setting and the Fast

Ethernet switch will reset automatically to take

effect.

4. Switch Front Panel

Figures 1 & 2 show the front panels of the FNSW-1601 and

FNSW-2401.

2468

1357

10 12 14 16

9 13 1511

ACTLNK10/100

1 3 5 7 9 13 1511

PWR

4 6 8 10 12 14 16

FNSW-1601

16-Port 10/100TX Fast Ethernet Switch

Standard

Flow Control Off

Extend

VLAN

Figure 1: FNSW-1601 Front Panel

2468

1357

10 12 14 16

9 13 1511

18 20 22 24

17 19 21 23

ACTLNK10/100

1 3 5 7 9 13 15 17 19 21 2311

PWR

4 6 8 10 12 14 16 18 20 22 24

FNSW-2401

24-Port 10/100TX Fast Ethernet Switch

Standard

Flow Control Off

Extend

VLAN

Figure 2: FNSW-2401 Front Panel

LED Indicators

FNSW-1601/FNSW-2401

System

LED Color Function

PWR Green

Lights: to indicate that the Switch has

power.

2. Product Features

Physical Port

● 16/24 10/100BASE-TX Fast Ethernet ports

● Supports auto MDI/MDI-X function

Layer 2 Features

● Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u

100BASE-TX Ethernet standards

● Features Store-and-Forward mode with wire-speed ltering

and forwarding rates

● Integrated address look-up engine, supporting 8K abso-

lute MAC addresses

● Power saving ability for Green networking

● IEEE 802.1Q VLAN packet transparency support

● IEEE 802.3x ow control for full duplex operation and

back pressure for half duplex operation

● Hardware-based 10/100BASE-TX, half/full duplex, ow

control and auto-negotiation

● Automatic address learning and address aging

● Supports CSMA/CD protocol

Hardware Features

● 100~240V AC, 0.2A, 50~60Hz universal power input

● DIP switch for standard/ow control o/VLAN/Extend

mode selection

● FCC, CE class A compliant

DIP Switch

Standard/ow control o/VLAN/

Extend mode selection

Temperature

Operating: 0~50 degrees C

Storage: -10~70 degrees C

Humidity

Operating: 5% to 95%

(non-condensing)

Storage: 5% to 95%

(non-condensing)

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3x (Full-Duplex Flow

Control)

IEEE 802.3az Energy Ecient

Ethernet (EEE)

Per 10/100BASE-TX Port

LED Color Function

10/100

LNK/ACT

Green

Lights: to indicate the link through

that port is established successfully at

10/100Mbps.

Blinks: to indicate that the Switch is

actively sending or receiving data over

that port.

DIP Switch

The front panel of Fast Ethernet Switch provides one DIP

switch for and “Standard”, “Flow Control O”, “VLAN”

“Extend” mode selections. The detailed descriptions are

shown in the following table.

DIP Switch

Mode

Function

Standard

(default)

This mode makes the Fast Ethernet Switch

operate as a general switch and all ports

operate at 10/100Mbps auto-negotiation.

Flow

Control O

This mode disables the Fast Ethernet

Switch ow control function.

5. Switch Rear Panel

Figure 3 shows the rear panel of the FNSW-1601/FNSW-

2401.

100~240V AC

50 / 60Hz

Figure 3: FNSW-1601/FNSW-2401 Rear Panel

Power

Note

1. The device is a power-required device,

meaning it will not work till it is powered. If

your network should be active all the time,

please consider using UPS (Uninterrupted

Power Supply) for your device. It will

prevent you from network data loss or

network downtime.

2. In some areas, installing a surge suppression

device may also help to protect your Fast

Ethernet Switch from being damaged by

unregulated surge or current to the Switch.

- 9 -

- 10 -

- 11 -

- 12 - - 13 -

6. Installing the Switch

This part describes how to install your Fast Ethernet Switch

and make connections to it. Please follow the procedure

below:

Note

This Fast Ethernet Switch does not need

software configuration.

Desktop Installation

To install the Fast Ethernet Switch on the desktop, simply

follow these steps:

Step 1: Attach the rubber feet to the recessed areas on

the bottom of the Fast Ethernet Switch.

Step 2: Place the Fast Ethernet Switch on the desktop

near an AC power source.

Step 3: Keep enough ventilation space between the Fast

Ethernet Switch and the surrounding objects.

Note

When choosing a location, please keep in mind

the environmental restrictions discussed in

Section 3 under Product Specifications.

Rack Mounting

To install the Fast Ethernet Switch in a 19-inch standard

rack, follow the instructions described below:

Step 1: Place your Fast Ethernet Switch on a hard at

surface, with the front panel positioned towards

your front side.

Step 2: Attach a rack-mount bracket to each side of the

Switch with supplied screws attached to the

package. Figure shows how to attach brackets 4

to one side of the Fast Ethernet Switch.

2468

1357

10 12 14 16

9 11 13 15

18 20 22 24

17 19 21 23

ACTLNK10/100

1 3 5 7 9 11 13 15 17 19 21 23

PWR

4 6 8 10 12 14 16 18 20 22 24

FNSW-2401

24-Port 10/100TX Fast Ethernet Switch

Standard

Flow Control Off

Extend

VLAN

Figure 4: Attaching the brackets to the Fast Ethernet Switch

Caution

You must use the screws supplied with the

mounting brackets. Damage caused to the

parts by using incorrect screws would invalidate

your warranty.

Step 4: Connect your Fast Ethernet Switch to network

devices.

A. Connect one end of a standard network cable to

the 10/100 RJ45 ports on the front of the Fast

Ethernet Switch.

B. Connect the other end of the cable to the network

devices such as printer servers, workstations or

routers, etc.

Step 5: Supply power to the Fast Ethernet Switch.

A. Connect one end of the power cable to the Fast

Ethernet Switch.

B. Connect the power plug of the power cable to a

standard wall outlet.

When the Fast Ethernet Switch receives power, the Power

LED should remain solid Green.

PLANET TECHNOLOGY CORPORATION

e-mail: sales@planet.com.tw http://www.planet.com.tw

10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219 2219 9528-9518 Fax:886-2- -

EC Declaration of Conformity

For the following equipment:

*Type of Product 16- -Port 10/100BASE-TX Fast Ethernet Switch : /24

*Model Number -1601 -2401 : FNSW , FNSW

* Produced by:

Manufacturer‘s Name : Planet Technology Corp.

Manufacturer‘s Address: 1 , No.96, Minquan Rd., Xindian Dist., 0F.

New Taipei City 231, Taiwan R.O.C.

is herewith confirmed to comply with the requirements set out in the Council Directive on the

Approximation of the Laws of the Member States relating to Electromagnetic Compatibility

Directive on (2014/30 U) and /E Low Voltage Directive 2014/35/EU.

For the evaluation regarding the EMC, the following standards were applied:

EN 55032 (2015 )

EN 61000-3-2 (2014)

EN 61000-3-3 (2013)

EN 55024 (2010)

EN60950-1 (2006 11:2009+A1:2010+A12:2011+A2: 2013+A )

R esponsible for marking this declaration if the:

 Manufacturer Authorized representative established within the EU 

Authorized representative established within the EU (if applicable):

Company Name: Planet Technology Corp.

Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan

R.O.C.

Person responsible for making this declaration

Name, Surname Kent Kang

Position / Title : Director

T aiwan April 19, 2019

Place Date Legal Signature

Step 3: Secure the brackets tightly.

Step 4: Follow the same steps to attach the second

bracket to the opposite side.

Step 5: After the brackets are attached to the Fast

Ethernet Switch, use suitable screws to securely

attach the brackets to the rack, as shown in

Figure 5.

2468

1357

10 12 14 16

9 11 13 15

18 20 22 24

17 19 21 23

ACTLNK10/100

1 3 5 7 9 11 13 15 17 19 21 23

PWR

4 6 8 10 12 14 16 18 20 22 24

FNSW-2401

24-Port 10/100TX Fast Ethernet Switch

Standard

Flow Control Off

Extend

VLAN

Figure 5: Mounting the Fast Ethernet Switch in a Rack

Step 6: Proceed with Steps 4 and 5 of Desktop

Installation to connect the network cabling and

supply power to your Fast Ethernet Switch.

7. Customer Support

Thank you for purchasing PLANET products. You can browse

our online FAQ resource on PLANET Web site rst to check

if it could solve your issue. If you need more support

information, please contact PLANET switch support team.

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq

Switch support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners..

Produkt Specifikationer

Mærke:	Planet
Kategori:	bryter
Model:	FNSW-1601
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	440 mm
Dybde:	140 mm
Højde:	44 mm
Vægt:	1300 g
Produktfarve:	Blå
Formfaktor:	1U
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Strømforbrug (typisk):	1.3 W
Driftstemperatur (T-T):	0 - 50 °C
Certificering:	FCC Part 15 Class A, CE
Netværksstandarder:	IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Understøttede netværksprotokoller:	CSMA / CD
Indgangsstrøm:	0.2 A
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ingen
Switch-type:	Ikke administreret
10G understøttelse:	Ingen
Auto MDI/MDI-X:	Ja
Flowkontrol support:	Ja
Basis omskiftning RJ-45 Ethernet porte, antal:	16
Basis omskiftning RJ-45 Ethernet porttype:	Fast Ethernet (10/100)
Opbevar-og-frem:	Ja
MAC adresselabel:	8000 entries
Switch kapacitet:	3.2 Gbit/sek.
Gennnemløb:	2.38 Mpps
Stativ-montering:	Ja
Halv dupleks:	Ja
MAC-adresse auto-indlæring understøttet:	Ja
MAC-adresse auto-forældelse understøttet:	Ja
Auto-forhandling:	Ja
