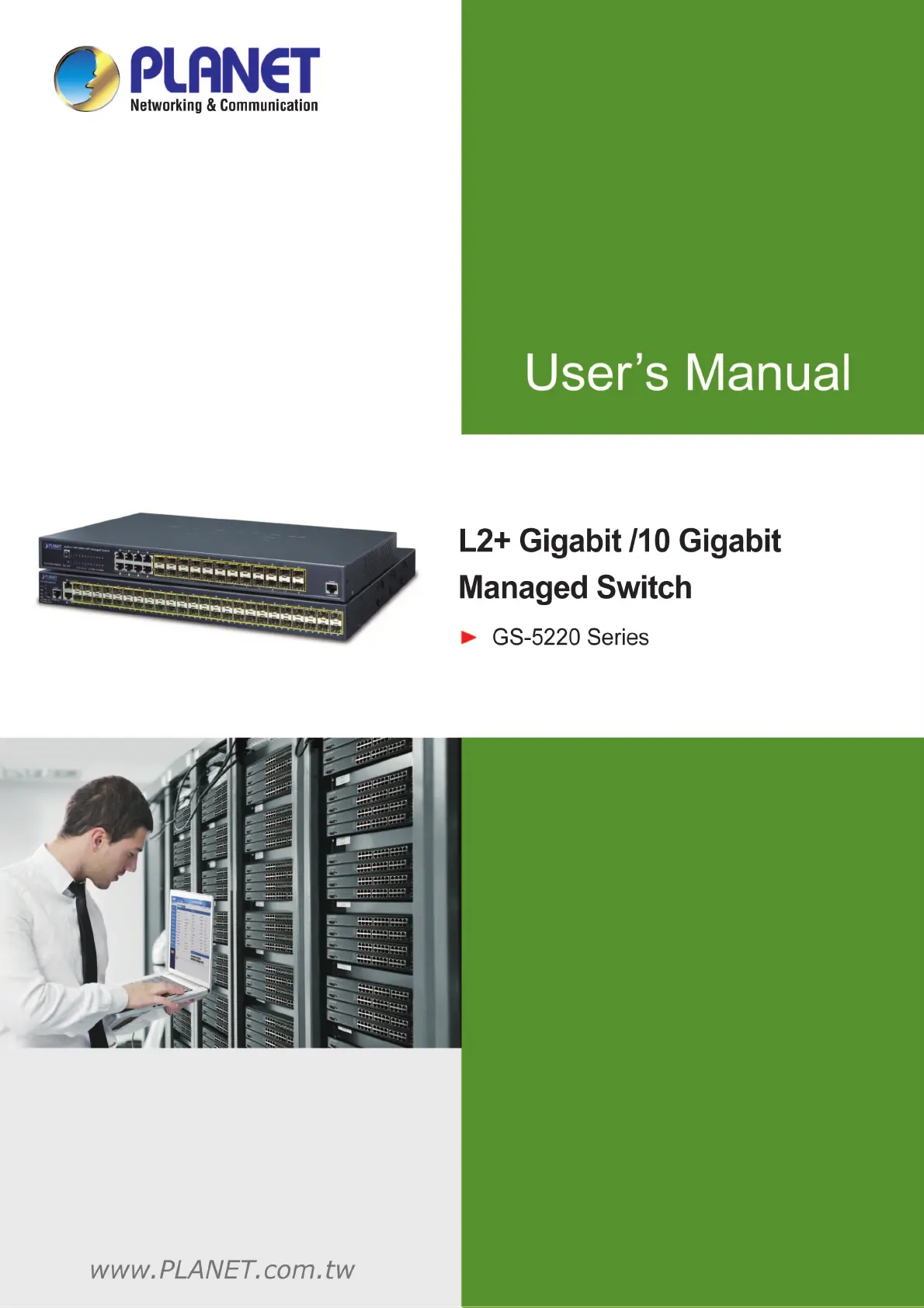

User’s Manual of GS-5220 Series

Trademarks

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no

warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for

a particular purpose. PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability

for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes

no commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to

this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and

suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be

required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy saving, please remove the power cable to

disconnect the device from the power circuit. In view of saving the energy and reducing the unnecessary power consumption, it

is strongly suggested to remove the power connection for the device if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of

hazardous substances in electrical and electronic equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of

WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET GS-5220 Series User's Manual

Model: GS-5220 Series

Revision: 1.2 (August, 2015)

Part No: EM-GS-5220-series _v1.2

Produkt Specifikationer

Mærke:	Planet
Kategori:	bryter
Model:	GS-5220-24UPL4XVR
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	440 mm
Dybde:	300 mm
Højde:	56 mm
Vægt:	5478 g
Produktfarve:	Blå
Skærmtype:	LCD
Formfaktor:	1.25U
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Driftstemperatur (T-T):	0 - 50 °C
Sikkerhedsalgoritmer:	SNMPv3, SSH, SSL/TLS
Certificering:	FCC Part 15 Class A, CE
Strømforbrug (maks.):	740 W
Netværksstandarder:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Webbaseret administration:	Ja
Knap til nulstilling:	Ja
Servicekvalitet support (QoS):	Ja
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85176990
DC indgangsspænding:	36 - 60 V
Indgangsstrøm:	8 A
Firmware kan opgraderes:	Ja
Fiber optisk strømstik:	SFP, SFP+
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ja
Switch-type:	Administreret
ARP inspektion:	Ja
System hændelseslog:	Ja
Switch lag:	L3
Total Power over Ethernet (PoE):	600 W
Power over Ethernet (PoE) effekt pr. port:	75 W
10G understøttelse:	Ja
Spanning tree protokol:	Ja
Auto MDI/MDI-X:	Ja
VLAN understøttelse:	Ja
Flowkontrol support:	Ja
Port-spejlning:	Ja
Antal VLAN'er:	4094
Link aggregering:	Ja
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-T, 1000BASE-T
Broadcast stormkontrol:	Ja
Vituelle LAN funktioner:	Private VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN
Basis omskiftning RJ-45 Ethernet porte, antal:	24
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
Port til konsol:	RJ-45
IGMP snooping:	Ja
BPDU filtrering/beskyttelse:	Ja
Adgangskontrolliste (ACL):	Ja
Godkendelse:	MAC-based authentication, Port-based authentication
IP-MAC-portbinding:	Ja
Filtrering af MAC-adresser:	Ja
Loop beskyttelse:	Ja
Administrationsprotokoller:	IGMPv1, IGMPv2, IGMPv3
Fiber ethernet kabelteknologi:	10GBASE-LR, 10GBASE-SR, 100BASE-FX, 100BASE-X, 1000BASE-SX, 1000BASE-X, 1000BASE‑BX, 1000BASE‑LX
Opbevar-og-frem:	Ja
MAC adresselabel:	16000 entries
Switch kapacitet:	128 Gbit/sek.
Gennnemløb:	95.23 Mpps
Antal køer:	8
Jumbo Frames support:	Ja
Jumbo rammer:	10000
Stativ-montering:	Ja
Antal blæsere:	3 blæser(e)
Varmeafgivelse:	2538.94 BUT/t
Multicast-understøttelse:	Ja
Trafik klassificering:	Ja
Gigabit Ethernet (kobber) porte, antal:	24
Begrænsning af hastighed:	Ja
Power over Ethernet (PoE) porte, antal:	24
MAC-adresse auto-indlæring understøttet:	Ja
MAC-adresse auto-forældelse understøttet:	Ja
Auto-forhandling:	Ja
DHCP funktioner:	DHCP snooping, DHCP relay
Pakke bufferlager:	32 MB
Redundant strømforsyning:	Ja
IP-routing:	Ja
SSH/SSL support:	Ja
Antal SFP + modulslots:	4
MIB support:	Ja
Statisk rute:	Ja
Godkendelsestype:	IEEE 802.1x, RADIUS
Adgangskontrolliste (ACL) regler:	256
Routing indtastninger:	32
Antal trunks:	4
IPv4 & IPv6 funktioner:	IPv6 ping
Telnet:	Ja
Multicast Listener Discovery (MLD) snooping:	MLD (v1/v2)
