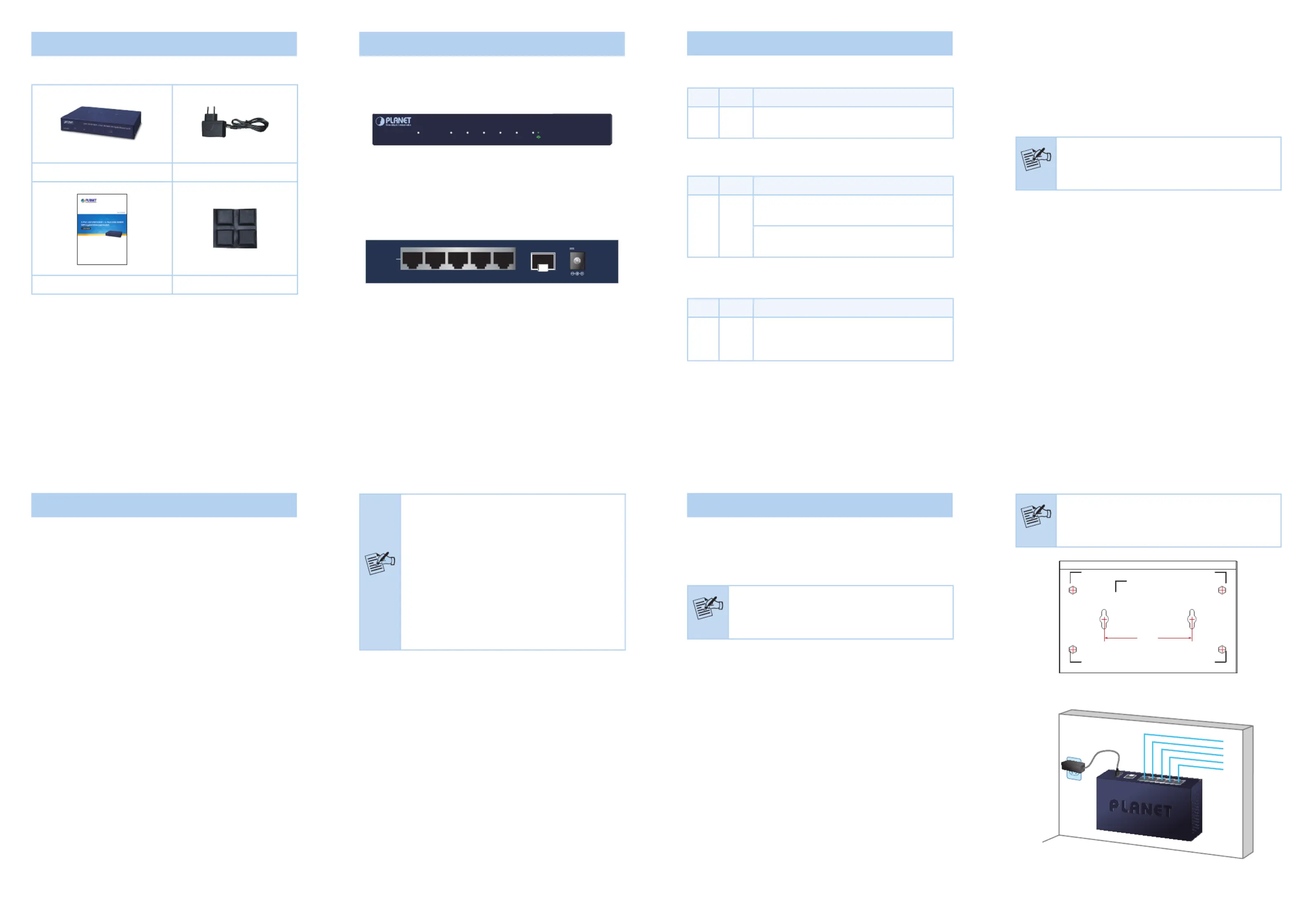

1. Package Contents

Check the contents of your package for the following parts:

Gigabit Ethernet Switch x 1 AC Adapter x 1

User’s Manual x 1 Rubber Feet x 4

If any of these are missing or damaged, please contact

your dealer immediately; if possible, retain the carton

including the original packing material, and use them again

to repack the product in case there is a need to return it to

us for repair.

In the following sections, the term “Gigabit Ethernet

Switch” means the GSD-603F.

3. Hardware Introduction

3.1 Switch Front Panel

Figure 3-1 shows the front panel of GSD-603F.

PWR SFP 1 2 3 4 5

ACT

LNK

GSD-603F

5-Port 10/100/1000T +1-Port 100/1000X SFP Gigabit Ethernet Switch

Figure 3-1: GSD-603F Front Panel

3.2 Switch Rear Panel

Figure 3-2 shows the rear panel of GSD-603F.

12345

10/100/1000T

, 1A max.

SFP

100/1000X

Figure 3-2: GSD-603F Rear Panel

Step 4: Connect your Gigabit Ethernet Switch to network

devices.

A. Connect one end of a standard network cable

to the 10/100/1000Mbps RJ45 ports on the

back of the Gigabit Ethernet Switch.

B. Connect the other end of the cable to the

network devices such as printer servers,

workstations, routers, etc.

Note

Connection to the Gigabit Ethernet Switch

requires UTP Category 5 network cabling with

RJ45 tip.

Step 5: Supply power to the Gigabit Ethernet Switch.

A. Connect one end of the power cable to the

Gigabit Ethernet Switch.

B. Connect the power plug of the power cable to

a standard wall outlet.

When the Gigabit Ethernet Switch receives power, the

Power LED should remain solid Green.

Wall-mount Installation

Step 1: PleasendthewallthatcanmounttheGSD-603F.

Step 2: Screw two screws on the wall.

Step 3: Hang the GSD-603F on the screws from the wall.

Step 4: Repeat Step 5 of Desktop Installation for power

supply to the GSD-603F.

4. LED Indicators

System

LED Color Function

PWR Green

Lights to indicate that the Switch has

power.

Per 10/100/1000BASE-T RJ45 Port (Port 1 ~ Port 5)

LED Color Function

LNK/

ACT

Green

Lights to indicate the link through that port

is successfully established.

Blinks to indicate that the Switch is actively

sending or receiving data over that port.

100/1000BASE-X SFP Port

LED Color Function

LNK/

ACT

Green

Lights to indicate that the Switch is

successfully connecting to the network at

100/1000Mbps.

2. Product Features

Physical

¾Five 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

¾One 100/1000BASE-X SFP Slot

Layer 2 Features

¾Features Store-and-Forward mode with wire-speed

lteringandforwardingrates

¾IEEE 802.3x, full-duplex ow control compliant; back-

pressure,half-duplexowcontrol

¾Integrated address look-up engine, supporting 2K abso-

lute MAC addresses

¾1.5Mbiton-chipframebuer

¾9K jumbo packet

¾Power saving ability for Green networking

Hardware Features

¾DC 5V, 1A external power

¾Compact size, wall-mountable design

¾Metal case, good for heat dissipation

¾Easy installation; ideal solution for space-limited locations

Power

Note

1. The device is a power-required device,

meaning it will not work till it is powered.

If your network remains to be active

all the time, please consider using UPS

(Uninterrupted Power Supply) for your device.

It will prevent you from network data loss or

network downtime.

2. In some areas, installing a surge suppression

device may also help to protect your Switch

from being damaged by unregulated surge or

current to the Switch or the power adapter.

5. Installing the Switch

This part describes how to install your Gigabit Ethernet

Switch and make connections to it. Please read the

following topics and perform the procedures in the order

being presented.

Note

This Gigabit Ethernet Switch does not need

software configuration.

Desktop Installation

To install the Gigabit Ethernet Switch on desktop, simply

follow the steps below:

Step 1: Attach the rubber feet to the recessed areas on

the bottom of the Gigabit Ethernet Switch.

Step 2: Place the Gigabit Ethernet Switch on desktop near

an DC power source.

Step 3: Keep enough ventilation space between the

Gigabit Ethernet Switch and the surrounding

objects.

Note

Before mounting the device to the wall, please

check the location of the electrical outlet and

the length of the Ethernet cable.

800 mm

GSD-603F Switch Bottom Side

12345

10/100/1000T

5V DC

SFP

1000X

RJ45 UTP Cable

- 9 -

- 10 -

- 11 -

- 12 - - 13 -

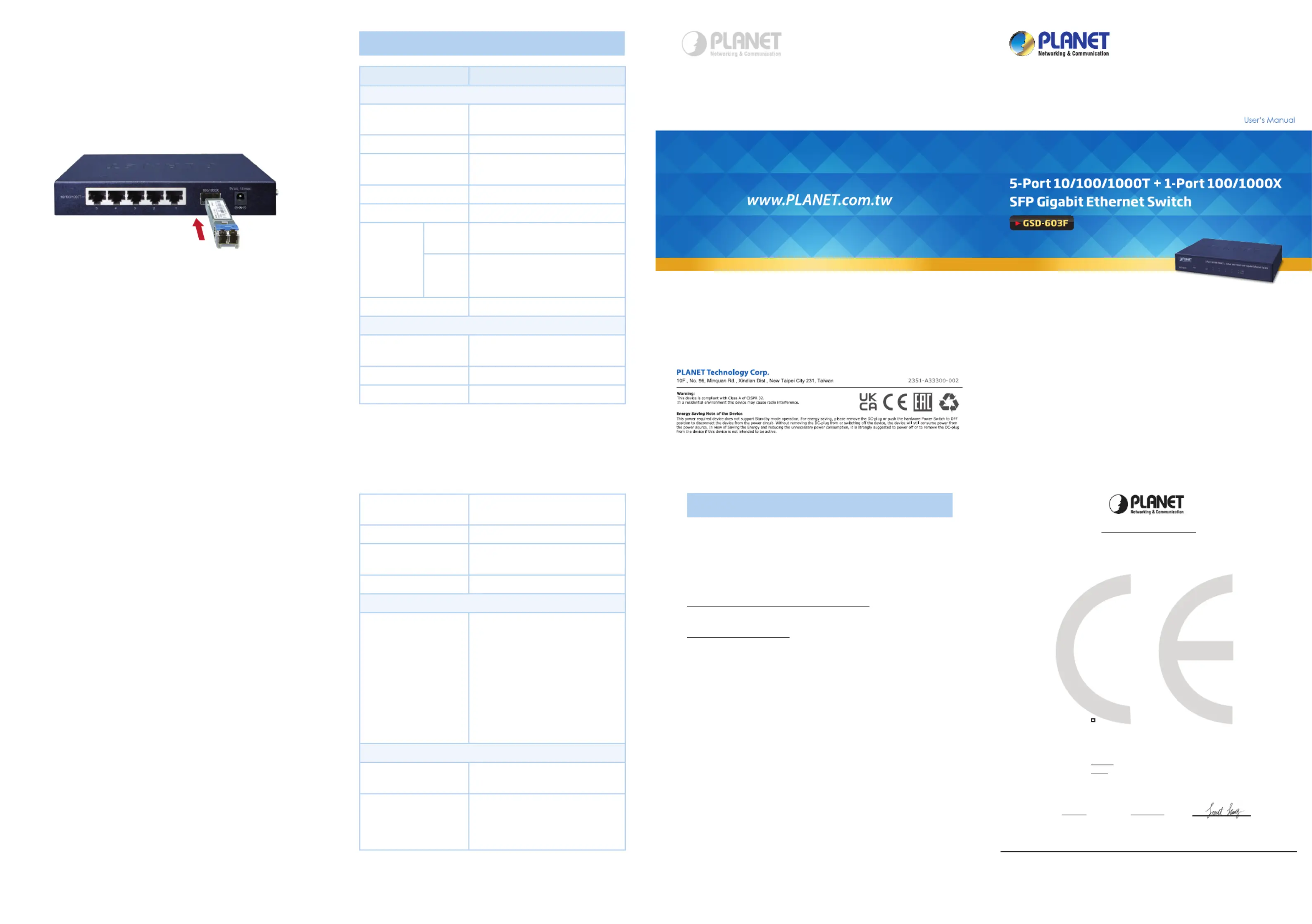

Installing SFP Module

The section describes how to insert an SFP transceiver into

an SFP slot.

The SFP transceivers are hot-pluggable and hot-swappable.

You can plug in and out the transceiver to and from the

SFP port without having to power down the Switch as

Figure 5-1 shows.

MFB/MGB-Series SFP Transceiver

Figure 5-1: Plug in the SFP transceiver

Before connecting the other switches, workstation or media

converter,

1. Make sure both sides of the SFP transceivers are the

same media type, for example, 100BASE-FX to 100BASE-

FX, 1000BASE-SX to 1000BASE-SX, 1000BASE-LX to

1000BASE-LX.

6.ProductSpecications

Product GSD-603F

HardwareSpecications

Ports

5 10/100/1000BASE-T RJ45 auto-

MDI/MDI-X ports

SFP/mini-GBIC Slot 1 100/1000BASE-X slot

Dimensions

(W x D x H)

162 x 102 x 28 mm

Weight 398g

Power Requirements DC 5V, 1A external power

Power

Consumption

System

Max. 0.6 watts/

2.04 BTU @ DC 5V

Ethernet

Full

Max. 4.1 watts/

13.99 BTU @ DC 5V

Enclosure Metal

SwitchSpecications

Switch Processing

Scheme

Store-and-Forward

Address Table 2K entries

SharedDataBuer 1.5Mbits

2.Check the ber-optic cable type that matches the SFP

transceiver model.

¾To connect to SFP transceiver, use the MFB-FX/MGB-SX

multi-mode ber cable with one side being the male

duplex LC connector type.

¾To connect to SFP transceiver, use MFB-F20/MGB-LX

the single-mode ber cable with one side being the

male duplex LC connector type.

Connecting Fiber Cable

1. Attach the duplex LC connector on the network cable to

the SFP transceiver.

2. Connect the other end of the cable to a device –

switcheswithSFPinstalled,berNIConaworkstationor

a media converter.

3. Check the LNK/ACT LED of the SFP slot of the Switch.

Ensure that the SFP transceiver is operating correctly.

4. Check the Link mode of the SFP port if the link failed.

Flow Control

Back pressure half duplex, IEEE

802.3x pause frame full duplex

Switch Fabric 12Gbps

Throughput

(packet per second)

8.9Mpps

Jumbo Packet Size 9K

Standards Conformance

Standards Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3u Fast Ethernet Fiber

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Fiber

Ethernet

IEEE802.3xFull-duplexow

control

IEEE802.3azEnergyEcient

Ethernet (EEE)

Environment

Temperature

Operating: 0~50 degrees C

Storage: -40~70 degrees C

Humidity

Operating: 10~90%

(non-condensing)

Storage: 5~90%

(non-condensing)

PLANET TECHNOLOGY CORPORATION

e-mail: sales@planet.com.tw http://www.planet.com.tw

10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2- - -2-2219 9518 Fax:886 2219 9528-

EC Declaration of Conformity

For the following equipment:

*Type of Product : 5-Port 10/100/1000T + 1-Port 1000X SFP Gigabit Ethernet Switch

*Model Number : -603FGSD

* Produced by:

Manufacturer‘s Name : Planet Technology Corp.

Manufacturer‘s Address : 10F., No.96, Minquan Rd., Xindian Dist.,

New Taipei City 231, ,Taiwan R.O.C.

is herewith confirmed to comply with the requirements set out in the Council Directive on the

Approximation of the Laws of the Member States relating to Electromagnetic Compatibility

Directive on 2014/30/EU; Low Voltage Directive 2014/35/EU.

For the evaluation regarding the EMC, the following standards were applied:

EN 55032 (2012+AC:2013)

EN 61000-3-2 (2014)

EN 61000-3-3 (2013)

EN 55024 (2010)

EN 60950-1 (2006+A11:2009+A1:2010+A12:2011+A2: 2013)

Responsible for marking this declaration if the:

Manufacturer Authorized representative established within the EU

Authorized representative established within the EU (if applicable):

Company Name: Planet Technology Corp.

Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan,

R.O.C.

Person responsible for making this declaration

Name, Surname Kent Kang

Position / Title : Director

Taiwan

Aug. 9, 2017

Place

Date

Legal Signature

7. Customer Support

Thank you for purchasing PLANET products. You can browse

our online FAQ resource on PLANET web site rst to check

if it could solve your issue. If you need more support

information, please contact PLANET switch support team.

PLANET online FAQs:

http://www.planet.com.tw/en/support/faq

Switch support team mail address

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.
