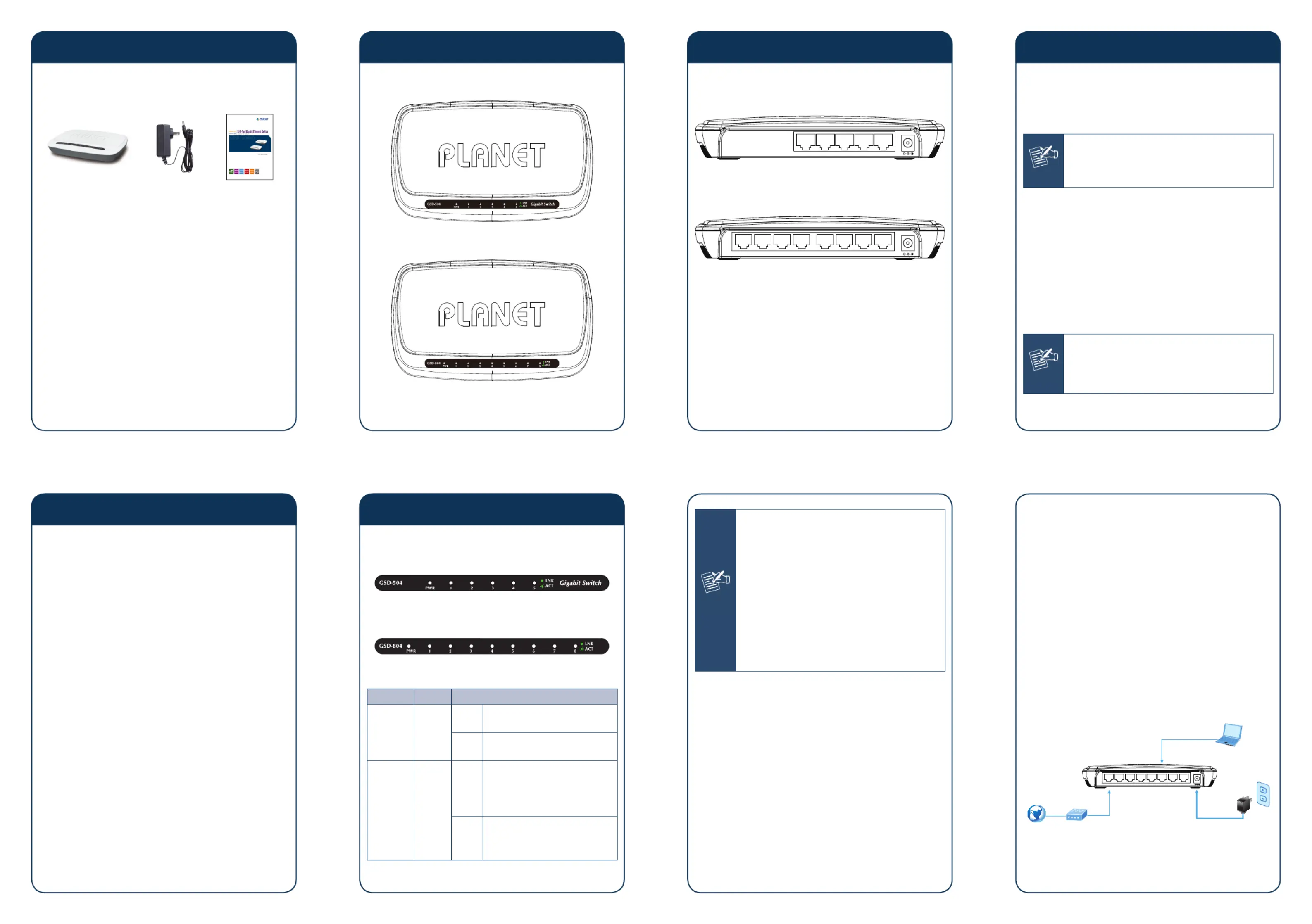

Side 1/2
- 1 -
- 2 -
- 3 -
- 4 -
- 5 -
- 6 -
- 7 -
- 8 -
6. Installing the Switch
This part describes how to install your Gigabit Ethernet
Switch and make connections to it. Please read the
following topics and perform the procedures in the order
being presented.
Note
This Switch does not need software configu not need software configu
Desktop Installation
To install the Switch on desktop, simply follow the next
steps:
Step 1: Place the Switch on desktop near an AC power
source.
Step 2: Keep enough ventilation space between the
Switch and the surrounding objects.
Note
When choosing a location, please keep in
mind the environmental restrictions dis
cussed in Chapter 7. Product Specifications.
1. Package Contents
Check the contents of your package for following parts:
Gigabit Ethernet
Switch x 1
DC 5V
1A Power
A x 1dapter
Users
Manual x 1
If any of these are missing or damaged, please contact
your dealer immediately, if possible, retain the carton
including the original packing material, and use them
against to repack the product in case there is a need to
return it to us for repair.
3. Switch Top Panel
Figure 1 & 2 shows a Top panel of 3 3 GSD504 /
GSD804.
Figure 3-1: GSD-504 Top panel
Figure 3-2: GSD-804 Top panel
5. Switch Rear Panel
Figure 51 & 52 shows a rear panel of GSD504 /
GSD804.
135 4 2
Figure 5-1: GSD-504 rear panel
1357 468 2
Figure 5-2: GSD-804 rear panel
2. Product Features
Comply with IEEE 802.3, 10BaseT, IEEE 802.3u
100BaseTX, IEEE 802.3ab 1000BaseT
Power Saving ability for Green networking
5/8Port 10/100/1000Mbps Gigabit Ethernet ports
Features StoreandForward mode with wirespeed
ltering and forwarding rates
Hardware based 10/100Mbps, Half / Full Duplex and
1000Mbps Full Duplex mode, Flow Control and Auto
negotiation
IEEE 802.3x Flow Control for Full Duplex operation
and Back pressure for Half Duplex operation
Integrated address lookup engine, support 8K
absolute MAC addresses
Automatic Address Learning and Address Aging
9K Jumbo packet size
Supports Auto MDI/MDIX function
Support CSMA/CD protocol
FCC, CE class B compliant
4. LED Indicators
Figure 41 & 42 shows a LED panel of GSD504 /
GSD804.
Figure 4-1: GSD-504 LED panel
Figure 4-2: GSD-804 LED panel
LED Color Function
PWR Green
Light
Indicate that the Switch is
Powered ON.
OFF
Indicate that the Switch is
Powered OFF.
Link/ACT Green
Light
Indicates the link
through that port is
successfully established at
10/100/1000Mbps.
Blink
Indicates the Switch is
actively sending or receiving
data over that port.
Step 3: Connect your Switch to network devices.
A. Connect one end of a standard network
cable to the 10/100/1000 RJ45 ports on
the rear panel of the Switch.
B. Connect the other end of the cable to the
network devices such as printer servers,
workstations or routersetc.
Step 4: Supply power to the witchS .
A. Connect one end of the power cable to the
Switch.
B. Connect the 5V DC power adapter to a
standard wall outlet.
When the Switch receives power, the Power LED should
remain solid Green.
PC/Laptop
xDSL/Cable Router
Internet
Power Adapter
RJ-45
RJ-45
Power
001101010
1357 468 2
Power
Notice
1. The device is a powerrequired device, it
means, it will not work till it is powered.
If your networks should active all the
time, please consider using UPS (Uninter
rupted Power Supply) for your device. It
will prevent you from network data loss
or network downtime.
2. In some area, installing a surge suppres
sion device may also help to protect your
Switch from being damaged by unregu
lated surge or current to the Switch or
the power adapter.
- 9 -
- 10 -
- 11 -
7. Product Specications
Product GSD-504 GSD-804
Hardware Specication
10/100/1000BaseT
Ports
5 Auto MDI/
MDIX ports
8 Auto MDI/
MDIX ports
Enclosure Plastic
Dimensions (mm) 168 x 100 x 29
Weight (g) 150 180
Power Requirement
(External power adapter)
DC 5V, 1A
Power Consumption
(100M Full operating)
3.1 Watts /
10 BTU
4.3 Watts /
14 BTU
Switch Specication
Switch Processing
Scheme
StoreandForward
Address Table 8K entries
Flow Control
Back pressure Half Duplex,
IEEE 802.3x Pause Frame
Full Duplex
Switch fabric 10Gbps 16Gbps
Throughput
(packet per second)
7.44Mpps 11.9Mpps
Jumbo packet size 9K
8. Cu tomer Supports
Thank you for purchase PLANET products. You can
browse our online FAQ resource at the PLANET Website
rst to check if it could solve you issue. If you need
more support information, please contact PLANET switch
support team.
PLANET online FAQ :
http://www.planet.com.tw/en/support/faq.php?type=1
Switch support team mail address :
support_switch@planet.com.tw
Copyright © PLANET Technology Corp. 2012.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.
Standards Conformance
Standards Compliance
IEEE 802.3 (Ethernet)
IEEE 802.3u
(Fast Ethernet)
IEEE 802.3ab
(Gigabit Ethernet)
IEEE 802.3x
(Fullduplex Flow Control)
Temperature
Operating: 0~50 Degree C
Storage: 20~70 Degree C
Humidity Operating
Operating: 5% to 90%,
Storage: 5% to 90%
(Noncondensing)
Regulation Compliance FCC Part 15 Class B, CE
EC Declaration of Conformity
For the following equipment:
*Type of Product: 5 / 8 -Port 10/100/1000Mbps Gigabit Ethernet Switch , Plastic
*Model Number: GSD-504, GSD-804
* Produced by:
Manufacturers Name : Planet Technology Corp.
Manufacturers Address: 10F., No.96, Minquan Rd., Xindian Dist.,
New Taipei City 231, Taiwan (R.O.C.).
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic Compatibility
Directive on (2004/108/EC).
For the evaluation regarding the EMC, the following standards were applied:
EN 55022 (CLASS B: 2006 + A1:2007)
EN 61000-3-2 (2006 + A2: 2009)
EN 61000-3-3 (2008)
EN 55024 (1998 + A1: 2001 + A2:2003)
IEC 61000-4-2 (2008)
IEC 61000-4-3 (2006 + A1: 2007 + A2:2010)
IEC 61000-4-4 (2004 + A1: 2010)
IEC 61000-4-5 (2005)
IEC 61000-4-6 (2008)
IEC 61000-4-8 (2009)
IEC 61000-4-11 (2004)
Responsible for marking this declaration if the:
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan
(R.O.C.)
Person responsible for making this declaration
Name, Surname Kent Kang
Position / Title : Product Manager
Taiwan
12, March, 2012
Place Date Legal Signature
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528


Produkt Specifikationer

Mærke: Planet
Kategori: bryter
Model: GSD-804
Bredde: 168 mm
Dybde: 100 mm
Højde: 29 mm
Vægt: 175 g
Produktfarve: Grey, White
Opbevaringstemperatur (T-T): -10 - 70 °C
Relativ luftfugtighed ved drift (H-H): 5 - 95 %
Relativ luftfugtighed ved opbevaring (H-H): 5 - 95 %
Strømforbrug (typisk): 3.4 W
Driftstemperatur (T-T): 0 - 50 °C
Husmateriale: Plast
Certificering: FCC , CE
Netværksstandarder: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
LED-indikatorer: Ja
Kan monteres på væggen: Ja
Udgangsspænding: 5 V
Udgangsstrøm: 1 A
AC-adapter inkluderet: Ja
Harmoniseret systemkode (HS): 85176990
DC indgangsspænding: 5 V
Plug and play: Ja
Indgangsstrøm: 1 A
Fuld duplex: Ja
Strøm over Ethernet (PoE): Ingen
10G understøttelse: Ingen
Auto MDI/MDI-X: Ja
Flowkontrol support: Ja
Kobber ethernet kabelteknologi: 10BASE-T, 100BASE-TX, 1000BASE-T
Basis omskiftning RJ-45 Ethernet porte, antal: 8
Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000)
Opbevar-og-frem: Ja
MAC adresselabel: 4000 entries
Switch kapacitet: 16 Gbit/sek.
Gennnemløb: 11.9 Mpps
Jumbo Frames support: Ja
Jumbo rammer: 9000
Stativ-montering: Ingen
Varmeafgivelse: 13 BUT/t
Gigabit Ethernet (kobber) porte, antal: 8
Strømforsyning inkluderet: Ingen
Halv dupleks: Ja
MAC-adresse auto-indlæring understøttet: Ja
MAC-adresse auto-forældelse understøttet: Ja
Stabelbar: Ingen
Auto-forhandling: Ja
Understøttede kabeltyper: Cat5, Cat5e, Cat6
