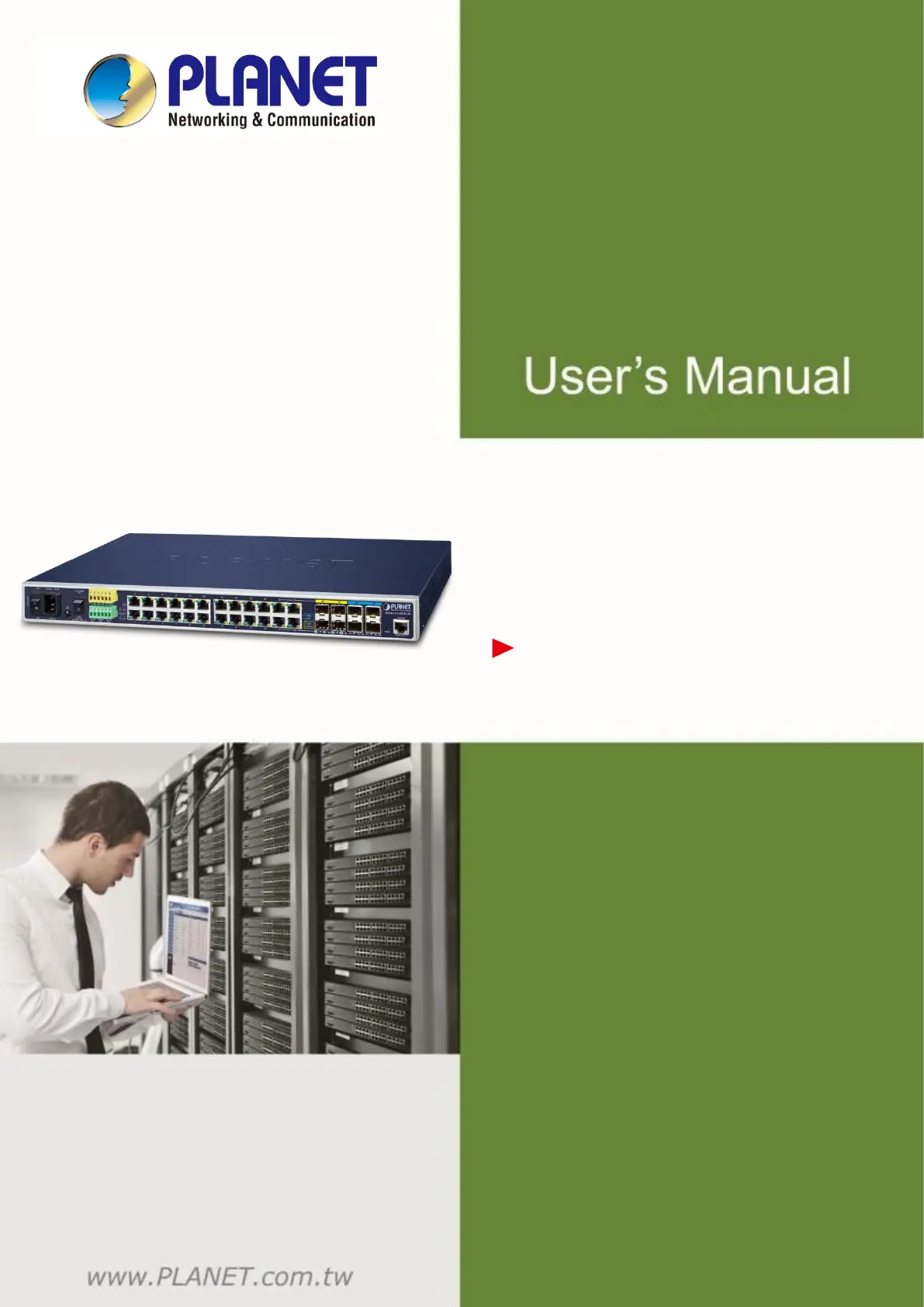

User’s Manual of IGS-6325 Series

L3 Industrial Managed

Ethernet Switch

IGS-6325 Rack-mount Series

User’s Manual of IGS-6325 Series

Trademarks

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no

warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for

a particular purpose. PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability

for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of PLANET.

PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes no

commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to

this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and

suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

CE Mark Warning

This device is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy saving, please remove the power cable to

disconnect the device from the power circuit. In view of saving the energy and reducing the unnecessary power consumption, it

is strongly suggested to remove the power connection for the device if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous

substances in electrical and electronic equipment, end users of electrical and electronic equipment should

understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal

waste and have to collect such WEEE separately.

Revision

User's Manual of PLANET Industrial L3 Managed Switch

FOR MODELS: IGS-6325-20T4C4X, IGS-6325-20S4C4X, IGS-6325-24P4X, IGS-6325-24P4S and IGS-6325-24UP4X

REVISION: 1.3 (Aug., 2023)

Part No: EM-IGS-6325 Series_v1.3

Produkt Specifikationer

Mærke:	Planet
Kategori:	bryter
Model:	IGS-6325-20S4C4X
Kode for international beskyttelse (IP):	IP30
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	440 mm
Dybde:	200 mm
Højde:	44.5 mm
Vægt:	2935 g
Produktfarve:	Blå
Formfaktor:	1U
Opbevaringstemperatur (T-T):	-40 - 80 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Driftstemperatur (T-T):	-10 - 60 °C
Sikkerhedsalgoritmer:	SNMP
Certificering:	FCC Part 15 Class A, CE
Strømforbrug (maks.):	41.4 W
Netværksstandarder:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Webbaseret administration:	Ja
Knap til nulstilling:	Ja
Servicekvalitet support (QoS):	Ja
LED-indikatorer:	Activity, Link, Power, Ring, System
DC indgangsspænding:	36 - 60 V
Indgangsstrøm:	1/2.25 A
Fiber optisk strømstik:	SFP, SFP+
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ingen
Switch-type:	Administreret
Switch lag:	L3
10G understøttelse:	Ja
Spanning tree protokol:	Ja
Auto MDI/MDI-X:	Ja
VLAN understøttelse:	Ja
Flowkontrol support:	Ja
Port-spejlning:	Ja
Antal VLAN'er:	4096
Link aggregering:	Ja
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-T
Vituelle LAN funktioner:	MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Basis omskiftning RJ-45 Ethernet porte, antal:	4
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
Port til konsol:	RJ-45
IGMP snooping:	Ja
BPDU filtrering/beskyttelse:	Ja
Adgangskontrolliste (ACL):	Ja
Loop beskyttelse:	Ja
Fiber ethernet kabelteknologi:	100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
Opbevar-og-frem:	Ja
MAC adresselabel:	16000 entries
Switch kapacitet:	158 Gbit/sek.
Gennnemløb:	117.5 Mpps
Jumbo Frames support:	Ja
Jumbo rammer:	10000
Stativ-montering:	Ja
Varmeafgivelse:	142 BUT/t
Multicast-understøttelse:	Ja
Trafik klassificering:	Ja
Antal SFP modulslots:	24
MAC-adresse auto-indlæring understøttet:	Ja
MAC-adresse auto-forældelse understøttet:	Ja
Auto-forhandling:	Ja
DHCP funktioner:	DHCP relay, DHCP server
Pakke bufferlager:	32 MB
Fiberkanal porte:	28
IP-routing:	Ja
Antal SFP + modulslots:	4
MIB support:	RFC 1213, 1493, 1643, 2863, 2665, 2819, 2737, 2618, 2863, 2933, 3411, 4292, 4293, 4836
Routing-protokoller:	OSPF
GARP VLAN registreringsprotokol (GVRP):	Ja
Routing indtastninger:	128
Algoritmer for køplanlægning:	WRR+SP
