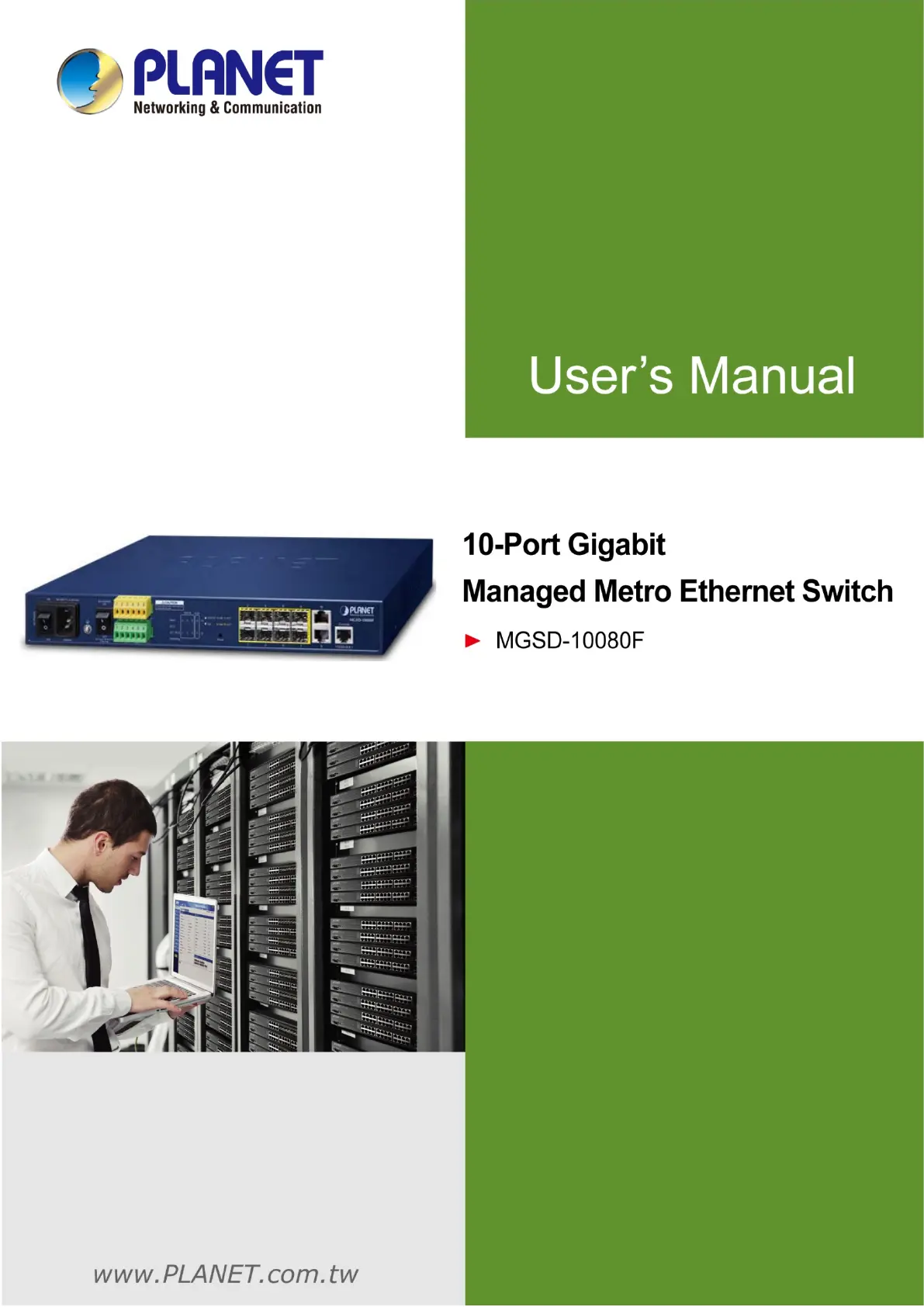

User’s Manual of MGSD-10080F

Trademarks

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no

warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for

a particular purpose. PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability

for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of

PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes

no commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to

this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and

suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

CE Mark Warning

This device is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy savings, please remove the power cable to

disconnect the device from the power circuit. Without removing the power cable, the device will still consume power from the

power source. In view of Saving the Energy and reducing the unnecessary power consumption, it is strongly suggested to

remove the power cable from the device if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of

hazardous substances in electrical and electronic equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of

WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

User's Manual of PLANET L2+ Metro Ethernet Switch

FOR MODEL: MGSD-10080F

REVISION:2.0 (November, 2021)

Part No: EM- MGSD-10080F_v2.0

Produkt Specifikationer

Mærke:	Planet
Kategori:	bryter
Model:	MGSD-10080F
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	330 mm
Dybde:	155 mm
Højde:	43.5 mm
Vægt:	1661 g
Produktfarve:	Blå
Formfaktor:	1U
Opbevaringstemperatur (T-T):	-10 - 70 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Driftstemperatur (T-T):	-10 - 60 °C
Sikkerhedsalgoritmer:	SNMP, SSH, SSL/TLS
Certificering:	FCC, CE
Strømforbrug (maks.):	11.2 W
Netværksstandarder:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Understøttede netværksprotokoller:	IPv4 / IPv6
Webbaseret administration:	Ja
Knap til nulstilling:	Ja
Servicekvalitet support (QoS):	Ja
LED-indikatorer:	Ja
Harmoniseret systemkode (HS):	85176990
Indgangsstrøm:	0.15 A
Firmware kan opgraderes:	Ja
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ingen
Switch-type:	Administreret
ARP inspektion:	Ja
System hændelseslog:	Ja
Switch lag:	L2+
10G understøttelse:	Ingen
Spanning tree protokol:	Ja
Auto MDI/MDI-X:	Ja
VLAN understøttelse:	Ja
Flowkontrol support:	Ja
Port-spejlning:	Ja
Antal VLAN'er:	4094
Link aggregering:	Ja
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX
Broadcast stormkontrol:	Ja
Vituelle LAN funktioner:	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Port til konsol:	RJ-45
IGMP snooping:	Ja
BPDU filtrering/beskyttelse:	Ja
Adgangskontrolliste (ACL):	Ja
Godkendelse:	Portbaseret godkendelse
Loop beskyttelse:	Ja
Administrationsprotokoller:	web, telnet, SNMP
Fiber ethernet kabelteknologi:	1000BASE‑LX, 1000BASE‑SX
Opbevar-og-frem:	Ja
MAC adresselabel:	8000 entries
Switch kapacitet:	20 Gbit/sek.
Gennnemløb:	14.8 Mpps
Antal køer:	8
Jumbo Frames support:	Ja
Jumbo rammer:	9216
Stativ-montering:	Ja
Multicast-understøttelse:	Ja
Trafik klassificering:	Ja
Antal SFP modulslots:	8
Gigabit Ethernet (kobber) porte, antal:	2
Begrænsning af hastighed:	Ja
Strømforsyning inkluderet:	Ingen
MAC-adresse auto-indlæring understøttet:	Ja
MAC-adresse auto-forældelse understøttet:	Ja
Stabelbar:	Ja
DIN-skinne montering:	Ingen
Auto-forhandling:	Ja
Redundant strømforsyning:	Ja
SSH/SSL support:	Ja
