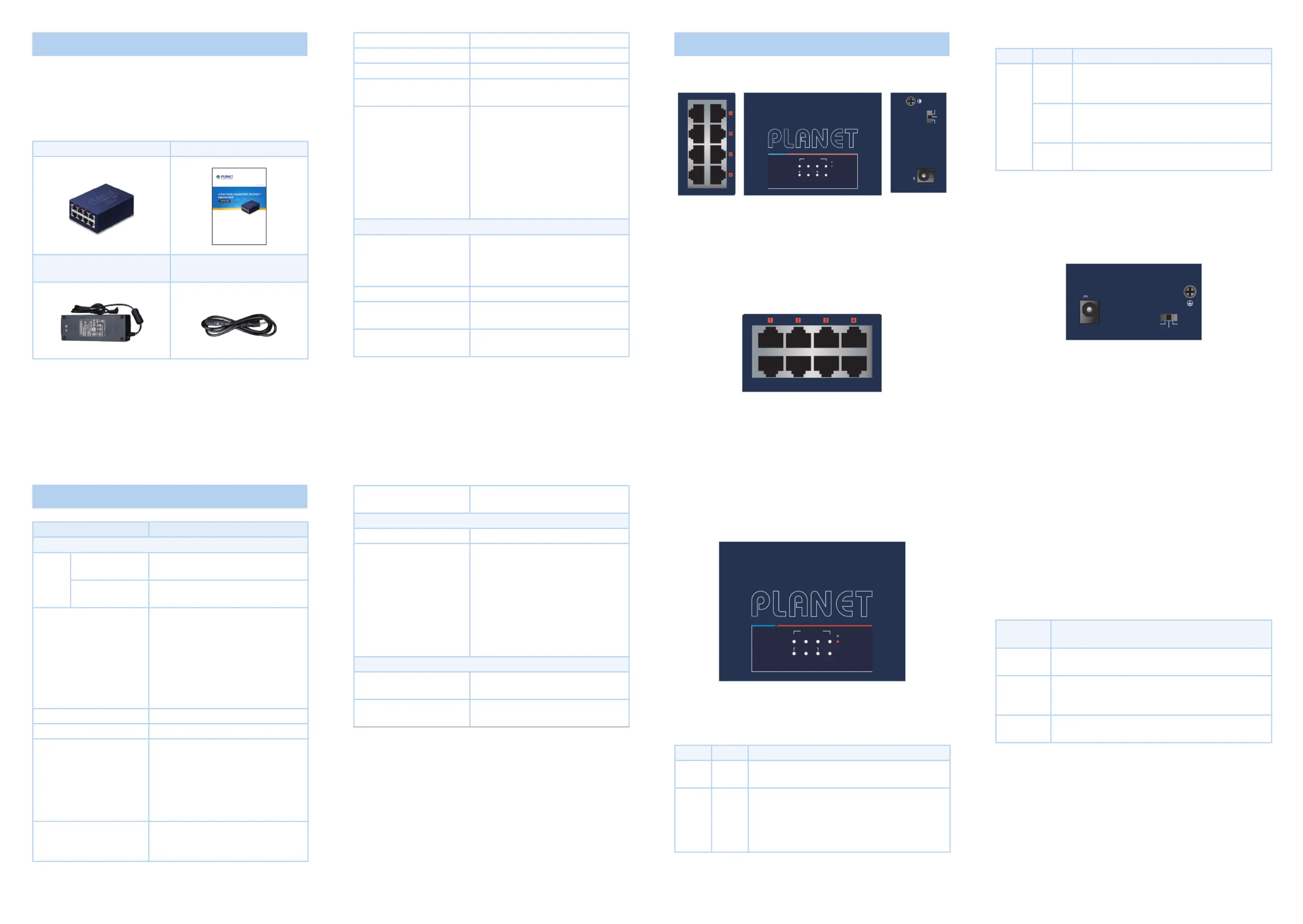

1. Package Contents

Thank you for purchasing PLANET 4-Port Multi-Gigabit 802.3bt

PoE++ Injector Hub, UPOE-400. In the following sections, the

term “PoE++ Injector Hub” means the UPOE-400.

Open the box of the PoE++ Injector Hub and carefully unpack

it. The box should contain the following items:

PoE++ Injector Hub x 1 User’s Manual x 1

54V/180W, 3.33A,

Switch Adapter x 1

AC Power Cord x 1

If any of these pieces are missing or damaged, please contact

your dealer immediately; if possible, retain the carton including

the original packing material, and use them again to repack

the product in case there is a need to return it to us for repair.

Dimensions (W x D x H) 94 x 70.3 x 39.2mm

Weight 275g

Enclosure Metal case

Installation

Wall-mount and DIN-rail kit

(optional)

Network Cable

Twisted-pair cable up to 100

meters (328ft)

10BASE-T: 4-pair UTP Cat. 3, 4,

5, 5e, 6

100BASE-TX: 4-pair UTP Cat. 5,

5e, 6

1000BASE-T: 4-pair UTP Cat. 5e, 6

2.5G/5GBASE-T: 4-pair UTP Cat.6,

6A, 7

Power over Ethernet

PoE Standard

IEEE 802.3bt PoE++, 4-pair type

4 PSE

IEEE 802.3at PoE+, 2-pair type

2 PSE

PoE Power Supply Type End-span + Mid-span

Power Pin Assignment

End-span: 1/2 (-), 3/6 (+);

Mid-span: 4/5 (+), 7/8 (-)

PoE Power Budget

(max.)

160 watts

 802.3bt PoE++ TP Interface LEDs

LED Color Function

PoE-

in-Use

Green

Lights to indicate that the port is providing

802.3bt PoE++/PoH/Force power to remote

powered device.

Amber

Lights to indicate that the port is providing

802.3af/at PoE+ power to remote powered

device.

O

To indicate that the port is not providing

PoE power to remote powered device.

3.4 Right Panel

The right panel of the PoE++ Injector Hub consists of one DC

power jack, one DIP switch for “802.3bt”, “PoH + Legacy”

and “Force” modes selection, and one ground screw.

DC Input Range:

52-54V , 3 .4A max.

802.3bt

Force

PoH + Legacy

Figure 3-4: UPOE-400 Right Panel View

3. Hardware Introduction

3.1 Product Outlook

1 2 3 4

DATA PoE

1 2 3 4

DC Input Range:

52-5 4V , 3.4A m ax.

802.3bt Force

PoH + Legacy

1234

PoE-in-Use

50W 100W 160W

PWR

PoE Usage

802.3bt/PoH

802.3at/af

Figure 3-1: UPOE-400 Product Outlook View

3.2 Left Panel

The left panel of the PoE++ Injector Hub consists of four

“Data” input ports and four “Data + Power” output ports

within 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps operation speed

support.

1234

DATA PoE++

1234

Figure 3-2: UPOE-400 Left Panel View

2.ProductSpecications

Model UPOE-400

Hardware Specications

Copper

Ports

“Data” Input

Ports

4 x RJ45

“Data + Power”

Output Ports

4 x RJ45

LED Indicator

System:

Power (Green)

PoE-in-Use:

802.3bt/PoH (Green)

802.3at/af (Orange)

PoE Usage:

50W/100W/160W (Amber)

Data Rate 10/100/1000/2500/5000Mbps

Power Requirements DC 52~54V

Power Consumption

(Ethernet Full Loading)

System ON without loading

AC 110V: 0.4watts/1.3BTU

AC 220V: 0.3watts/1BTU

Full loading with PoE

AC 110V: 242watts/825BTU

AC 220V: 236watts/805BTU

DIP Switch Mode and Per

Port PoE Output

 802.3bt: 90W PoE Output

 PoH + Legacy: 95W PoE Output

 Force: 60W PoE Output

Number of devices that

can be powered

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3bz 2.5G/5GBASE-T

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet

Plus

IEEE 802.3bt Power over Ethernet

Plus Plus

Environment

Temperature

Operating: 0~50 degrees C

Storage: -10~70 degrees C

Humidity

(Non-condensing)

Operating: 5~95%

Storage: 5~95%

3.3 Front Panel

The front panel of the PoE++ Injector Hub consists of one

power LED, four LEDs and three “PoE-in-Use” “PoE Usage”

LEDs.

1 2 3 4

PoE-in-Use

50W 100W 160W

PWR

PoE Usage

802.3bt/PoH

802.3at/af

Figure 3-3: UPOE-400 Front Panel View

 System LEDs

LED Color Function

PWR Green

Lights to indicate PoE++ Injector Hub has

power.

PoE

Usage

Amber

50W, 100W, 160W

Lights to indicate the system consumes over

50-/100-/160-watt PoE power budget.

Blinks to indicate the system consumes less

50-/100-/160-watt PoE power budget.

Power Information

The power jack of PoE++ Injector Hub measures 2.1mm in the

central post and requires +52-54V DC power input.

DIP Switch Information

To meet the demand of various powered devices consuming

stable PoE power, the PoE++ Injector Hub provides one DIP

switch for three PoE operation mode options as shown in the

following table.

DIP Switch

Mode

Function

802.3bt

(Default)

This mode makes the PoE++ Injector Hub

operate as 90-watt 802.3bt PoE++ type 4 PSE.

PoH +

Legacy

This mode makes the PoE++ Injector Hub

operate as 95-watt PoH (Power over HD-BASE-T)

PSE with Legacy function.

Force

This mode makes the PoE++ Injector Hub

operate as 4-pair 60-watt force PoE PSE.

- 9 -

- 10 -

- 11 -

- 12 - - 13 -

Caution

1. Power o the PoE++ injector Hub before

adjusting the DIP switch and then power it on.

2. Before connecting the “Data + Power” output port

to powered device (PD), make sure that it accepts

PoE input via DIP switch setting to prevent

damage.

3. The legacy detection is to identify the PD devices

that do not fully follow the IEEE 802.3af/at/bt

standard and their unique electrical signatures to

enable the PoE injector to provide the power to

those PD devices.

4. Before connecting the PoE++ injector Hub to your

powered device (PD), please check to ensure that

your powered device (PD) can accept 60-watt

PoE power through pin 1/2 (-) & 3/6 (+) and pin

4/5 (+) & 7/8 (-). Otherwise, it will damage your

powered device (PD).

4. Installation

For the places hard to nd the power inlet, the PoE++ Injector

Hub and IEEE 802.3bt PoE++ Splitter (POE-173S) provide the

easiest way to power your Ethernet devices such as PoE PTZ

speed dome cameras on the ceiling and wireless access point

installed on the top of the building. The PoE++ Injector Hub

supports full DC 52V~54V power for any remote IEEE 802.3bt/

at PD.

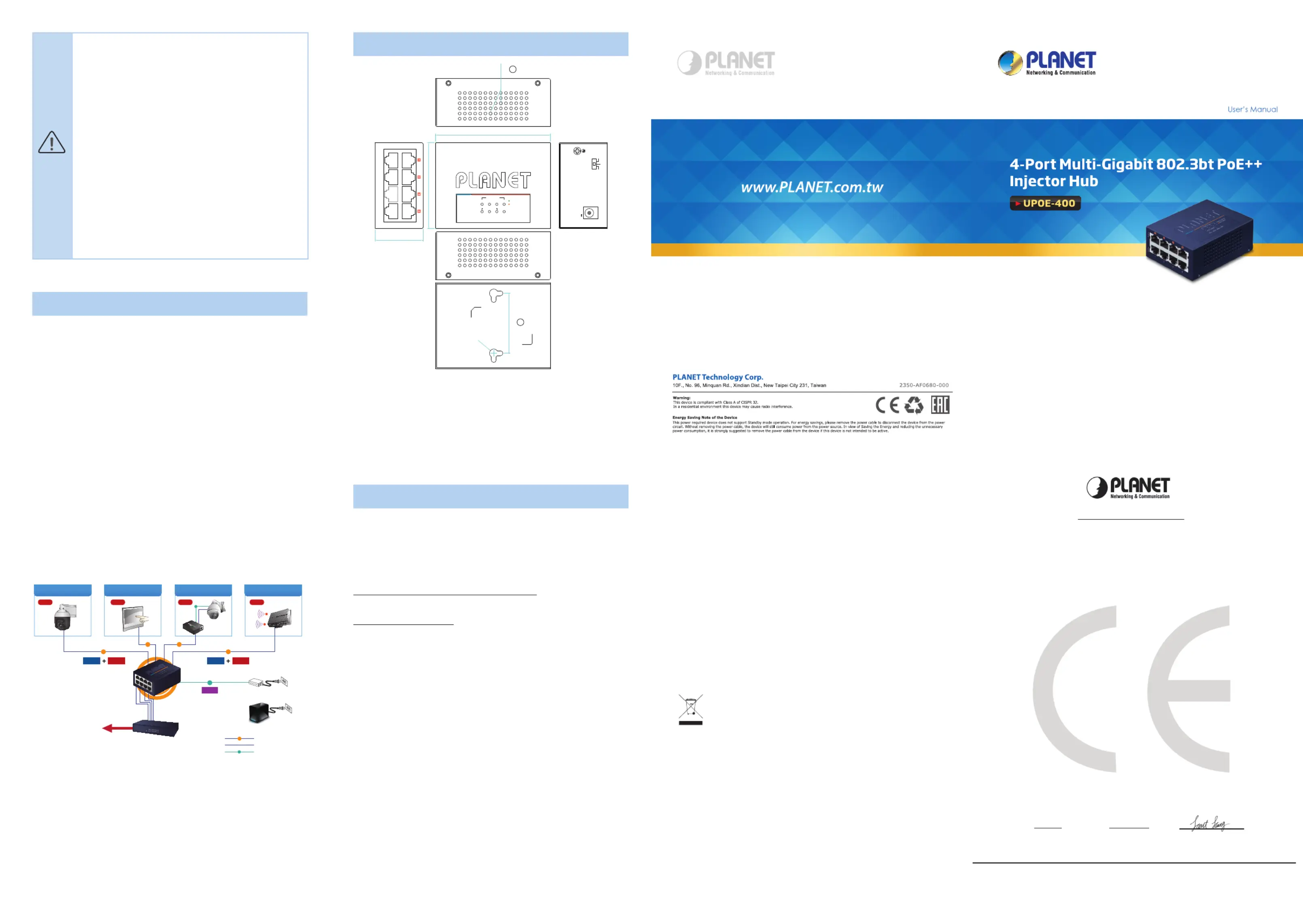

5. Three-View Diagram

49.00

Ø7.00

70.30

94.00

39.20

M3-2

1 2 3 4

DATA PoE

1 2 3 4

DC Input Range:

52-5 4V , 3.4A ma x.

802.3bt Force

PoH + Legacy

1234

PoE-in-Use

50W 100W 160W

PWR

PoE Usage

802.3bt/PoH

802.3at/af

Unit: mm

Figure 5-1: UPOE-400 Three-View Diagram

A: The distance between two wall mounting holes.

B: The holes for option DIN-Rail Kit mounting (RKE-DIN).

The PoE++ Injector Hub is installed between a regular Ethernet

Switch and the PDs. As the PoE++ Injector Hub adopts the

IEEE 802.bt PoE++ standard and PoH technology, it is capable

to source up to 95 watts of power by using all the four pairs

of standard Cat5e/6/6A/7 Ethernet cabling to deliver power

and 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps full-speed data to

a remote 802.3bt/at PoE compliant PD over a distance of 100

meters.

802.3at PoE Multi-Channel /

High Power Wireless AP

60-watt Ultra PoE Splitter+

Non-PoE Device

Multi-Gigabit 802.3bt PoE++ Injector Hub

Gigabit Switch

UPOE-400

PoE PoE

Power

Data

Power

Data

Power Line (DC)

1000BASE-T UTP

PoE

1000BASE-T UTP with PoE

30W

Thin Client

95W

60W

Ultra PoE

Splitter

60-watt

802.3bt PoE++ IP Camera

60W

Heater

Power

DC Input

UPS

AC-to-DC Adapter

110-240V AC

Data Uplink

6. Customer Support

Thank you for purchasing PLANET products. You can browse

our online FAQ resource on PLANET web site rst to check if it

could solve your issue. If you need more support information,

please contact PLANET support team.

PLANET online FAQs:

qhttp://www.planet.com.tw/en/support/faq

Support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

FCC Warning

This device has been tested and found to comply with

the limits for a Class A digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

Instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense.

WEEE Warning

To avoid the potential eects on the environment and

human health as a result of the presence of

hazardous substances in electrical and electronic

equipment, end users of electrical and electronic

equipment should understand the meaning of the crossed-out

wheeled bin symbol. Do not dispose of WEEE as unsorted

municipal waste and have to collect such WEEE separately.

PLANET TECHNOLOGY CORPORATION

e-mail: sales@planet.com.tw http://www.planet.com.tw

10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2- - -2-2219 9518 Fax:886 2219 9528-

EC Declaration of Conformity

I hereby confirm that the following equipment complies with the requirements set out in the

Council Directive on the Approximation of the Laws of the Member States relating to

Electromagnetic Compatibility Directive on (2014/30 U/E ).

Type of Product:

4- -Port Multi Gigabit 802.3bt PoE++ Injector Hub

Models:

UPOE-400

Produced by:

Manufacturer’s Name: Planet Technology Corporation

Manufacturer’s Address: 10F., No.96, Minquan Rd., Xindian Dist.,

New Taipei City 231, Taiwan, R.O.C.

For the evaluation regarding the EMC, the following standards were applied:

EN 55032 (2015 + AC:2016)

EN 55024 (2010 1 5) + A :201

EN 61000-3-2 (2014)

EN 61000-3-3 (2013)

EN 55035 (2017)

Person responsible for making this declaration

Name: Kent Kang

Title: Director

Taiwan

Aug. 10, 2020

Country

Date

Legal Signature

Produkt Specifikationer

Mærke:	Planet
Kategori:	Wifi antenne
Model:	UPOE-400
Bredde:	94 mm
Dybde:	70.3 mm
Højde:	39.2 mm
Vægt:	275 g
Produktfarve:	Blå
Opbevaringstemperatur (T-T):	5 - 95 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Ethernet LAN-porte (RJ-45):	8
Driftstemperatur (T-T):	0 - 50 °C
Ethernet LAN-datahastigheder:	10,100,1000,2500,5000 Mbit/s
Certificering:	FCC 15 B, CE
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u
LED-indikatorer:	Ja
Kan monteres på væggen:	Ja
Harmoniseret systemkode (HS):	85176990
Strøm over Ethernet (PoE):	Ja
Ethernet-grænsefladetype:	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Antal produkter inkluderet:	1 stk
Total Power over Ethernet (PoE):	160 W
Basis omskiftning RJ-45 Ethernet porte, antal:	8
Basis omskiftning RJ-45 Ethernet porttype:	Fast Ethernet (10/100)
DIN-skinne montering:	Ja
Power over Ethernet (PoE) spænding:	54 V
