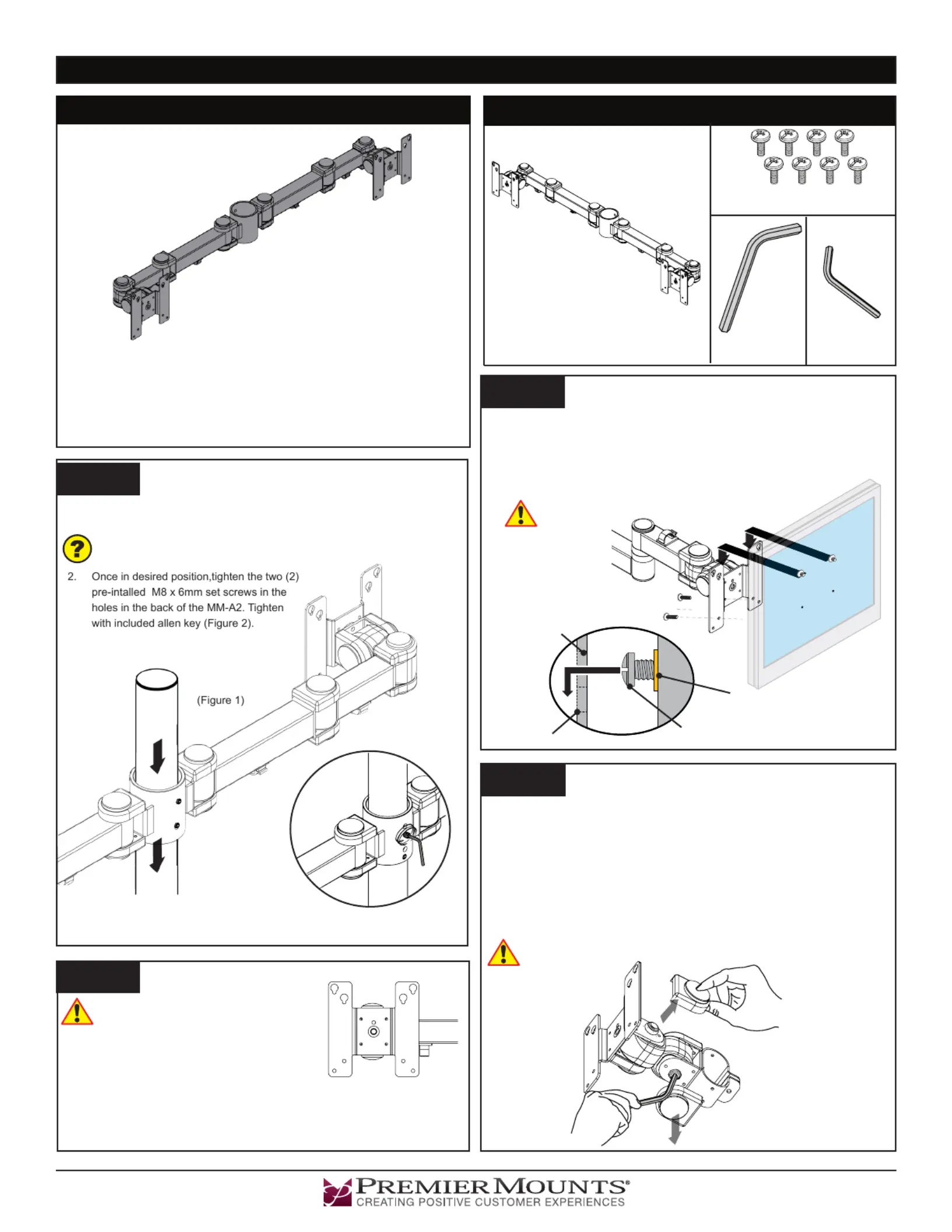

Page 1 Installation Instructions
Installation Instructions
9531-000-021-00
Parts List
MM-A2
Dual Articulating Mounting Arm
(Qty 1)
The MM-A2 is a dual articulating multimonitor mount arm that works
with any 2” tube. Each mounting head provides 90° of omnidirectional
tilt. The mounting heads include both 75x75mm and 100x100mm
VESA mounting patterns. The arm includes integrated cable
management tabs to keep wires and cables protected and organized.
Step 1
1. Slide your mounting arm over the pole and base (Figure 1)
(not included, but should be previously installed).
Determine the position on the pole desired for your mounting arm.
Step 2
M4 x 10mm Combo Screws
(Qty 8)
Introduction
MM-A2
5/32” Allen Key
(Qty 1)
(Figure 3)
Are you installing to a 75x75mm or
100x100mm VESA moutning pattern?
For 75x75mm, use mounting points A. For
100x100mm use points B in gure 3.
1) Thread the M4 screws to one-half of their
length into the top two mounting holes on
each display, but do not tighten the M4
screws at this time.
Step 3
(Figure 2)
A A
A A
B B
B B
Thread Insert in Flat
Panel or Adapter Plate
M4 Screw Partially
Threaded Into Flat Panel
Keyhole Slot
MM-A2 Mount
1) Insert the heads of the M4 screws through the keyhole slots on the
mounting head (Figure 5).
2) Insert the remaining two (2) M4x10mm screws, into the bottom mounting
points (Figure 4)
3) Repeat sub-steps 1 & 2 for the second display.
4) Tighten all M4 screws.
Do not overtighten the mounting hardware
Figure 4
Figure 5
6mm Allen Key
(Qty 1)
Step 3
To adjust the tension and/or tilt angle of the mounting head:
1) Adjust the mounting head by utilizing the 90 continuous tilt, until it is in the °
desired position.
2) Remove the side and bottom cosmetic caps from the mounting
head (Figure 6)
3) Use the supplied 6mm allen wrench to tighten the allen screws on the
head.
4) The side 6mm screw secures the tilt position (Point A), while the bottom
6mm screw secures the pivot (Point B).
Do not overtighten the mounting hardware
A
B
(Figure 6)
Bottom View
3100 E. Miraloma Avenue, Anaheim, CA 92806 | 800.368.9700 USA | F 800.832.4888 | ww w.mounts.com
Unit 3, The Moorings Business Park, Channel Way | Longford, Conventry, CV6 6RH, UK | +44 (0) 2476 644105 | F +44 (0) 2476 644165
Page 2 Installation Instructions
PREMIER MOUNTS
LIMITED LIFETIME WARRANTY
What and Who is Covered by this Limited Warranty and for How Long
Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of the
original owner of this product. The limited warranty is valid only for the original purchaser of the product.
What Premier Mounts Will Do
At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will
be shipped to you at no charge, but you must pay any labor costs.
What is Not Covered; Limitations
PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DISPLAYS,
PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN PART, FROM
IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.
PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER MOUNTS
IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT
LIMITED TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING
DEFECTIVE PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
What Customers Must Do for Limited Warranty Service
If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to the
address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer
purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,
the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts
Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.
Premier Mounts
Attn: Warranty Claim
3130 East Miraloma Ave.
Anaheim, CA 92806
How State Law Applies
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
3100 E. Miraloma Avenue, Anaheim, CA 92806 | 800.368.9700 USA | F 800.832.4888 | www.mounts.com
Unit 3, The Moorings Business Park, Channel Way | Longford, Conventry, CV6 6RH, UK | +44 (0) 2476 644105 | F +44 (0) 2476 644165
