Side 1/6

OPERATING

INSTRUCTIONS

Single Function Timers

Model No. 740-T, 740-TJ &

740-TF Series

355 East Kehoe Blvd. ! Carol Stream, IL 60188

Tel: (630) 462-8800 ! Fax: (630) 462-1460

Toll Free: 1-800-PCASTLE

TABLE OF CONTENTS PAGE

Installation..................................................................... 2

Programming................................................................. 2

Operation ....................................................................... 3

Cleaning ........................................................................ 4

Parts List....................................................................... 4

Exploded View .............................................................. 5

Troubleshooting ............................................................ 5

Wiring Diagrams ........................................................... 6

Prince Castle’s second generation of Merlin Timers

feature a new slim design which gives you mounting

flexibility. The 740 Series Timers are designed so

each channel can be programmed independently,

and used simultaneously. The timers are simple to

program and simple to use. The push of a button

activates each channel, and a alarm and multi-

colored flashing channel buttons alert the operator

when timing is complete.

ELECTRICAL

740-TSeries 740-TJ Series

120 Volts 100 Volts

50-60 Hz 50/60 Hz

740-TF Series

220-240 Volts

50/60 Hz

Model 740-T8

This product is warranted to be free from defects in material

and/or workmanship for a period of 1 year from date of original

installation, not to exceed 18 months from the date of

manufacture.

Any component which proves to be faulty in material and/or

workmanship will be replaced or repaired (at the option of

Prince Castle, Inc.) without cost to the customer for parts and

labor. This equipment is portable; charges for on-location

service (e.g., trip charges, mileage) are not included in the

provisions of this warranty.

This warranty is subject to the following exceptions/conditions:

• Use of any non-genuine Prince Castle parts voids this

warranty.

• All labor to be performed during regular work hours.

Overtime premium (the incremental amount) will be charged

to the customer.

• Damage caused by carelessness, neglect and/or abuse

(e.g., dropping, tampering or altering parts, equipment

damaged in shipment, by fire, flood or an act of God) is not

covered under this warranty.

• All problems due to operation at voltages other than that

specified on equipment nameplates are not covered by this

warranty. Conversion to correct voltage is the customer’s

responsibility.

• This equipment must be serviced by Prince Castle

Authorized Service Agency or a Prince Castle Service

Technician during the warranty period.

LIMITED WARRANTY

740-517revB

INSTALLATION

1. After you have removed the timer from the carton,

inspect the unit for signs of damage. If there is

damage to the unit:

! Notify carrier within 24 hours after delivery.

! Save carton and packing materials for inspection

purposes.

! Contact your local Prince Castle dealer or, if

purchased directly, the Prince Castle Customer

Sales Department at 1-630-462-8800 to arrange

for a replacement to be sent.

2. Verify that all parts have been received. Mounting

brackets and hardware are provided.

3. To mount the timer, place mounting brackets in de-

sired location. Scribe location of mounting holes,

center punch, and drill holes. Attach timer to mount-

ing brackets placing star washer between bracket and

timer.

DISPLAYS AND INDICATORS

Shows the time for the selected channel

number.

Shows the channel number selected

and in use. (The 740-T2 model does

not have this display.)

Indicates the time value is in Hours and

Minutes.

Indicates that the time value is in

Minutes and Seconds.

Located above each channel timer

button, these lights change color

depending on the stage of the count-

down. Green = first 70% of countdown,

Yellow = next 20% countdown,

Red = last 10% of countdown.

CONTROLS

The 740-T2 has 2 channels, the 740-T4

has 4 channels, the 740-T8 has 8

channels and the 740-T12 has 12

channels.

In the program mode, it increases time

values for each channel . In the Run

Mode, it is used in conjunction with logo

button to increase the volume.

In the program mode, it decreases time

values for each channel . In the run

mode, it is used in conjunction with logo

button to decrease the volume.

Activates Program Mode and used to

adjust the alarm sound level.

PROGRAMMING

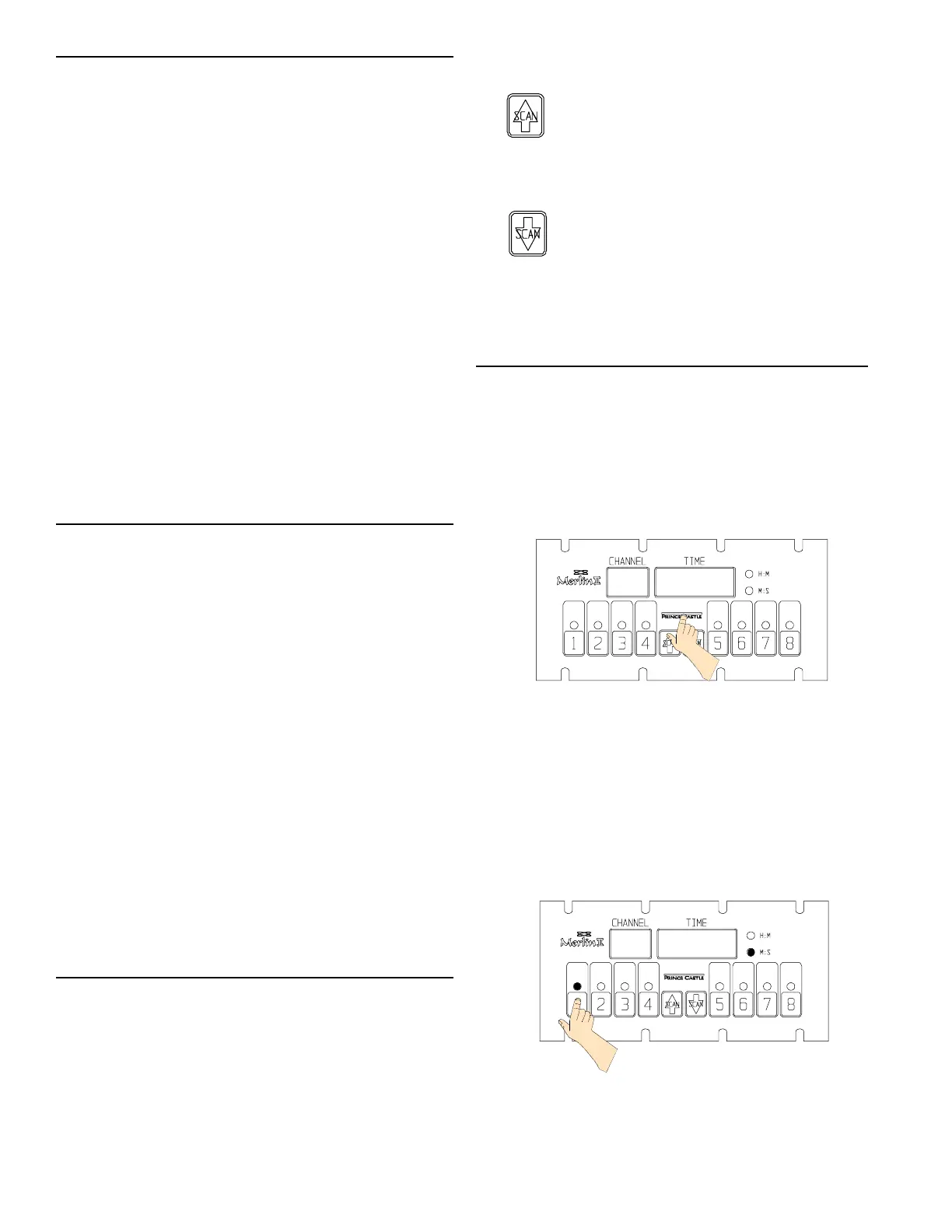

1. To program, press and hold the PRINCE CASTLE

logo for six seconds. The TIME display changes

from ---- to Prog, and a beep will sound.

See figure 1.

2. Select and press the timer channel to be pro-

grammed. The LED indicator for the selected

button will turn yellow and a beep will sound. The

selected channel number will be displayed in the

CHANNEL display, the current programmed time

for that channel will be displayed in the TIME

display, and the time value will indicate either H:M

OR M:S. See figure 2.

3. To change the program time for the selected

channel, use the SCAN/UP Arrow or the SCAN/

DOWN Arrow button.

Channel

(Timer)

SCAN/UP

ARROW

SCAN/DOWN

ARROW

PRINCE

CASTLE

Logo

TIME

Display

CHANNEL

Display

H:M

M:S

LED

Indicators

figure 1

P r o g

8:00

figure 2

740-517revB
