The adapter set for rivet nuts:
Guide head Threaded pin
1 500. – gWeight
2. 2 mm– Length 00
TECHNICAL PARAMETERS:
3. Max. effective work stroke – 5-6 mm
4. – 27 kNMax. clamping force
WORKING SEQUENCE:
Open the clamps
When placing the rivet nut on the pin, the
riveter clamps should be open.
Close the
clamps
Clamp the rivet nut in the material by closing
the clamps.
To remove the pin from the installed rivet nut,
turn the knob counterclockwise.
Remove the guide head by turning, using
the wrench supplied.
The ring was
moved back -
wards.
Move the pin ring backwards through the
guard opening, to release the hexagonal
bolt and remove the pin, as shown in the
figure below.
When the pin ring was moved backwards,
remove the pin from the riveter chuck.
Before you use the tool, check if the pin and head in
the riveter match the thread of the rivet nut you wish
to clamp. Otherwise, change the format.
M5
M4
M3
M6
Handheld riveter 14011 is designed for clamping rivet nuts M3-M6 made from aluminium, steel and stainless steel.
The riveter should be used as designed. Any other use is not permitted.
Use the tool only with the spare parts provided by its manufacturer. The manufacturer shall not be held liable if
any other spare parts are used or the tool is not repaired as appropriate. Consequently, do not repair the tool
yourself but send it to the authorised service facility.
PIN REMOVAL:

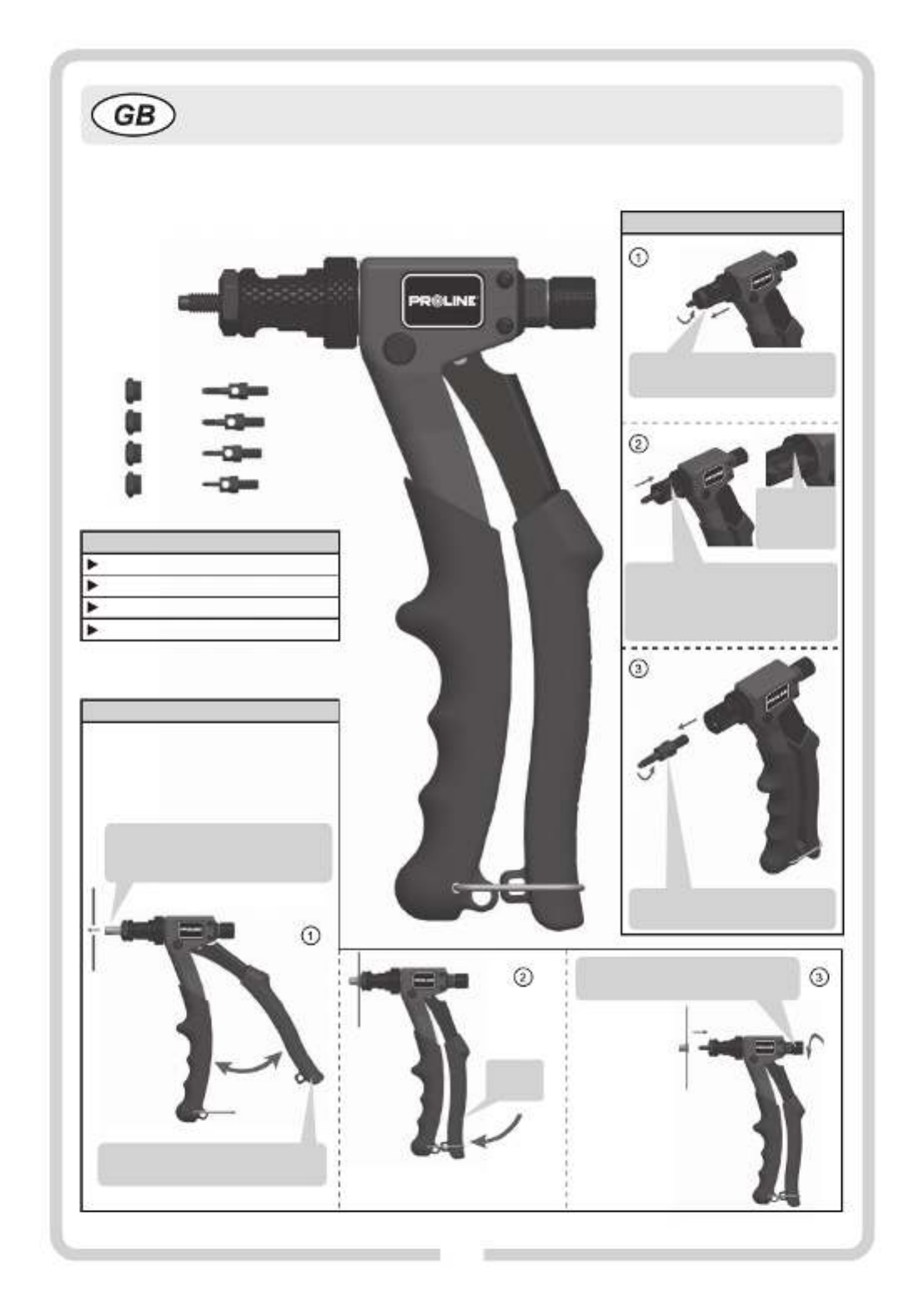

OPERATION MANUAL
HANDHELD RIVETER 14011
Original text translation
Open the clamps, turn the rivet nut on the pin
along its length, and then place the nut into the
hole made in the material.
