PR-HDKVMoNet USER MANUAL

www.provision-isr.com

HDMI Extender over Cat5e/Cat6 with USB and IR

I. Introduction

This HDMI USB-KVM (Keyboard/Video/Mouse) extender allows you to extend

your HDMI signal, USB mouse and USB keyboard up to 130 Meter over standard

network cable.

While HDMI cables are pricy, inconvenient to work with and suffer from limited

transmission distances – Ethernet cables offers a wonderful alternative.

PR-HDKVMoNet enables you to extend HDMI signal to remote display unit to a

maximum of 130 meters over Ethernet cable while maintaining your

Mouse/Keyboard capabilities (from the display unit location).

II. Features:

1. Transmits HDMI/USB/IR signal over Ethernet

Working distance: Cat5e:100 meters, Cat6:130meters

2. HDMI 1.3 & 3D support

3. 12Bit deep color and bandwidth of up to 225Mhz support

4. Support video resolution up to 1080P@60Hz

5. Supported Audio format: DTS-HD / Dolby-true HD / LPCM7.1 / DTS /

Dolby-AC3/DSD

6. Support USB2.0 Keyboard and mouse Transmission.

7. Support IR signal transmission

8. DC5Vpower supply is included

Note:Distancemaybe byaffected thecablequality,lengthandother

environmentalinterferences.



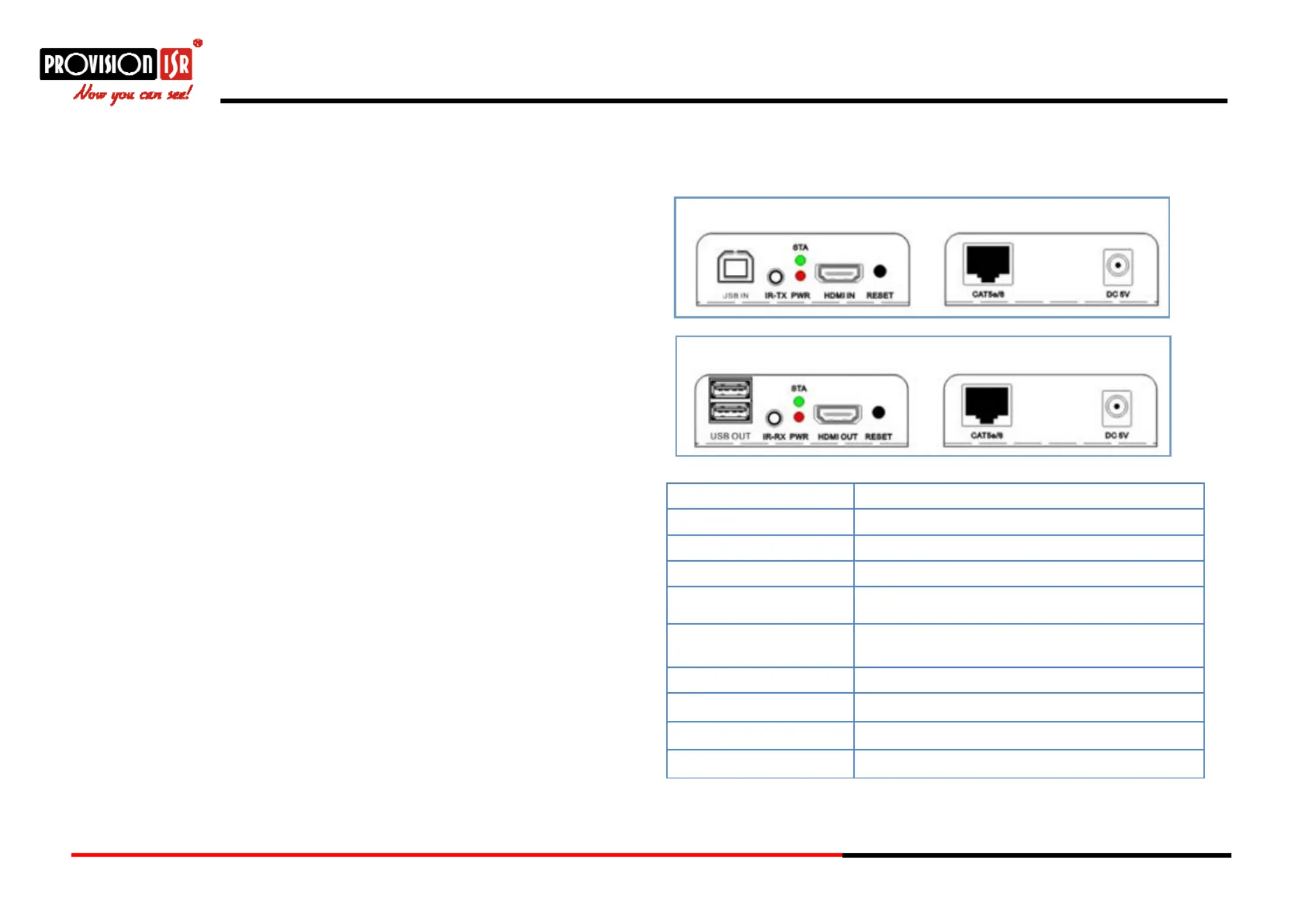

III. Product interface pictures

Port name Description

HDMI IN/OUT HDMI signal input/output

Cat5e/6 RJ45 port connect cat5e/cat6

USB IN USB cable connect to video source

USB OUT connect to keyboard and mouse

IR TX/RX IR signal input/output

DC/5V Power adapter socket

LED indicator Description

PWR unit power indicator

STA

HDMI signal indicator

Transmitter (Rx)

Receiver (Tx)

PR-HDKVMoNet USER MANUAL

www.provision-isr.com

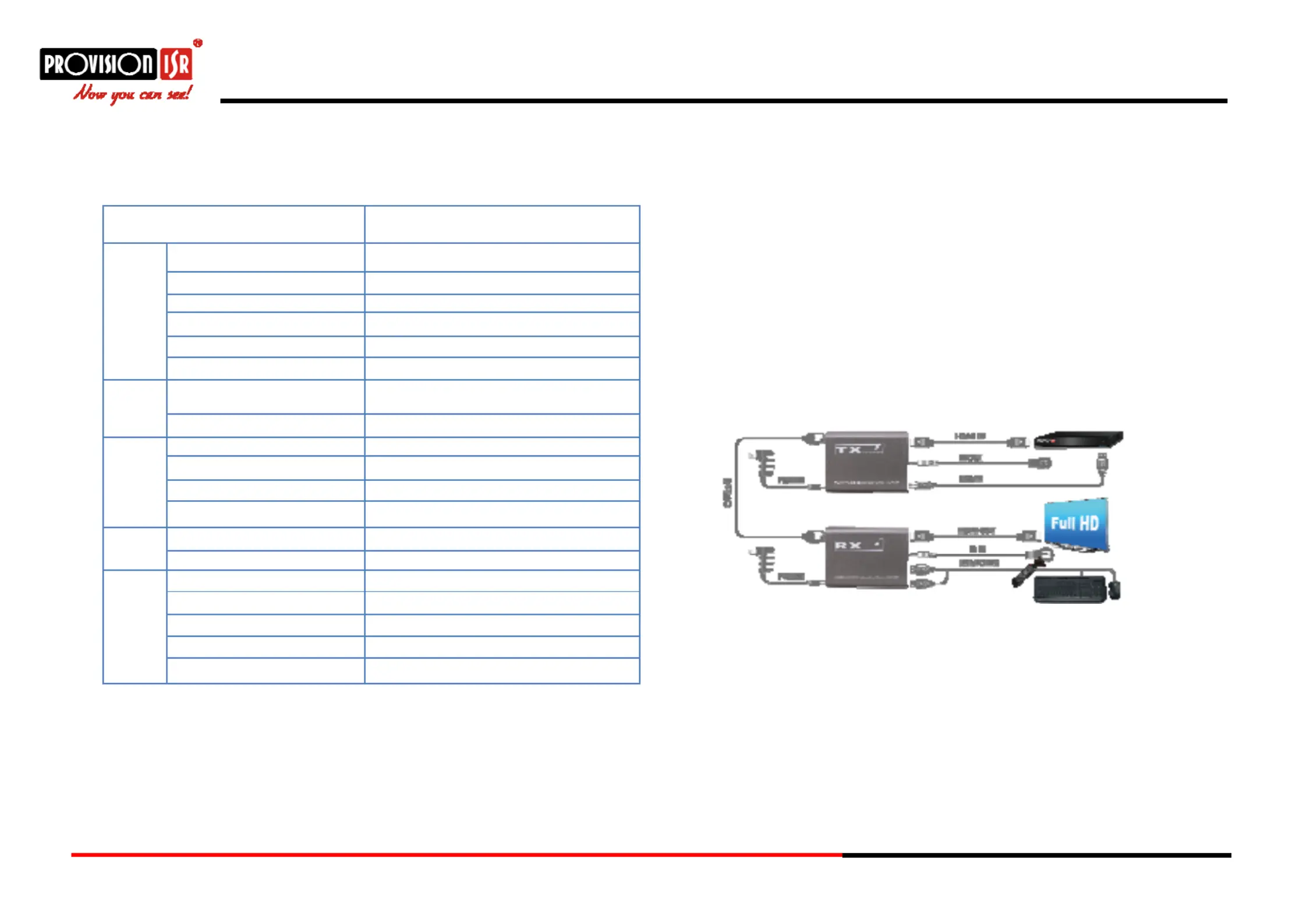

IV. Specification

V. Installation Process:

1. Connect the provided DC/5V power supply to the power socket of Tx (Transmitter)

and Rx(Receiver) units

2. Connect the Rx unit to the display device by HDMI cable.

3. Connect the required USB device/s to the “USB Out” Port of the Rx unit

4. Connect the IR out cable to the Rx unit

5. Connect the Tx unit to the video source device by HDMI cable.

6. Connect the provided min USB cable between the Tx unit and the source

device.

7. Connect the IR in cable to the Tx unit, and point the IR emmiter to the IR

transmitter of the video source.

8. Connect between the Tx and Rx units using Cat5e/6 cable.

9. Turn on the source device

10. If there is still no image showing, please press “Reset” button for 5 seconds.

VI. Package

1. HDMI transmitter p2-x1 pcs

2. HDMI receiver p2-x1 pcs

3. USB Cable p2-x1 pcs

4. Power adapter p2-x2 pcs

5. IR TX/RX terminal x 1 set

6. User manual p2-x1 pcs

Parameter Description

Video

Standards HDMI 1.3; HDCP 1.2

Maximum pixel clock 165MHz

Maximum data rate 6.75Gbps

Resolution

1920X1080P@60Hz

Connector HDMI-A

Impedance 100Ω

USB

Interface PC: Type B USB interface; connect to pc;

K/M: connect USB keyboard and mouse;

USB signal HID Signal

Interface 3.5mm seat

Signal direction Unidirectional

Signal type Digital

IR frequency 38kHz ; Optional (20 KHZ - 60 KHZ)

UTP

Interface RJ45

Transmission distance

CAT5e/6---120m

Other

Power supply The power adapter: DC 5V/1A

Power dissipation MAX 3W

Temperature

Operating: -5℃ ~ +70℃

Humidity Operating: 5% ~ 90%

Dimension

95*73*26mm
