Side 1/50

Please check PTZOPTICS.com for the most up to date version of this document Rev 1.3 7/19

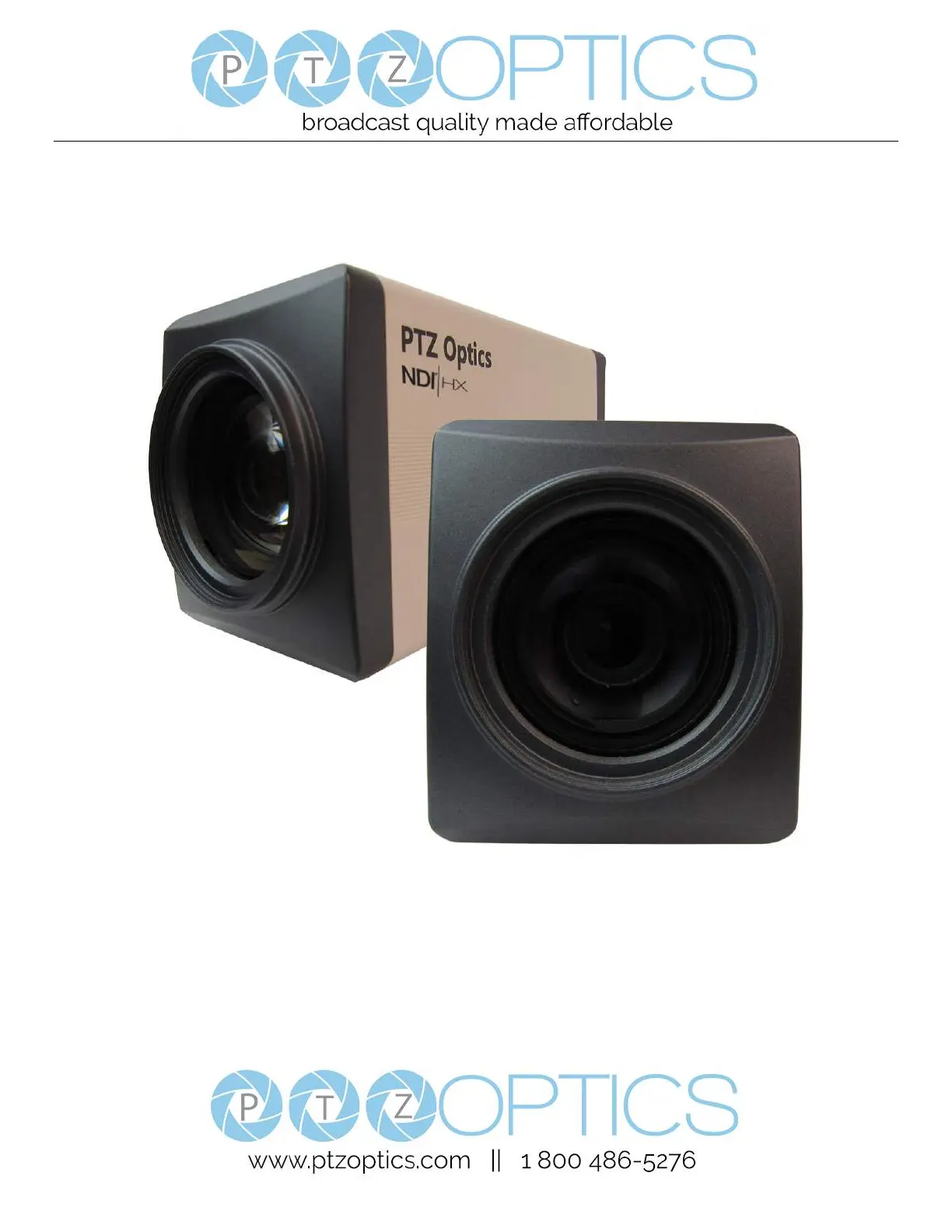

PTZOptics 20x NDI

|HX

ZCAM

User Manual

Model No: PT20X-NDI-ZCAM

V1.2

(English)

Page i of 47

Rev 1.3 7/19

Preface

Thank you for using the HD Professional Video Conferencing Camera. This manual introduces the function, installation and

operation of the HD camera. Prior to installation and usage, please read the manual thoroughly.

Precautions

This product can only be used in the specified conditions in order to avoid any damage to the camera:

• Don’t subject the camera to rain or moisture.

• Don’t remove the cover. Removal of the cover may result in an electric shock, in addition to voiding the warranty.

In case of abnormal operation, contact the manufacturer.

• Never operate outside of the specified operating temperature range, humidity, or with any other power supply

than the one originally provided with the camera.

• Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neutral detergent;

do not use any type of solvents, which may damage the surface.

Note

This is an FCC Class A Digital device. As such, unintentional electromagnetic radiation may affect the image quality of TV in a

home environment.

If a firmware upgrade is required on the camera, please be sure to use the 24M version as the 25M version will remove your

NDI® license and capabilities.

Produkt Specifikationer

Mærke:	PTZ Optics
Kategori:	Videokonferencesystem
Model:	NDI ZCam 20X
Bredde:	60.9 mm
Dybde:	144.7 mm
Højde:	76.2 mm
Vægt:	630 g
Produktfarve:	Black, White
HD-type:	Fuld HD
Understøttede videotilstande:	720p, 1080i, 1080p
Ethernet LAN-porte (RJ-45):	1
Hurtig start guide:	Ja
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080)
DC-in-stik:	Ja
Strømkilde type:	DC, PoE
Megapixel:	2.12 MP
Sensortype:	CMOS
Maksimal videoopløsning:	1920 x 1080 pixel
Opløsning ved indfangningshastighed:	1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps
Optisk zoom:	20 x
Hurtigste hastighed for kameralukker:	1/10000 sek./side
Langsomste hastighed for kameralukker:	30 sek./side
DC indgangsspænding:	12 V
Maksimum billedhastighed:	60 fps
Minimumsbelysning:	0.05 Lux
Optisk sensorstørrelse:	1/2.7 "
Synsfelt vinkel (FOV):	60.7 °
Brændviddeområde:	4.42 - 88.5 mm
Signal/støjforhold:	55 dB
Blændeområde (F-F):	1.8 - 2.8
Strømforsyning inkluderet:	Ja
RS-485-porte:	1
Netværksstreaming:	Ja
3D NR (støjreduktion):	Ja
Horisontalt visningsområde (bred):	60.7 °
Horisontalt visningsområde (tele):	3.36 °
HD-SDI-output:	Ja
3G-SDI udgang:	Ja
