HotShot DM1
User Guide
True to the Music
Appearances and specifi cations subject to change without notice.
CAUTION: PLEASE READ THE IMPORTANT NOTICE ON
THE BACK COVER BEFORE USING THE HOTSHOT DM1
Order # R800 1500 00
CONGRATULATIONS on your purchase of the Radial HotShot DM1. The Radial HotShot DM1
is a foot-controllable device that allows a vocalist to mute his or her microphone and redirect the
signal to a second output to allow communication through the monitor system, in-ear wireless
system or intercom.
Designed specifi cally for dynamic microphones, the DM1 is completely passive and does not
require any power. The foot selector switch is momentary, which means that the switching only
occurs when the footswitch is depressed. This eliminates the need for indicator lights and bat-
teries or external power.
Typical applications include muting the FOH (front-of-house) microphone to speak to other
musicians through the in-ear monitoring systems, muting the FOH to speak with technical staff
or muting a mic for a cough.
CONNECTING THE RADIAL HOTSHOT DM1
Before making any connections, please confi rm the sound system is powered off and the vol-
ume controls are turned all the way down.

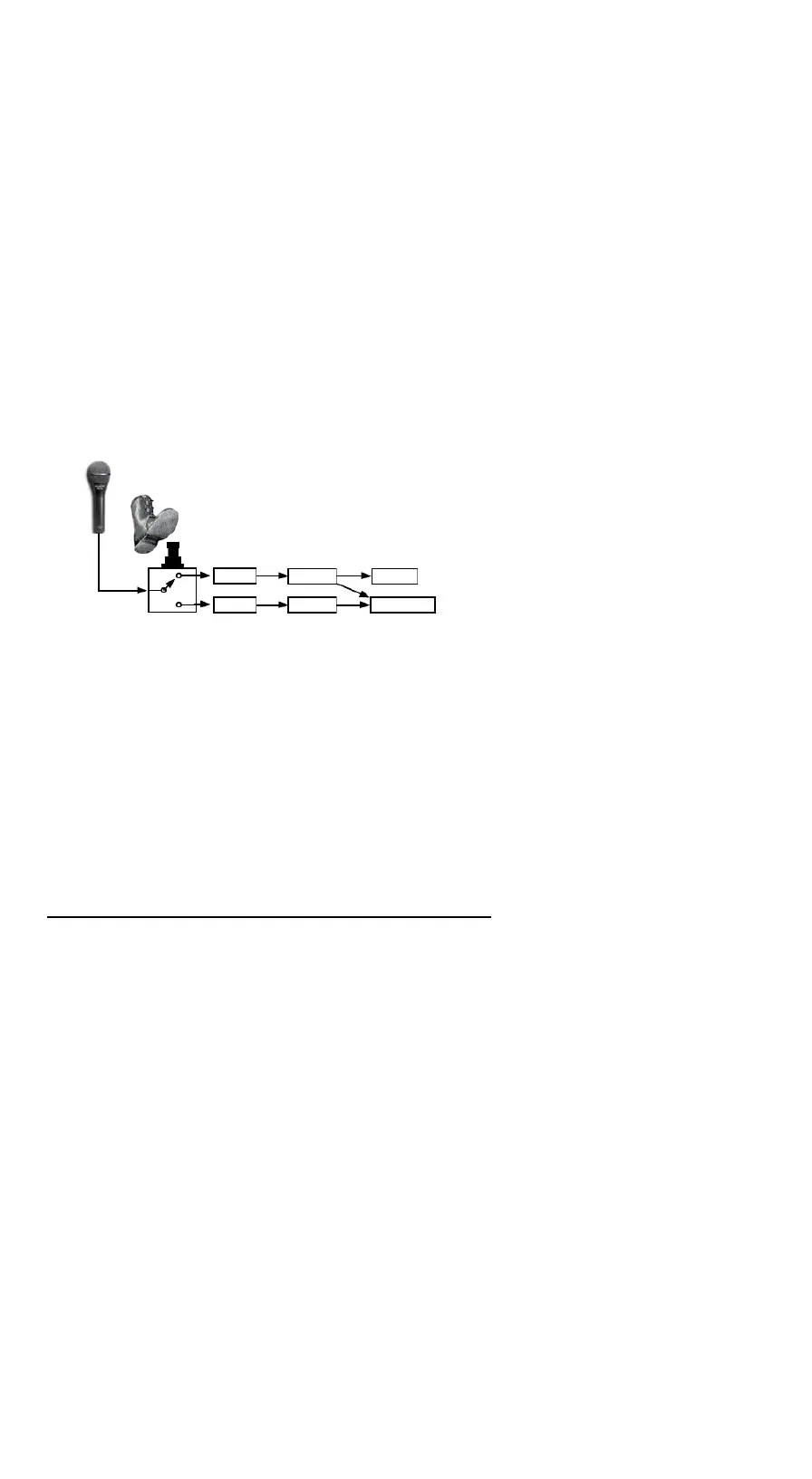

Following the simple block diagram below, connect a dynamic microphone to the INPUT of the
DM1. Connect OUTPUT-1 to the fi rst channel of your mixer. Set this fi rst mixer channel to route
the signal to the main PA and monitors. Connect OUTPUT-2 to a second channel on your mixer.
Set this second channel to route the signal only to the monitors. With this setup, depressing the
DM1’s footswitch will effectively mute the microphone signal from the main PA mix. This allows
the musician using the microphone to speak with the other musicians or technical staff through
the monitors without the audience listening in.
TESTING THE RADIAL HOTSHOT DM1
At this point, your sound system should be turned off and the level controls at minimum. Make
sure the 48V phantom power is turned off on the channels that you are connecting
the DM1 to. Phantom power could cause loud pops in your sound system when the DM1 is
switched. You are now ready to turn on your sound system and test the DM1 to make sure it
works with your equipment.
Turn on your sound system. If this is the fi rst time you’re using the DM1 we suggest testing with
two mixer channels set identically so that the DM1 directs both its outputs to the same speaker
system. This way, you can minimize options when troubleshooting. It is a good idea to match
the gain of the two mixer channels so there is no noticeable difference in level when switching
the DM1.
Always begin by testing at a low volume level to make sure you do not encounter any pops or
clicks when the DM1’s footswitch is depressed. If you do hear pops or clicks, check for phantom
power to make sure it is off. If you hear any hum, try engaging the ground lift switch.
Output-1
Mixer Ch 2
PA system
Monitor system
HotShot DM1
Footswitch
Mixer Ch 1
Output-2
HotShot DM1 User Guide
Radial Engineering Ltd.
