Instructions for Atlantic single, Atlantic double, Quadbowl, Kube

STAINLESS STEEL

UNDERMOUNT BOWLS

Installation Instructions

Aftercare Information

Installer

Please leave this leaet with the user, as it contains valuable

after care advice.

Notes

 Undermount sinks should only be xed to granite

worktops by a specialist installer.

 Please beware of sharp metal edges prior to and

during installation.

 During installation, take care to protect the bowl

from scus and scratches.

 Avoid straining and overtightening of all plumbing

xtures connected to the bowl.

 We recommend that the worktop opening is sealed

using waterproof sealant or a similar material.

Installation

Preparing the Worktop

1. Decide on the position that your bowl (or bowls) is to be

tted. Check that the bowl will not foul on the cabinet

below.

2. Place the sink upside down on the worktop. Position the

sink on the worktop as required. Make sure the cabinet

framework will clear all parts of the bowl. Using a soft,

sharp pencil draw around the bowl as accurately as

possible. Remove the bowl.

Alternatively, you can use a bowl template. For details

go to www.rangemaster.co.uk.

3. Referring to the templates as shown in this booklet,

draw another line – as indicate by ‘A’ (Fig.1) inside the

sink top outline – this is the cutting line for the opening.

4. Drill as large a hole as possible inside the cutting line.

Using a padsaw, jigsaw or similar, cut out the opening

up to the cutting line.

5. On the underside of the worktop, mark the positions for

the threaded inserts – see the templates in this booklet

for the correct dimensions or go to www.rangemaster.

co.uk for template details.

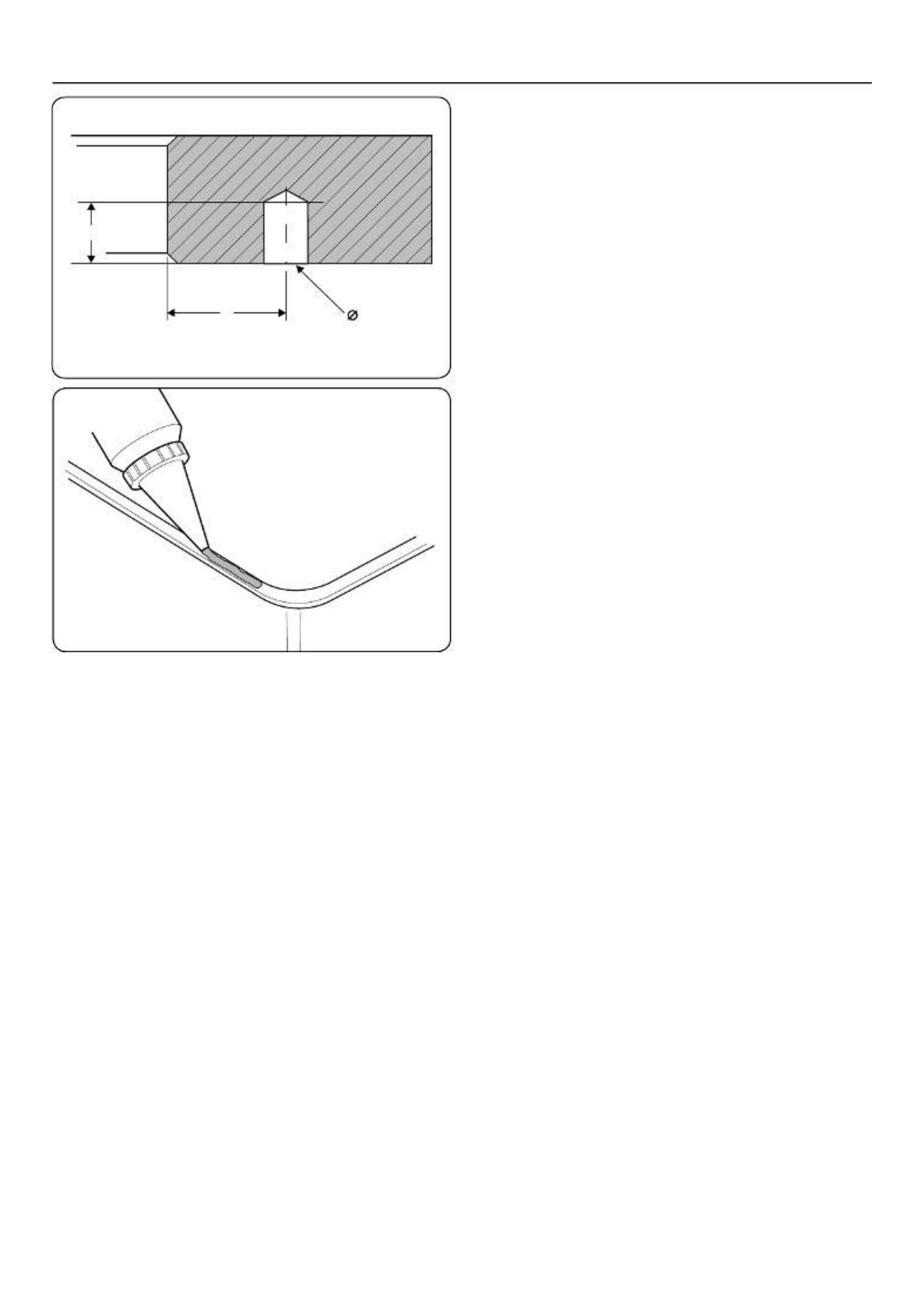

6. Drill the 10 mm diameter holes for the threaded (Fig.1)

inserts (refer to the worksurface supplier for drilling

advice and the drill bit diameter required).

7. Glue the threaded xing inserts into the drilled holes.

Applying the Sealant

Apply silicone sealant (not supplied) to the bowl rim (Fig.2).

14 mm

10 mm

Fig.1

Due to our policy of continual improvement, we reserve the right to change specications without prior notice.

Undermount bowl

Fig.2

Dimension A: 33mm, 27mm or 22mm depending on the bowl –

see the templates in this booklet for this dimension.

INSTALLATION

Produkt Specifikationer

Mærke:	Rangemaster
Kategori:	Køkkenvask
Model:	UB50L
Bredde:	530 mm
Dybde:	430 mm
Produktfarve:	Rustfrit stål
Første skål, dybde:	200 mm
Første skål, dimensioner (BxL):	500 x 400 mm
Antal vaskeskåle:	2 skåle
Vask, type:	Undermonteret håndvask
Vask form:	Rektangulær
Vask materiale:	Rustfrit stål
Facon på første vask:	Rektangulær
Vandhane, hul:	Ingen
Drænebræt:	Ingen
Vandhane inkluderet:	Ingen
