REEFE™ SOLAR PUMP USER MANUAL
Model No.: RSF2500
1. OVERVIEW
1) The solar water pump is designed for water features and
waterfalls, and is powered by a solar panel.
2) The solar panel needs to be placed in the sunlight with its
solar cells facing the sun as much as possible, the
performance of the pump depends on the sunlight intensity
and the orientation of the solar panel.
3) The latest DC brushless motor technology is used in the
pump design and manufacturing, so that the pump has high
efficiency and long service life.
4) The pump has a built-in function of dry-run protection. The

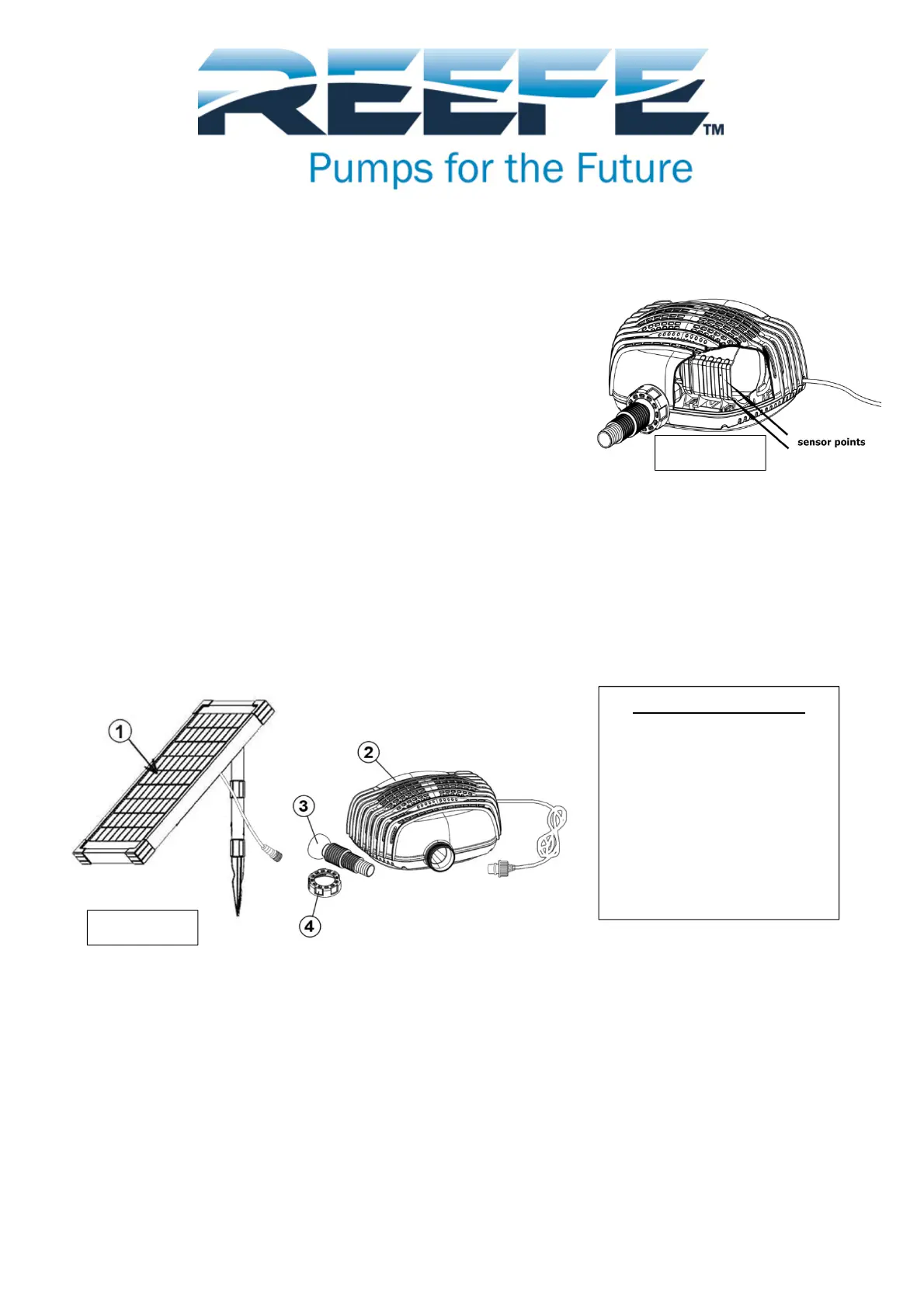

dry-run protection function is provided by two sensor points on one side of the pump body (not
visible from outside.-see Figure 1). The pump works if both of the points are submerged in water. If
either or both points emerge out of water, the pump stops working.
2.
COMPONENTS
1) Solar panel with ground spike
2) Pump
3) Hose connection
4) Gland nut (M56 x 2.0mm thread)
5) Spare Impeller (Not pictured)
3. ASSEMBLING
1) Completely unroll the power cable.
2) Attach the hose onto the outlet of the hose connection. The hose connection is suitable for various
hose diameters (inside diameter 25,32 or 38 mm). For fountain nozzle use see above “Fountain
Function”.
3) Mount the hose connection to the pump outlet by means of the enclosed gland nut. Via the ball joint,
the angle of the hose connection may be adjusted under water as necessary.
4) Completely immerse the pump into the water.
5) Connect the pump to the solar panel, and ensure the cable connection is tightened correctly.
6) Install the solar panel in garden lawn or soft ground by means of the spike. Adjust the angle to face
the solar panel toward the sun.
7) The solar pump is now ready to operate.
Figure 1
Figure 2
FOUNTAIN FUNCTION
If you wish to use a fountain
nozzle (not supplied) you will
need to connect it using hose
from the hose connection
(part 3 in Figure 2) as the
thread outlet on the pump is a
non-standard thread (M56 x
2.0mm)
RAMDEX INDUSTRIES 37 Export St Lytton Qld 4178 Ph.: 1300 726 339 ©Copyright 2012 Page of 2 3
3. CAUTIONS
1) Any altering of the product itself or changing of the components voids warranty.
2) Do not connect the pump to any AC voltage power directly; it can ONLY
operate on DC voltage power.
3) Operate the pump in water only (never above 40 °C), especially keep it
away from flammable liquids. Do not use in any hazardous areas.
4) All the connectors are protected against reverse polarity as shown in
Figure 3. Don’t insert the plug with reverse polarity by using force.
5) The pump is dry run protected. The pump will automatically stop when
the water level is low.
5. CLEANING AND MAINTENANCE
If the pump starts losing power or stops working after operating for a certain time, please clean the inside
of the pump and any debris on the filter cage.

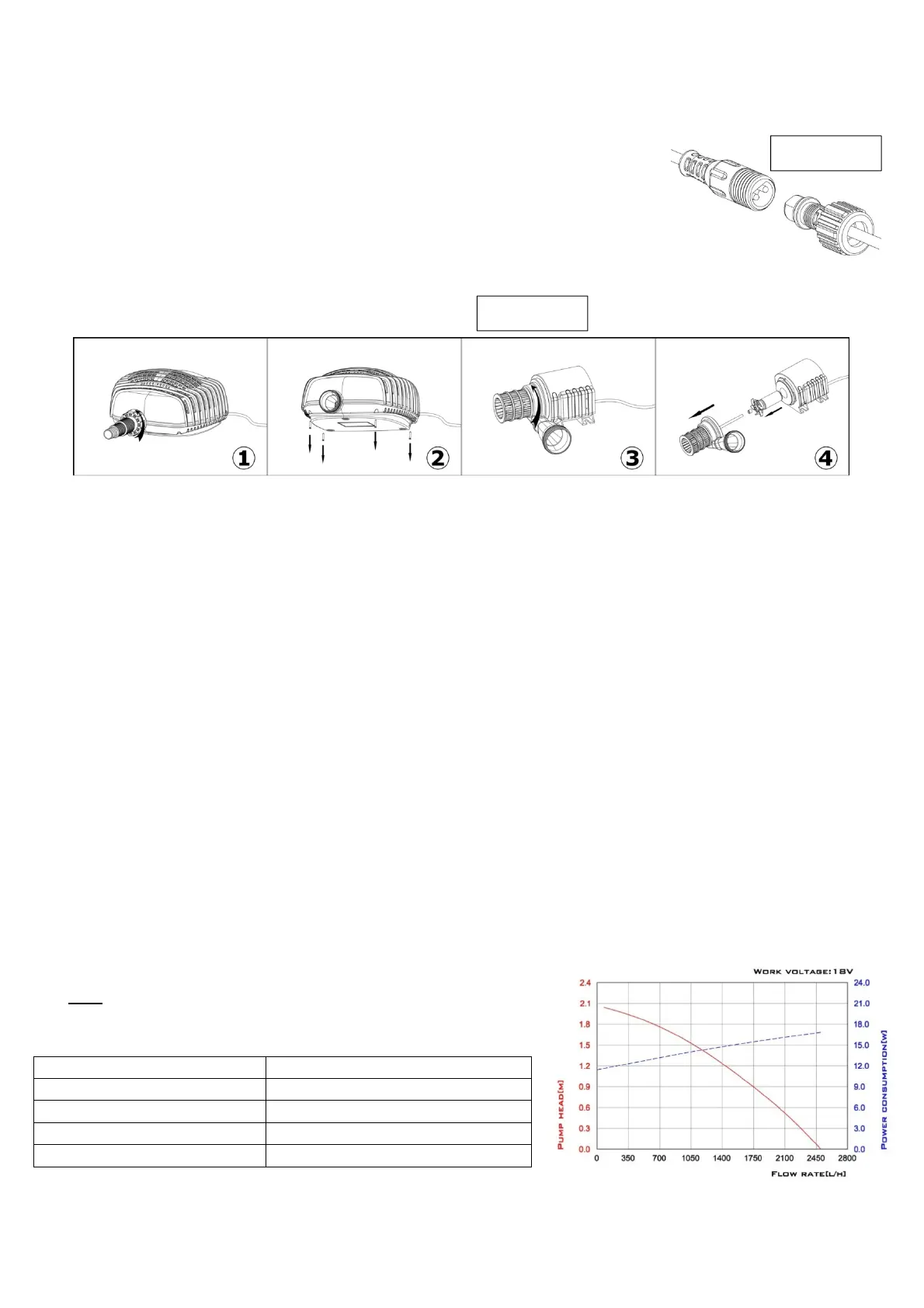

The pump can be opened by unscrewing the four screws on the four corners of the filter housing bottom.
To clean the pump, disassemble the pump according to Figure 4 and then clean all parts with water.
In the case of a build-up of lime-scale (calcium deposits) use a mild descaling solution,
following the instructions provided for a “shower head”- we recommend RUBBEDIN DESCALE
MAGIC – available from most Hardware’s and Supermarkets.
Be careful not to drop the ceramic shaft while cleaning the impeller as it breaks easily.
6. TROUBLE SHOOTING
Pump does not operate, please check the following possible reasons:
1) Clouds, dust or shade will cause the pump to stop.
2) No connection to the power supply.
3) Impeller is blocked—to clean the pump as described in “
CLEANING AND MAINTENANCE
”.
4) Check the water level, ensure the pump is fully submerged in water.
5) If all above are ok, try the spare impeller supplied with the pump.
• If pump does operate but there is no water running through the pipework: Clear the
pipework and the filter to make sure there are no blockages.
7.
TECHNICAL DATA AND PUMP CURVE
• Performance data is subject to change without notice, ALL
and is subject to the Solar Energy (Sunlight) available.
Peak Power of Solar Panel 25W
Operating voltage 18V
Maximum pump head 2.1m
Maximum flow rate 2480L/H
Cable length 5 M
Figure 3
Figure 4
