GB Operating instructions

Revision A

Publication ID: 041 136 517

Index

Important safeguards 3 ................................

Legend ...................................................... 4

Packaging content ..................................... 4

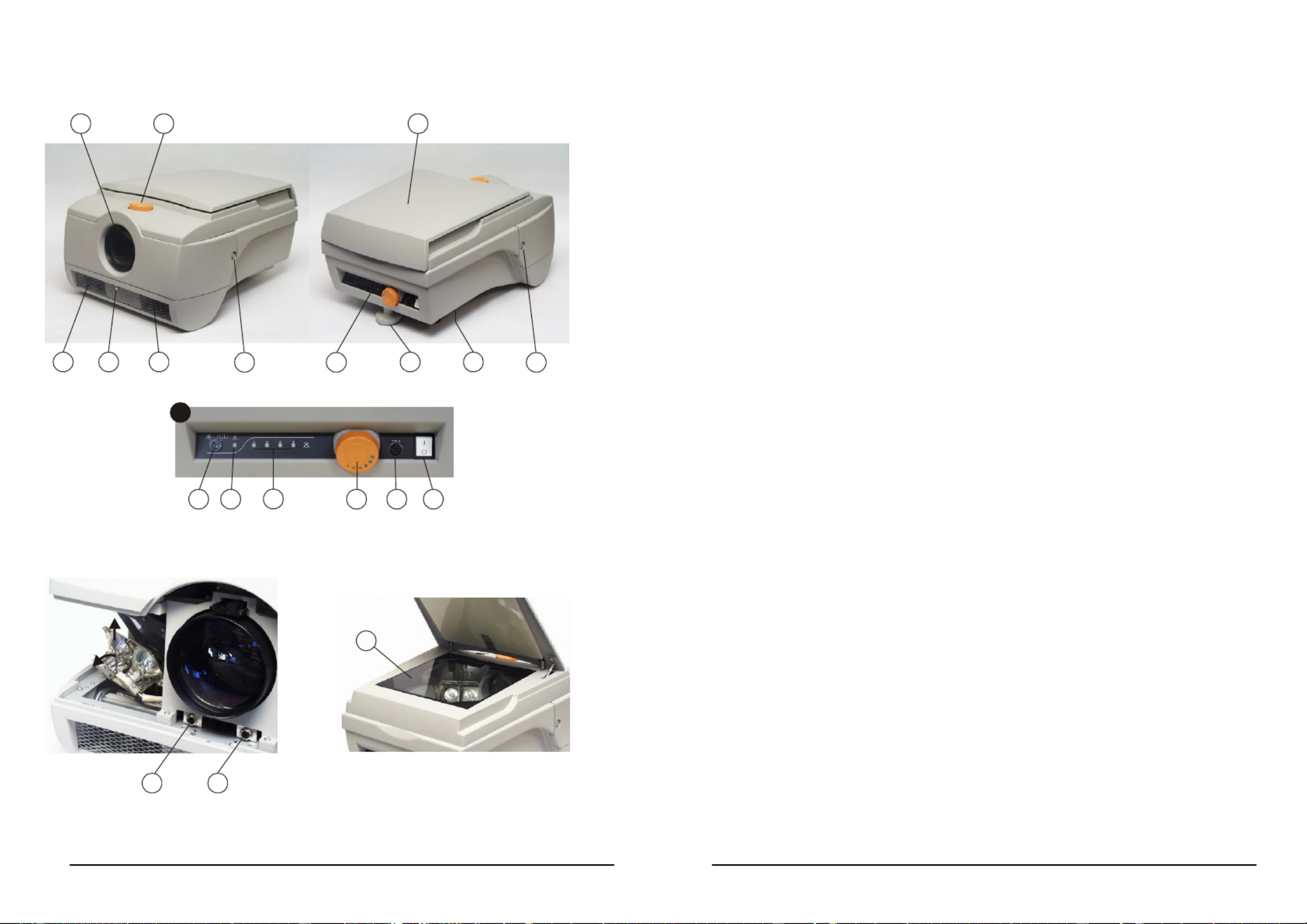

Main parts of the projector ................................ 4

Preparing the projection ............................ 4

Use and operation of the projector 5 .............

Operating instructions 5 ...............................

Focusing ................................................... 5

Replacement of a burnt-out lamp 5 ..............

Protection from overheating 6 ......................

After cooling .............................................. 6

Replacement of a blown fuse .................... 6

Cleaning of projector ................................. 6

Technical data ...........................................6

Replacement of the auxiliary lamp

The auxiliary lamp should be replaced by a

specialist only.

Protection from overheating

When the equipment overheats the lamps turn o

automatically. Check if the air-intake opening

(13) and the a -outlet opening (14) are not ir

obstructed!

After the device has cooled down the lamps turn

on automatically.

After cooling

Following prolonged use the cooling system can

continue to operate after the projector has been

switched o. The thermostatic controlled fans will

stop to operate after some time.

Replacement of a blown fuse

When the device is connected to the mains and

switched on and neither the ventilator, nor any of

the lamps come on then the fuse has blown.

WARNING: Before the replacement of the fuse

you must disconnect the plug from the wall-

socket!

Turn the fuse holder for a quarter of a turn and

pull out the blown fuse together with its holder.

Replace the fuse with a new one of the same

rating (10A 250V slow).

Should it happen that the just replaced fuse

blows again after the device has been switched

on, take the projector to be serviced.

Cleaning of the projector

WARNING: Before cleaning disconnect the plug

from the wall-socket!

For cleaning use distillated water or a mild

detergent solution. Use a clean and soft cloth

that will not leave any scratches. Clean the

projection glass (16) and the objective lens (1) in

the same way.

Technical Data

Working area:

285×285 mm

3-lens-objective:

2.8 / f=330mm

Halogen reector lamps:

ENX 82V / 360W (4x)

Auxiliary lamp:

15W / 230V, socket E14, mat t

Ø max 27 mm, L max 58 mm,

(i.e.: Osram T26/57 FR15)

Enlargement:

3.5x to 9.5x

Projection distance:

1.5 m 3.5 m –

Size of projected image:

1.0 m 2.7 m –

Mains voltage:

dependant on the model

220V / 50-60 Hz

230V / 50-60 Hz (EU)

240V / 50-60 Hz (UK)

Power consumption:

1500W

Dimensions of the projector:

590×480×330 mm

Weight:

19.5 kg

1 2 3

444 56 1314 14

7 8 9 10 11 12

15 15
