ITEM NO:
ITEM NO:
ITEM NO:
ITEM NO:ITEM NO: -
-
-
-- 9
9
9
9 9
17
17
17
1717 101
101
101
101101
Redford Outdoor Sco
Redford Outdoor Sco
Redford Outdoor Sco
Redford Outdoor ScoRedford Outdoor Sconce
nce
nce
nce nce
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIANWE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
.
.
. .
These instructions are provided for your safety. It is very important that they are read completely before
beginning the installation of your fixture.
ASSEMBLY INSTRUC
ASSEMBLY INSTRUC
ASSEMBLY INSTRUC
ASSEMBLY INSTRUCASSEMBLY INSTRUCT
T
T
TTION:
ION:
ION:
ION:ION:

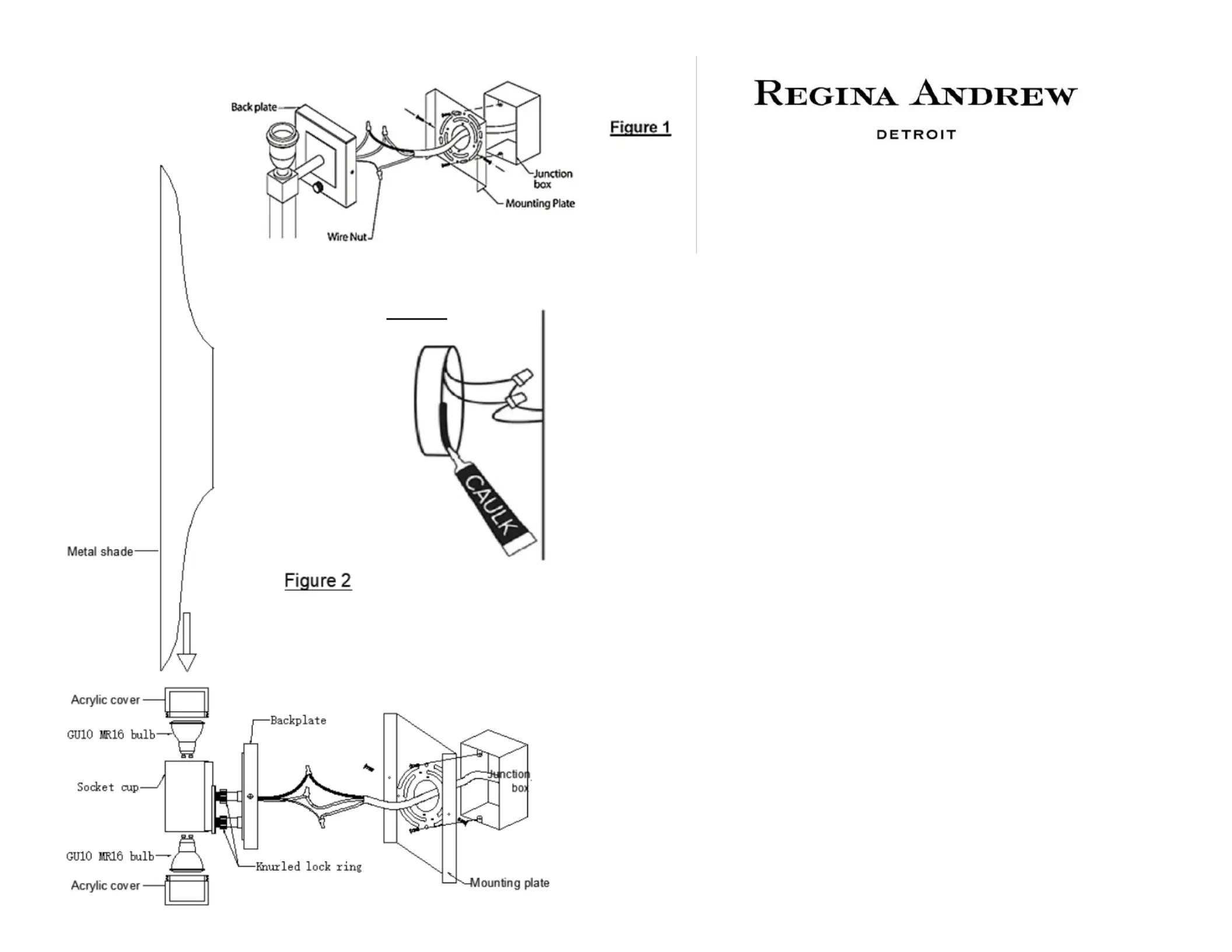

A. FOR WIRING DIRECTLY INTO OUTLET BOX (Figure 1)
1. Remove steel retainer from lamp back plate by removing the attachment screws
on the side of the backplate and attach the retainer to the outlet (junction) box.
Adjust the retainer so that the tabs on the side are level.
2. Connect the wires of lamp to the wires of outlet box; a. black outlet- -wire to box
black or smooth lamp wire; b. white outlet- -wire to black or smooth lamp wire; box
c. bare “grounding” outlet- -wire to green wire. box
3. Install lamp to the steel retainer using two flat-head screws.
B. SHADE ASSEMBLY (Figure 2)
1. Unscrew acrylic covers. Insert appropriately rated bulbs (bulbs included) into the
sockets and put back the acrylic covers.
2. Loosen the knurled lock rings and slide the shade onto the gap between the knurled
lock rings and socket cup. Tighten the knurled lock rings.
MOUNTING FIXTURE(S) OUTDOOR AND/OR IN A WET LOCATION INSTRUCTION (Figure 3)
1. Mounting surface should be clean, dry, flat and ¼” larger than the canopy/fixture base
on all sides. Any gaps larger than 3/16” should be corrected.
2. With a silicone caulking compound (not included), caulk completely around where the
back of the canopy/back plate meets the wall surface.
CAUTION:
CAUTION:
CAUTION:
CAUTION: CAUTION: FAILURE TO COMPLETELY CAULK AROUND THE LIGHT FIXTURE’S MOUNTING
PLATE COULD RESULT IN WATER SEEPAGE INTO THE LIGHT FIXTURE AND/OR JUNCTION
