Side 1/40

10-342EVS

www.rikontools.com

10-342EVSM2

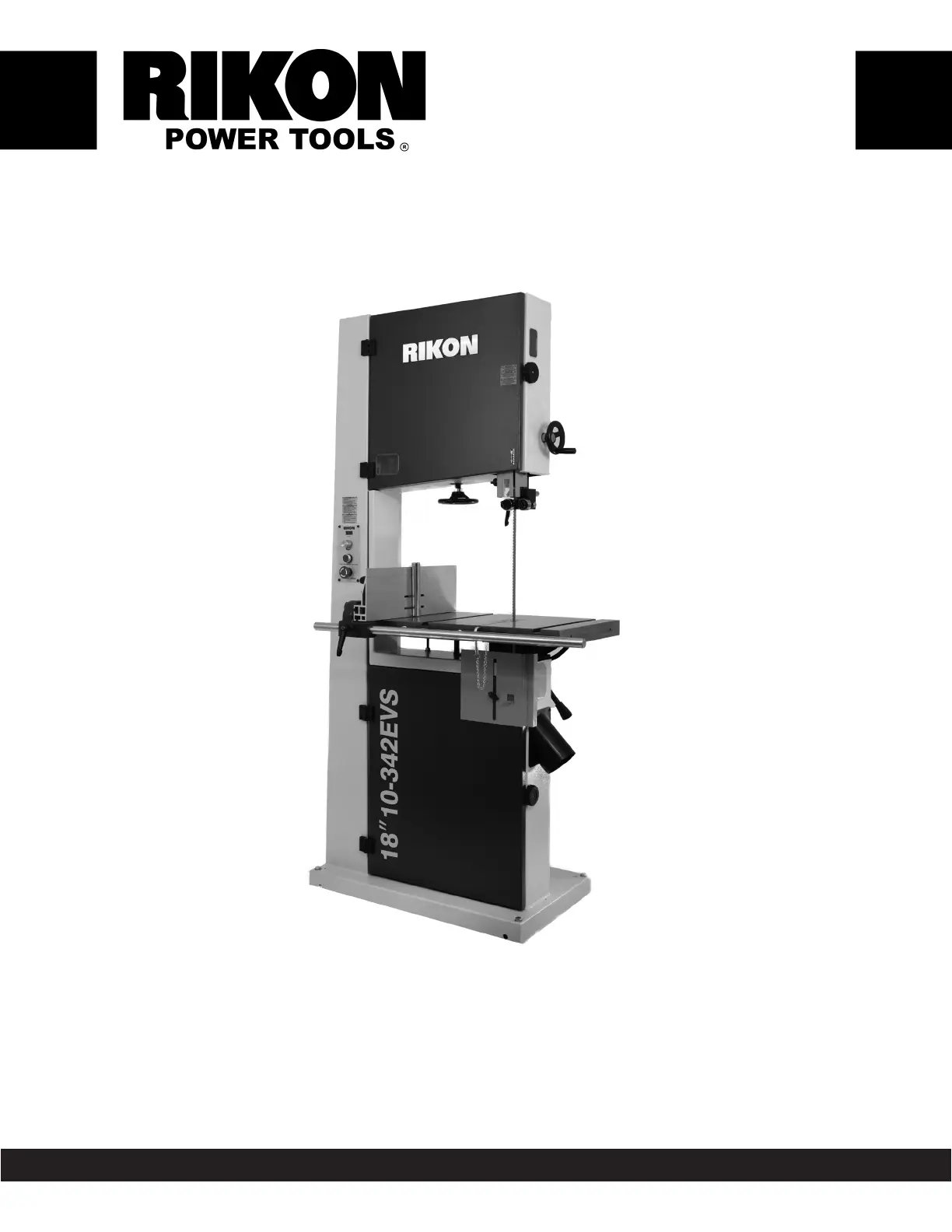

18” Wood/Metal Bandsaw

Operator’s Manual

Serial Number: _________________________ Date of purchase: _________________________

Record the serial number and date of purchase in your manual for future reference.

The serial number can be found on the specication label on the rear of your machine.

Specications.....................................................................................................................2

Safety Instructions ........................................................................................................3 - 6

Getting To Know Your Machine .........................................................................................7

Contents of Package ....................................................................................................8 - 9

Installation .....................................................................................................9

Assembly ........................................................................................................10 - 12

Adjustments...............................................................................................................12 - 20

Operation ...............................................................................................................21 - 23

Wiring Diagram ................................................................................................................23

Maintenance ......................................................................................................23 - 24

Notes ............................................................................................................................24

Troubleshooting ........................................................................................................25 - 27

Parts Diagrams & Parts Lists ..................................................................................28 - 37

Accessories ....................................................................................................38

Warranty ..........................................................................................................................39

TABLE OF CONTENTS

SPECIFICATIONS

Motor .................................................................................. 2.5 HP, TEFC

Motor Speed (no load)............................................................ 1,400 RPM

Volts ................................................................................................ 230 V

Amps, Hertz ........................................................................12.5 A, 60 Hz

Blade Length ..................................................................153” (3,886 mm)

Blade Width ...................................................1/4” - 1-3/8” (6.35 - 35 mm)

Blade Speeds (Low Range) ..................82 - 1,800 ft/min (25 -549 m/min)

Blade Speeds (High Range) .............140 - 3,280 ft/min (43 -1,000 m/min)

Table Size (W x D) .............................. 21-1/2” x 15-3/4” (546 x 400 mm)

Table Side Extension Size (W x D)........ 4-3/8” x 15-3/4” (110 x 400 mm)

Table Tilt ................................................................... Left -10

, Right 45

Maximum Cutting Width (throat) ...................................17-1/2” (445 mm)

Maximum Cutting Depth (height) ....................................... 13” (330 mm)

Table Height ..................................................................35-1/2” (902 mm)

Fence Height ........................................................................ 6” (152 mm)

Fence Length ............................................................... 18-3/4” (475 mm)

Miter Gauge T-Slots (2) ............................... 3/4” x 3/8” (19.05 x 9.5 mm)

Dust Ports (2) ....................................................... 4” Diameter (100 mm)

Base Size ............. 29-11/32” x 18-1/8” x 2-7/16” (745 x 460 x 62.5 mm)

Overall Height ............................................................ 72-7/8” (1850 mm)

Overall Size (WxDxH) ...... 38-1/2”x29-1/8”x72-7/8” (976x740x1850 mm)

Net Weight ................................................................... 403.5 lbs (183 kg)

NOTE: The specications, photographs, drawings and information in this manual represent the current model when the

manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of Rikon

Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in

this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.
